Holybro Pixhawk 5X Flight Controller Module / Baseboard STM32F765 32Bit for RC Multirotor FPV Racing Drone
Introduction:
The Pixhawk5X is the latest update to the successful family of Pixhawk flight controllers, based on the PixhawkFMUv5X Open Standard and the PixhawkAutopilot Bus Standard. It comes with the latest PX4 Autopilotpre-installed, triple redundancy, temperature-controlled, isolated sensor domain, delivering incredible performance and reliability.
Inside the Pixhawk5X, you can find an STMicroelectronicsbased STM32F7, paired with sensor technology from Bosch InvenSensegiving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications. The Pixhawk5X??s F7 microcontroller has 2MB flash memory and 512KB RAM. The PX4 Autopilot takes advantage of the increased power and RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.
The FMUv5X open standard includes high-performance, low-noise IMUs on board, designed for better stabilization. Triple redundant IMU & double redundant barometer on separate buses. When the PX4 Autopilot detects a sensor failure, the system seamlessly switches to another to maintain flight control reliability.
An independent LDO powers every sensor set with independent power control. A newly designed vibration isolations to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. External sensor bus (SPI5) has two chip select lines and data-ready signals for additional sensors and payload with SPI-interface, and with an integrated Microchip Ethernet PHY (LAN8742AI-CZ-TR), high-speed communication with mission computers via ethernet is now supported. Two smart battery monitoring ports (SMBus), support for INA226 SMBus Power module.
The Pixhawk5X is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.
Features:

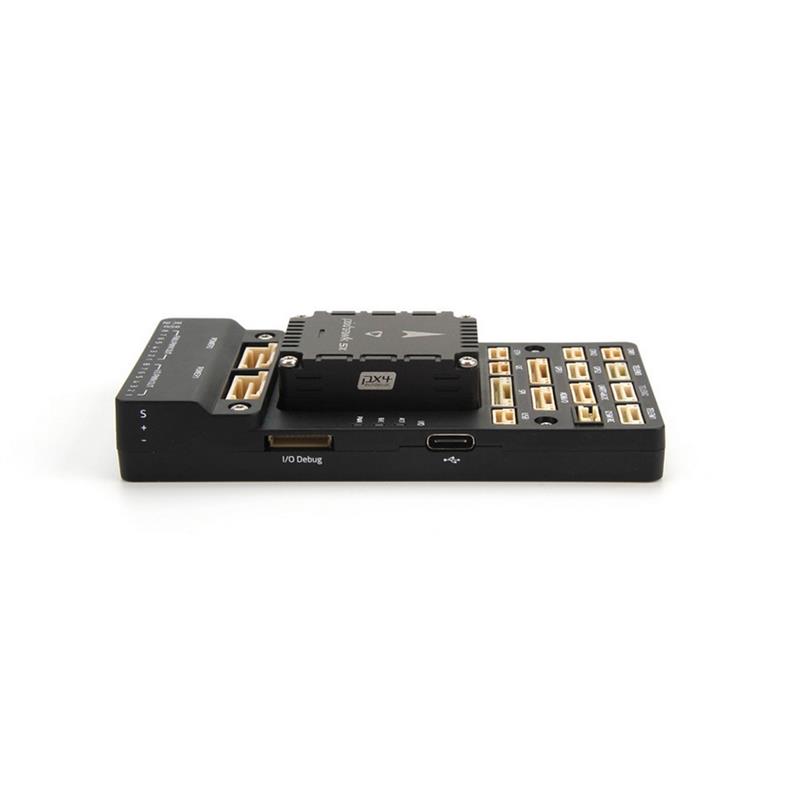

Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin PixhawkAutopilot Bus connector, designed for flexible and customizable systems
Redundancy: 3x IMU sensors & 2x Barometer sensors on separate buses, allowing parallel and continuous operation even in the event of a hardware failure
Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
Newly designed vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
Ethernet interface for high-speed mission computer integration
Automated sensor calibration eliminating varying signals and temperature
IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
Two smart batteries monitoring on SMBus
Additional GPIO line and 5V for the external NFC reader
Secure element for secure authentication of the drone (SE050)
Description:
Brand: Holybro
Item Name: Pixhawk 5X FC Module
FMU Processor: STM32F765 32 Bit Arm Cortex-M7, 216MHz, 2MB memory, 512KB RAM
On-board sensors
Accel/Gyro: ICM-20649
Accel/Gyro: ICM-42688P
Accel/Gyro: ICM-20602
Mag: BMM150
Barometer: 2x BMP388
Electrical data
Voltage Ratings:
Max input voltage: 6V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V
Mechanical data
Dimensions
Flight Controller Module: 38.8 x 31.8 x 14.6mm
Standard Baseboard: 52.4 x 103.4 x 16.7mm
Weight
Flight Controller Module: 23g
Standard Baseboard: 51g

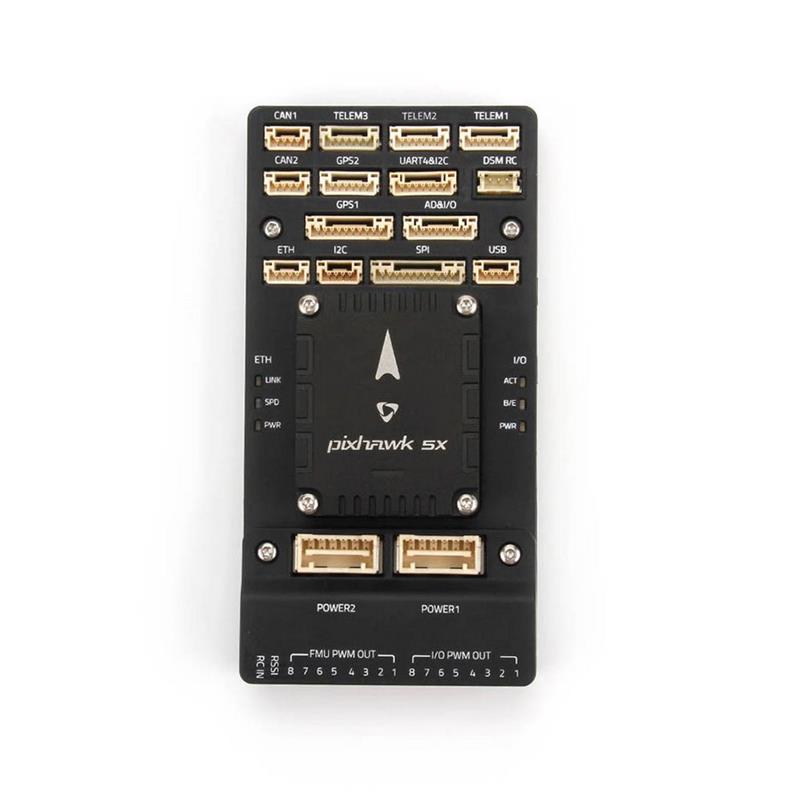

Interfaces
16- PWM servo outputs
R/C input for Spektrum / DSM
Dedicated R/C input for PPM and S.Bus input
Dedicated analog / PWM RSSI input and S.Bus output
4 general purpose serial ports
3 with full flow control
1 with separate 1A current limit
1 with I2C and additional GPIO line for external NFC reader
2 GPS ports
1 full GPS plus Safety Switch Port
1 basic GPS port
1 I2C port
1 Ethernet port
Transformerless Applications
100Mbps
1 SPI bus
2 chip select lines
2 data-ready lines
1 SPI SYNC line
1 SPI reset line
2 CAN Buses for CAN peripheral
CAN Bus has individual silent controls or ESC RX-MUX control
2 Power input ports with SMBus
1 AD & IO port
2 additional analog input
1 PWM/Capture input
2 Dedicated debug and GPIO lines
Package Included(Optional):
1x Pixhawk 5X Baseboard
or
1x Pixhawk 5X FC Module
Product Details
Pixhawk5X_DimensionsPixhawk5X_PinoutPixhawk5X_Spec_OverviewPM02D_Power_Module_Manual
Some Tips:
https://github.com/pixhawk/Pixhawk-Standards/blob/master/DS-011%20Pixhawk%20Autopilot%20v5X%20Standard.pdf
