iFlight Nazgul5 Evoque F5 V2 DeadCat GPS FPV Racing Drone, 5 Inch, HD/Analog, 4S/6S, 130 Km/h Speed

Description

iFlight Nazgul5 Evoque F5 F5D V2 DeadCat GPS Version HD / Analog 4S / 6S 5 Inch FPV Racing Drone

The iFlight Nazgul5 Evoque F5 V2 DeadCat is a high-performance FPV racing drone designed for enthusiasts and professionals. Available in both HD and Analog versions, this drone features the new F5X V2 frame and BLITZ Whoop 1.6W VTX for the Analog version, or Runcam Link WASP for the HD version. It operates on 4S or 6S voltage, offering a maximum speed of 130 Km/h and a flight distance of up to 5 km. With a takeoff weight of approximately 610 grams, it is equipped to handle wind speeds of up to 100 Km/h. The drone includes a GPS module for enhanced navigation and a durable design to withstand various flying conditions.

Notice: It is upgrade into new V2 Version. ( May 12th, 2023. Beijing Time)
USA Warehouse: Still Old V1 Version
CN Warehouse: V1 / V2 stock mix. Will send Randomly.
Diffirence:

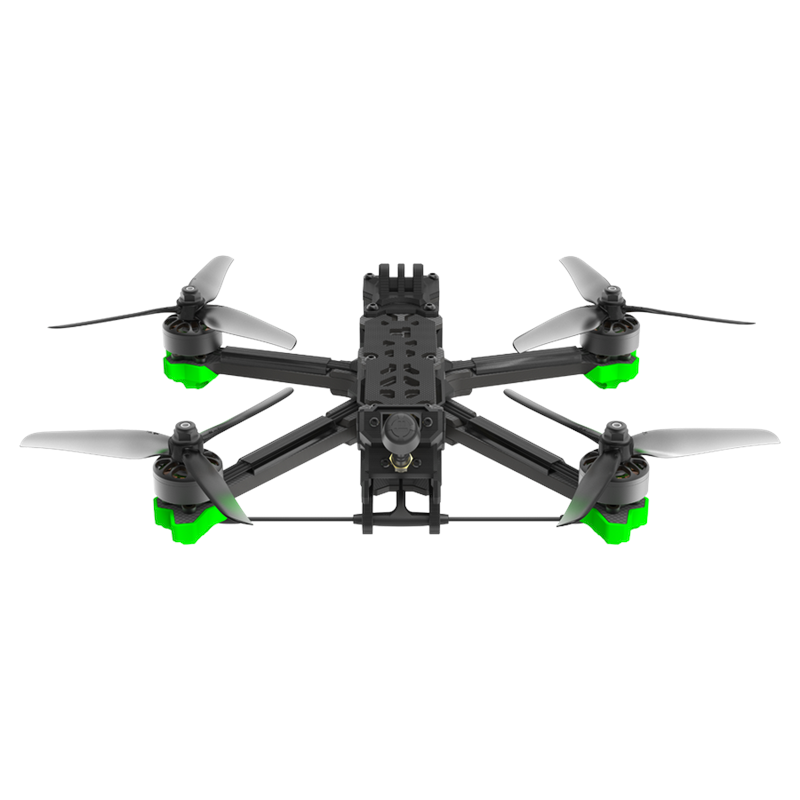

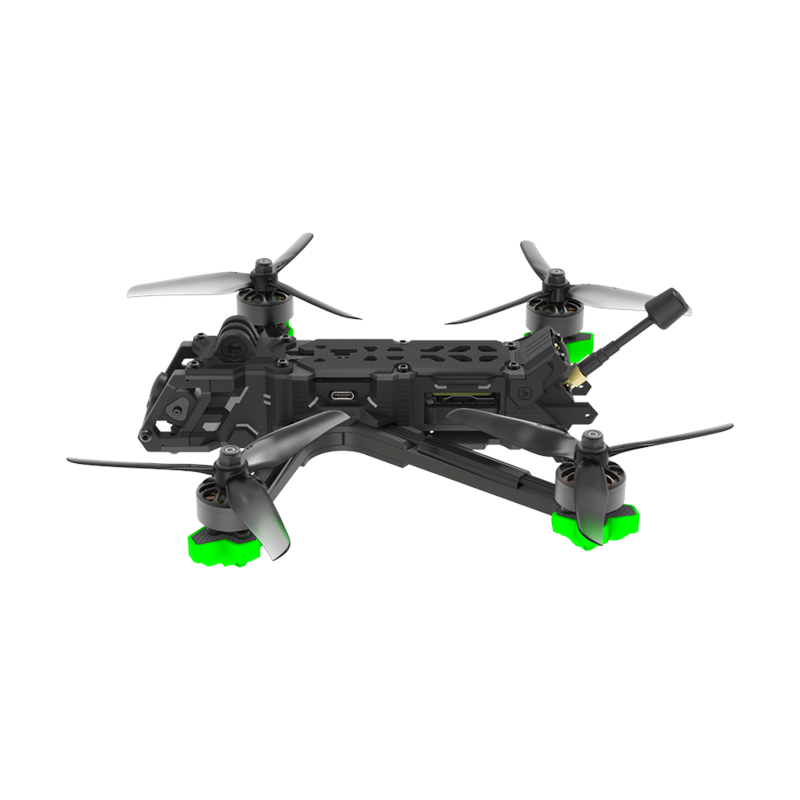

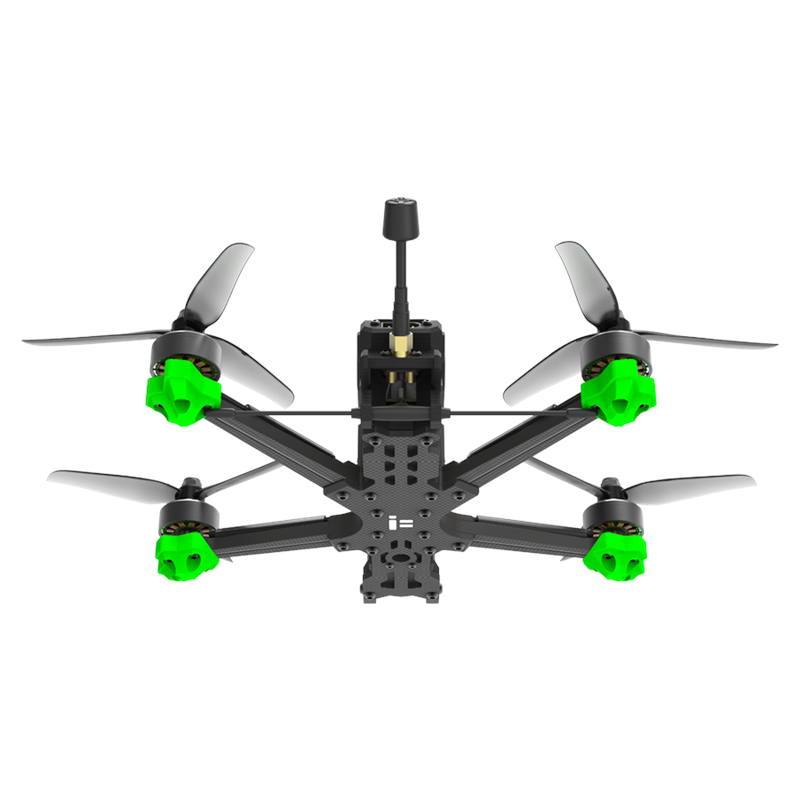

– V2 Comes with New F5X V2 frame ( Like pohotos showed)
– V2 Comes with BLITZ Whoop 1.6W VTX ( Analog Version) ; V2 Comes with Runcam Link WASP ( HD Version)
V1 is 5.8GHz SucceX Mini Micro 600mW VTX ( Analog Version)
Specifications:
Brand: iFlight
Model: Evoque F5 V2( F5D, DeadCat Type)
Version: Analog / HD ( Optional)
Voltage: 4S / 6S ( Optional)

Evoque F5 F5D V2 Analog

Weight: 445grams
Takeoff Weight: Approx. 610 g
Dimensions (L℅W℅H): 190℅136℅36 mm
Diagonal Distance: 225 mm
Max Speed: 130 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 8 mins
Maximum Flight Distance: 5 km
Max Wind Speed Resistance: 100 Km/H (Level 5)
Operating Temperature Range: -10～ to 40～ C (14～ to 104～ F)
Antennas: Single Antennas

FC // BLITZ Mini F7 Flight Controller ㄗHD & Analogㄘ
( Link)

MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5×27 mm
Weight: 5g

ESC // BLITZ Mini E55 4IN1 ESC (HD & Analog)
( Link)

– DIMENSION: 35*42MM
– MOUNTING HOLES: 20*20MM/朴4MM
– WEIGHT: 11.3G
– SUPPORTS 2-6S LIPO INPUT
– MCUㄩ G071
– CONSTANT: 55 AMPS
– BURST: 60 AMPS
– CURRENT SENSOR: YES
– BEC: NO
– CURRENT RATE: 100
– SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC.
– FIRMWARE: BLHELI 32
– TARGET: IFLIGHT_BLITZ_G1

XING-E Pro 2207 Motor
( Link)

4S Version: 2207 2750KV
6S Version: 2207 1800KV

VTX & Camera (HD)

CADDX Nebula Pro Vista HD Digital System

VTX & Camera ( Analog)

VTX:
Product Name: BLITZ Whoop 1.6W VTX
Input voltage: 7V‵34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5×30.5mm/朴3
Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW
Camera:
RaceCam R1 Mini 1200TVL 2.1mm lens 19*19 FPV Camera

M8Q-5883 GPS
GPS module: GPSSAM-M8Q
Frequencies: 72 channel
Compass module: QMC5883L
Baud Rate: 4800bps-115200bps (Default – 9600bps)
Sensitivity: Tracking: -162dBmㄛ Capture: -160dBmㄛCold Startㄩ-148dBm
Cold start: <29s
Hot start: <2s
Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
Maximum height: 50.000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: 汨 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 15 x 15 mm
Total dimensions: 20 x 20 x 10.5 mm
Weight: 8g
Input Voltage: 3.3V-5Vㄛcurrent 25mA
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA

Package Included:
1 x Nazgul5 Evoque F5 V2 F5D HD/Analog FPV Drone (Deadcat)
1 x GPS
4 x Nazgul F5 Prop
2 sets of Battery Pads
4 x Battery straps
1 x Screws bag
