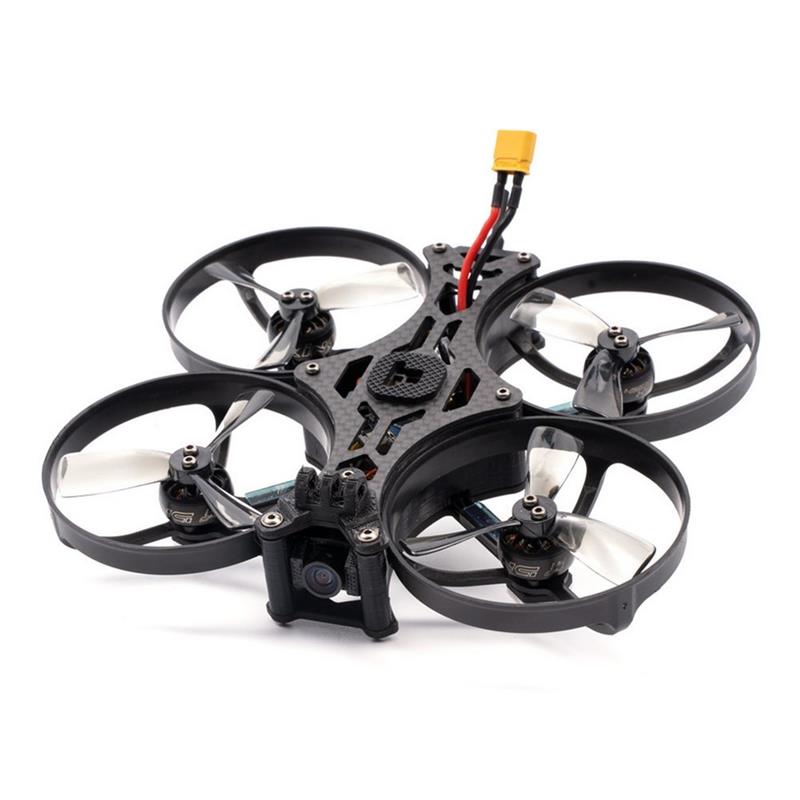

iFlight Protek R25 HD 113mm Wheelbase Whoop AIO F4 20A ESC 4S 2.5 Inch FPV Racing Drone ELRS 2.4G BNF w/ CADDX Vista Polar Nano HD Digital System
$546.23 Original price was: $546.23.$462.91Current price is: $462.91. Select options
Sale!

iFlight Protek R25 HD 113mm Wheelbase Whoop AIO F4 20A ESC 4S 2.5 Inch FPV Racing Drone ELRS 2.4G BNF w/ CADDX Vista Polar Nano HD Digital System

SKU: RC1958030

Original price was: $546.23.Current price is: $462.91.

-15%

Shipping fast worldwide

  • Dispatch:Usually will be shipped in 24 hours
  • Shipping Time:Expedited Express 6-8 business days
  • Secure Payment:Paypal,VISA,MasterCard
Guaranteed Safe Checkout

trust pay

iFlight Protek R25 HD 113mm Wheelbase Whoop AIO F4 20A ESC 4S 2.5 Inch FPV Racing Drone ELRS 2.4G BNF w/ CADDX Vista Polar Nano HD Digital System

Specification:
Brand Name: iFlight
Model: Protek R25 HD
Item Name: 113mm 2.5 Inch FPV Racing Drone
Wheelbase: 113mm
Bottom plate thickness: 2.5mm
Top plate thickness: 1.5mm
Arm Thickness: 2.5mm
Body Size: 143mm*158mm
Weight: 147.5g (without battery)

Whoop AIO F4 V1.1 Flight Controller
Integrated with 20A ESC
( Diagram Picture)
Mounting pattern: 25.5*25.5mm/??3mm
Firmware Target: IFLIGHT_F411_PRO
Constant current: 20A5 A(Burst)
Config: IFLIGHT_F411_PRO.config
Connector: Micro-USB
ESC Firmware: Q-H-15
Current sensor: yes
BEC output: 5V 2A
ESC Telemetry: NO
Size: 30.5*30.5mm
MCU: STM32F411
BLHeli: BLHeli-S
Barometer: NO
Blackbox: 8MB
Gyro: BMI270
IN Apad: nR2
Weight: 7.4g
Input: 2-4S
XING X1404 4600KV Motor Voltage: 2S-4S
KV: 4600KV
-Configuration: 9N12P
-Stator Diameter: 14mm
-Stator Length: 4mm
-Shaft Diameter:2mm
-Motor Dimensions(Dia.*Len): ??18.3??12.5mm
-No.of Cells(Lipo): 2-4S
-Max Continuous current(A): 11.8A
-Max Continuous Power(W): 174.6W
-Internal resistance: 0.28??
-Weight: 8.5g(without cable)
-Mounting pattern: 9*9*??2mm
-Bearing: 5*2*2.5mm
Nazgul 2525 propeller Quantity: 2 CW + 2 CCW
Color May Vary
CADDX Vista Polar Nano HD Digitaly System CADDX Vista HD + Polar Nano Camera

Package Included:
1x iFlight Protek R25 HD FPV Drone
1x Albatross ipex LHCP 5.8g 75mm antenna
1x Battery Strap








Additional information

Weight 0.2 kg
Receiver: No selection

ELRS 24GHz
