WPL V3 Diesel Version Upgraded Sound System All-in-one Electronics 1/16 RC Car Spare Parts
Upgrade your 1/16 RC car with the WPL V3 Diesel Version Sound System, featuring an all-in-one design for enhanced performance. This system includes a built-in ESC, servo control, winch control, and gear shift, along with a sound module and light control. It supports 2-3 S PWM output for external ESC and offers low voltage protection. The V3 version introduces PWM output for external ESC, auto drag brake at low gear, and improved throttle modulation. Compatible with WPL 1/16 RC cars equipped with an upgraded 370 motor and 7.4v battery, this system is not backward compatible with V2. Note: Requires two AA batteries for the remote controller (not included).
Description:
Item Brand:WPL
Item Name:Engine sound system
Material:Plastic and electronic components
Color:As the picture shown
Product Size:
Remote Controller:190x75x120mm
Circuit Board:49X28x9.8mm
Horn:28X28X25mm
Packaging Weight:About 223g
Compatible:WPL 1/16 rc car,should have upgraded 370 motor and 7.4v battery

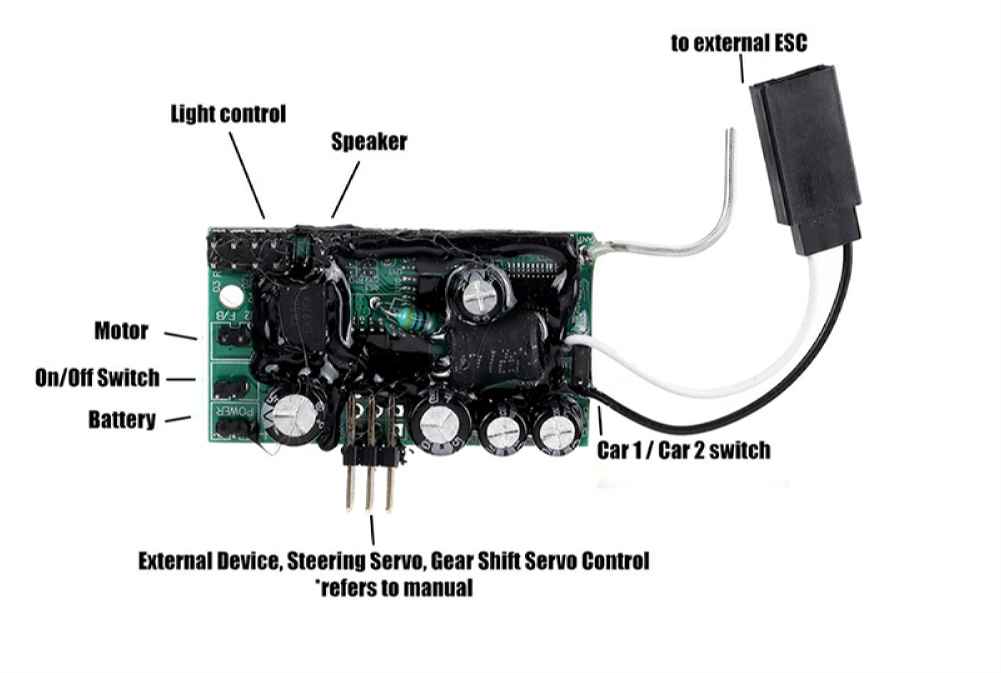

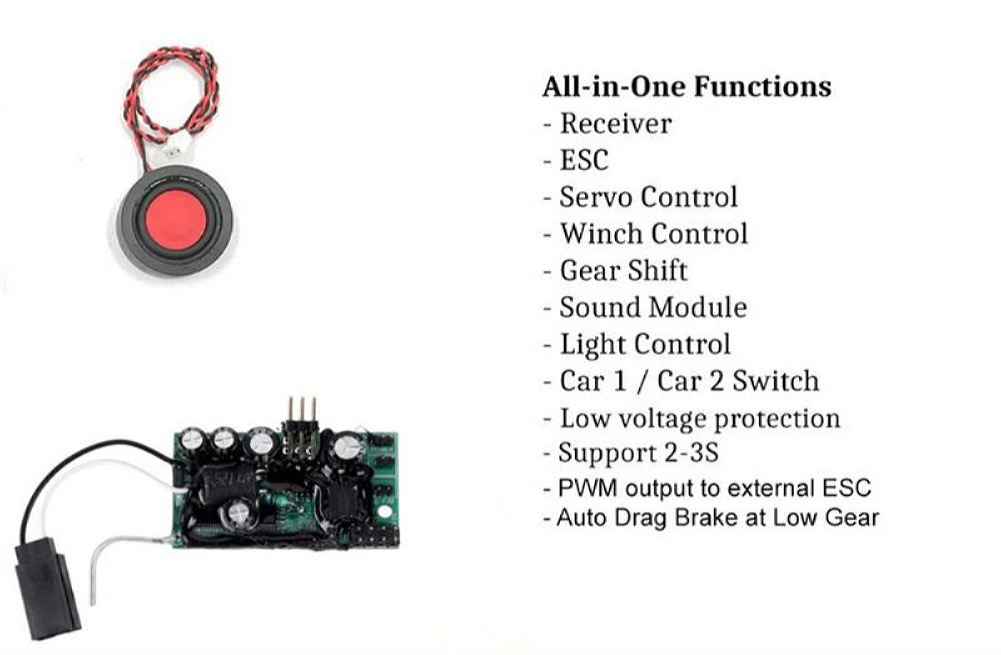

All-in-one Functions:
Receiver
Buit in ESC(14A)
Servo Control
Winch Control
Gear Shift
Sound Module
Light Control

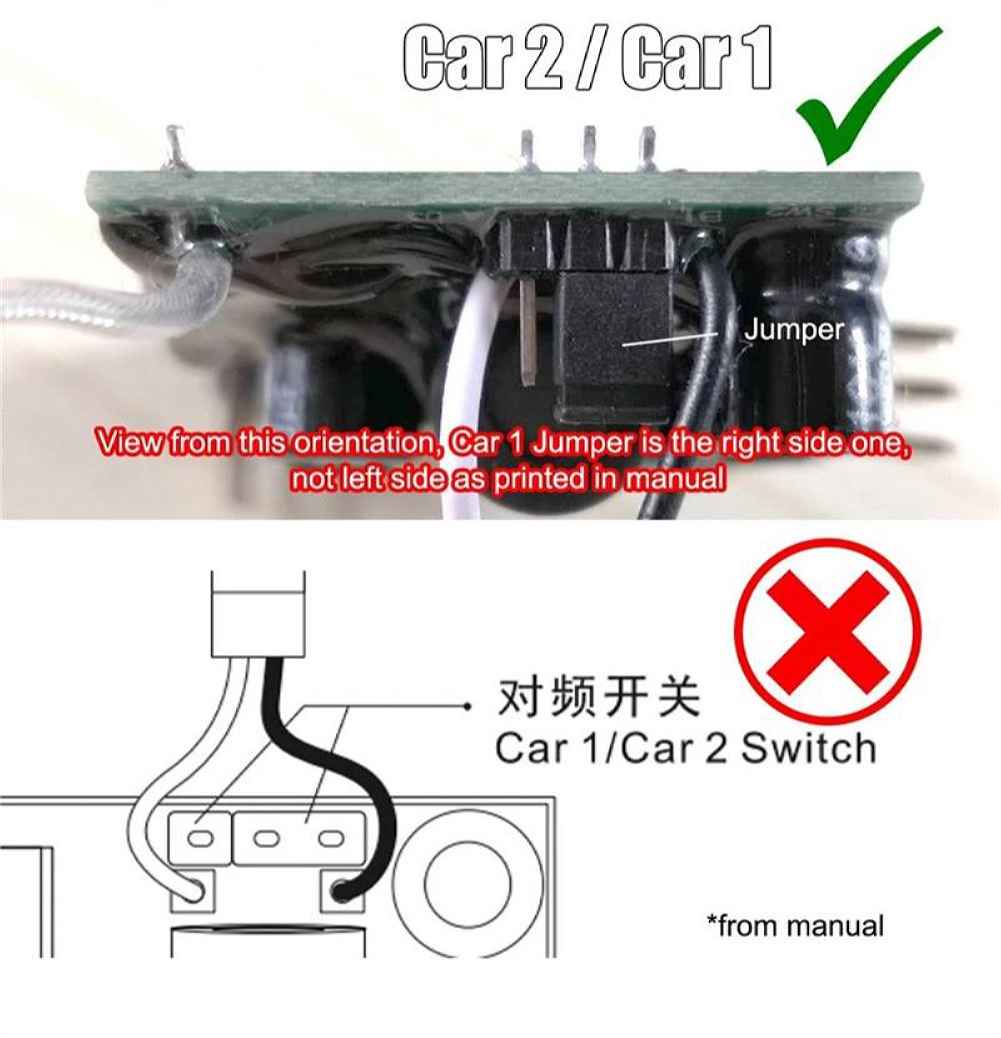

Car 1/Car 2 Switch
Low voltage protection
Support 2-3 S
PWM output for External ESC
Auto Drag Brake at Low Gear
Diesel Sound
Low Voltage Protection:
2S-6V
3s-11V
Specification:
ESC max supported current:14A(under-load)
Requires two AA batteries for remote controller(not included)
What’s new in V3 vs V2:
PWM output for external ESC
Added Auto Drag brake at low gear(manual braking at high gear)
Impoved/Fixed:
Doubled the ESC amp output
Triple radio signal
Even better throttle modulation
Gear shift now starts at high gear
Tips:
Not recommended to use on 130/180 size motor without 104 capacitor,cause interference to sound.370 motor is fine
Not backward compatible with V2 sound system

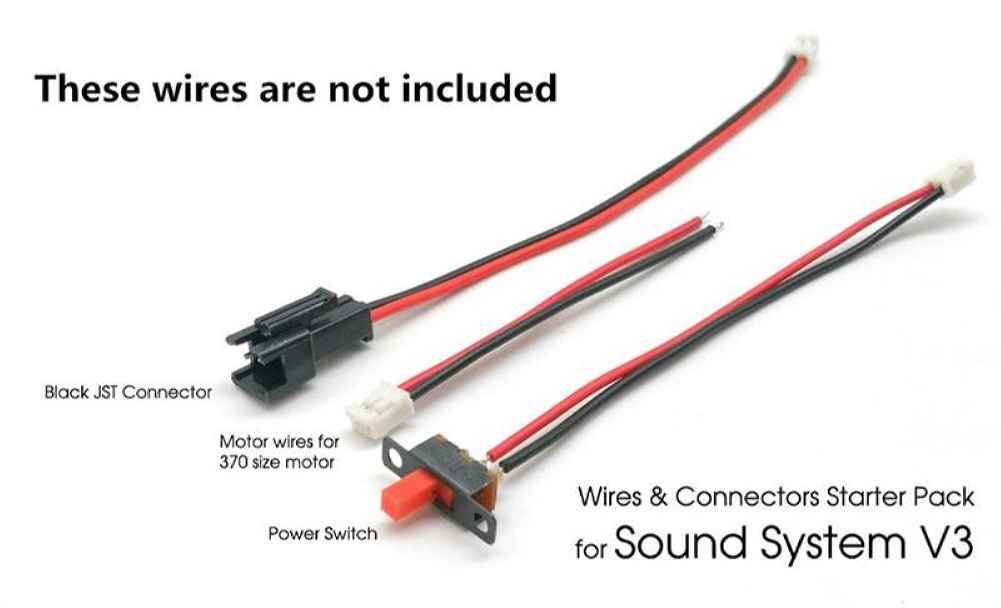

The set doesn’t come with any plug/battery connector,you may use your own that fits
Doesn’t work with the yellow color 6v 700mah Ni-cd battery
If you’re an single speed gear,gear shift button becomes the on/off for auto drag brake
Actual receiver may look a little different but function is the same
Recommended to use on WPL’s 370 motor,the 130/180 tend to have interference issue unless 104 caps added

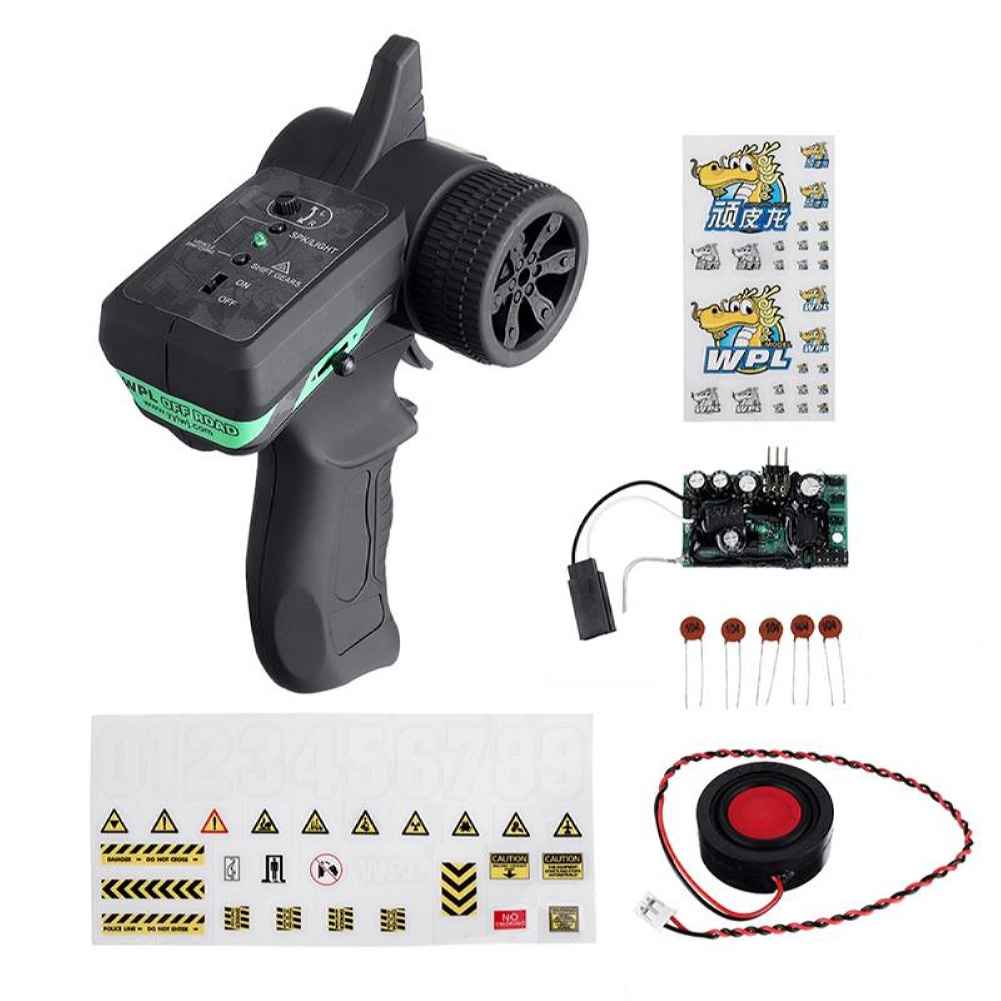

Package Included:

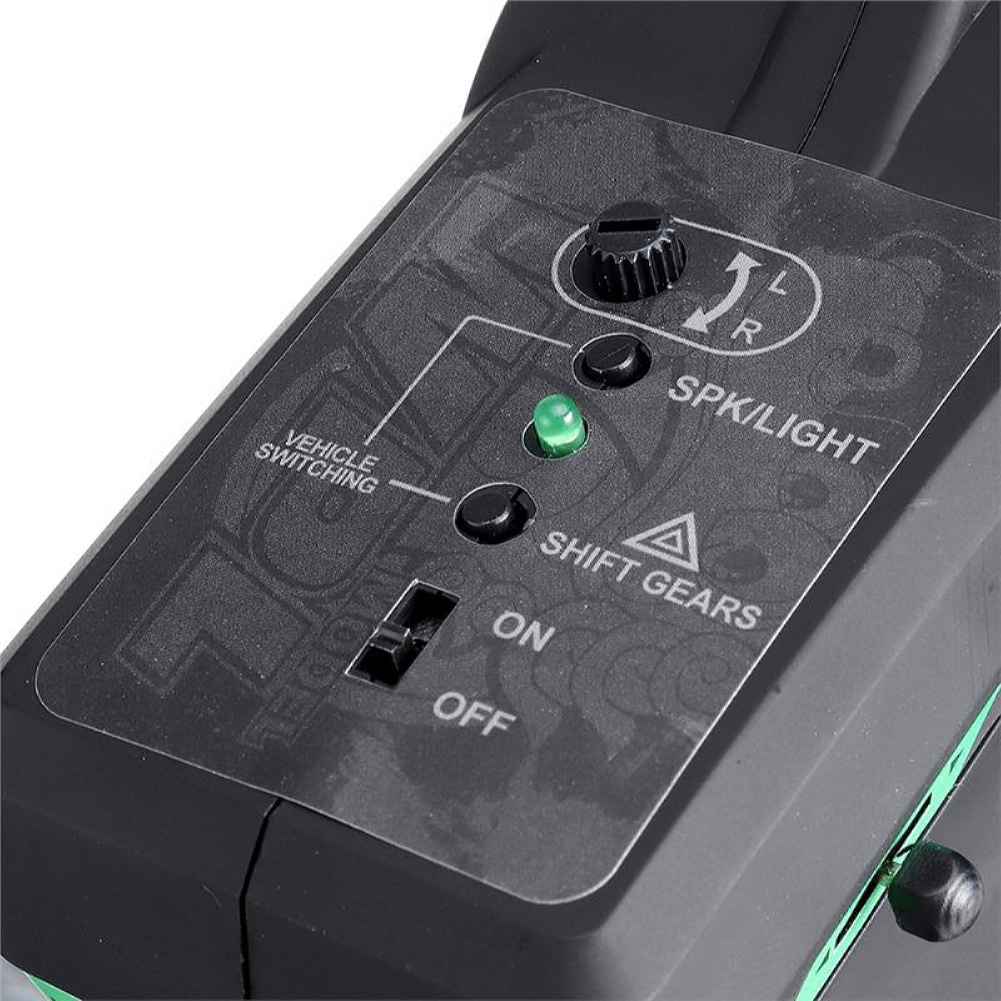

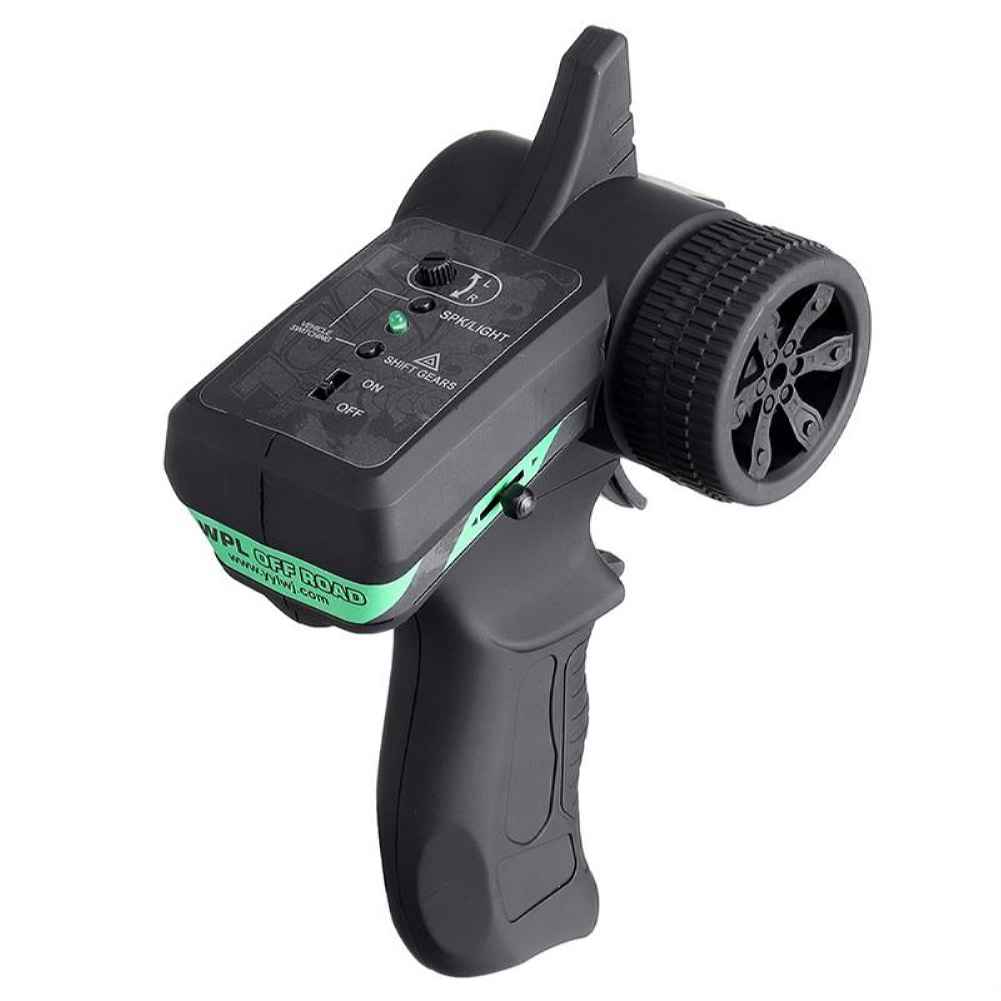

1 x Remote Controller
1 x Circuit Board

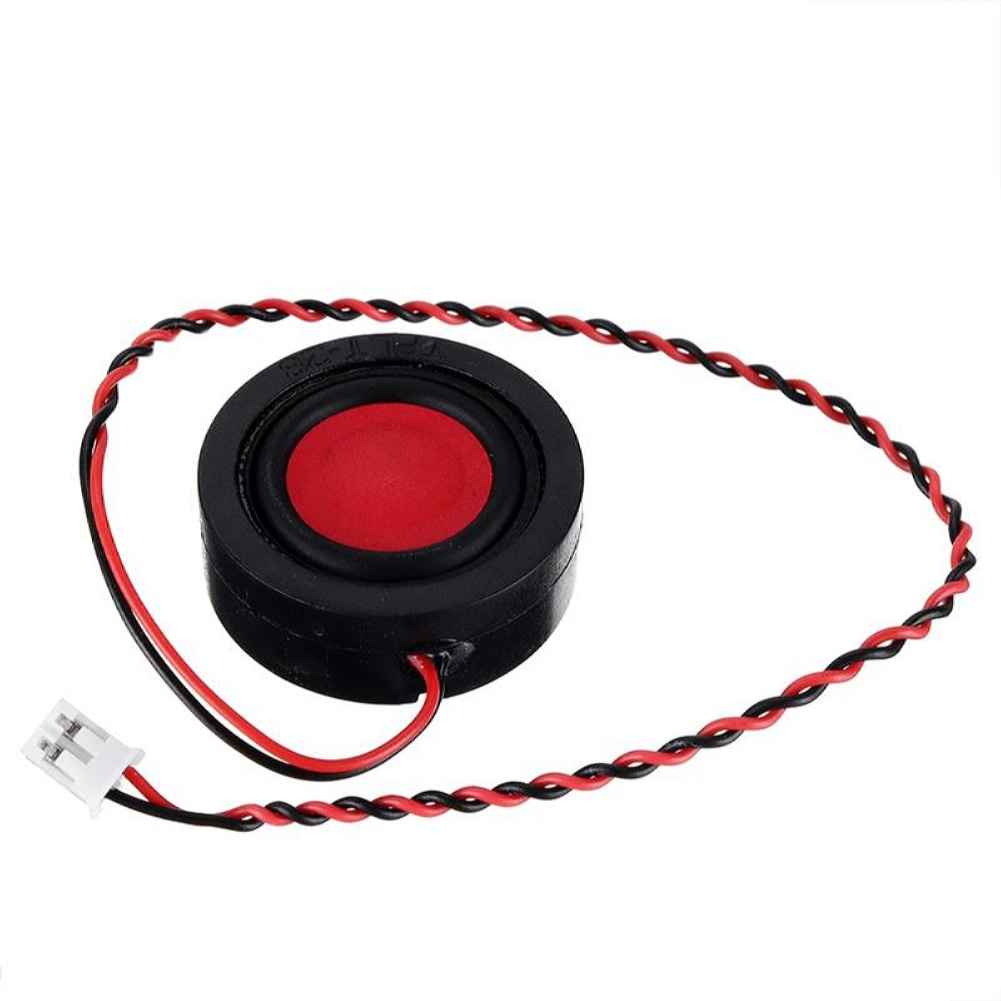

1 x Horn
1 x Manual
1 x Sticker Sheet
5 x Resistances
