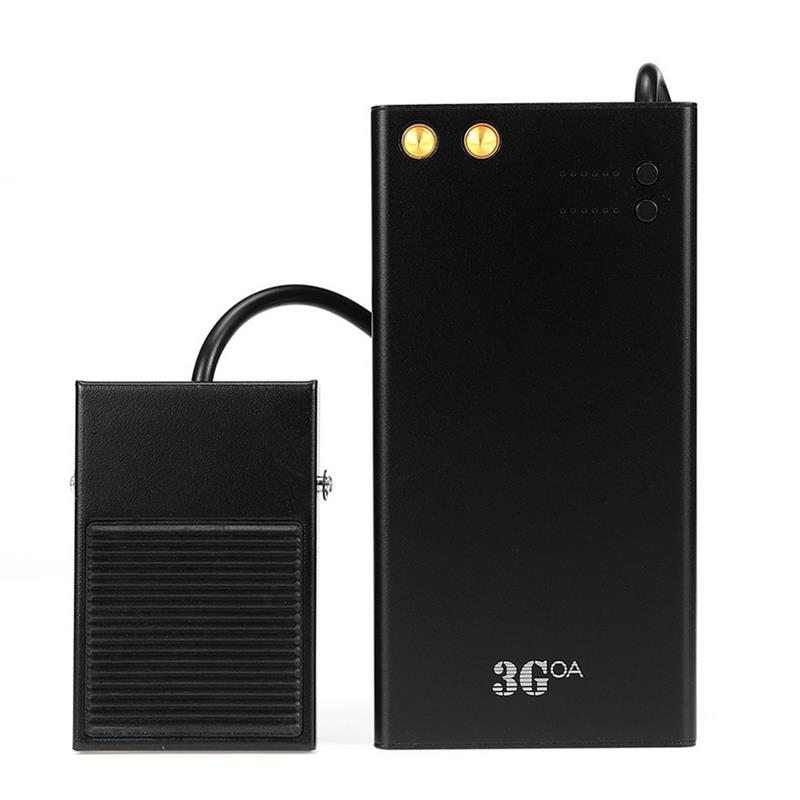

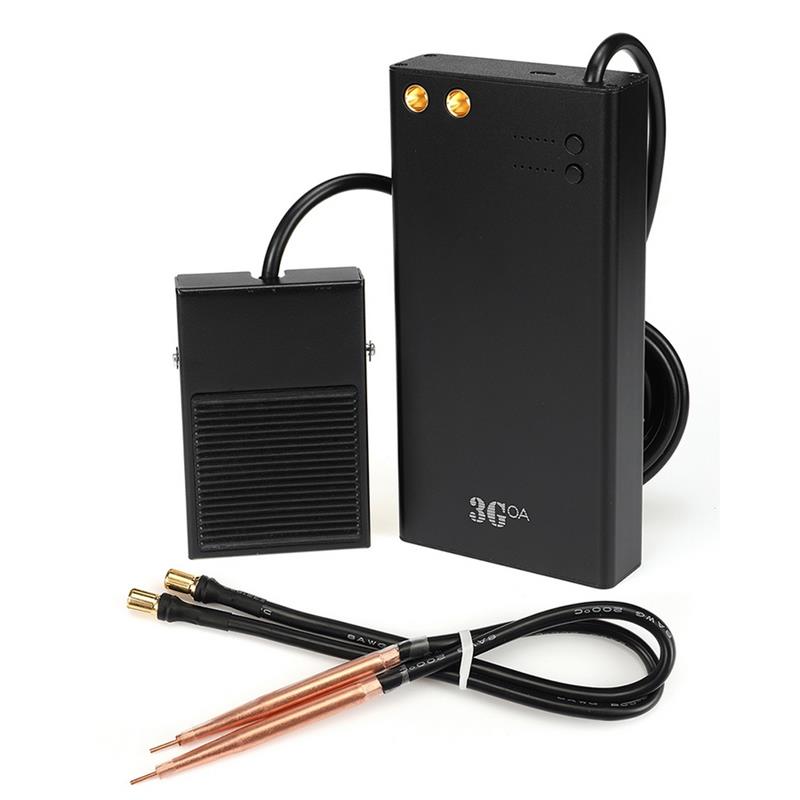

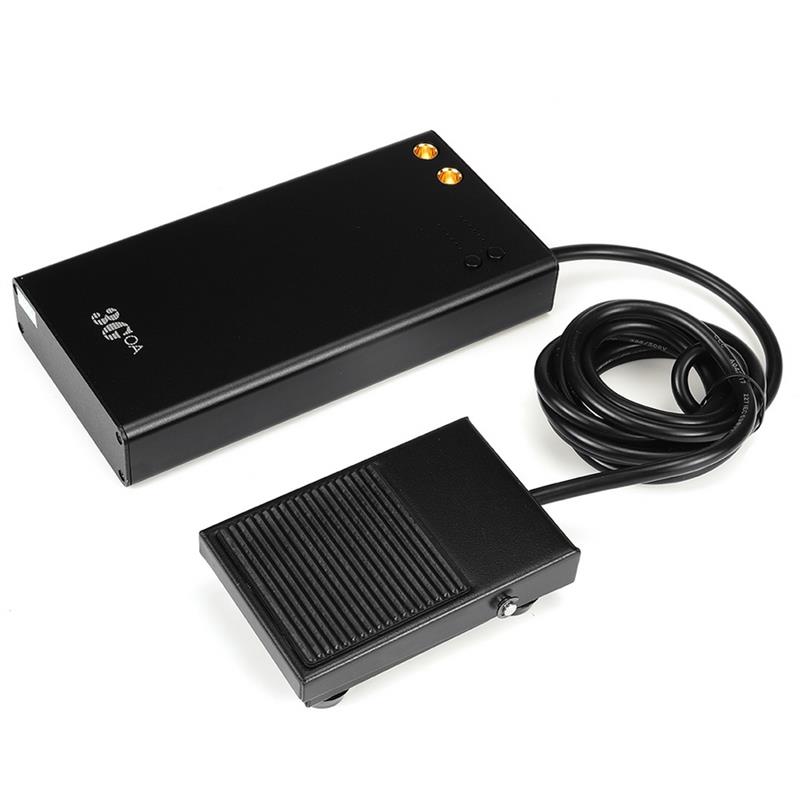

Kerpu 6-Gear Adjustable Mini Spot Welding Machine with 7500mAh Lithium Battery Type-C Interface

Kerpu 6-Gear Adjustable Mini Spot Welding Machine with 7500mAh Lithium Battery Type-C Interface

Features:
Made of selected aluminum alloy material, with surface anodizing treatment, featuring wear resistance and long service life.
Integrated electric welding pen, gold-plated terminal & copper pen holder & copper aluminum oxide welding pin, with fine conductivity and low contact resistance, quickly detachment and easy carrying.
400mm long spot welding pens for more flexible operation.
Thickened 2mm pure copper strip, supply low internal resistance to increase over-current capability.
The temperature control probe for temperature control protection, it will automatically shut off when the temperature is higher than 60
It can weld hundreds of welding spots on common nickel-plated sheets within 0.1mm~0.12mm.
6-gear of output power adjustable to achieve more accurate welding. Output power indicators (RED): light up the corresponding number of indicators according to the output gears.
Electricity indicators (BLUE): light up the corresponding number of indicators according to electric quantity. (1-indicator: 5%~25%, flashing when<5%); 2-indicator: 25%~50%; 3-indicator: 50%~75%; 4-indicator: 75%~100%)
Automatic Mode / Manual Mode adjustable, with output mode indicator light. (automatic mode: left yellow light on; manual mode: right yellow light on)
Built-in 5V 7500mAh Rechargeable high-rate polymer power lithium battery & Type-C interface, support full recharged within 3 hours through the equipped USB cable, and the maximum output current is up to 650A.
Mainly used for the welding of nickel sheet (0.1mm~0.12mm) of cylindrical battery, NI-MH battery, 18650 nickel cadmium battery and so on.
Specifications:
Material: Aluminium alloy
Color: Black
Power Supply: 2 * 5V 7500mAh rechargeable lithium battery
Interface: Type-C interface
Input Current: 5V / 2A
Output Voltage: 4.2V (MAX)
Output Current: 650A (MAX)
Design Current: 1000A (MAX)
Gear: 1~6 gears adjustable
Recommended Thickness of Nickel Strip: 0.1mm~0.12mm
Electrode Length: 400mm / 15.75in
Welding Pin Diameter: 1.6mm / 0.06in
Welding Machine Size: Approx. 178*87*27mm / 7.01*3.43*1.06in
Package Size: Approx. 260*150*50mm / 10.24*5.91*1.97in
Package Weight: Approx. 680g / 23.99oz
Packing List:
1 * Spot Welding Machine
2 * Spot Welding Pen
1 * Type-C Cable
1 * File
1 * 5M Nickel Strip
1 * User Manual
