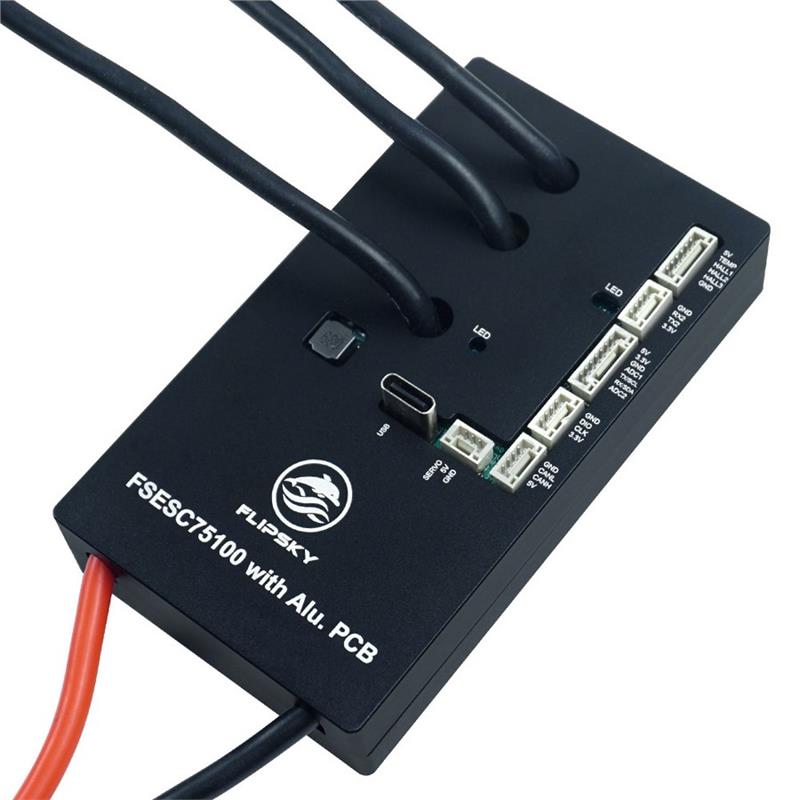

Flipsky 75100 With Aluminum PCB for Electric Skateboard / Scooter / Ebike Speed Controller RC Models Parts

Flipsky 75100 With Aluminum PCB for Electric Skateboard / Scooter / Ebike Speed Controller RC Models Parts

Description:
Specs:
Size:L103mm*W58mm*H18.5mm+5.9mm USB TYPE
Voltage:14-84V (4-20S)
Current:100 AContinuous,burst 120A
BEC:5V@1.5A
Support BLDC square wave mode control and FOC sine wave mode
Firmware:latest (firmware update supported)
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI??HALL??AS5047??AS5048A
Input Set Support:PPM??ADC??NRF,UART
Wire Size:12AWG
Programmable:Yes
Regenerative Capacity:Yes
Warm Tips:
Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose ‘false’ in vesc_tool when use firmware version on or above 5.3. Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
YouTube:https://bit.ly/3IIV0ci
Blog:https://bit.ly/3JBRRMR
Package Included:
1X 75100 ESC
