Description:
Brand: Matek Systems
Model: ELRS-R24-P6
Item: PWM Receiver
ESP8285, SX1281
Antenna connector: IPEX MHF 1
6x PWM outputs
Support 2~8S VBat voltage sense
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: 12dbm
Receiver output protocol: PWM

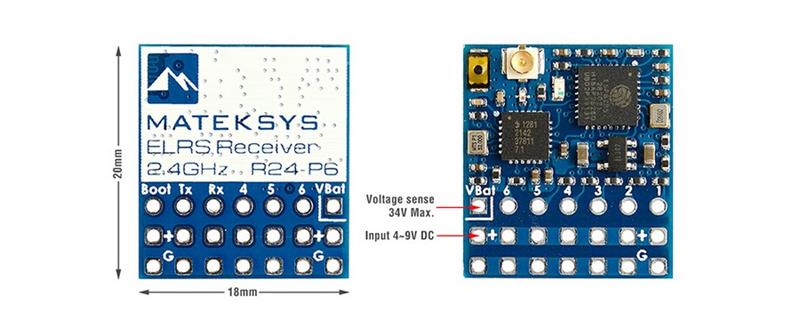

Input voltage: 4~9V DC @ pad
Voltage sense: 34V Max. @ ??VBatpad
Power dissipation: 45mA(binding), 85mA(wifi mode)
PCB size: 20mm x 18mm
Weight: 2g w/ antenna

Firmwares
* ExpressLRS 3.0 or newer, DIY 2.4GHz / DIY 2400 RX PWMP EX.
* ExpressLRS wiki for PWM receiver, Click HERE
* Make sure Receiver and TX module both are running ExpressLRS 3.0 or newer.
??????????????????????????????????
* Receiver has ExpressLRS 3.0 preloaded with binding phrase ‘123456’, the Receiver will never enter binding mode if using the traditional binding procedure.
* You need to reflash it with your binding phrase OR go into WebUI to set your binding phrase.
Flashing via Wifi
* Disconnect ESC and servos from receiver first.
* Power on receiver by 5V source. Receiver’s LED(Red) will blink slow at first, and after 20s, it should blink fast indicating it’s on Wifi Hotspot Mode.
* More detailed steps, pls refer this page.
* Target: DIY 2.4 GHz / DIY 2400 RX PWMP EX.
Flashing via UART
* Disconnect ESC and servos from receiver first.
* Wire the receiver into the USB-TTL adapter, with TX on receiver connected to the Rx on the USB-TTL, and RX on receiver connected to the Tx of the USB-TTL. Wire 5V and GND of the USB-TTL to 5V and GND of the Receiver.
* Press the boot button while powering on the receiver, then release the Red LED on receiver should now be solid.
* Select the target DIY 2.4 GHz / DIY 2400 RX PWMP EX and ??UARTfor Flashing Method, set your bind phrase and Firmware Options and once done, click on Build and Flash.
Package Included:
1x Matek Systems ELRS-R24-P6 Receiver

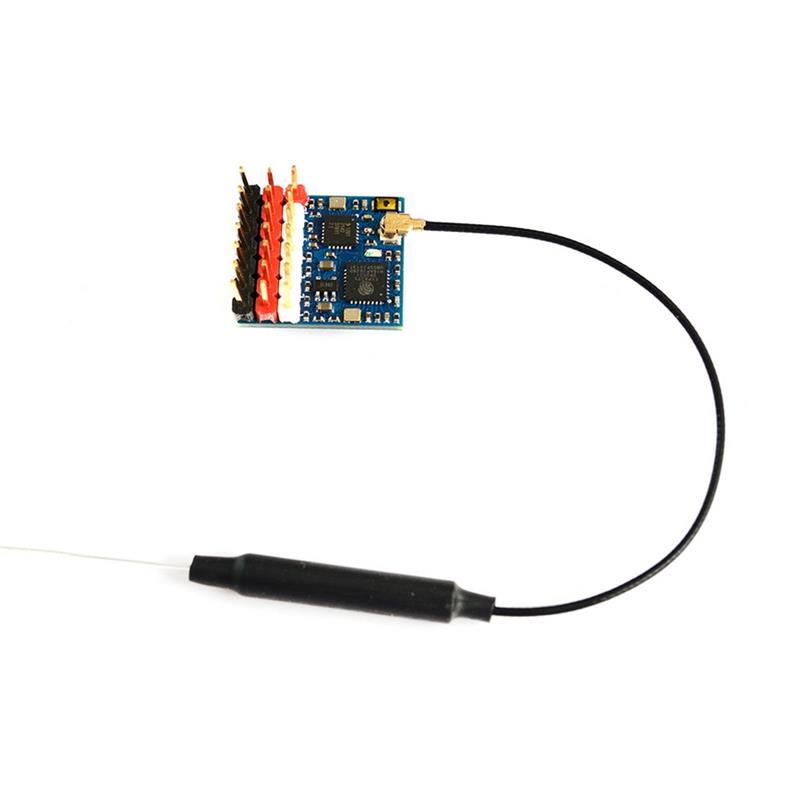

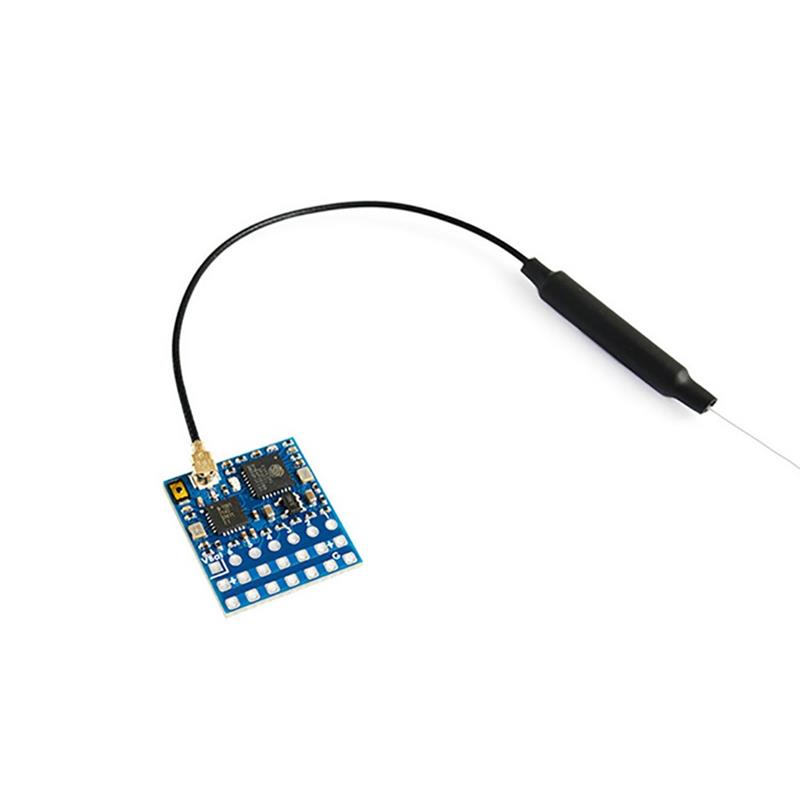

1x IPEX MHF1 Antennas. 15cm
Dupont 2.54 pins (Board is shipped unsoldered)
