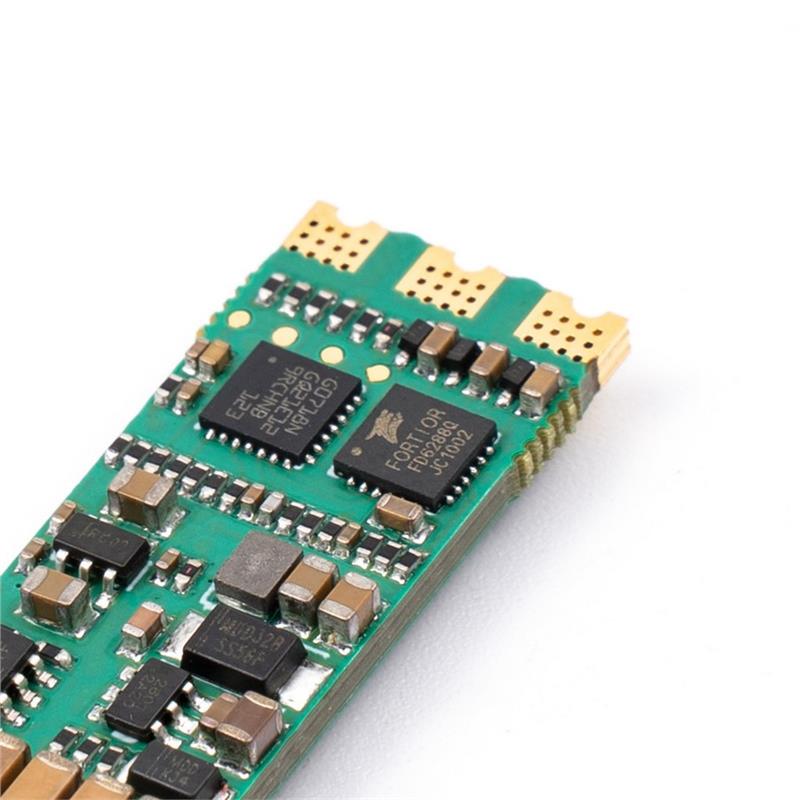

iFlight 2-6S BLITZ E55 ESC Support Dshot600/Proshot/Oneshot/Multishot for FPV Racing RC Drone
Top Features:
– 8 layers double-sided PCB board
– 3oz 1.4mm thick board
– 32bit F051 MCU, 48kHz maximum clock speed
Specification:
Supports up to Dshot600, Proshot, Oneshot, Multishot
Constant: 55 A/ Burst: 60 A(10S)
Up tp 48kHz PWM frequency
Target: IFLIGHT_BLITZ_G3
BlHeli32 telemetry: Yes
Firmware Version: 32.9
Dimensions: 35*13mm
Current Sensor: Yes
Input: 2-6S LIPO
RGB LED: Yes
Weight: 4.7g
MCU: G071
BEC: No
RECOMMENDATION:
– No additional capacitor needed up to 5S!
– But to ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!
Package Includes:
1* BLITZ E55 55 ASingle ESC
Additional information
| Weight | 0.018 kg |
|---|
