iFlight BEC 2-8S 5V 2A 12V 3A Switchable for RC Drone FPV Racing Multi Rotor

iFlight BEC 2-8S 5V 2A 12V 3A Switchable for RC Drone FPV Racing Multi Rotor

iFlight BEC 2-8S 5V/2A 12V/3A Switchable for RC Drone FPV Racing Multi Rotor

The iFlight Mirco BEC features step-down switch mode, high-efficiency synchronous rectification, and the ability to step down from an input voltage of up to 36V to a low output stable voltage, which makes it ideal for step-down voltage applications.

It offers a very compact solution to achieve 2A/3A output current over a wide input supply voltage (5 to 36V).

Short connect ON-12V, the output voltage is 12V 2A. When disconnected, the output voltage is 5V 3A.

Description:
Brand name: iFlight
Item name: 2-8S BEC
Input voltage: 2-8S(5-36V)
BEC Output: 5V/2A, 12V/3A (default 5V/2A)
Size: 14*11*1mm
Pins distance: 2.54mm

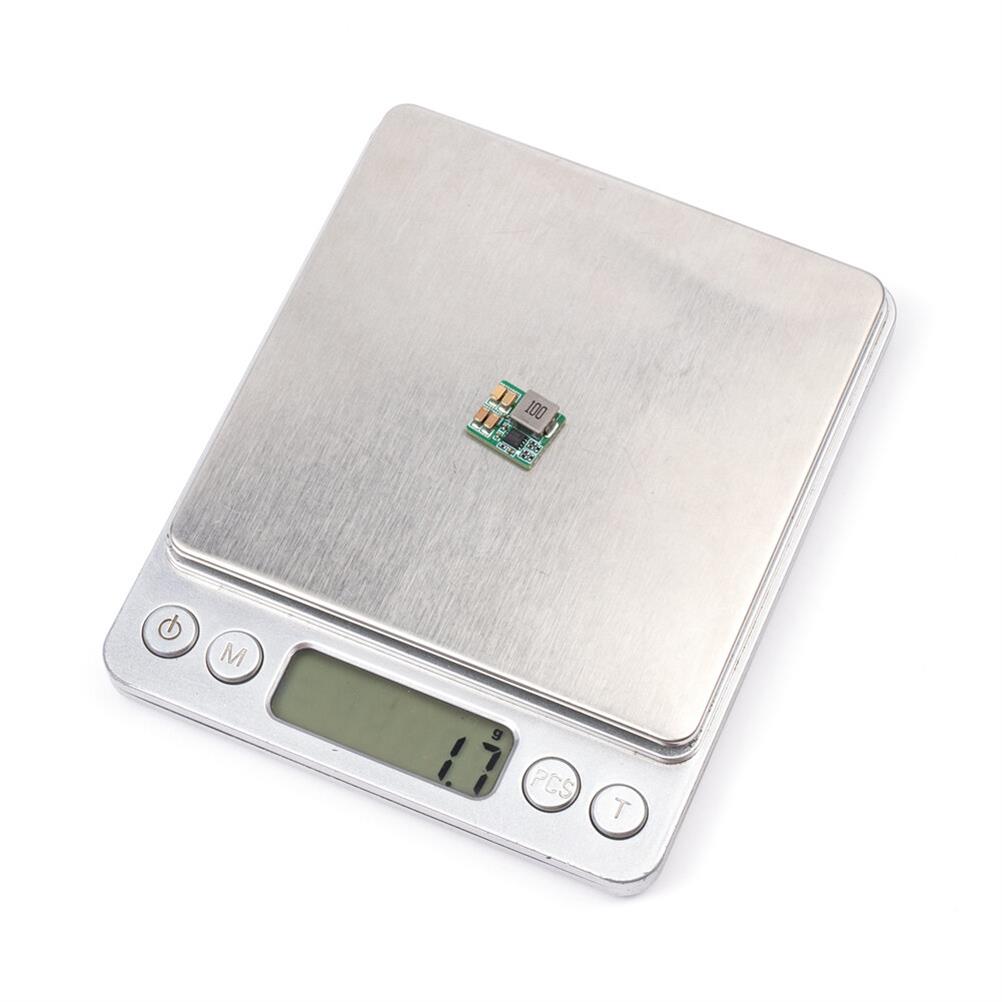

Weight: 0.8g

Features:
Step-down switch mode
High-efficiency synchronous
Wide 5V to 36V Input voltage range
Voltage output can be 5V or 12V adjustable. (default 5V)

Package included:
1 x iFlight 2-8S BEC
1 x connecting cable set
