Description

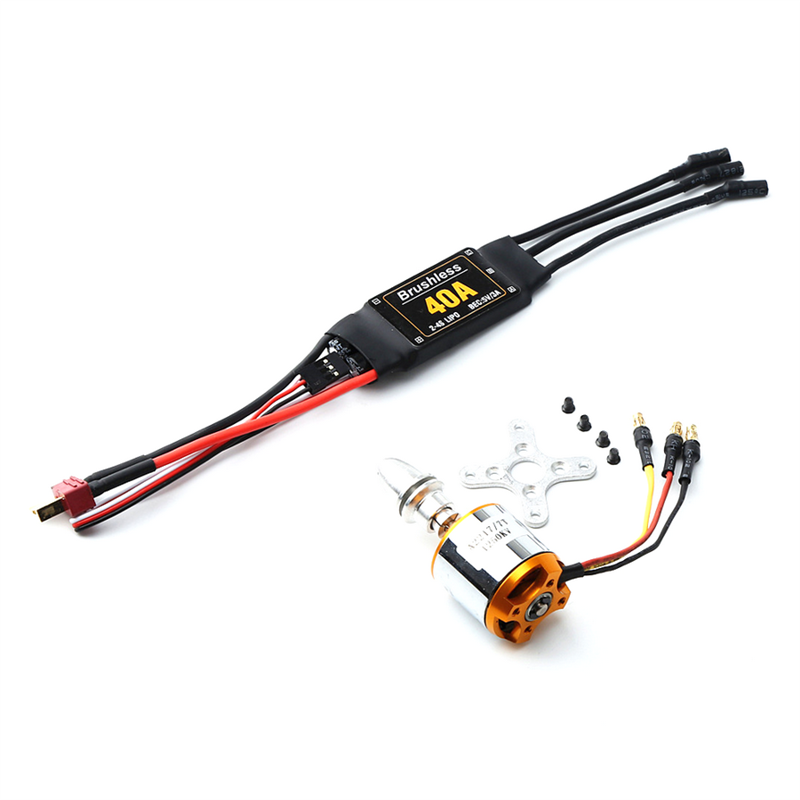

XXD 2217 KV1250 Brushless Motor With 40A ESC 9g Servo 8060 Propeller Power Combo For RC Airplane Fixed Wing
Description:
Brand Name: XXD
Item Name: Power Combo (motor+ESC+Servo+Propeller)

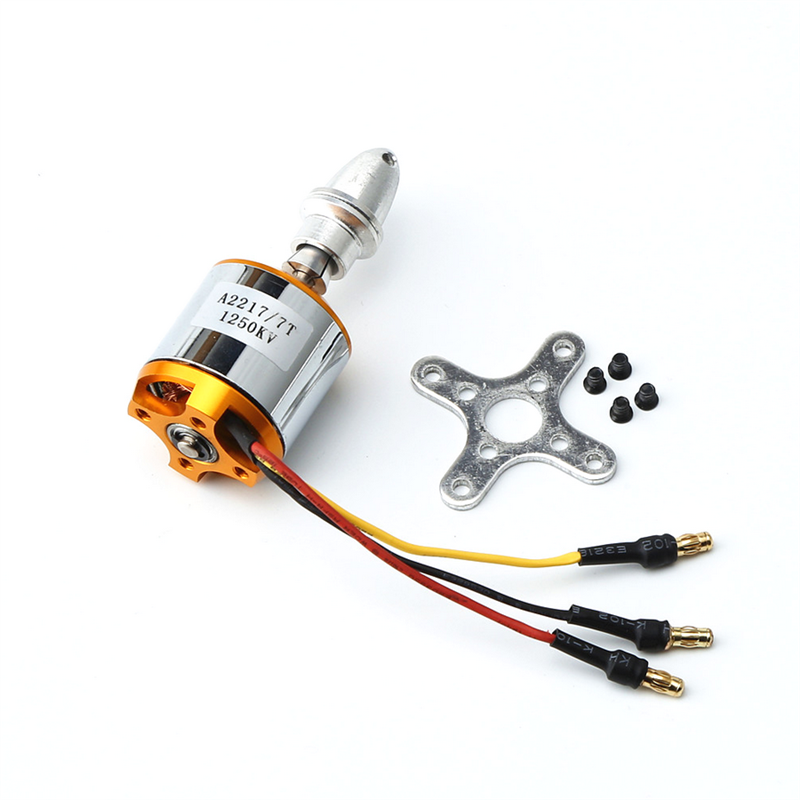

Specifications of Motor:
KV: 1250
Dimension: 27.8*32 mm
Weight: 68 g
Shaft Diameter: 4 mm
Accessories: 4.0mm prop adapter, motor mount, screws
Prop Recommendation: 9 inch props, eg. 9050, 9045, 9060, etc.

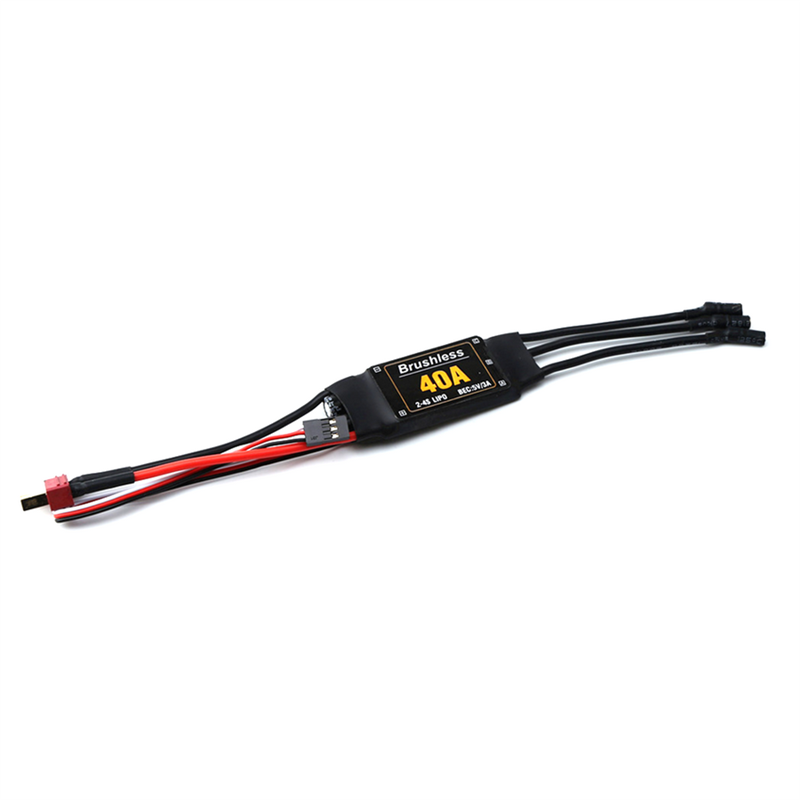

Specifications of ESC:
Features:
– Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
– Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
– User programmable.
– Multiple procedure methods supported: transmitter stick, LED procedure Card. Very easy to procedure the ESC at home or at the flying field.
– Compatible with Lipo and NiMH battery.
– Timing can be changed to be suitable for different brushless motors.
– Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
Specifications:
Color: as shown
Current: 40A
Output Capacity: Continuous current 40A, short-time current 55 A(not less than 10 seconds)
Power Input: 2-4 lithium batteries(Not Included)
BEC Output: 5V@3 A(linear regulator mode – linear mode)
Maximum Speed: 210,000 rpm for 2-pole motor, 7000 rpm for 6-pole motor, 35,000 rpm for 12-pole motor
Size: (Approx) 68x25x8mm
Note:
1. Due to the light and screen difference, the item’s color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
Specifications of Servo:
This is the most popular mini servo. Only weighs 9 gram and gives you A1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.
Key Features:
nbsp;Translucent body
nbsp;Lightweight
nbsp;Less noise
Parameters:
Item Name: SG90A
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No Load Speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor Torque: 1.5-1.7kg/cm (4.8V-6V)
Operating Temperature: -30~~+60 degrees Celsius
Dead Zone Setting: 5 microseconds
Working Voltage: 4.8V-6V

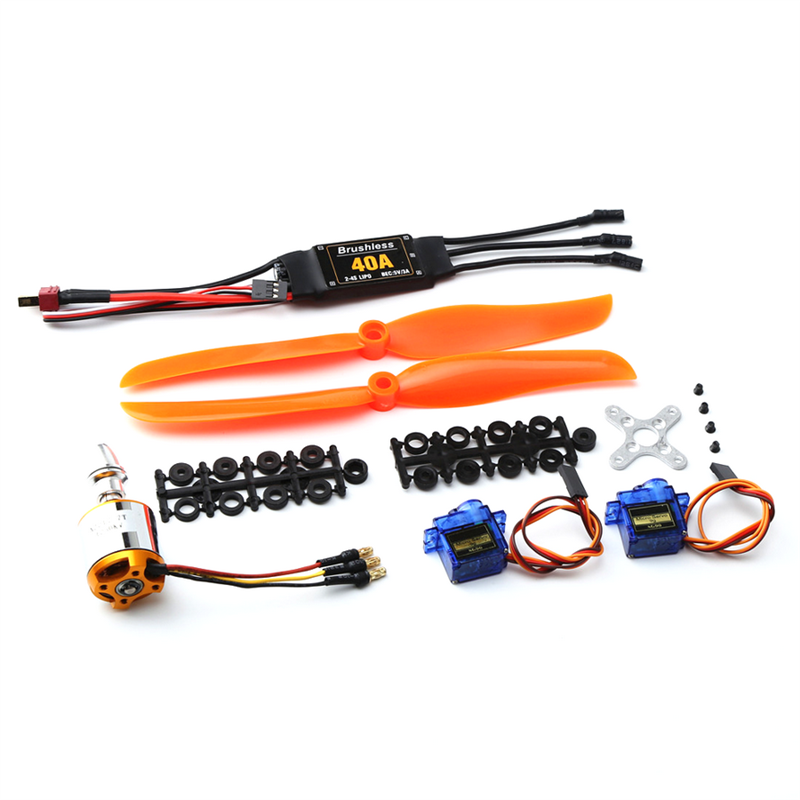

Package Included:
1x A2217 KV1250 motor
2x 9g SG90 servo

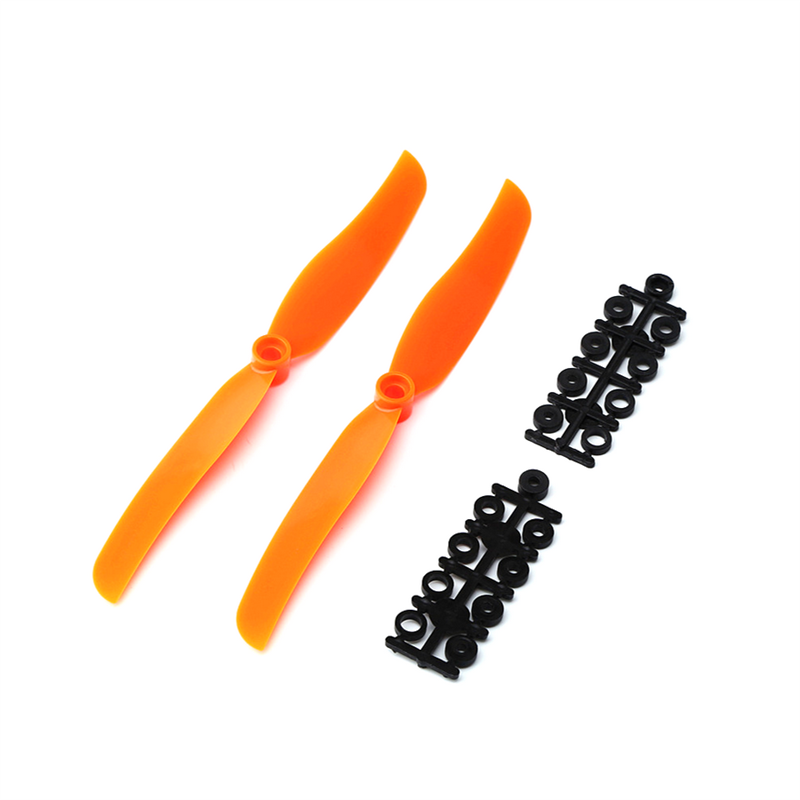

2x 8060 Propeller
1x 40 AESC
