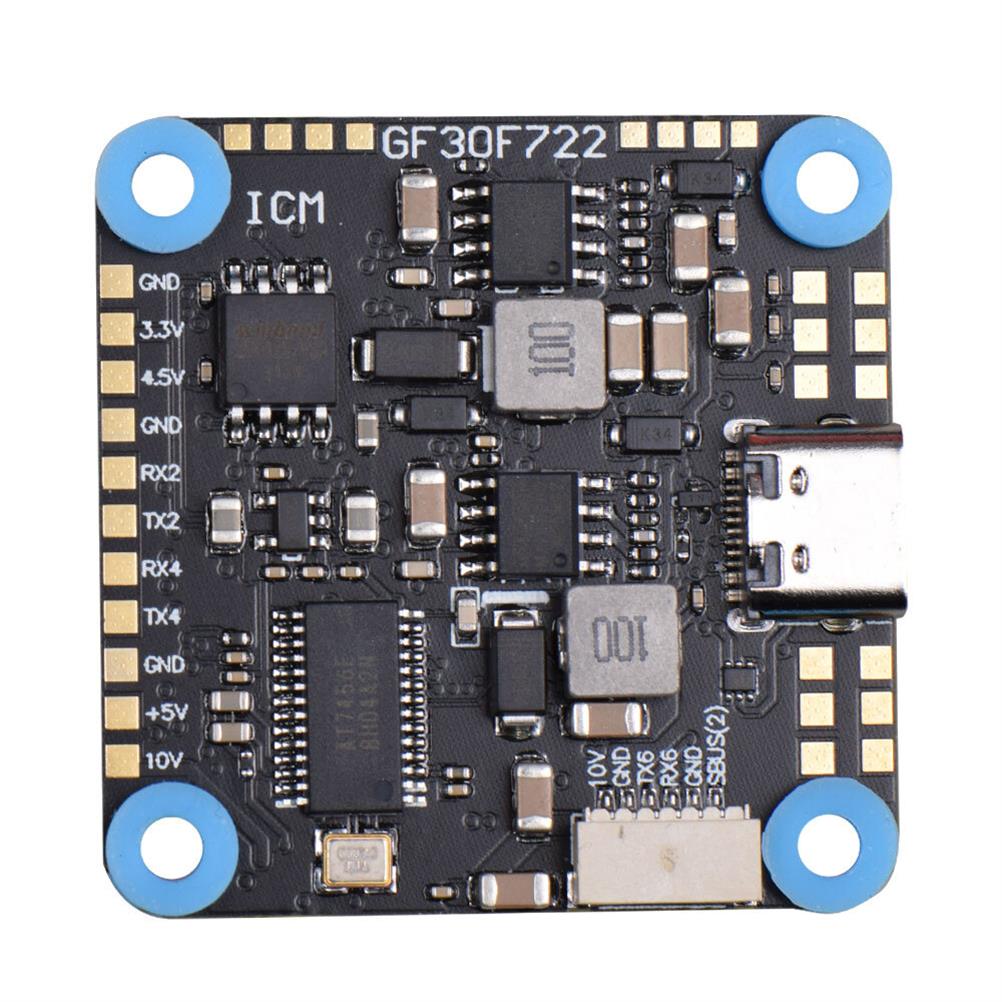

30X30mm JHEMCU GF30F722-ICM F722 Baro OSD 5V 10V Dual BEC Flight Controller 3-8S for FPV Freestyle HD RC Drone

30X30mm JHEMCU GF30F722-ICM F722 Baro OSD 5V 10V Dual BEC Flight Controller 3-8S for FPV Freestyle HD RC Drone

Description:
Brand: JHEMCU
Model: GF30F722-ICM F722
MCU: STM32F722RET6
IMU: ICM-42688-P/Gyro/Accel
OSD: AT7456E
Baro: Yes
Blackbox: 16MB
Input Voltage: 3-8S Lipo (11.4-36V)
5V-BEC: 5V/2.5A+??0.1V
10V-BEC: 10V/2A
Receiver: ELRS(CRSF),TBS(CRSF),SBUS,IBUS,DSM2,DSMX
HD: Yes
UART: URRT1/2/3/4/5/6
IIC: 12C1
Led_Strip: Yes
Buzzer: 5V
ESC Signal: PWM,Oneshot123,Oneshot42,Multishot Dshot150,Dshot300,Dshot600
USB: Type-C
Current Port: Yes
Voltage Sensor: Yes
Voltage Sensor: Yes
DFU Button: Yes
Firmware: Betaflight_4.3.1 JHEF7DUAL.HEX
Size: 36*36mm
Mounting Hole: 30.5*30.5*4mm
Weight: 8.8g
Package Included:
1* GF30F722-ICM F722 Flight Controller
