30.5×30.5mm HGLRC SPECTER F450 Stack F4 OSD Flight Controller 5V 10V BEC 50A BL_S 4in1 ESC for FPV Racing RC Drone
Specification:
Brand: HGLRC
Model: SPECTER F450 STACK
Item Name: F4 Flight Controller & 50A BL_S 4in1 ESC Stack
Input Voltage:3-6S Lipo (12V-22.8V)
Installing Hole:30.5×30.5mm, M3
Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot
Weight:23g
| SPECTER F405 Flight Controller ( Separate FC Link) |
MCU??STM32F405 GYRO??MPU6000 OSD??AT7456E Blackbox6MB UART BEC0V2A/5V2.5A FC Firmware??SPEDIXF405 Size7mm*37mm*6mm |

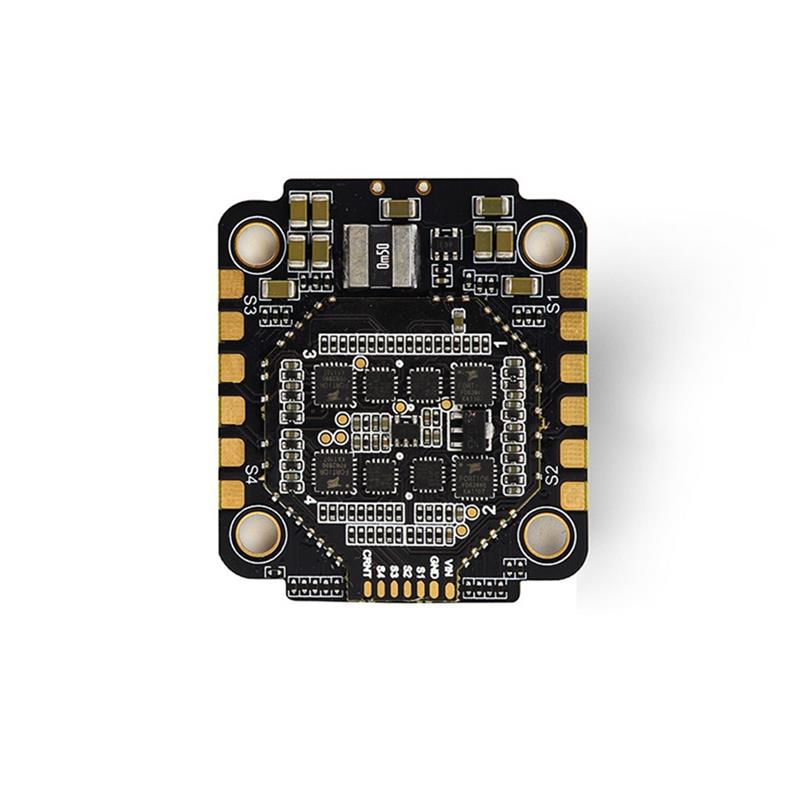

| SPECTER 50A ESC ( Separate ESC Link) |
Constant Current:50A Peak Current:60A0sbr>ESC Firmware:BL_S (F-H-40 16.7) Size:40x40x6mm |
Features:
Powerful Performance: The SPECTER F450 STACK delivers outstanding performance with its 3-6S Lipo input voltage range, allowing your drone to unleash its full potential and conquer the skies with ease.
Versatile Compatibility: Supporting a wide range of protocols including DShot600/300/150, Oneshot125/42, and MultiShot, this stack ensures seamless compatibility with various flight controllers, providing a hassle-free setup experience.
Cutting-Edge Components: The SPECTER F405 FC is equipped with an advanced STM32F405 MCU and MPU6000 gyro, ensuring lightning-fast processing speed and exceptional stability for precise flight control.
Enhanced Control and Monitoring: The AT7456E OSD enables real-time access to vital flight information, while the 16MB blackbox allows you to analyze flight data, fine-tune your maneuvers, and push the limits of your drone’s performance.
Reliable Power Distribution: With a 10V2A/5V2.5A BEC, this stack ensures a stable power supply to your drone’s components, preventing voltage fluctuations and guaranteeing uninterrupted performance.
Package Includes:
1x HGLRC SPECTER 50A ESC
1x HGLRC SPECTRE F405 FC
1x Accessory Bag
Additional information
| Weight | 0.063 kg |
|---|
