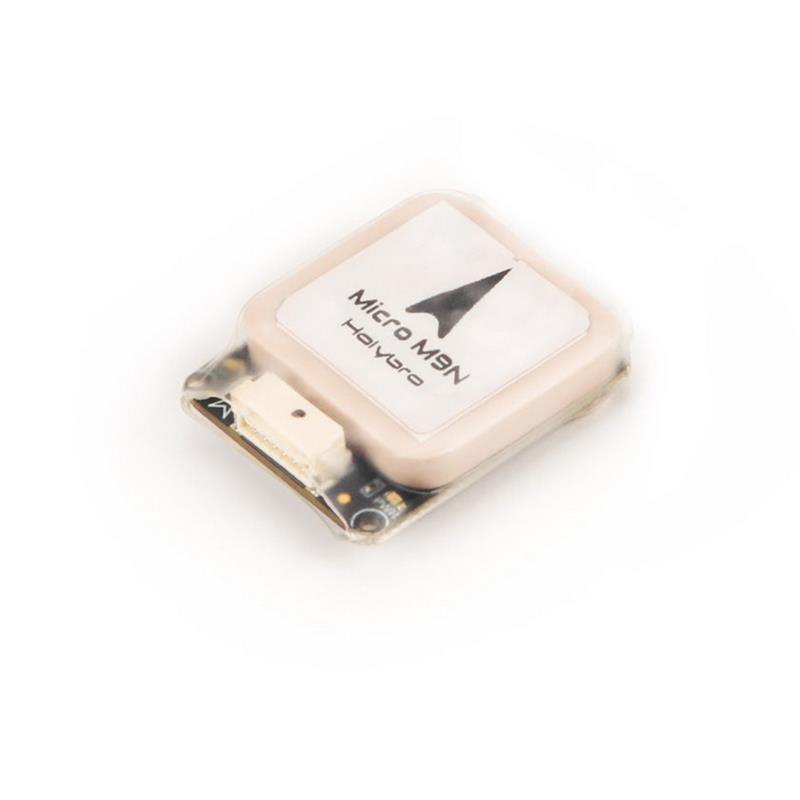

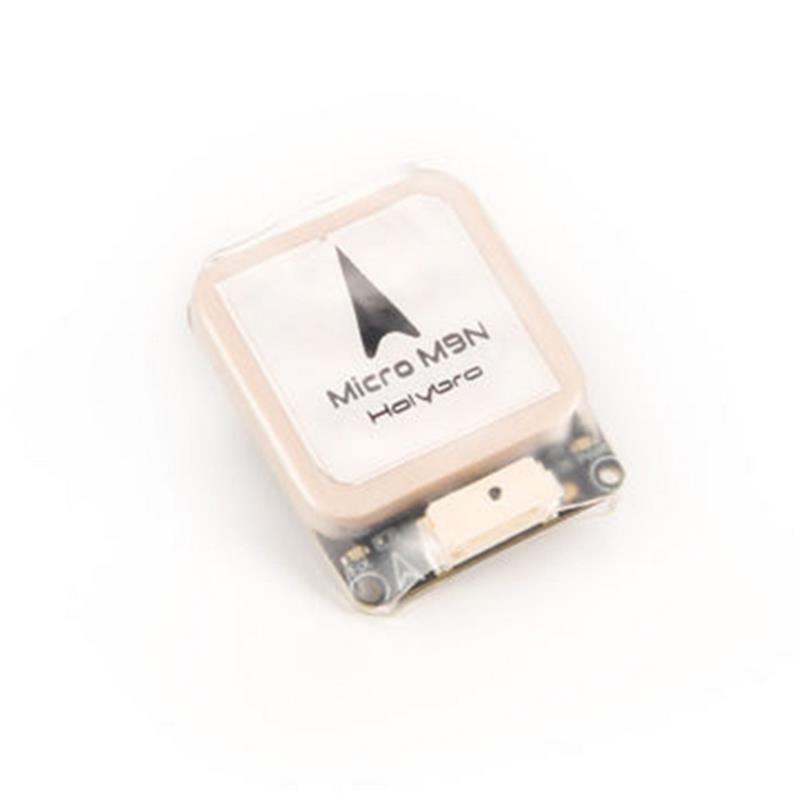

Holybro Micro M9N GPS Module with IST8310 Compass 4.7-5.2V Ceramic Patch Antenna for RC Drone FPV Racing
Introduction:
This Micro M9N incorporates the Ublox M9N GNSS Chip and IST8310 digital compass, providing Aconvenient method of mounting the compass away from sources of interference that may be present in the confines of the vehicle. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Specification:
GNSS Receiver: Ublox M9N Receiver
Number of Concurrent GNSS: Up to 4 GNSS (BeiDou, Galileo, GLONASS, GPS, QZSS)
Compass: IST8310
Frequency Band: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
Output Protocol: UBX (U-blox), NMEA
Nav. Update Rate: Up to 25 Hz
GNSS Augmentation System: EGNOS, GAGAN, MSAS, WAAS supported ; QZSS: L1S
Default Baud Rate: 38400
Input Voltage: 4.7-5.2V
Velocity Accuracy: 0.05 m/s
Port Type: JST-GH-6P
Antenna: 25 x 25 x 4 mm ceramic patch antenna
Power consumption: Less than 200mA @ 5V
Operating Temperature: -40~80C
Dimension: 32 x 26 x 9mm
Weight: 14g
Features:
Advanced GNSS Receiver: The Holybro Micro M9N GPS Module integrates a Ublox M9N Receiver, which supports concurrent tracking from up to four global navigation satellte systems for exceptional accuracy and reliability.
Integrated Compass: The onboard IST8310 compass ensures precise orientation information, making it ideal for vehicle navigation.
Fast Update Rate: With an update rate of up to 25 Hz, this GPS module delivers real-time positioning data for improved navigation accuracy.
Compact and Efficient: With a small form factor and power consumption of less than 200mA @ 5V, this GPS module is designed to offer powerful performance in a compact package.
Complete Package: The package includes a Micro GPS module, a 15 cm JST GH 6 Position Connector, and a 15 cm JST-GH 6pin Colored Silicon Cable, providing you with everything you need to get started.

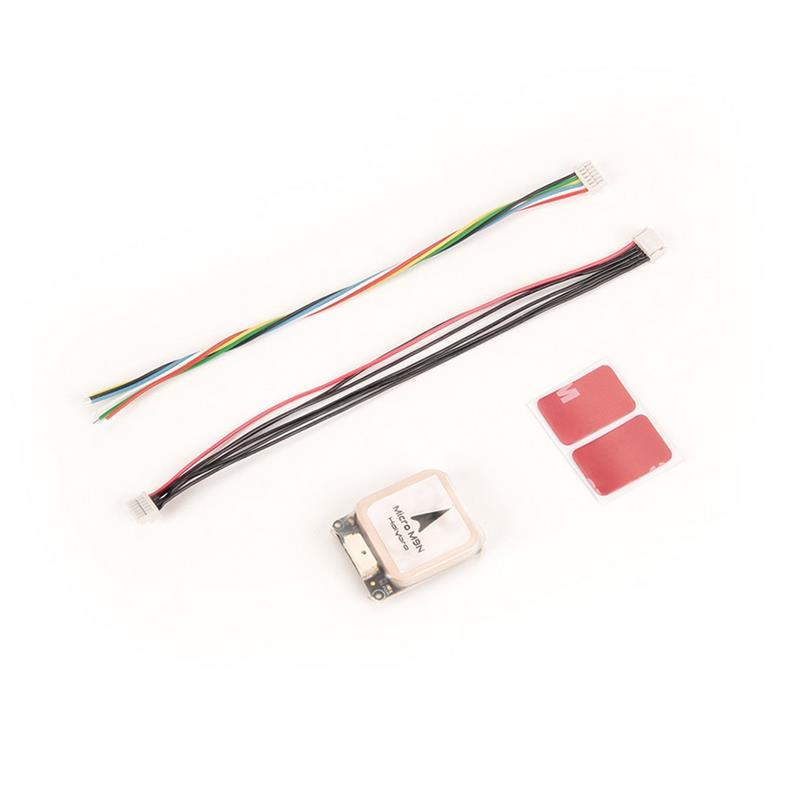

Package Included:
1x M9N GPS Module
1x JST GH 6 Position Connector (15 cm)
1x JST-GH 6pin Colored Silicon Cable (15 cm)
