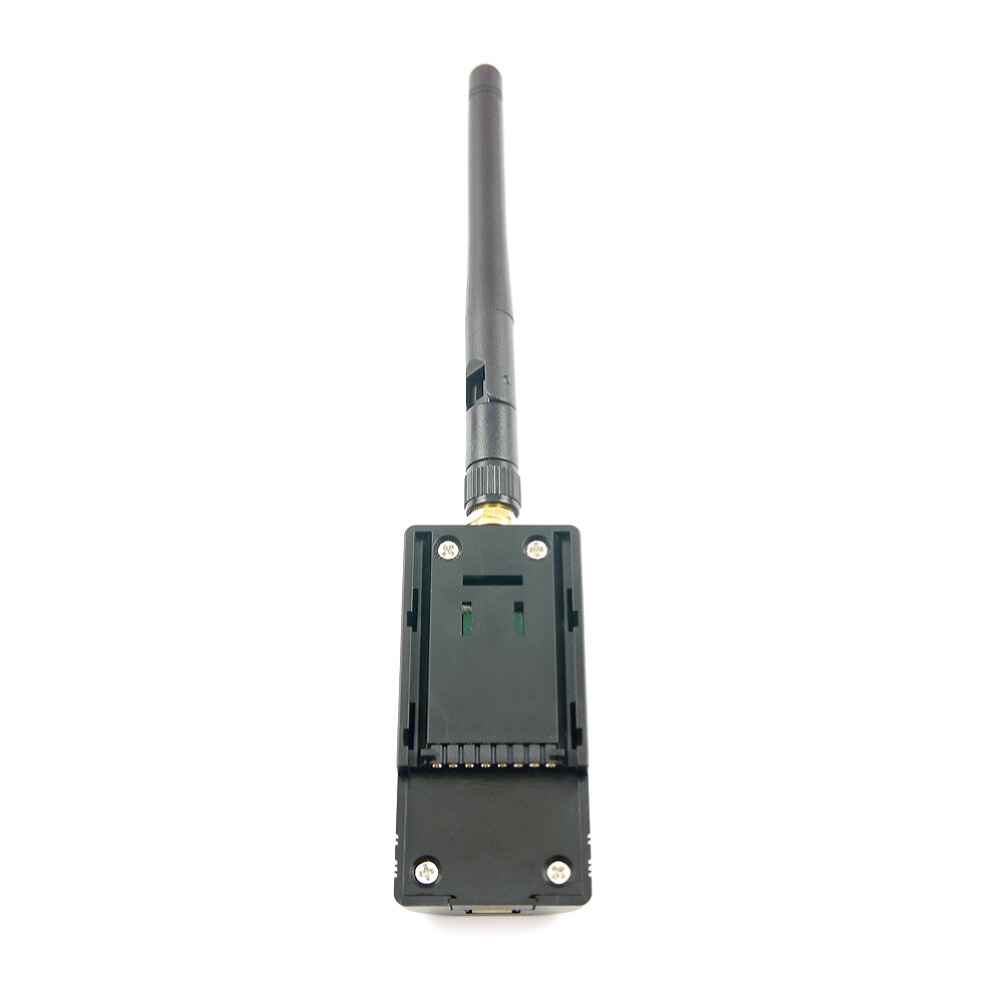

IRangeX IRX4 LITE CC2500 NRF24L01+ A7105 CYRF6936 4 IN 1 Multiprotocol TX Module for Frsky X-lite
The iRangeX IRX4 Lite is a versatile 4-in-1 multiprotocol TX module designed for the Frsky X-lite transmitter. It integrates four RF chips鈥擟C2500, NRF24L01+, A7105, and CYRF6936鈥攅nabling support for a wide range of remote control protocols including Futaba S-FHSS, Walkera DEVO, Spektrum DSM2, DSMX, Flysky, and more. With its ARM Cortex-M microcontroller, this module ensures seamless communication with your transmitter using a serial protocol, requiring no hardware modifications. Simply update your transmitter firmware to the latest version, and manage model protocol selection and binding through the Model Settings menu. Enjoy enhanced control and flexibility with this reliable module.
IRangeX IRX4 LITE CC2500 NRF24L01+ A7105 CYRF6936 4 IN 1 Multiprotocol TX Module for Frsky X-lite
Overview:

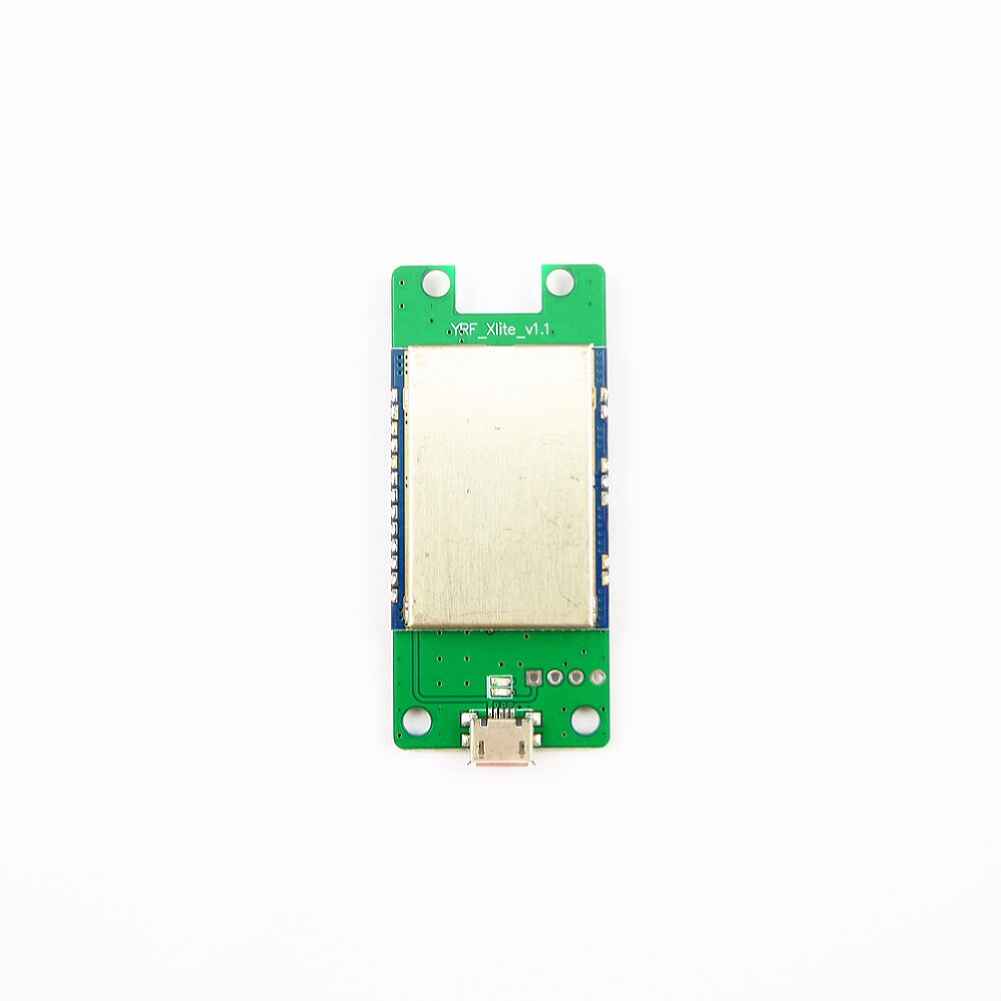

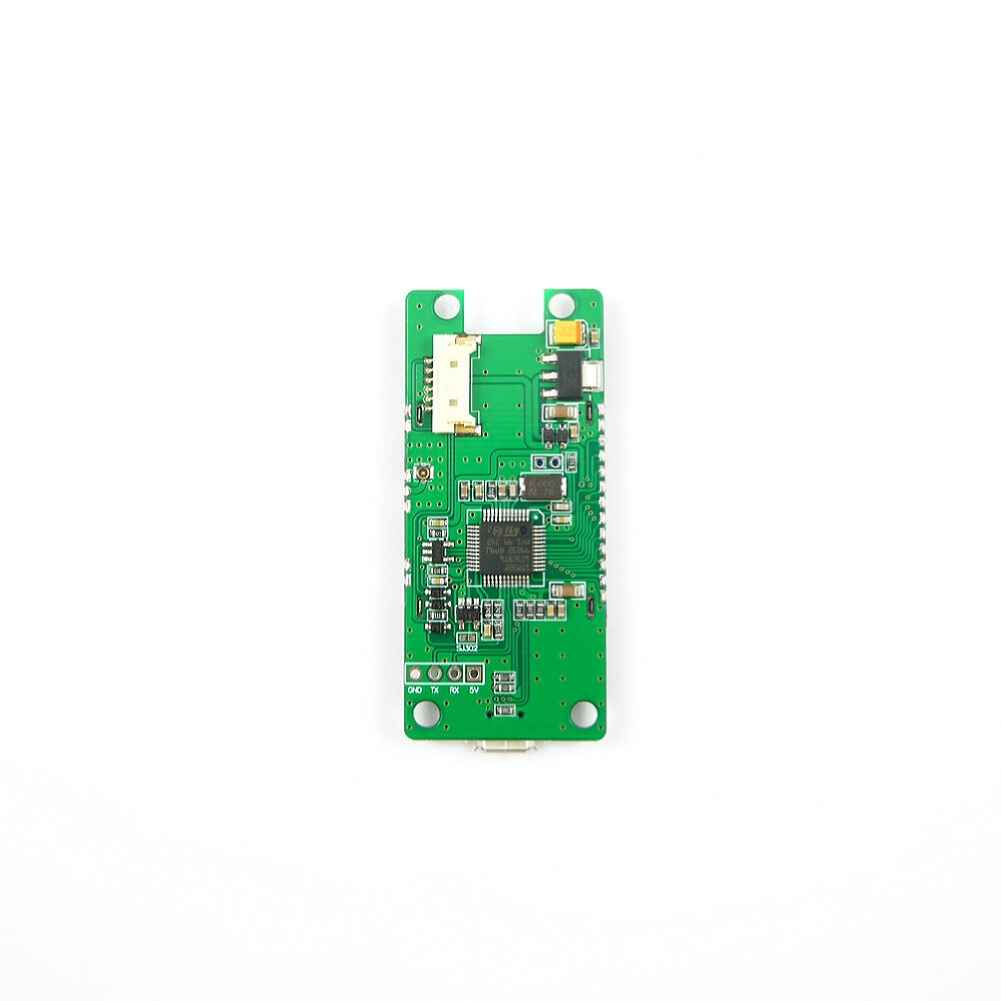

This 4-in-1 TX module is suitable for FRSKY X-Lite. It integrates four RF chips (CC2500,NRF24L01+,A7105,CYRF6936) into one single circuit board, it supports a variety of remote control protocols, such as Futabas S-FHSS, Walkera DEVO, Spektrum DSM2, DSMX, Flysky, Frsky, WLToys, Hubsan, Hisky, Esky , Assan etc. You can control your model flexibility with it, and you will get much excellent experience with you favorite transmitter.
This module is compatible with the Multi-module project on github. It＊s based on ARM microcontroller. All available protocols are included in serial mode. In this mode, it uses a serial protocol to communicate with your transmitter. The serial protocol does not require any hardware modifications, but you should update the firmware on your transmitter to the latest. Then the model protocol selection and binding is done from the Model Settings menu on your transmitter. For telemetry capable transmitters, the telemetry integration is done seamlessly with the transmitter firmware.
Note:
The STM32 MCU have change to ARM, fireware is ARM CORTEX-M
The new stock will be ARM, Existing inventory is not affected
Specification:Brand name: iRangeX
Model: iRX4 Lite
Operating voltage:5-9V
Operating current: <=180mA
Operating frequency: 2.4G ISM band
RF power: +22dBm
MCU: ARM CORTEX-M(128K ROM, 20K RAM)
Firmware: V1.3.3.20
Weight: 32g
How to use:1. Refer to the website above, update your transmitter with proper firmware.2. Screw down the antenna of module tightly, and then install TX Module to the module bay of your transmitter.3. Power on your transmitter, enter Model Settings menu, turn on External RF , and select ＆MULT＊ mode, then you will see the bind and protocol button in the menu, and then you can choose a proper protocol for you model and bind with it now.
LED State:
Notice:1. Make sure to check the ＆multimodule＊ option, when you update OpenTX firmware through Companion software.2. In serial mode, for FRSKY and S-FHSS protocol, you may need set the value of Fine or Option (in Model Settings menu on your TX) properly to bind with your model. The value can be varied, since it＊s partly depended on your model.
Available protocols (incomplete and expanding)
Enable serial mode, Click here
IRX4 lite module manual, Click here
Package Included:
1 x IRX4 LITE TX Module
