Description

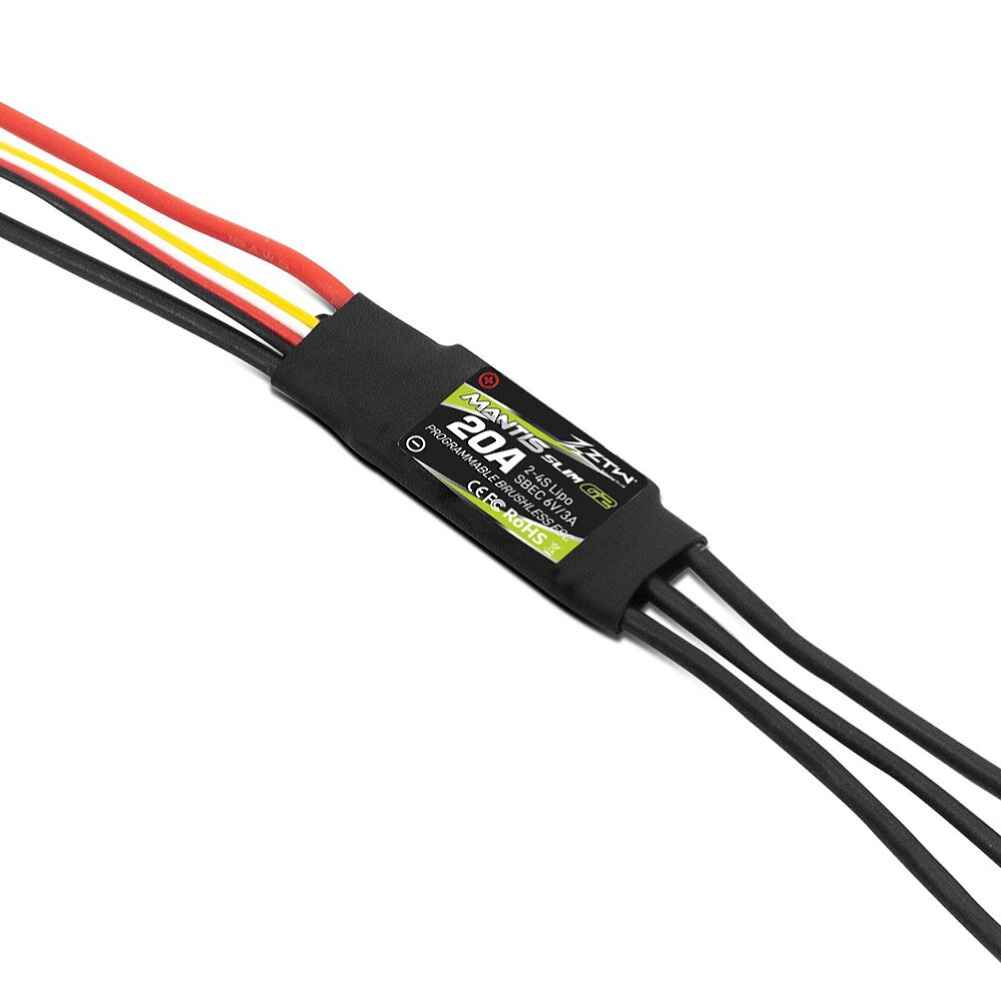

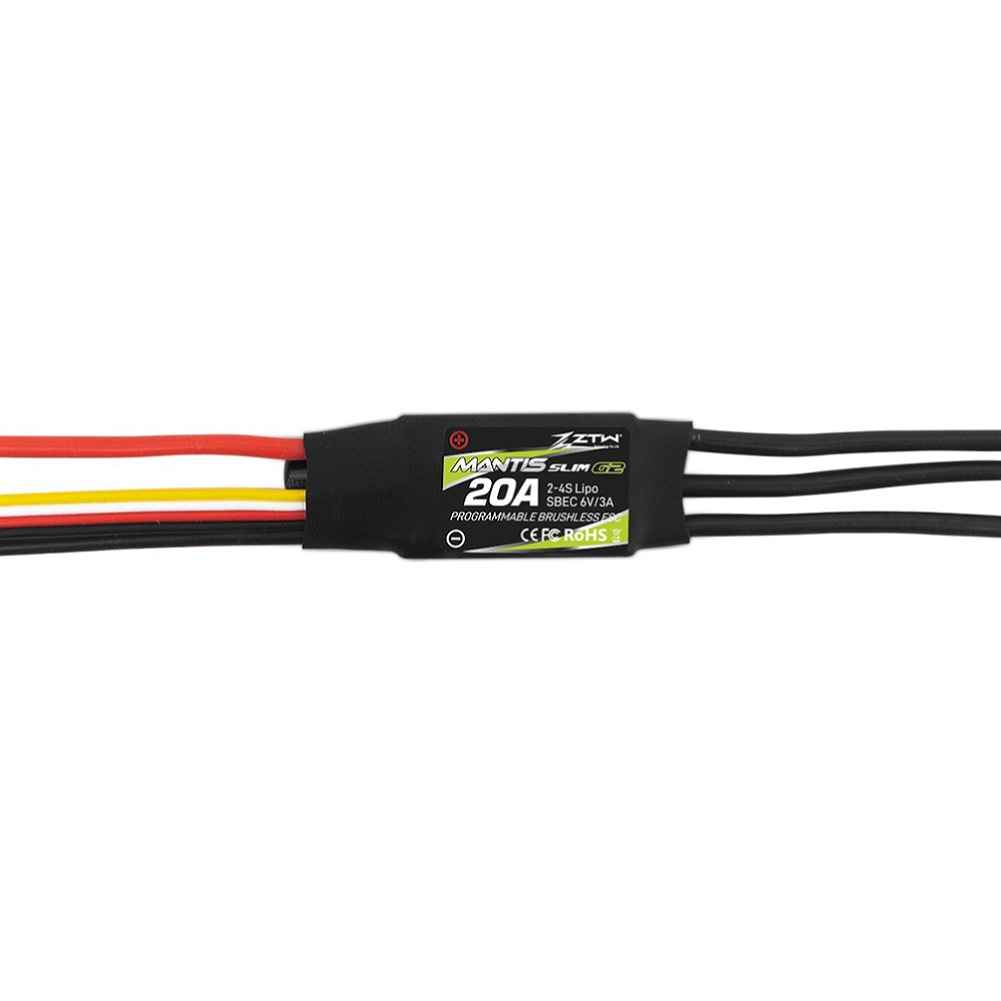

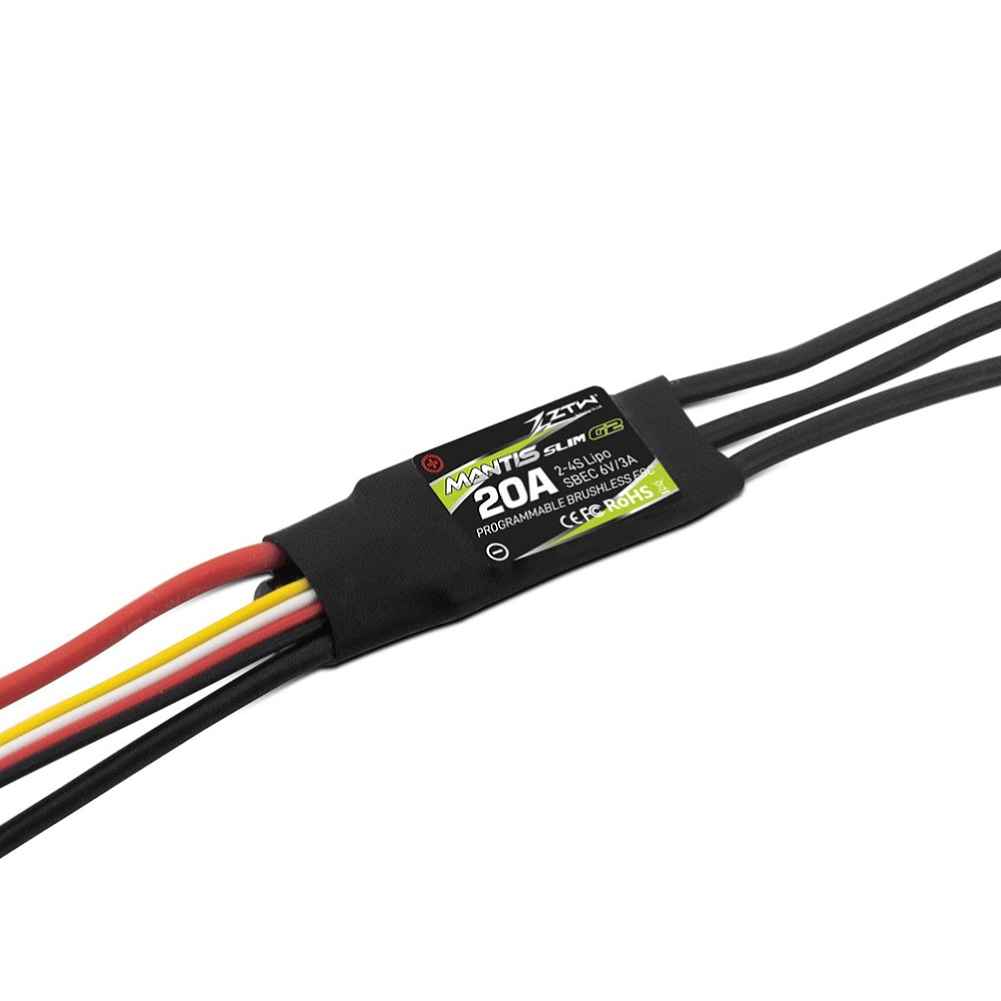

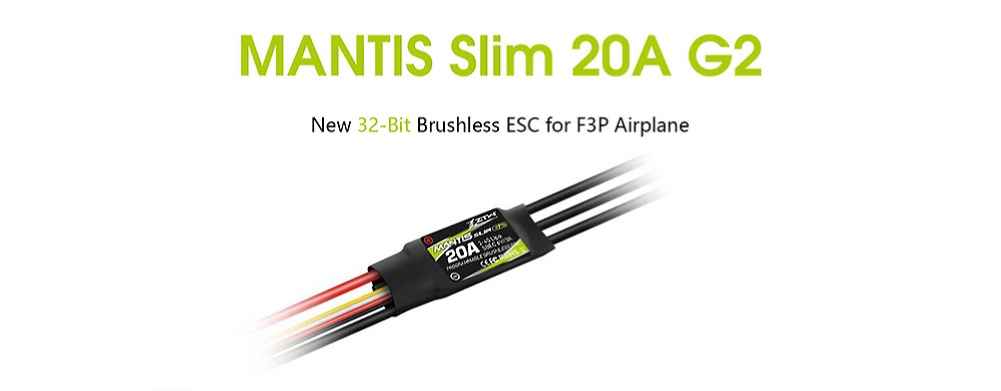

ZTW Mantis Slim 20A G2 New 32-Bit Brushless ESC With 6V/3A BEC 2-4S for F3P RC Airplane
The ZTW Mantis Slim 20A G2 is a cutting-edge 32-bit brushless ESC designed for F3P RC airplanes. It features an enhanced BEC that delivers 6V/3A with improved efficiency and reduced heat generation. This ESC supports a continuous current of 20A and a burst current of 30A, suitable for 2-4S LiPo batteries. Its innovative design includes separate control and power boards, minimizing circuit interference and ensuring optimal performance under heavy loads. The ESC is programmable via a phone app, LCD card, or transmitter, and offers multiple protection features such as overheat, low-voltage cutoff, and signal loss.

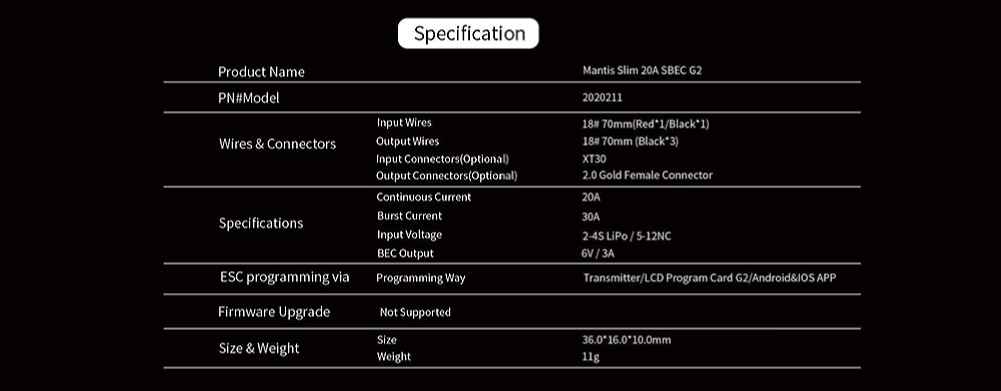

Specifications:
Brand Name: ZTW
Product Name: Mantis Slim 20A G2
PN#Model: 2020211
Input Wires: 18# 70mm(Red’1/Black’1)
Output Wires: 18# 70mm (Black*3)
Input Connectors: XT30
Output Connectors: 2.0 Gold Female Connector
Continuous Current: 20A
Burst Current: 30A
Input Voltage: 2-4S LiPo /5-12NC
BEC Output: 6V / 3A
ESC programming via: Programming Way Transmitter/LCD Program Card G2/Android&lOS APP
Firmware Upgrade: Not Supported
Size: 36.0’16.0’10.0mm
Weight: 11g
Features:
– Powered by a new generation 32-bit microprocessor, ensuring faster throttle response, more precise startup, and better compatibility with high RPM motors.

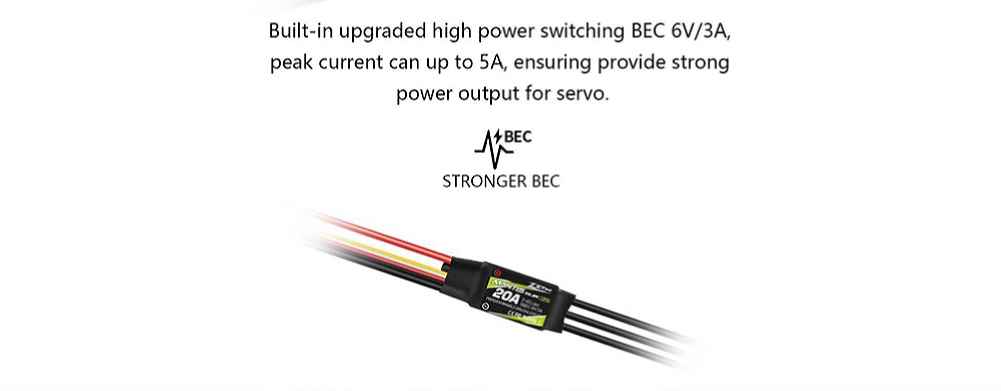

-Enhanced BEC with superior efficiency and lesser heat generation compared to the first-generation Mantis Slim Series.
– Separate control and power board design minimizes circuit interference and offers optimal performance even under heavy load.

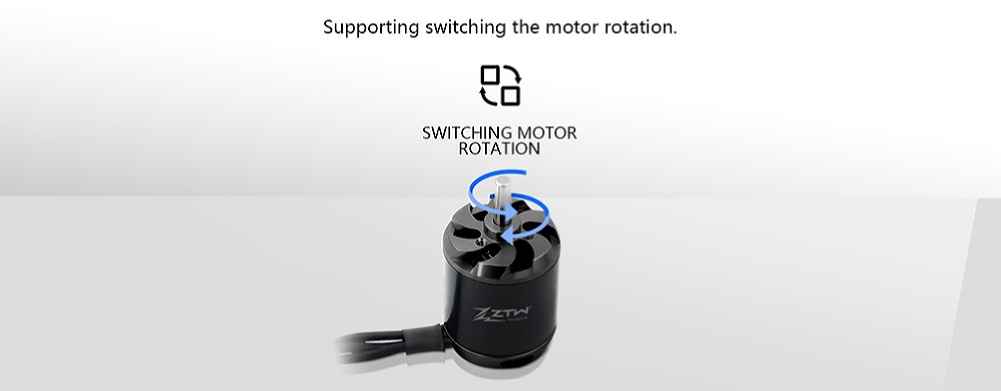

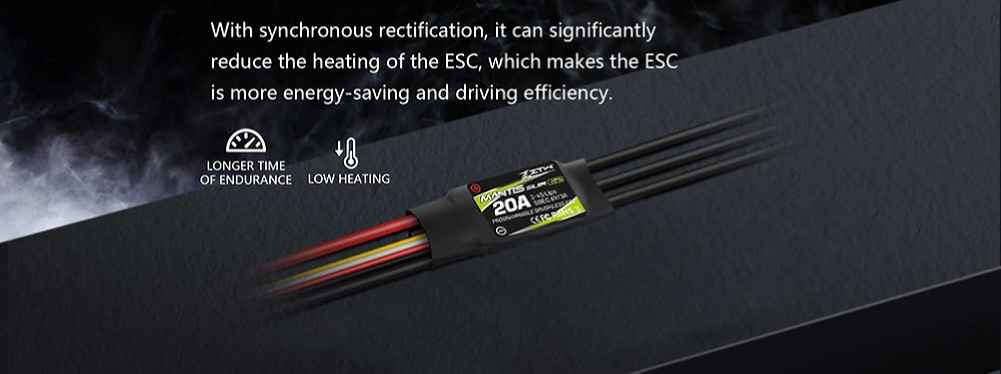

– Supports motor rotation switching and boasts synchronous rectification for reduced heat and longer run times.
– Multiple protection features: including overheat, low-voltage cutoff, signal loss, and more.
– Easily programmable via phone app, LCD card, or transmitter.
Package Included:
1 x ZTW Mantis Slim 30A G2 Brushless ESC
