MATEK G474-HELI Balance Flybarless Controller 2-6S LIPO for RC Helicopter
The MATEK G474-HELI Balance Flybarless Controller is designed for RC helicopter enthusiasts. This controller features a powerful STM32G474CE 170MHz Cortex-M4 MCU with 512KB Flash, ensuring high performance and reliability. It includes an ICM42688-P IMU and SPL06 Barometer, along with a 128MB Flash Blackbox for data logging. The controller supports a wide input voltage range of 5.4V to 30V, compatible with 2-6S LiPo batteries. It offers 8 PWM outputs for servos and motors, USB Type-C connectivity, and comes with essential cables and adapters. The compact design with a 20 x 20mm mounting pattern makes it easy to integrate into your helicopter setup.
Specifications:
MCU: STM32G474CE, 170MHz Cortex-M4 , 512KB Flash
IMU: ICM42688-P
Baro: SPL06
Blackbox: 128MB Flash
3x UARTs (1, 2, 3)
1x I2C
8x PWM (4x Servos, 2x Motors, RPM, LED)
2x ADC (VBAT, Current)
USB Type-C(USB2.0)
Electrical characteristics:
Input voltage range: 5.4V~30V (2~6S LiPo)
No current sensor integrated, support external 3.3V based current sensor.
Battery Voltage divider 1K:10K (Scale 110)
BEC 5V 2A for FC and peripherals
BEC Vx 5A cont. 8A Peak for servos (5V, 7.2V option)
3.3V 300mA
Firmware/config:
Rotorflight / MATEKG474HELI
Physical:

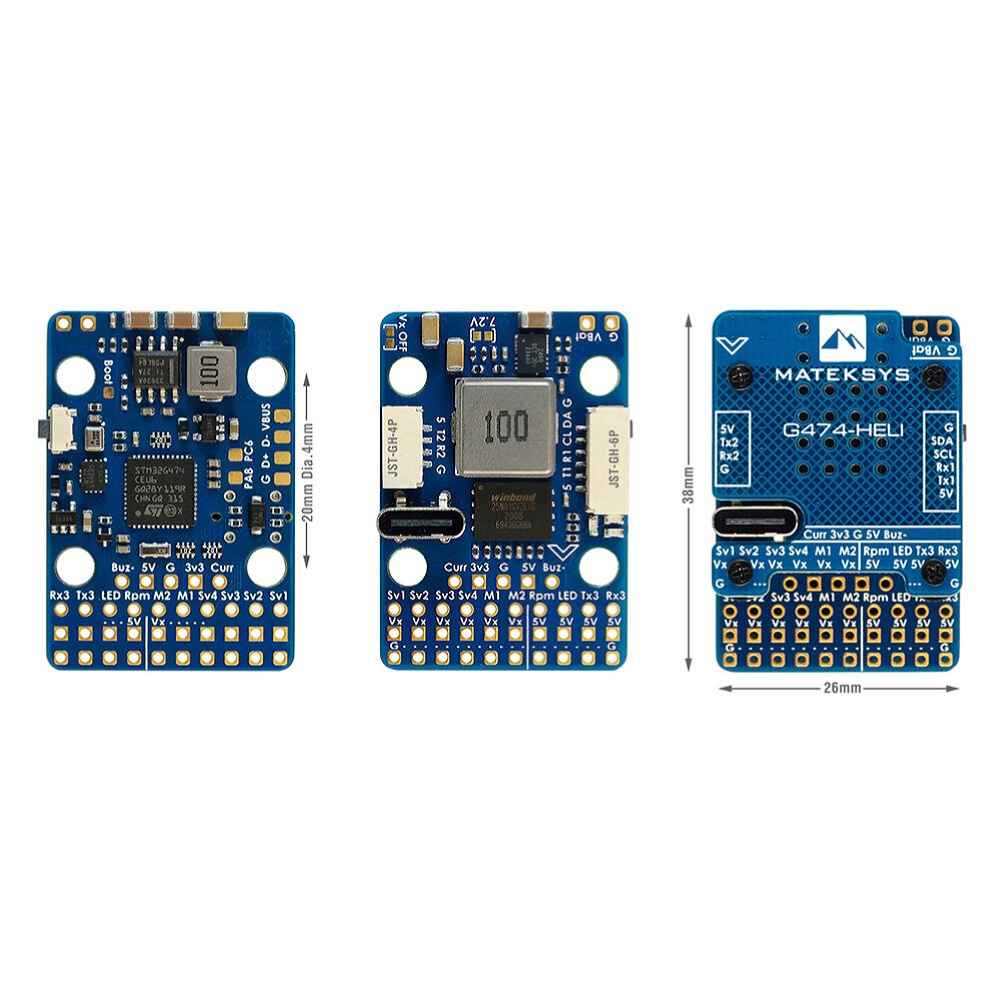

Mounting: 20 x 20mm, 朴4mm with Grommets 朴3mm

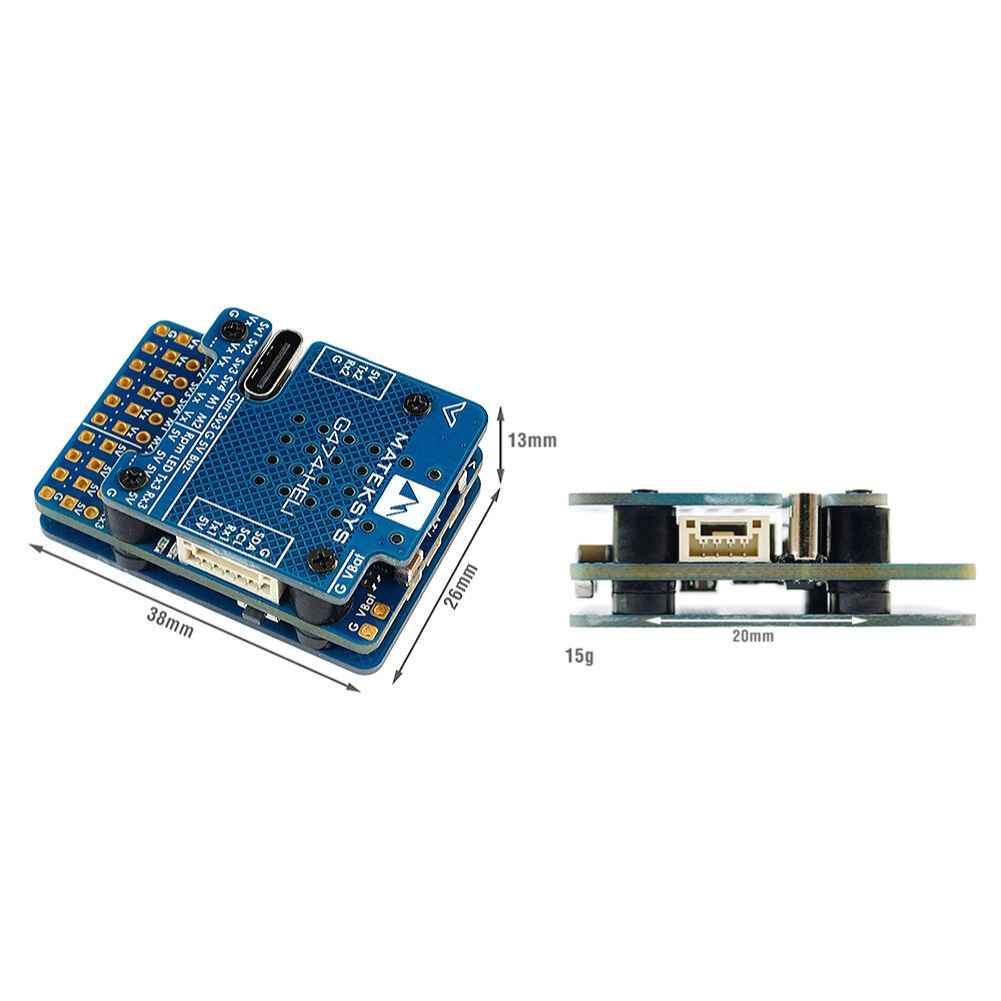

Dimensions: 38 x 26 x 13 mm
Weight: 15g (w/o pins)
3D step file
Including:
1x G474-HELI
1x PicoBlade 1.25mm Servo adapter (M2/S2 servos)
1x 20cm JST-GH-4P to JST-GH-4P cable
1x 20cm JST-GH-6P to JST-GH-6P cable
Dupont 2.54 pins (Board is shipped unsoldered)
Package Included:
1 x G474-HELI
1 x PicoBlade 1.25mm Servo adapter (M2/S2 servos)
1 x 20cm JST-GH-4P to JST-GH-4P cable
1 x 20cm JST-GH-6P to JST-GH-6P cable
Dupont 2.54 pins (Board is shipped unsoldered)
