iFlight Nazgul DC5 ECO HD O4 Pro 5-Inch Freestyle FPV Racing Drone with DJI O4 Digital HD System, GPS, and BLITZ ATF435 FC

Description

iFlight Nazgul DC5 ECO HD O4 Pro 240mm 6S 5 Inch Freestyle FPV Racing Drone BNF with GPS BLITZ ATF435 FC Digital HD System

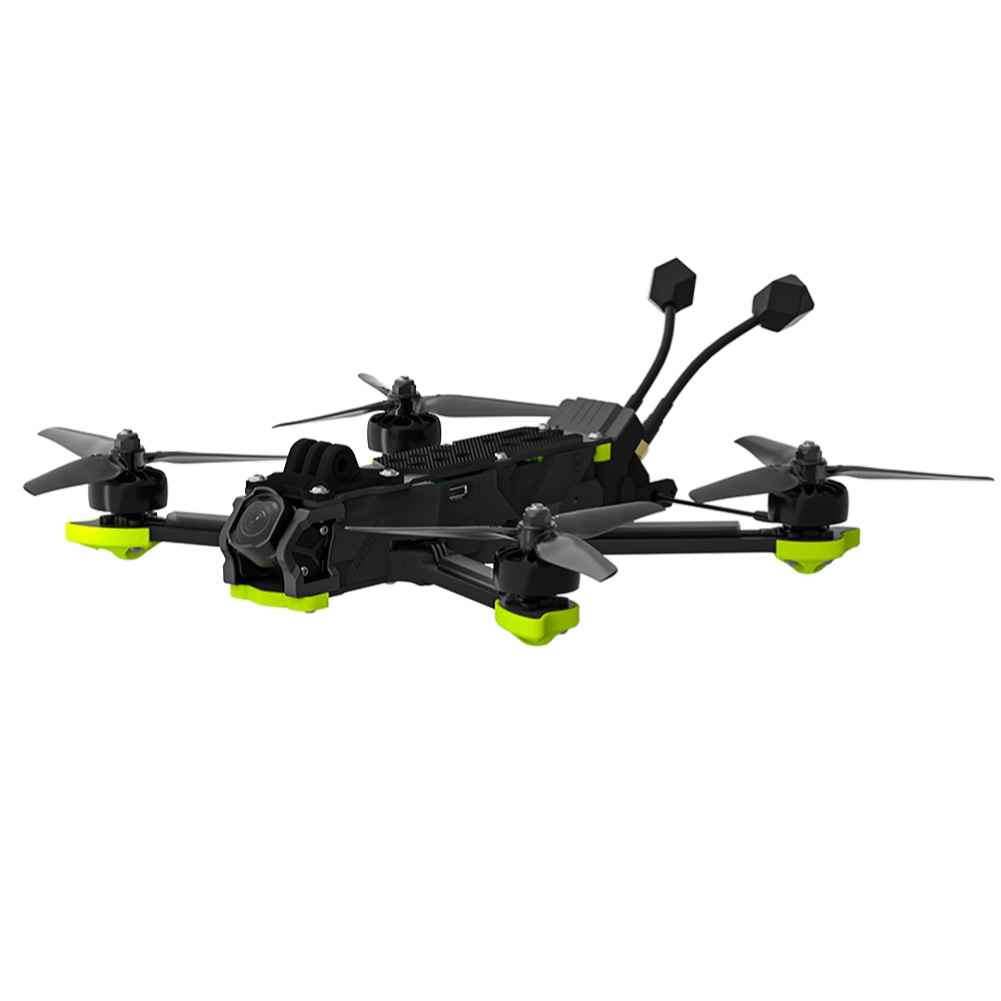

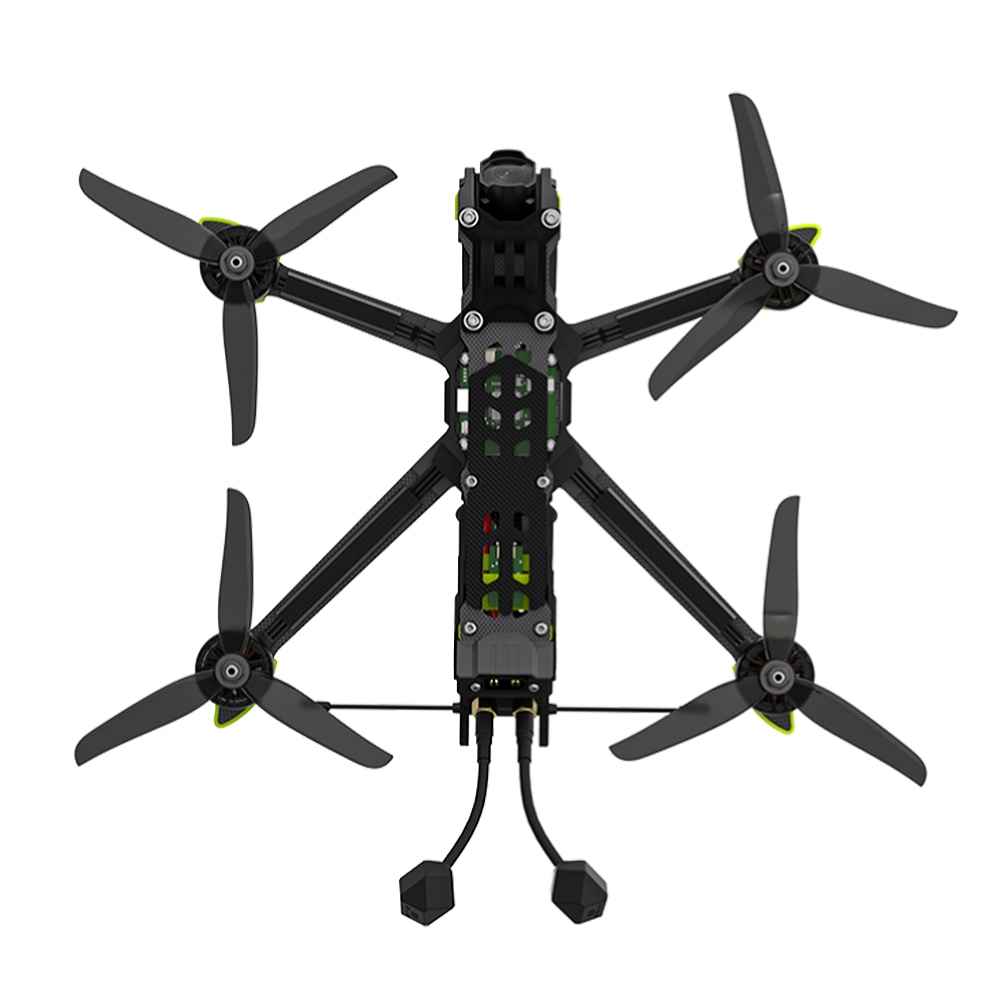

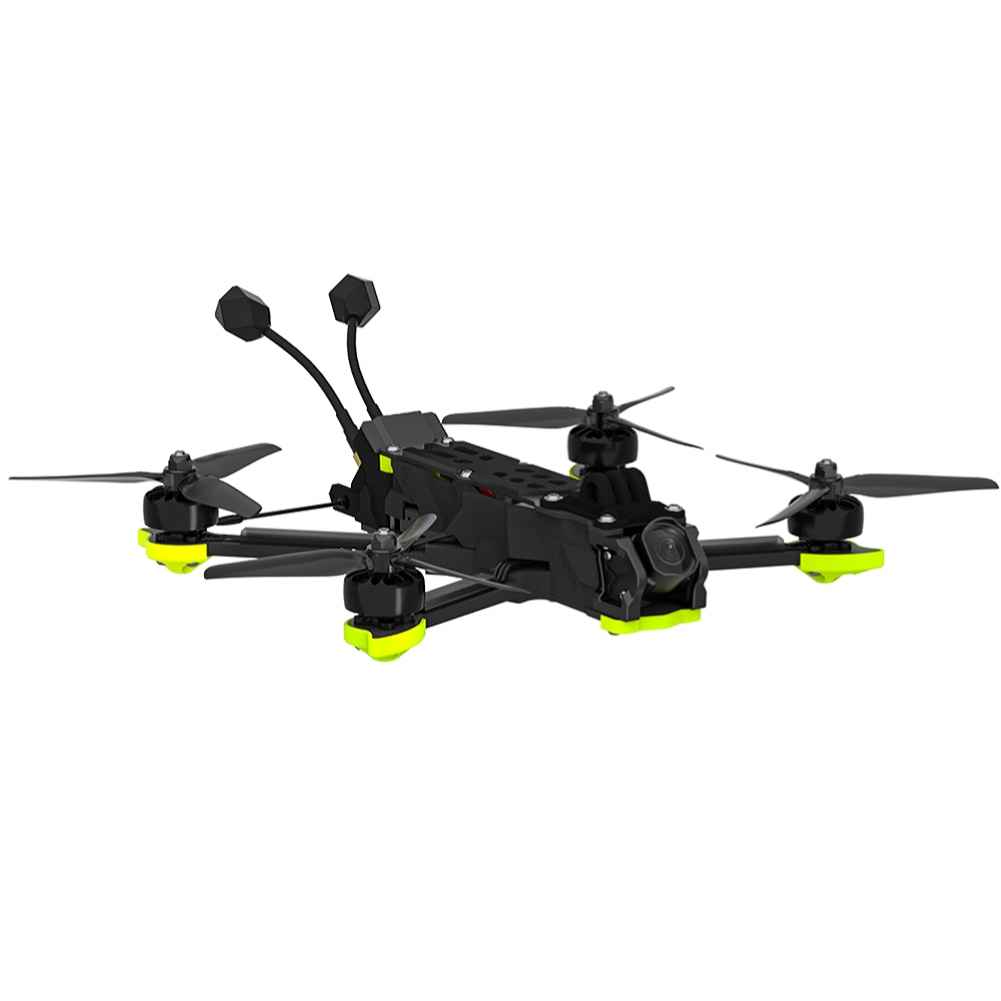

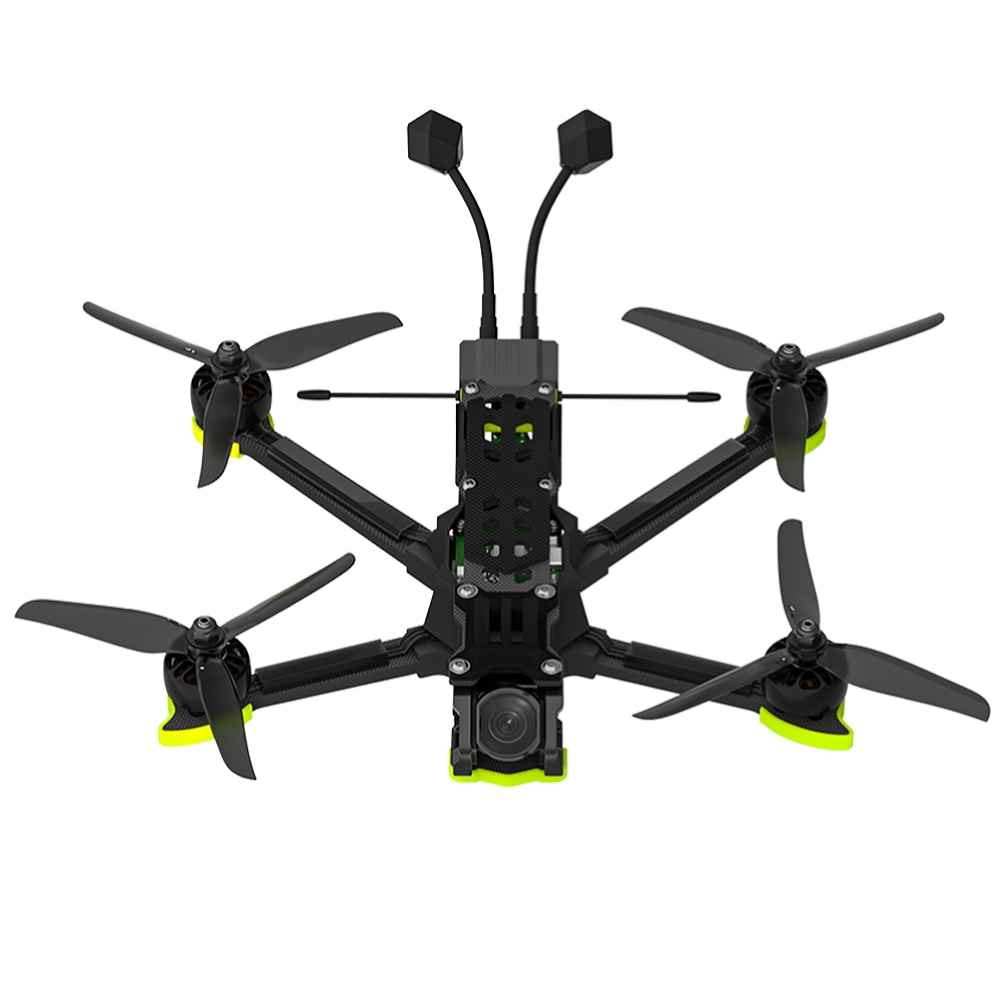

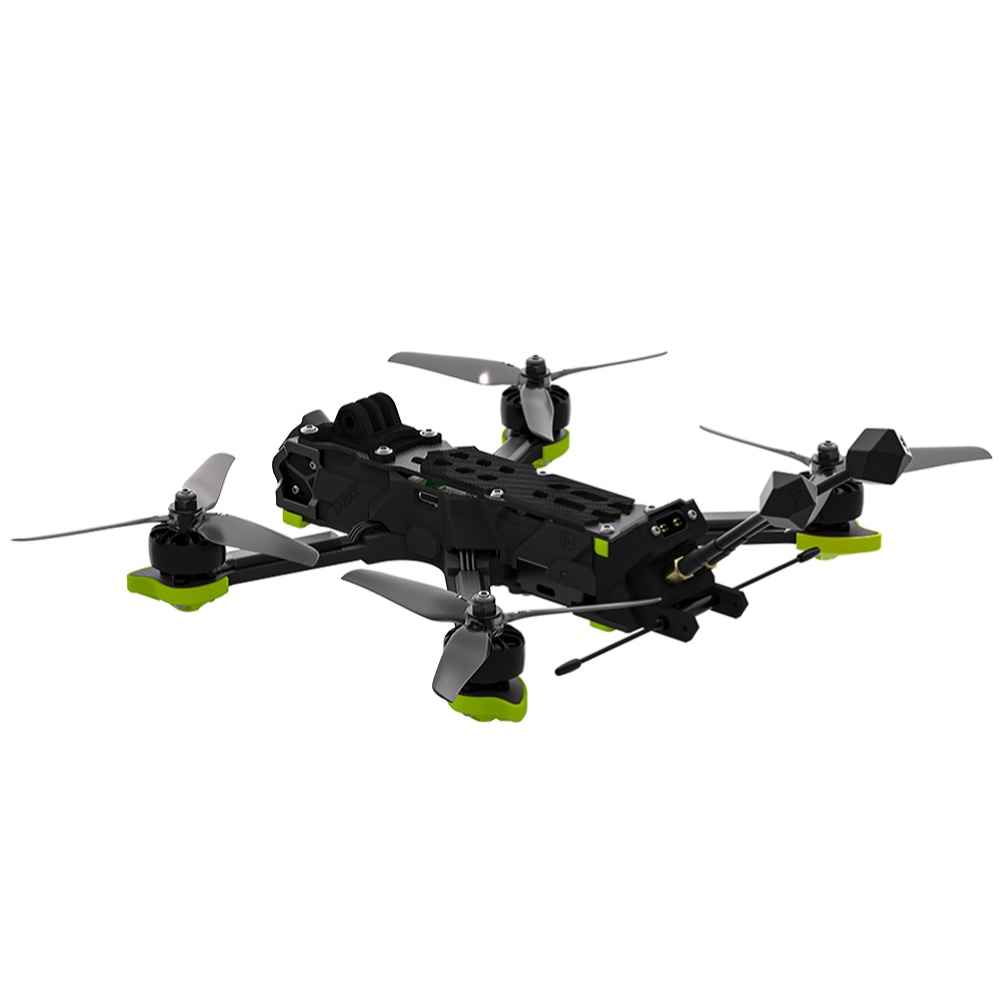

The iFlight Nazgul DC5 ECO HD O4 Pro is a 5-inch freestyle FPV racing drone that combines performance and value. It features the DJI O4 Digital HD System, providing a clear, propeller-free video feed with a 1.1/1.3-inch sensor for stunning 4K stabilized video. Built with a carbon fiber frame and aluminum camera mount, it ensures durability while remaining lightweight. The drone is powered by the BLITZ ATF435 flight controller and BLITZ E55S ESC, delivering reliable performance. With a maximum speed of 190 km/h and a hover time of approximately 7.5 minutes, this drone is designed for high-performance racing and freestyle flying.

Description:
Nazgul DC5 ECO is a 5-inch freestyle drone that redefines performance and value. Equipped with DJI’s O4 Digital HD System for a clear, propeller-free video feed featuring a 1.1/1.3-inch sensor for stunning 4K stabilized video, even in low light. Its carbon fiber frame with an aluminum camera mount ensures durability while remaining lightweight, and the included GPro mount adds versatility. Powered by the ATF435 flight controller and BLITZ E55S ESC, it delivers reliable performance.
Highlights:
Lightweight and Durabl
A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.
Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. Weㄙve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
DJI O4 HD Air Unit, Enhanced Perception
DJI O4 video transmission’s enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. (Source DJI)
4K Stabilized Video with 155‵ Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
Enhance user experience and streamline maintenance
Equipped with a built-in buzzer and receiver mount, this feature makes it convenient maintenance and adjustments to the receiver.
Specificaiton:
Brand: iFlight
Model: Nazgul DC5 ECO
Product Name: 6S 5 Inch DJI O4 Pro HD FPV Drone
Geometry: DC (DeadCat)
Frame: 240mm wheelbase
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 4-IN-1 ESC
VTX: DJI O4 Air Unit Pro
Camera: DJI O4 Air Unit Pro
Motor: XING-E Pro 2207 1800KV motors
Prop: Nazgul F5 propellers
Weight: 450g呼5g
Takeoff Weight: Approx. 675g呼5g (With 6S 1480mAh battery)
Dimensions (L沁W沁H): 193沁144沁34 mm
Max Speed: 190 km/h
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 7.5 mins (No Load with 6S 1480mAh)
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10‵ to 40‵ C (14‵ to 104‵ F)
Antennas: Dual Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)
Video Transmission:
Product Name: DJI O4 Air Unit Pro
Image Sensor: 1/1.3-inch
Lens: FOV: 155‵
ISO: 100-25600
Video Resolution: 1080p/100fps H.265
Video Format: MP4, Max Video Bitrate: 130Mbps
Color Mode: Normal Mode/D-Log M
Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
Live View Quality: 1080P@100fps
Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
Transmitter Power (EIRP): 5.1GHz‘23dBm(CE)/5.8GHz‘33dBm(FCC)/‘14dBm(CE)/‘30dBm(SRRC))
Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Dual antennas
Built-in Storage: 4GB
Supported SD cards: microSD (up to 512GB)
Operating Temperature: -10‵ to 40‵ C
Weight: Air Unit (camera module included): Approx. 32 g
Dimensions: Transmission Module: 33.5沁33.5沁13 mm (L沁W沁H)
Compatibility:
DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3
DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2
(Or another Radio to match the RX in the Drone)
The flight control firmware needs to be configured to support the SBUS protocol so that the DJI FPV remote controller can be used.
Packing Include:
1 x Nazgul DC5 ECO DJI O4 Pro HD FPV Drone
2 x Antennas
1 x Battery Pads
2 x Prop(Pairs)

Package Included:
1 x Nazgul DC5 ECO DJI O4 Pro HD FPV Drone 2 x Antennas 1 x Battery Pads 2 x Prop (Pairs)
