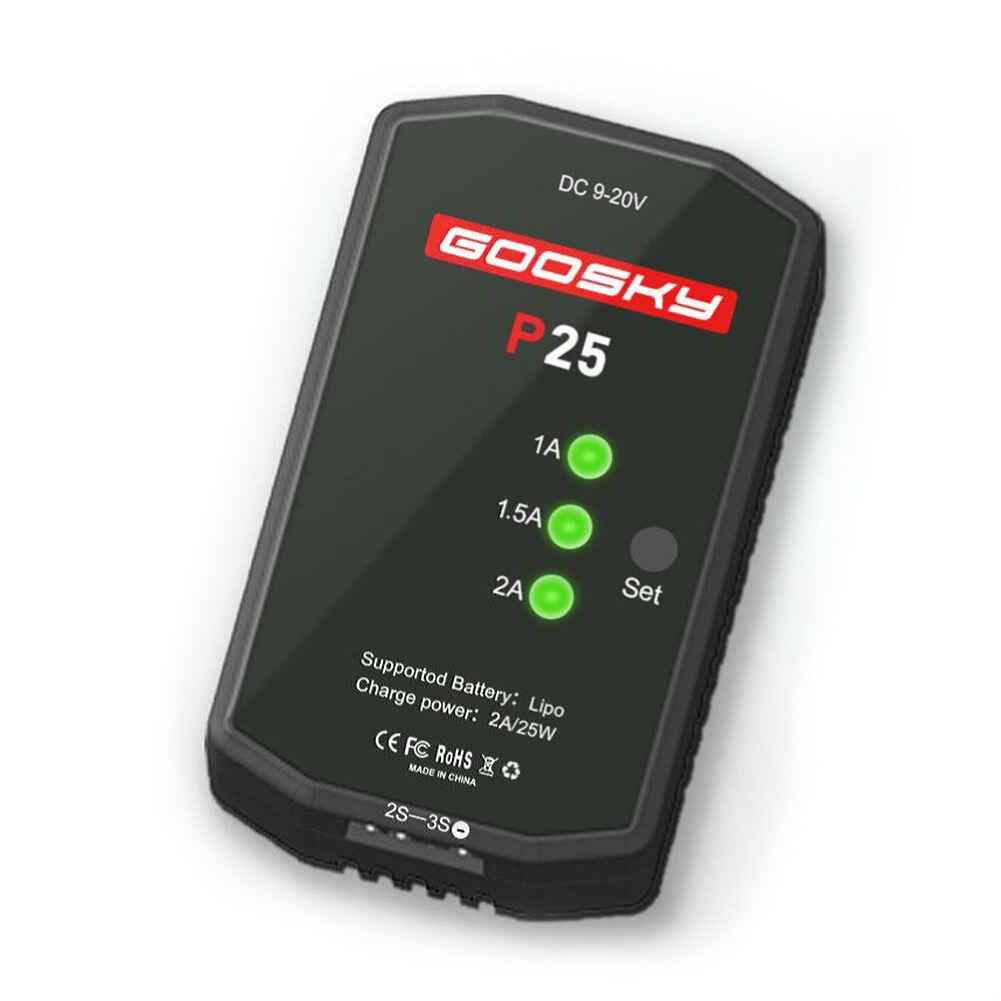

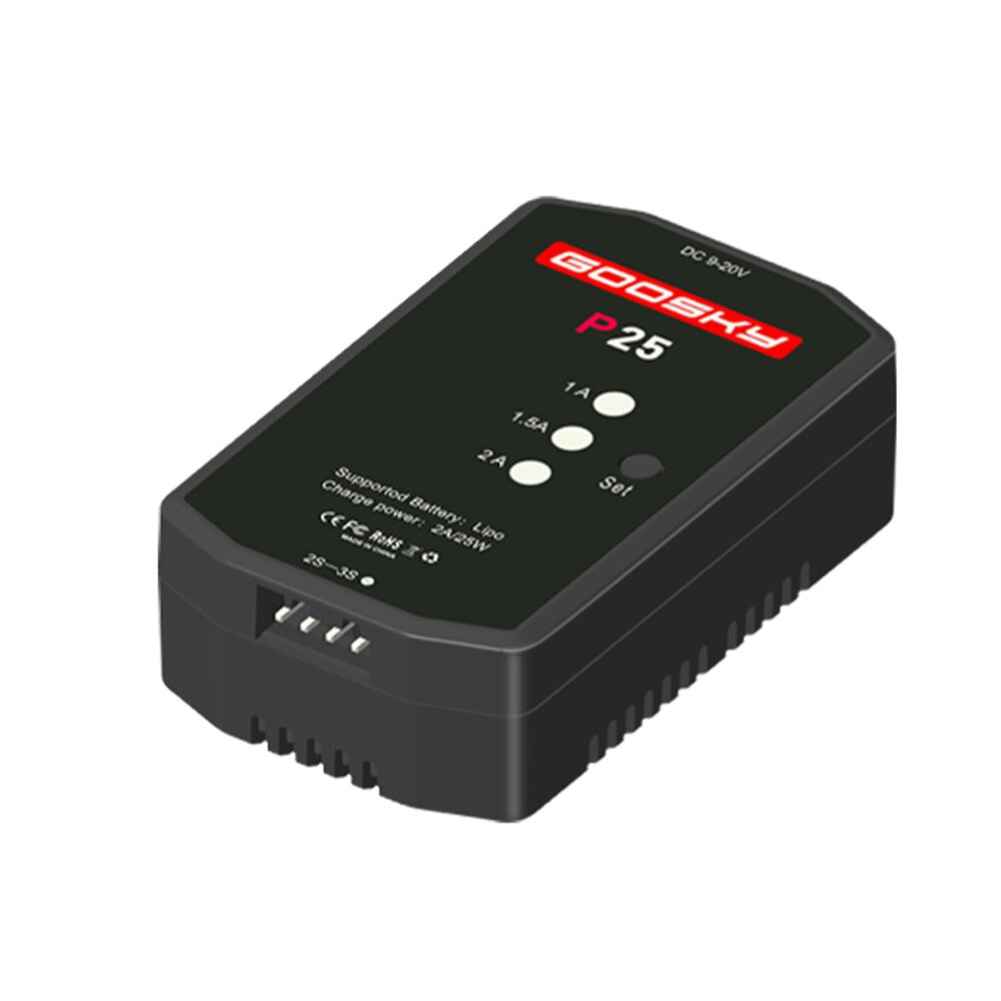

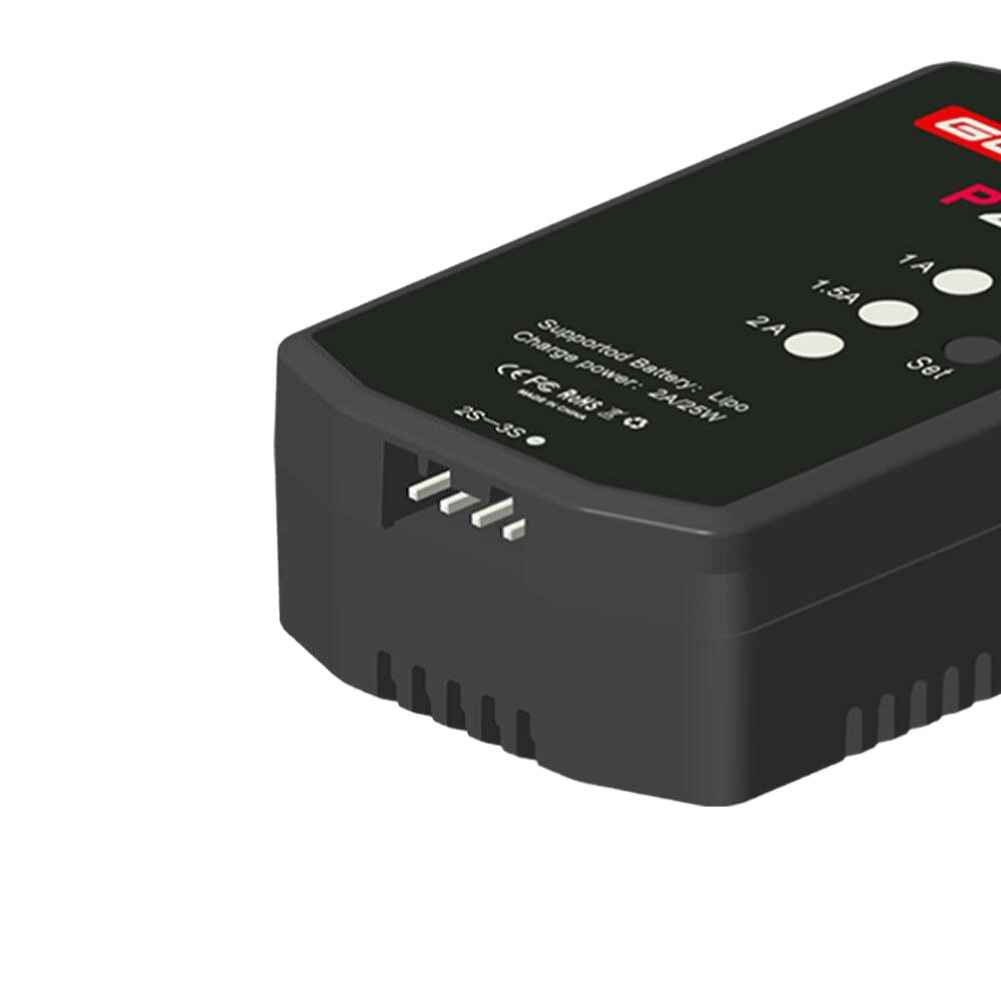

GOOSKY P25 2S-3S 2A/25W Lipo Balanced Charger GT050042
The GOOSKY P25 Lipo Balanced Charger GT050042 is designed for efficient and safe charging of 2S-3S Lipo batteries. With an input voltage range of DC 9~20V, it offers adjustable charging currents of 1A, 1.5A, and 2A, ensuring flexibility for different charging needs. The compact design supports ultra-fast 25W charging, utilizing multiple charging protocols like QC, PD, AFC, and FCP. It features a USB-C input connector and a built-in high thermal conductivity cooling structure to maintain stable internal temperatures. Safety is prioritized with reverse polarity protection and battery voltage anomaly alarms. Please note that an adapter and charging cable are not included.
Specification:
Brand: GOOSKY
Model: P25
Item No.: GT050042
Item Name: Lipo Balanced Charger
Input Voltage Range: DC 9~20V
Charging Current: 1A~2A
Balancing Current: 200mA
Charging Accuracy: <0.01V
Supported Fast Charging Protocols: QC, PD, AFC,FCP
Maximum Charging Power: 25W
Reverse Polarity Protection: Supported
Battery Voltage Anomaly Alarm: Supported
Supported Battery Types: Lipo
Supported Battery Cells: 2~3S
Input Connector Type: USB-C (TYPE-C)
Operating Temperature: 0~40﹠
Storage Temperature: -10﹠~60﹠
Product Dimensions: 62沁38沁20mm
Product Weight: Approx. 36g
Feature:
– Compact fuselage 25W ultra-fast charging;
– Plug-and-Charge Say Goodbye to Complicated Steps;
– Adjustable Charging Current with 3 Levels (1A/1.5A/2A);
– TYPE-C Power Input;
– Supports Multiple Charging Protocols Built-in High Thermal Conductivity Cooling Structure, combined with a heat dissipation air duct, ensures stable internal temperature and guarantees long-lasting durability of the device.
– Balance Port Charging, Compatible with 2S-3S Batteries;
Safety Precautions:
1.The input voltage for TYPE-C is DC 9~20V. Please ensure the power supply voltage is within this range.
2.Do not use the product in hot, humid, flammable, or explosive environments.
3.Always supervise the product during use to prevent accidents.
4.Disconnect the power supply when the product is not in use.
5.Ensure the battery is correctly inserted into the charging port. Reverse insertion is prohibited.
Note:
Adapter and charging cable are not included.
Package Included:
1 x GOOSKY P25 2A/25W Lipo Balance Charger
