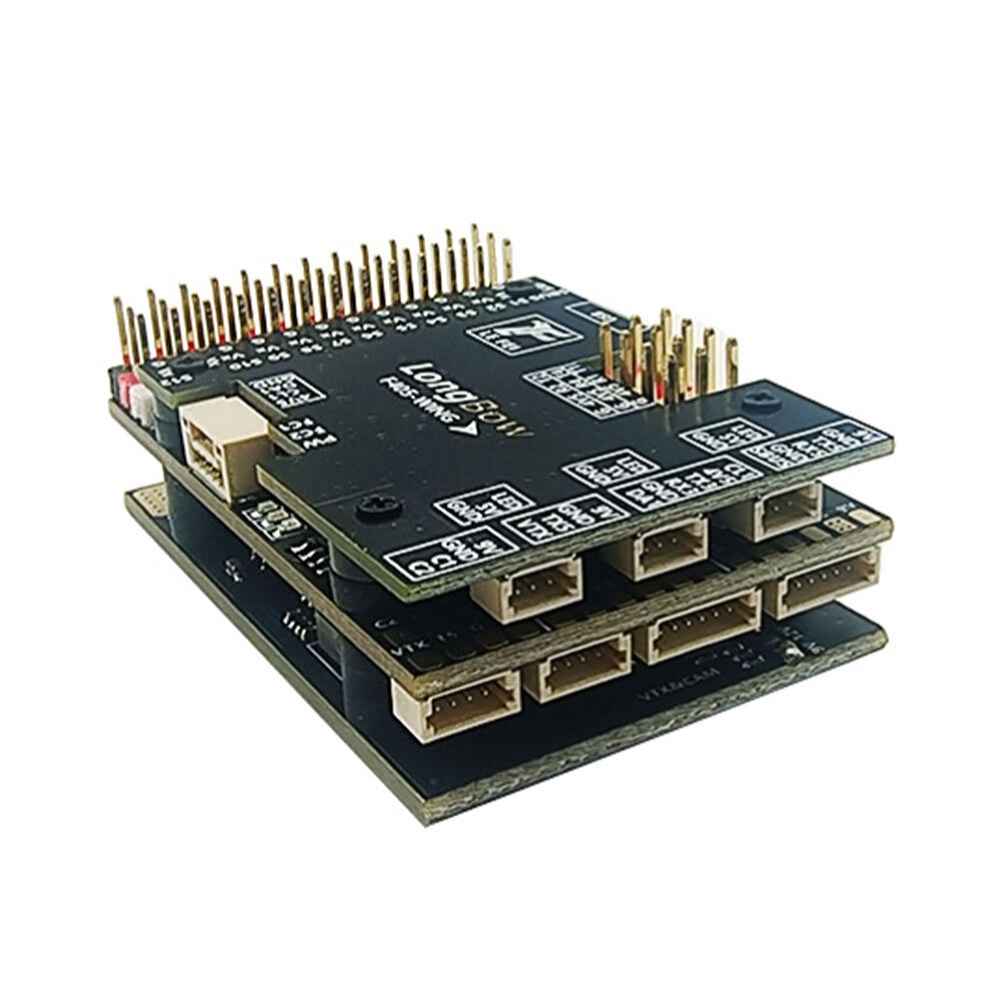

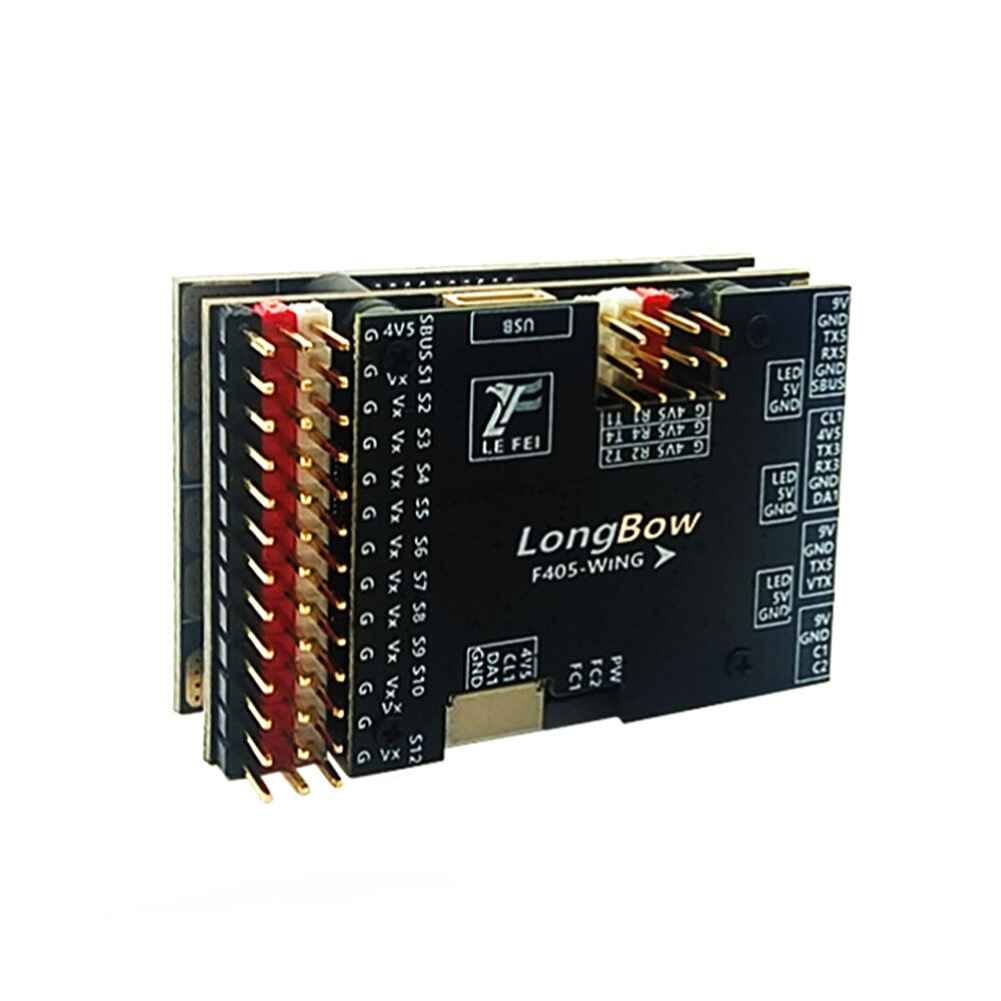

Lefei LongBow F405 WING Flight Controller for RC Airplane Support VTOL Ardupilot INAV
The Lefei LongBow F405 WING Flight Controller is designed for RC airplane enthusiasts, offering robust support for VTOL configurations. Equipped with a powerful STM32F405 MCU running at 168MHz and 1MB Flash, this controller ensures smooth operation. It features a high-performance ICM-42688-P IMU and SPL006-001 BARO for accurate flight data. With 6 UARTs, built-in inverter for SBUS, and PWM outputs, it provides versatile connectivity options. The controller supports INAV and Ardupilot firmware, making it adaptable for various flight requirements. Its power distribution board supports 7~36V input and offers multiple BEC outputs for FC, VTX Camera, and Servo. Additionally, the wireless board supports BLE, WiFi, and BT SPP modes for seamless configuration.
Specifications:
Brand Name: Lefei
Product Name: LongBow F405 WING
MCU: STM32F405, 168MHz,1MB Flash
IMU: ICM-42688-P
BARO: SPL006-001
OSD: AT7456E
BLACK BOX: MicroSD
UART: x6 uarts(UART1,UART2, UART3, UART4, UART5,UART6 (connect to wireless))
I2C: 1x Compass,AirSpeed
ADC: 2x (Voltage, Current)
PWM: 12
ELRS/CRSF: Connect to UART1
SBUS: Built in inverter (UART2 – RX)
STATUS LED: 3沁LED
FIRMWARE:
INAV: Longbow F405WING
Default: Ardupilot: LongBow F405 WING
LongBow F405 WING PDB Speceifications:
Input: 7~36V (2~6S LiPo)
Voltage: Ratio: 1K: 10K
Current: Continuous 120A, MAX 215A
FC BEC: 5.2V, Continuous 2A, Max 3A
VTX Camera BEC: 9V/12v, Continuous 2A Max 3A
Servo BEC: 5.2V/6V/7.2V, Continus 6A, Max 8A
LongBow F405WING WIRELESS BOARD Speceifications:
Mode:
BLE, connect LongBow APP
Wifi, connect Qground, MIssionPlanner, Inav Configure
BT SPP, connect Qground, MIssionPlanner, Inav Configure
Onboard RGB:
3沁 WS2812. indicate Arm and GPS status
5.2V – 1.3A, support 6 LEDS
Package Included:
1 x Lefei LongBow F405 WING Flight Controller
