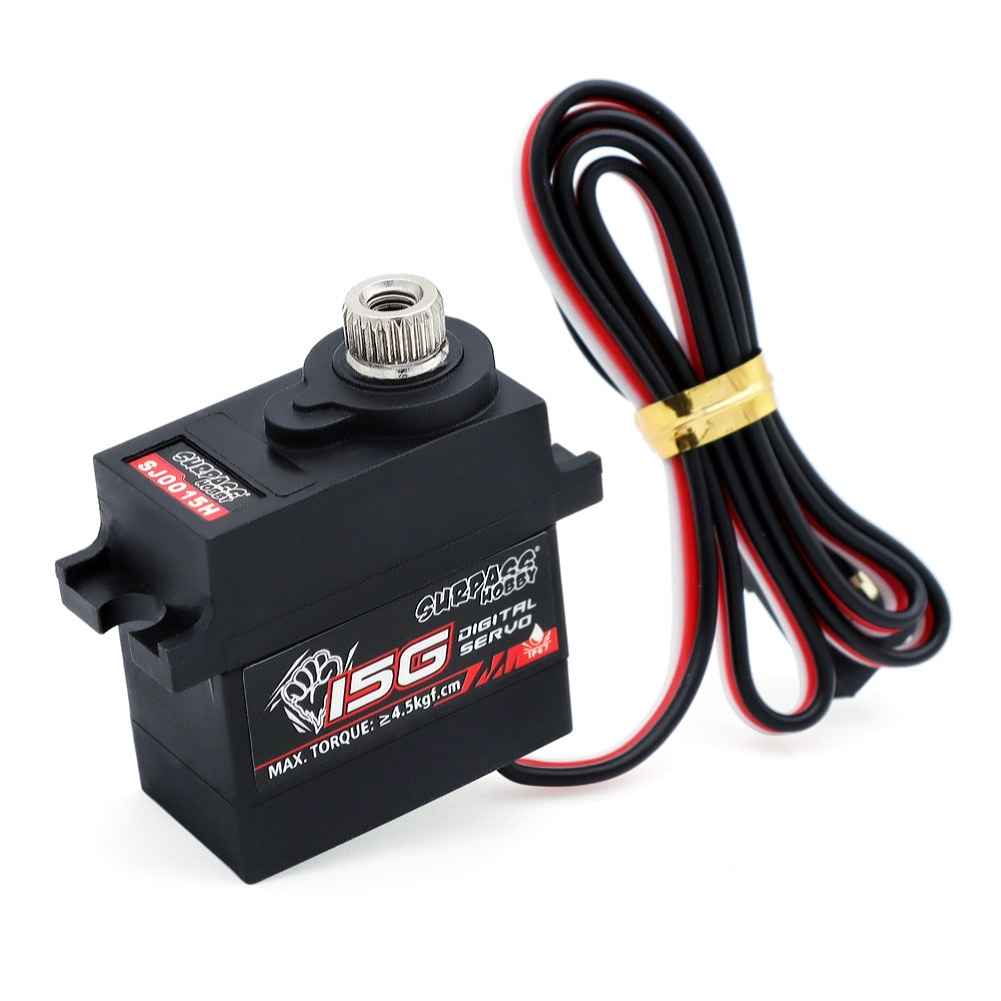

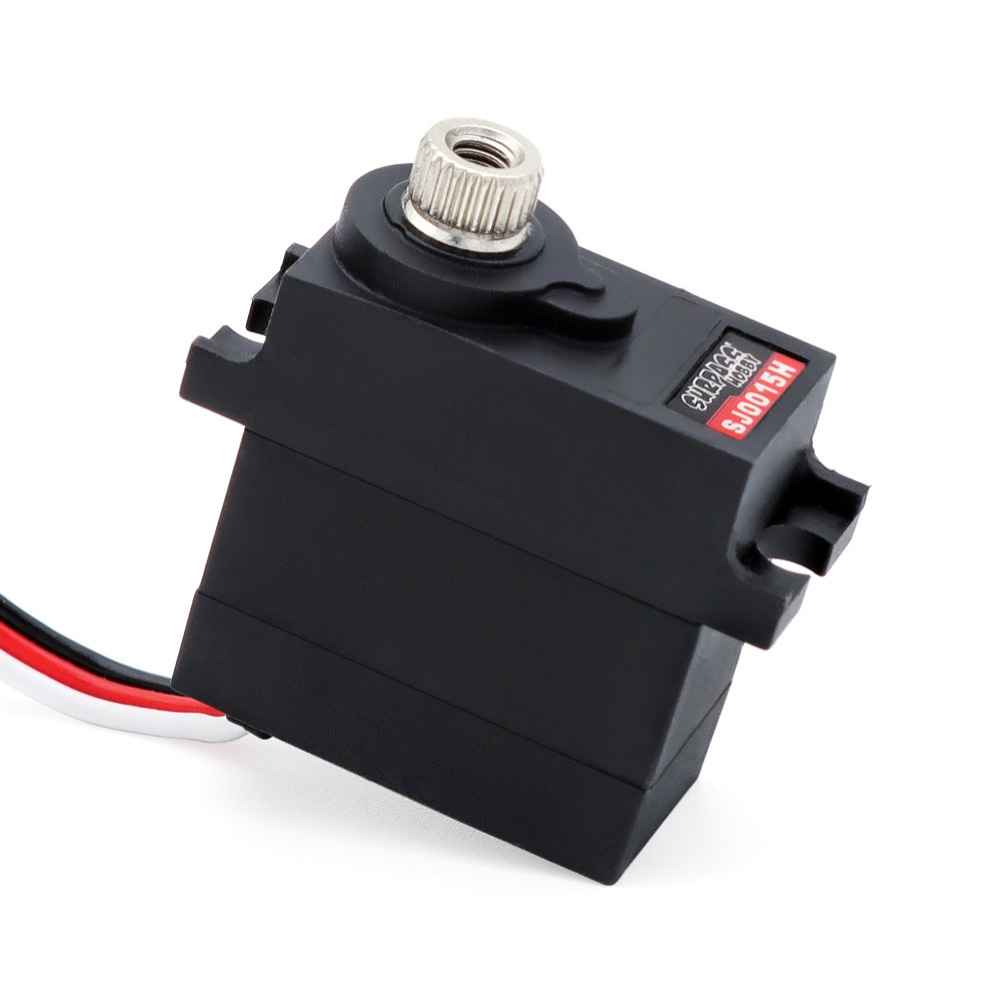

SURPASS-HOBBY SJ0015H High Pressure SJ0015M Low Pressure 15G Waterproof Servo for Fixed Wing RC Helicopter Robot
The SURPASS-HOBBY SJ0015H and SJ0015M are high-performance 15G digital metal gear servos designed for fixed-wing RC helicopters and robots. Featuring a robust cored motor and 25T horn gear spline, these servos deliver exceptional torque and speed. The SJ0015M operates efficiently between 4.8V-6V, providing a maximum torque of ≡3.6kgf/cm, while the SJ0015H functions between 6V-8.4V with a torque of ≡4.5kgf/cm. Both models maintain optimal performance in temperatures ranging from -20°C to +60°C, ensuring reliability in various conditions. With a compact size of 23.2 x 12.5 x 25.6 mm and a weight of just 15g, these servos are perfect for precision applications. Each unit is built to last with a lifetime of 15,000 cycles without load.

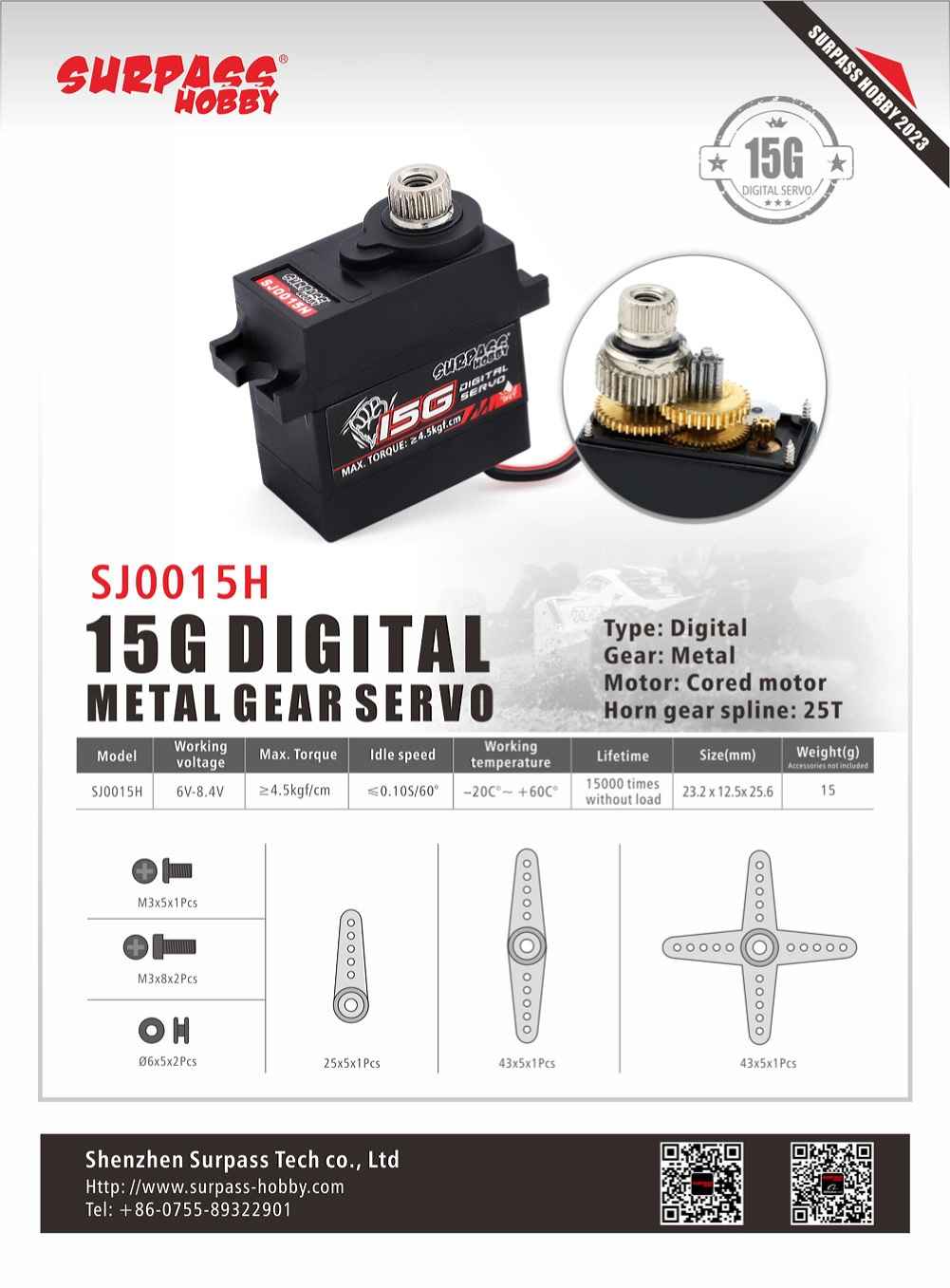

Specifications:
Name: 15G Digital Metal Gear Servo
Type: Digital

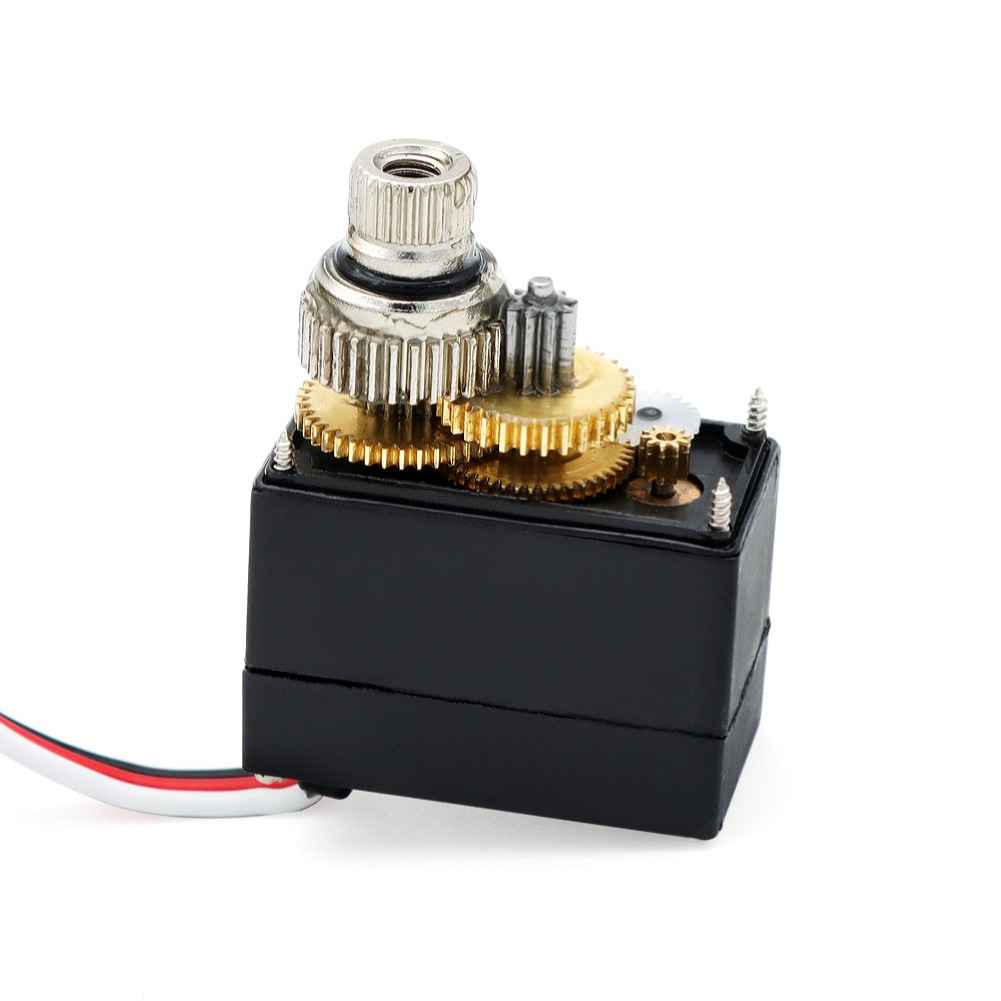

Gear: Metal
Motor: Cored motor
Horn gear spline: 25T
Model: SJ0015H / SJ0015M
Working Voltage: 4.8V-6V (SJ0015M), 6V-8.4V (SJ0015H)
Working Temperature: -20C～~ +60C～
Max. Torque: ≡3.6kgf/cm (SJ0015M), ≡4.5kgf/cm (SJ0015H)
Idle Speed: ≒0.12S/60～ (SJ0015M), ≒0.10S/60～ (SJ0015H)

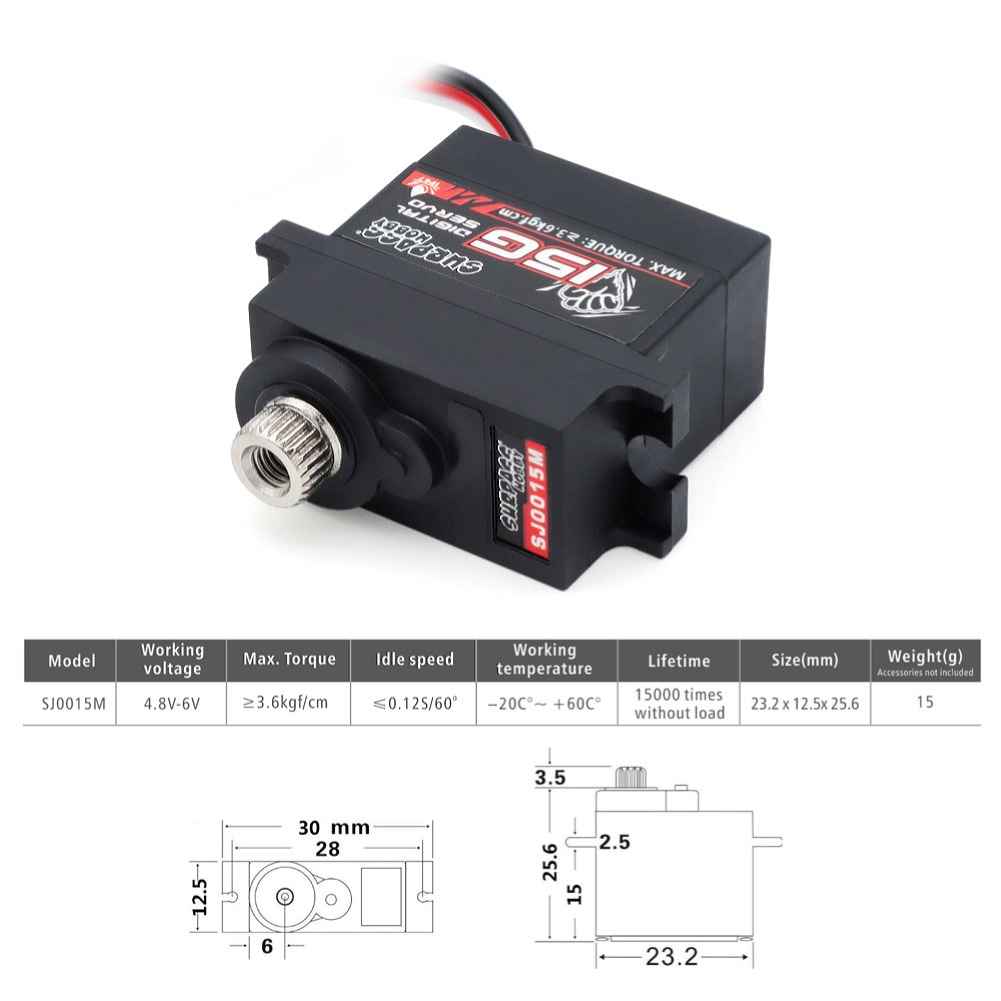

Size: 23.2 ℅ 12.5℅ 25.6 mm
Weight: 15g
Lifetime: 15000 times without load
Package Included:
1 x SURPASS-HOBBY SJ0015M / SJ0015H Servo
1 x Set Accessories
