Description

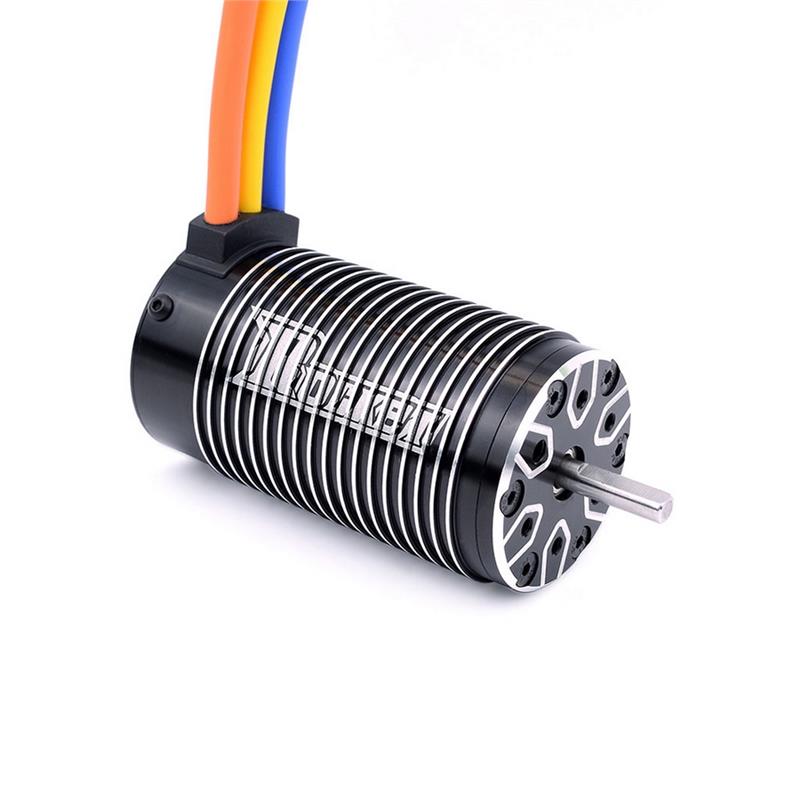

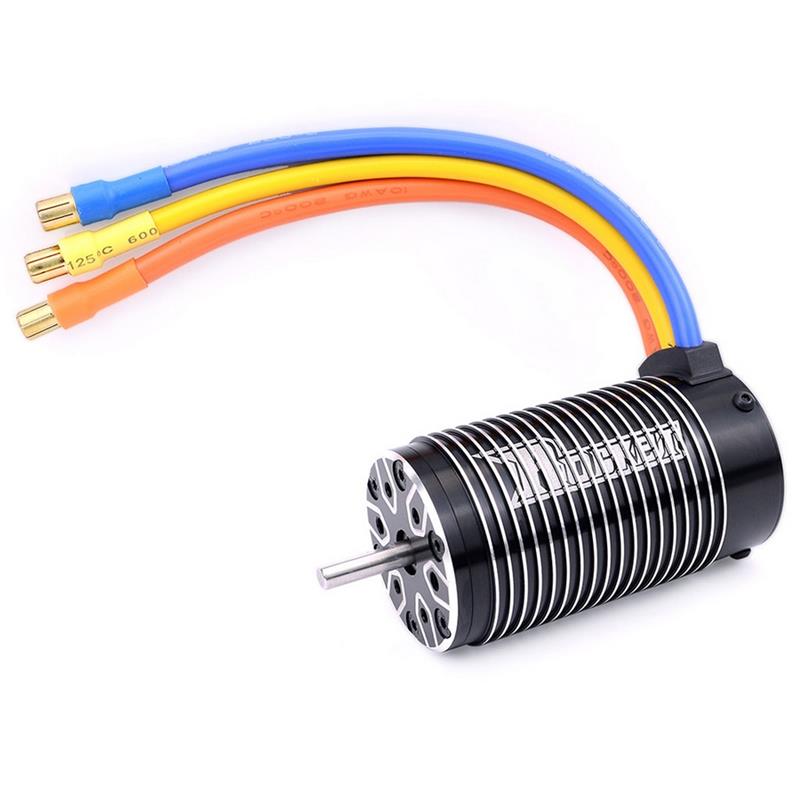

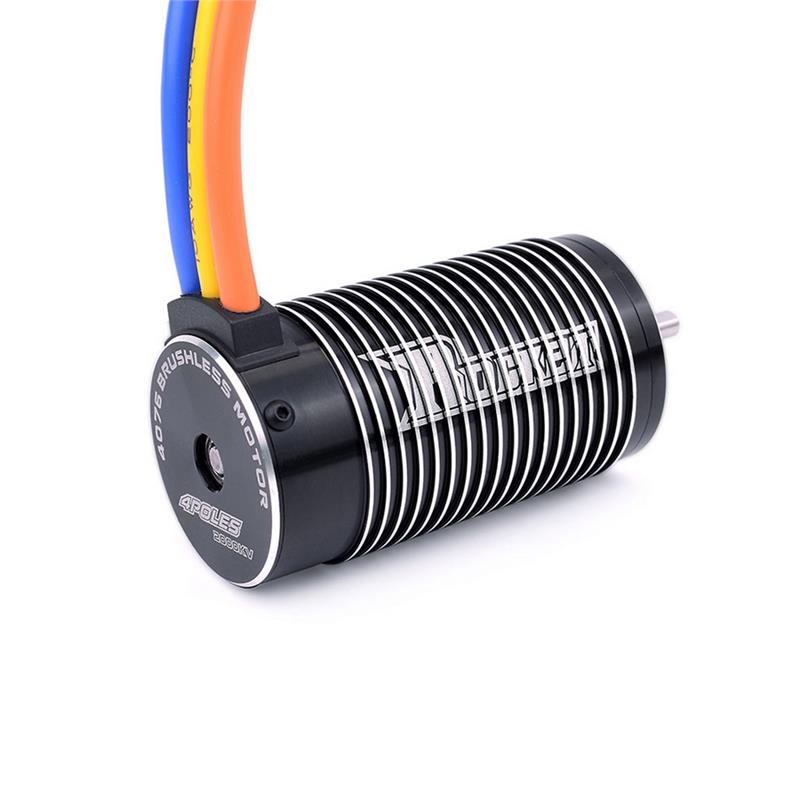

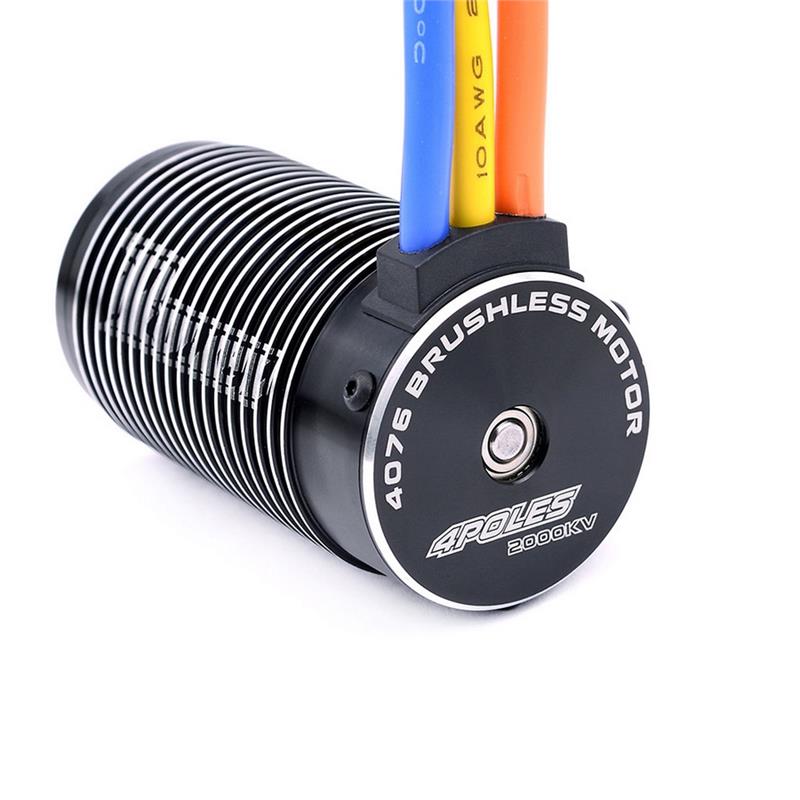

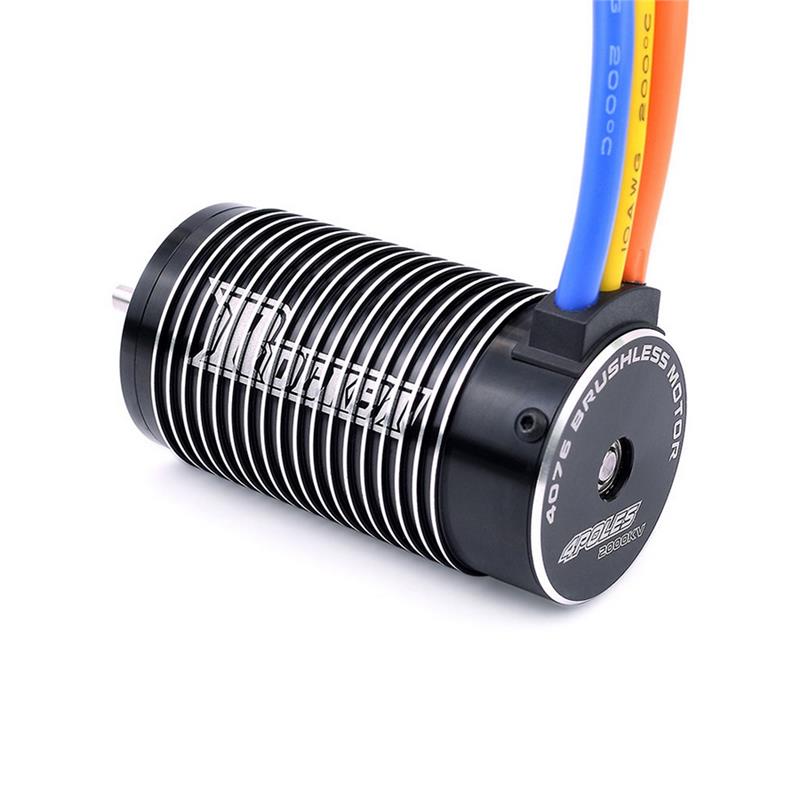

Surpass Hobby Rocket 4076 1700KV/2000KV/2250KV Brushless Motor for 1/8 RC Car Vehicles Model Parts
The Surpass Hobby Rocket 4076 Brushless Motor is designed for high-performance 1/8 scale RC cars. Crafted from durable metal and plastic, this black motor features a length of 76mm and a diameter of 40mm, with a 5mm shaft diameter and an 18mm extended shaft. With a weight of approximately 400g, it offers impressive specifications across its 1700KV, 2000KV, and 2250KV variants. Each motor boasts a 2800W power capacity, high RPM ABEC5 oversized bearings, and a precision-engineered rotor for maximum energy conversion. The CNC machined 6061 billet aluminum heatsink can and high-purity copper windings ensure optimal efficiency and reliability. Compatible with all 1/8 brushless RC cars, this motor supports a universal fit with a multi-mounting system for M3 or M4 screws.
Description:
Item Brand:Surpass Hobby
Item Number:4076
Item Name:RC car motor
Material:Metal and plastic
Color:Black

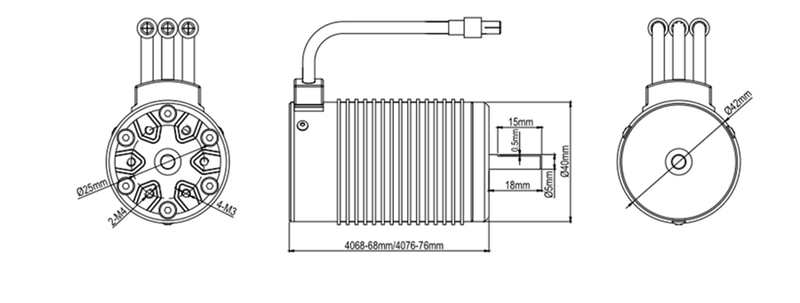

Product Size:Length 76mm,diameter 40mm,shaft diameter is 5mm,length of extended shaft is 18mm
Product Weight:About 400g
Fit For:1/8 brushless rc cars
Specification:
KV:2250
Watts:2800W
Max Voltage:<18V
Max Amps:155A
Rotor Poles:4
IO:2.5A
Resistance:0.0066
Max RPM:50000
Diameters:40/42mm with fins

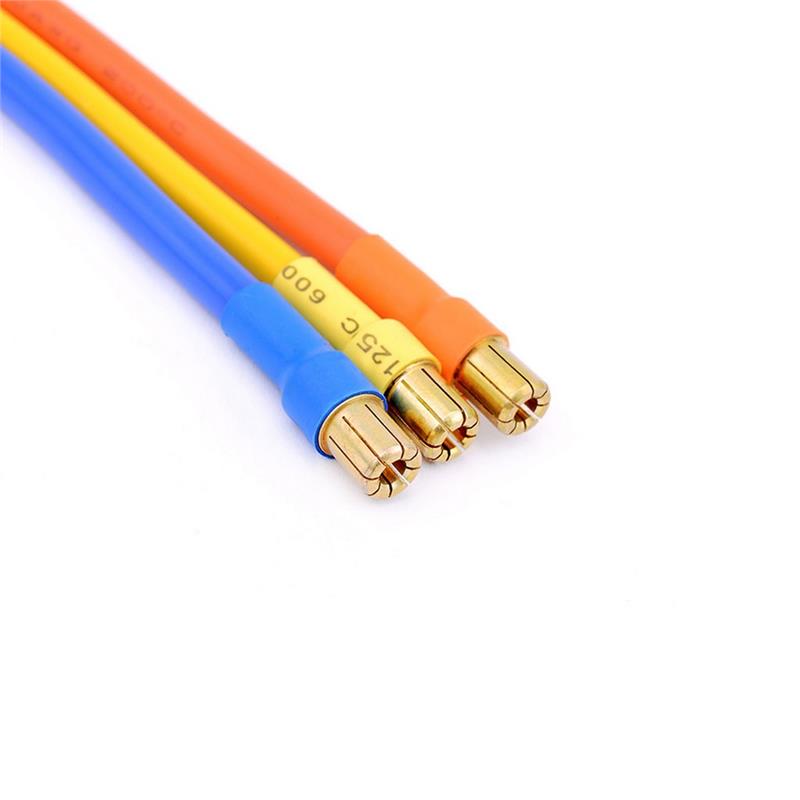

Connector:6.5mm gold
KV:2000
Watts:2800W
Max Voltage:<21V
Max Amps:135A
Rotor Poles:4
IO:2.3A
Resistance:0.0079
Max RPM:50000
Diameters:40/42mm with fins
Connector:6.5mm gold
KV:1700
Watts:2800W
Max Voltage:<23V
Max Amps:116A
Rotor Poles:4
IO:1.9A
Resistance:0.0111
Max RPM:50000
Diameters:40/42mm with fins
Connector:6.5mm gold
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/8 brushless cars-multi-mounting system for M3 or M4 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator – Super Thin (0.2mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
ROAR legal
Package Included:
1 x Rocket 4076 1700KV/2000KV/2250KV Brushless Motor
