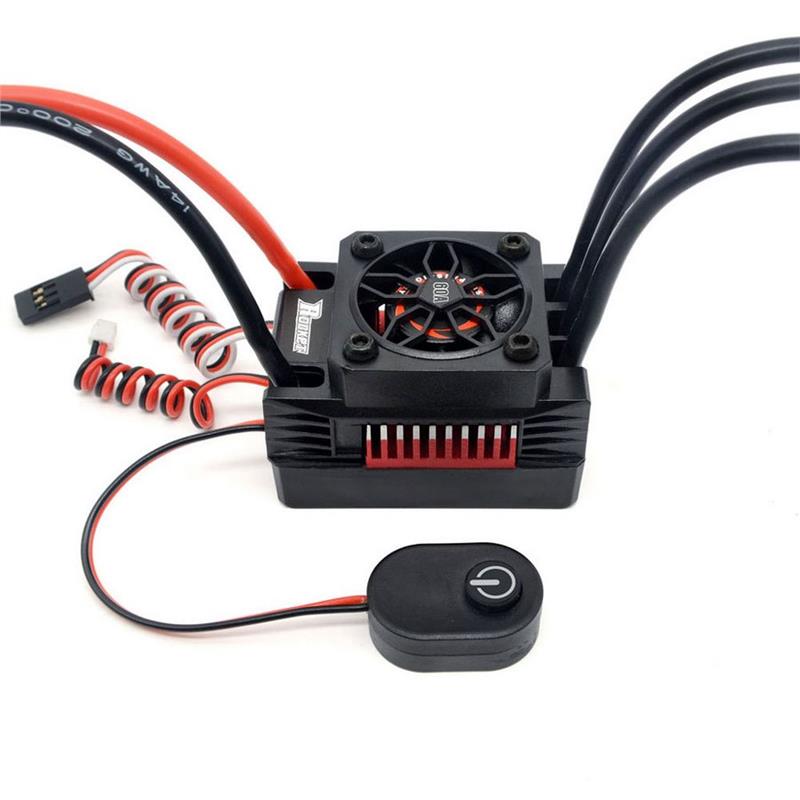

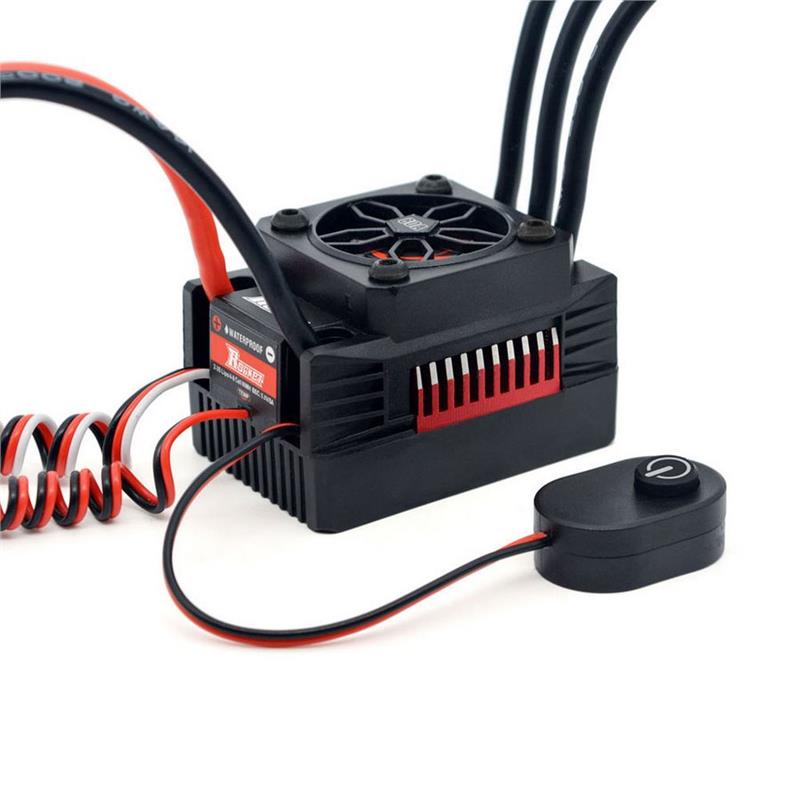

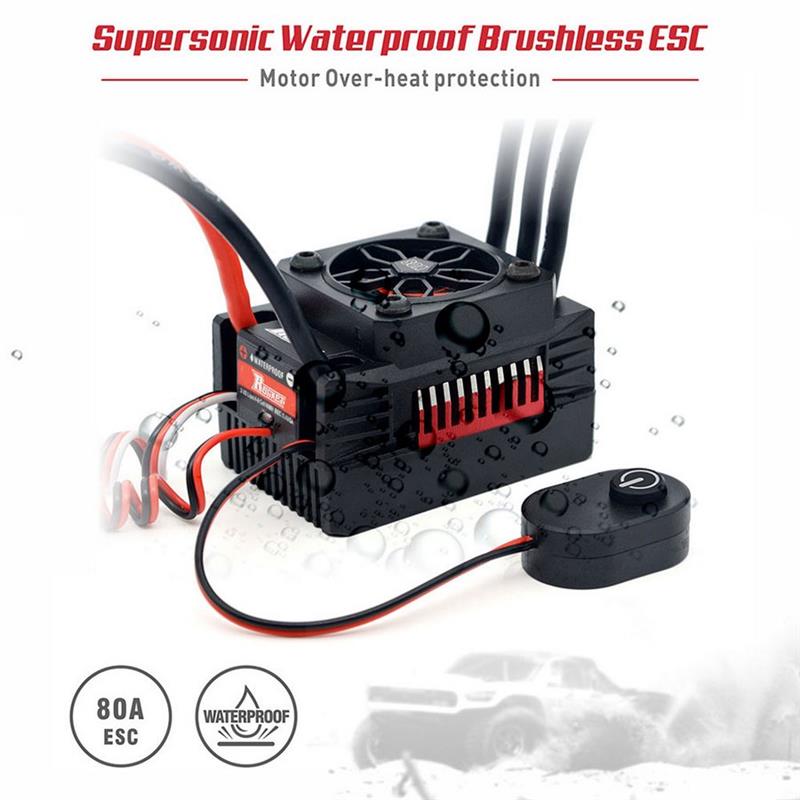

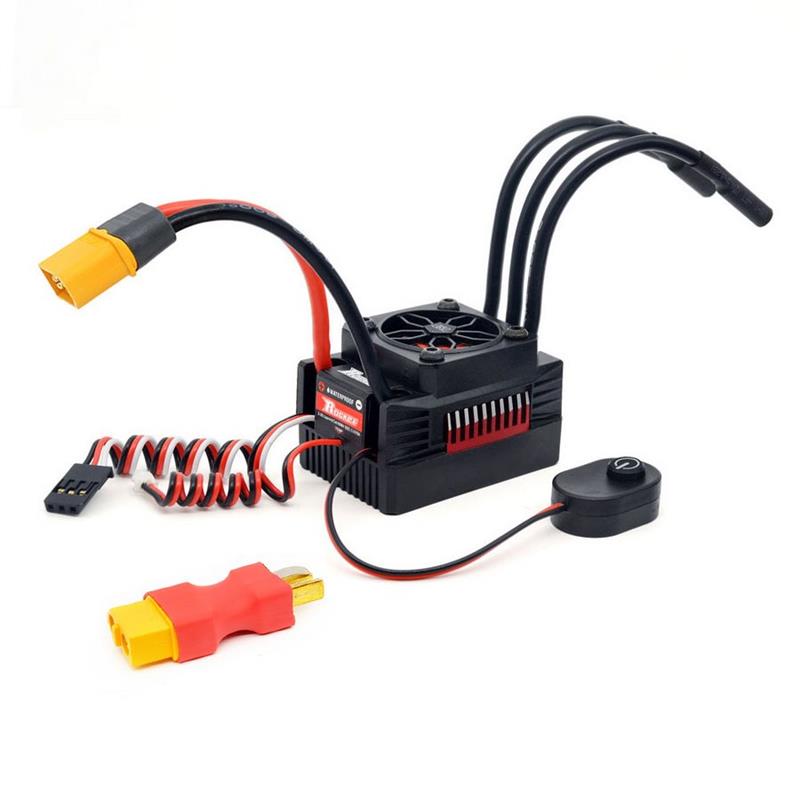

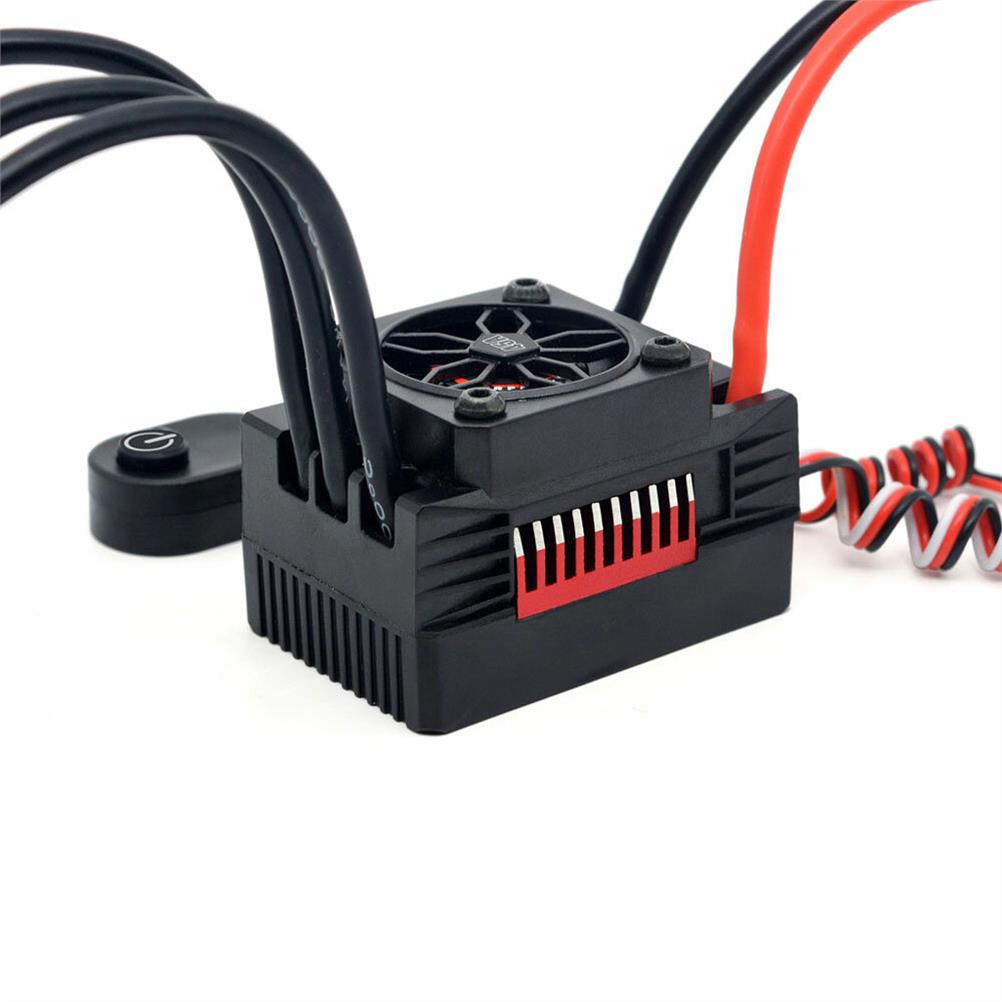

Surpass Hobby Rocket V2 Waterproof 60A Brushless ESC for 1/10 RC Car Vehicles Model Parts
The Surpass Hobby Rocket V2 Waterproof 60A Brushless ESC is designed for 1/10 scale RC cars, offering exceptional performance with its sensorless brushless motor compatibility. Constructed from durable metal and plastic, this ESC is both water-proof and dust-proof, ideal for all-weather racing. It supports 2-3S LiPo or 4-9 cells NiMH batteries and features a built-in switch-mode BEC of 5.8V/5A, ensuring powerful output for high torque and high voltage servos. With excellent heat dissipation and multiple protection features like low voltage cut-off, over-heat, and throttle signal loss protection, this ESC ensures reliable performance. Its compact size of 50x35x32mm and weight of 81g make it a perfect fit for your RC vehicle.
Description:
Item Brand:Surpass hobby
Item Name:60A Brushless ESC
Material:Metal and plastic
Color:Black

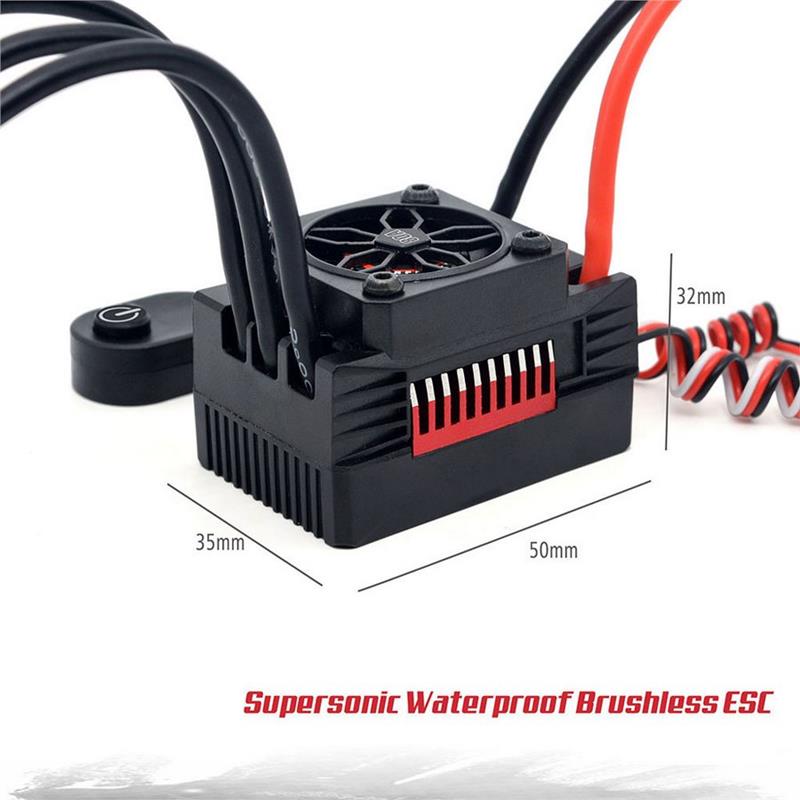

Product Size:50*35*32mm
Product Weight:About 81g
Compatible Cars:1/10 rc cars

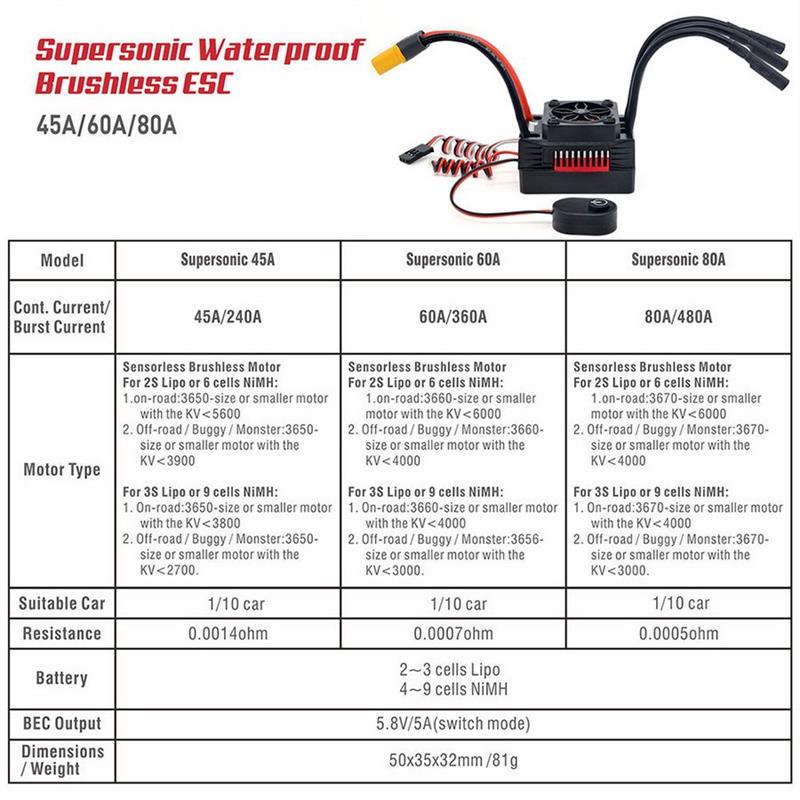

Specification:
60A ESC
Continue Current: 60A
Burst Current:360A
Motor Type:Sensorless Brushless MotorFor 2S Lipo or 6 cells NiMH:
1.on-road:3660-size or smaller motor with the KV<6000
2. Off-road / Monster:3660-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
1. On-road:3660-size or smaller motor with the KV<4000
2. Off-road / Monster:3660-size or smaller motor with the KV<3000.
Resistance:0.0007ohm

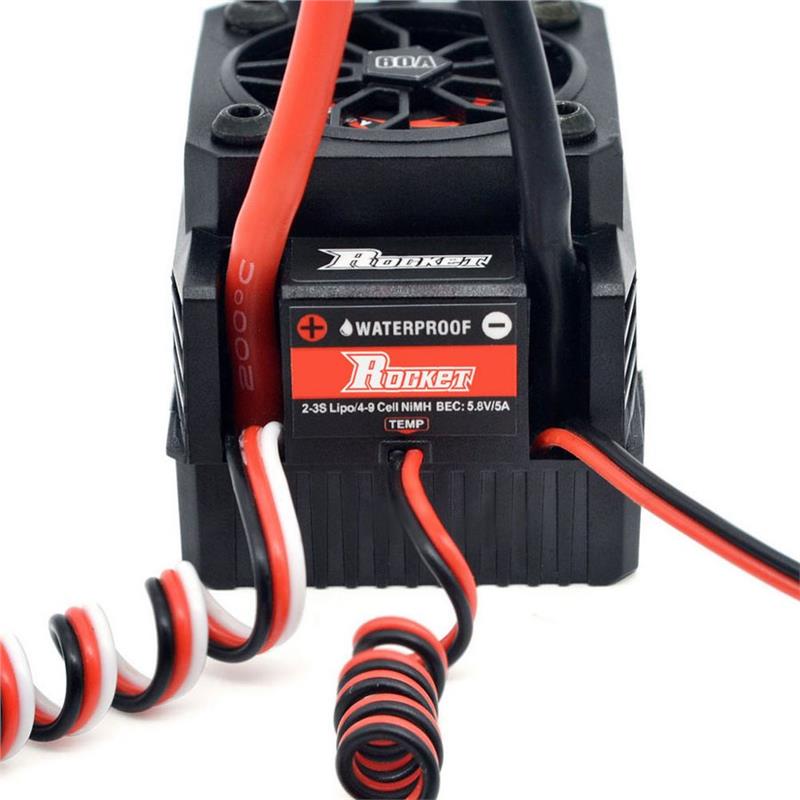

Battery:2-3S cells lipo battery/4-9 cells NiMH
BEC Output:5.8V/5A(switch mode)

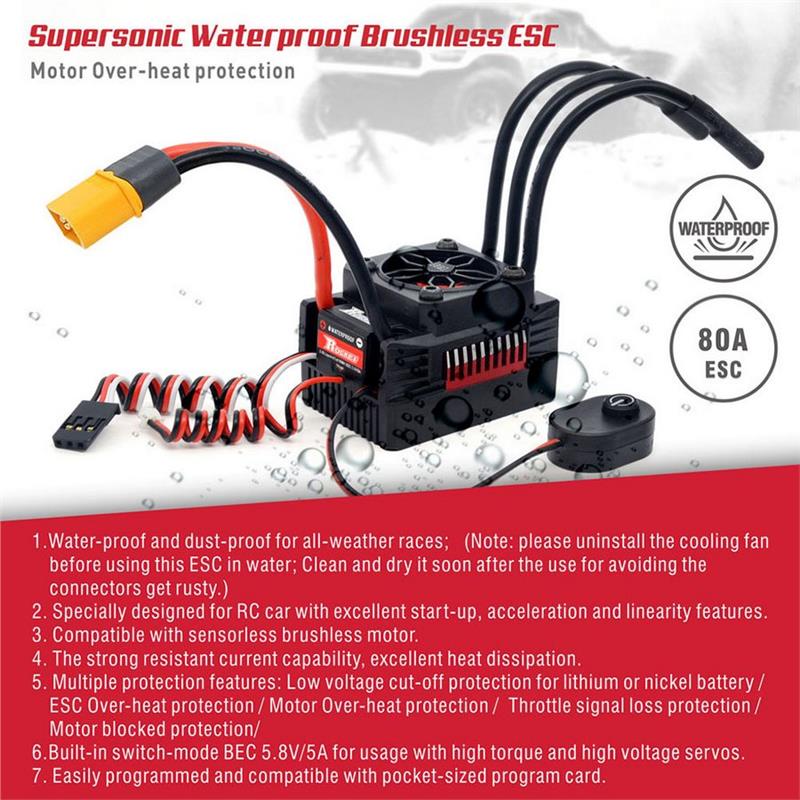

Features:

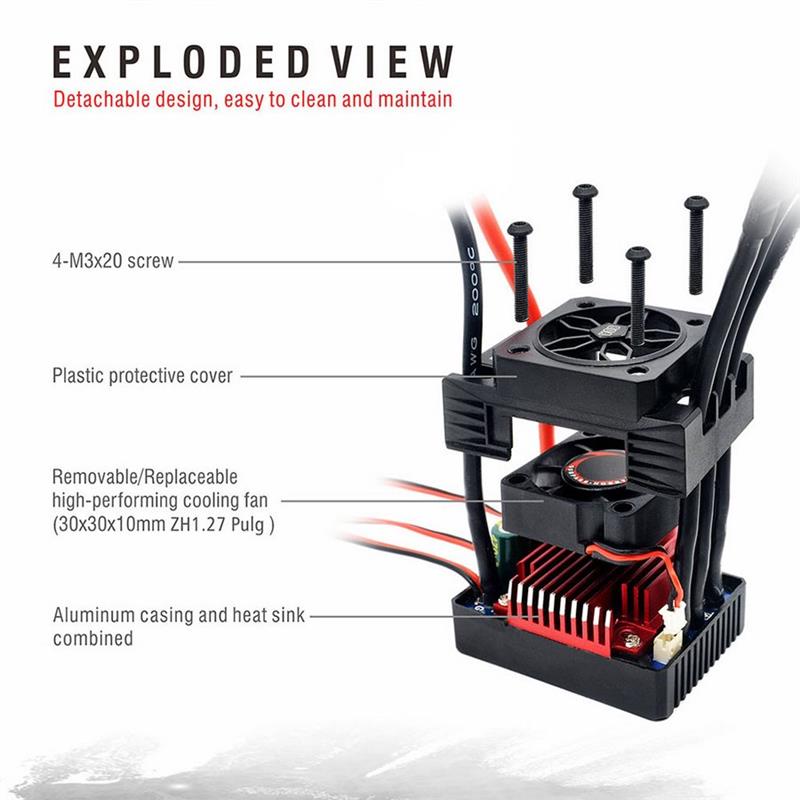

1.Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.

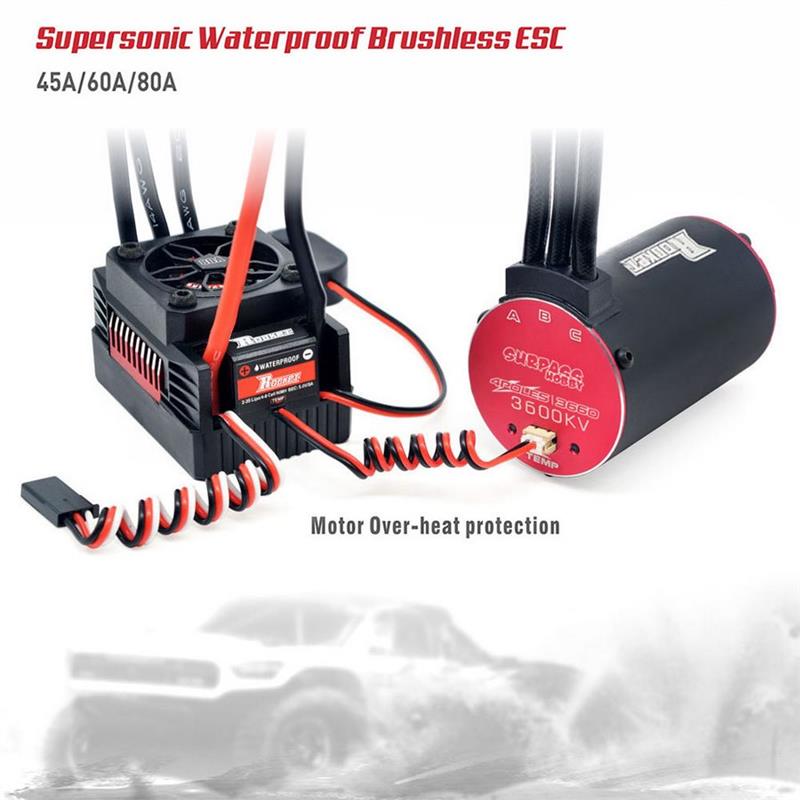

5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
6.Built-in switch-mode BEC 5.8V/5A for usage with high torque and high voltage servos.
6. Easily programmed and compatible with pocket-sized program card.
Package Included:

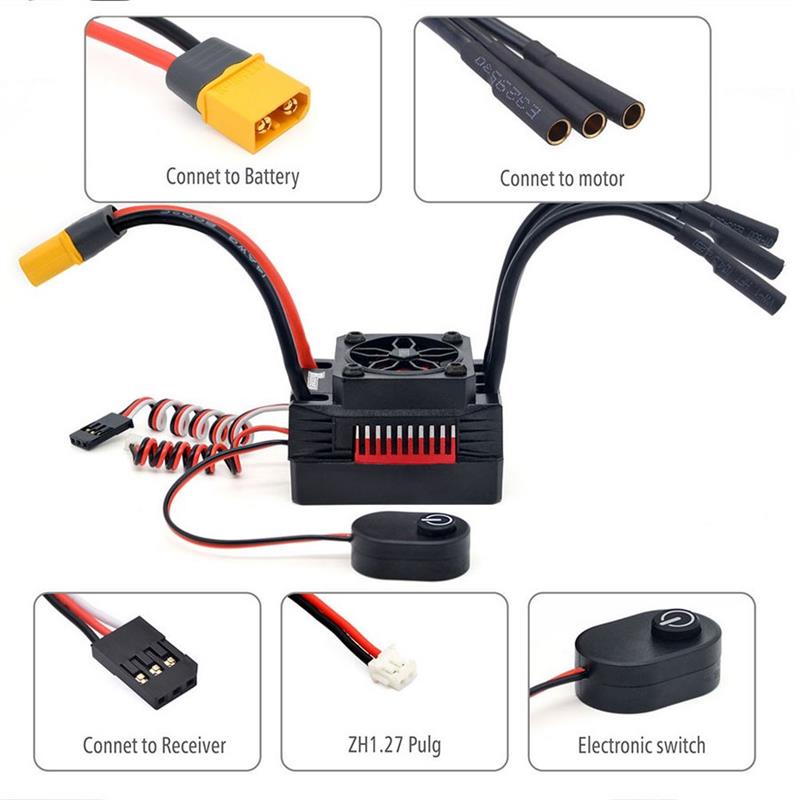

1 x Brushless ESC 60A
