FLYSKY Paladin PL18 EV 2.4G 18CH Radio Transmitter with 5D Hall Sensor Gimbals and 3.5″ TFT Touch Screen for RC Engineering Vehicles

Description

FLYSKY Paladin PL18 EV 2.4G 18CH 5D Hall Sensor Gimbals AFHDS 3 Radio Transmitter 3.5 Inch TFT Touch Screen for RC Engineering Vehicle

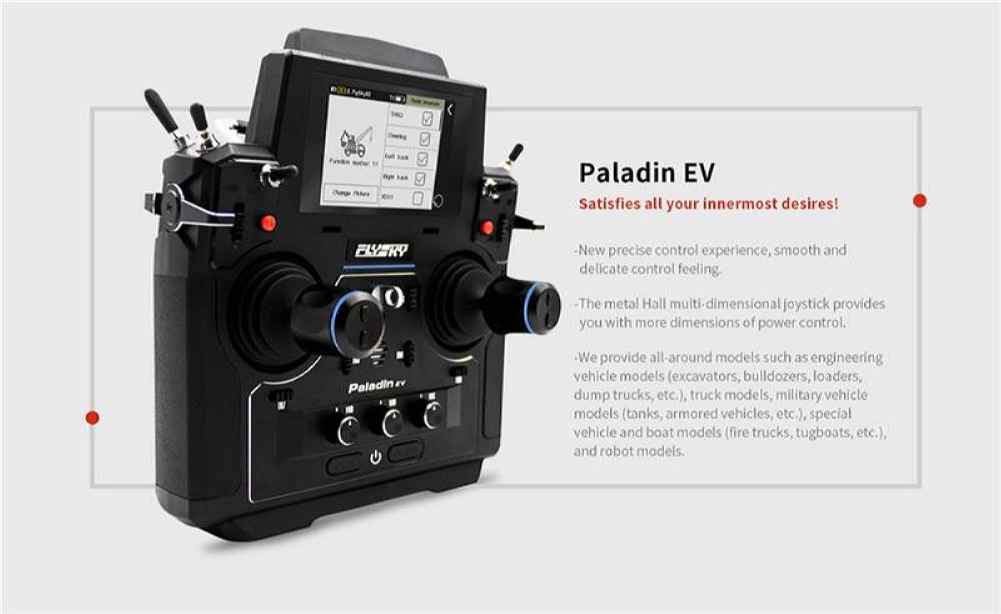

The FLYSKY Paladin PL18 EV is an advanced 18-channel radio transmitter designed specifically for RC engineering vehicles. Featuring the AFHDS 3 digital wireless system, it ensures reliable communication with its 2.4GHz frequency. The transmitter boasts a 3.5-inch TFT color touch screen and a metal Hall multi-dimensional joystick for precise control. With dual model control, adjustable vibration and sound alarms, and a built-in 4300mAh lithium battery, it offers a versatile and user-friendly experience. The PL18 EV supports USB and wireless charging, making it convenient for extended use. Its dual antenna design ensures robust signal strength over long distances, while the system’s anti-interference capabilities enhance performance in challenging environments.

FLYSKY Paladin PL18 EV 2.4G 18CH 5D Hall Sensor Gimbals AFHDS 3 Radio Transmitter 3.5 Inch TFT Touch Screen for RC Engineering Vehicle
Overview:
PL18EV is an 18-channel transmitter dedicated to engineering vehicles, equipped with 2.4GHz AFHDS 3 (third-generation automatic frequency hopping digital system). The standard conguration is an FGr12B receiver!
AFHDS3 (third-generation automatic frequency hopping digital system) is a newly developed digital wireless system. It is compatible with single antenna bidirectional real-time data packet transmission and data stream transmission. With the advantages that come with the WS2A wireless system and the new 2.4GHz chip, the system can dynamically set: number of channels, channel resolution, range, anti-interference requirements and latency to meet the needs of dierent users.

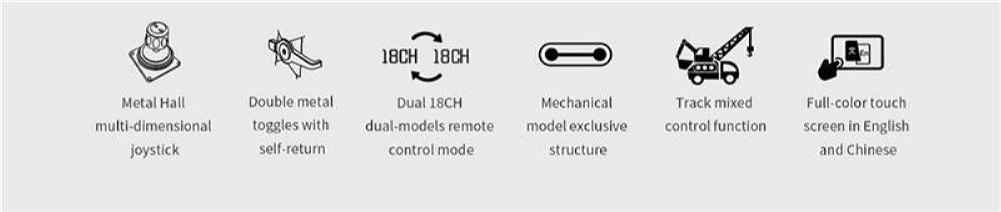

Features:

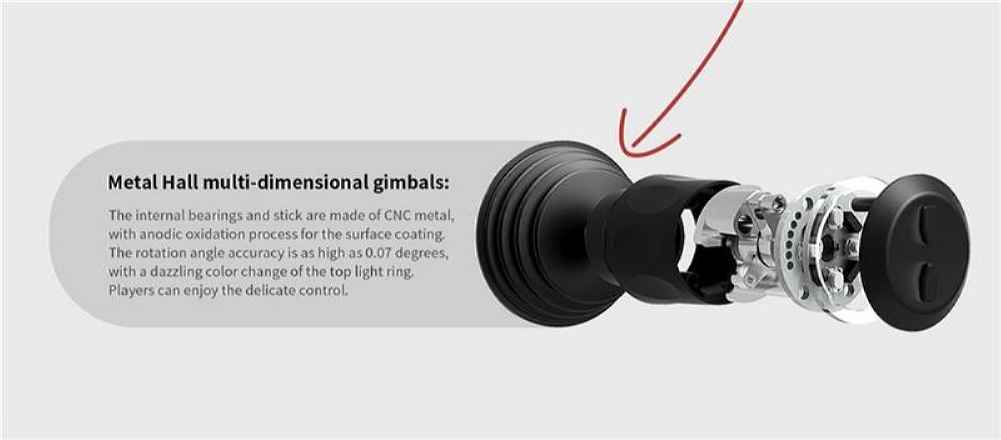

– Metal Hall multi-dimensional joystick.
– Double metal toggles with self-return.
– Dual 18CH dual-models remote control mode.
– Mechanical model exclusive structure.
– Track mixed control function.
– Full-colour touch screen in English and Chinese.

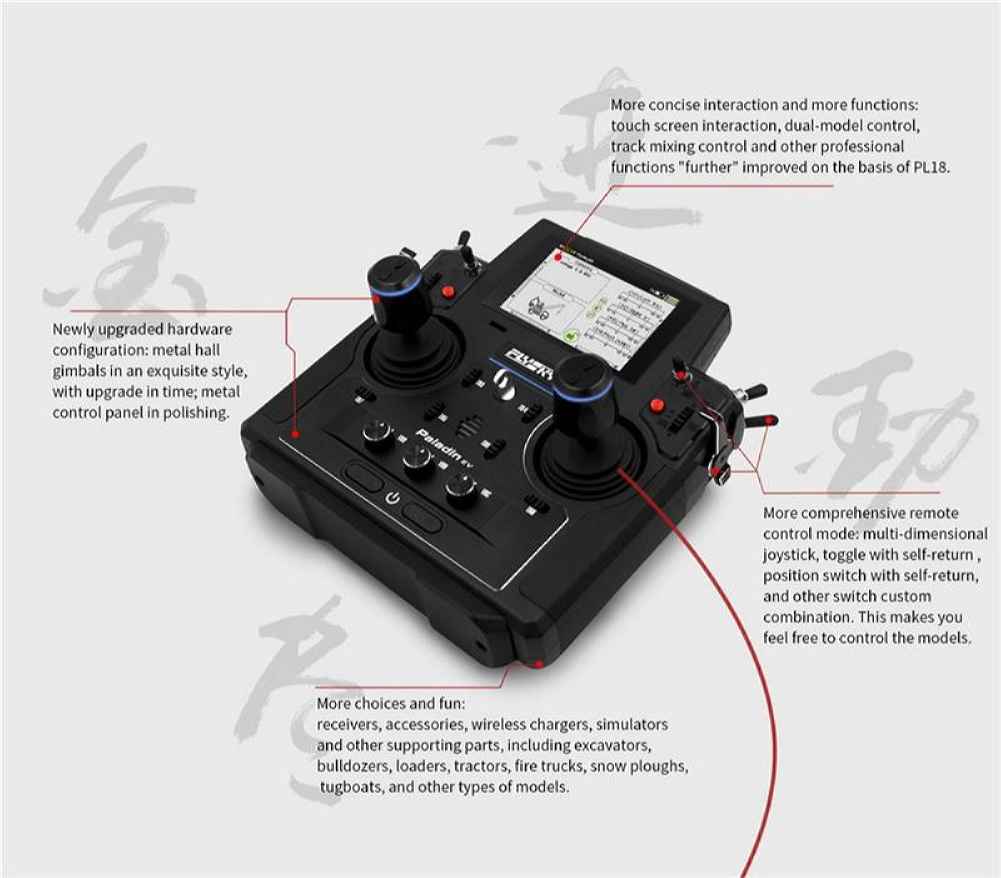

Hardware highlights:
Rocker type: 5D Hall waterproof rocker + 2 levers
The third rocker: one on the left and one longitudinal centering lever
Other controls: 6 gear switches (the length of the gear is not the same as the reset, accessories can be modified) + 3 knob keys + 2 self-locking buttons + 8 fine-tuning buttons (two-way buttons)
Display screen: 3.5-inch TFT color screen, 320*480 dot matrix, LCD white backlight, capacitive touch screen
Vibration/sound alarm: adjustable vibration intensity + different alarm sounds and real voice ic alarm and prompt sound
Other accessories: The flagship version comes standard with a bracket with hand rest + shoulder strap
Charging: Support Mirco USB and Q1 wireless charging
Battery: Built-in 4300mAh high-capacity lithium battery
Software highlights:
Number of channels: 18 ratio channels
Dual model control: support
Data backup and setting sharing and storage capacity: Fusi remote control butler realizes model data backup and sharing. The remote control can store 20 sets of models
Upgrade: USB connected to the computer through the Fusi remote control butler, software network upgrade
Additional functions: timer, logic switch, simulator
Custom function + control All channels can be customized function + custom allocation control and fine-tuning
Unique model function: double ratio curve + delay function + 20 groups of customizable mixing control + track mixing control function
Paladin PL18 EV Transmitter Specification:
Brand: FlySky
Product Model: Paladin PL18 EV
Channels: 18
Adaptable receivers: all AFHDS 3 receivers
Model Type: engineering vehicles, simulation ship etc.
RF: 2.4GHz
RF Power: < 20 dBm
2.4GHz Protocol: AFHDS 3
Distance: >300m (open without interference ground)
Channel Resolution: 4096
Battery: 1S (3.7V) * 4300mAh (built-in)
Charging Interface:Micro USB/wireless charging
Charging Time: 4h@5V*2A/7h@5V*2A (wireless charging)
Life time: >5.5h (standard accessories)
Low Voltage Warning:< 3.65V

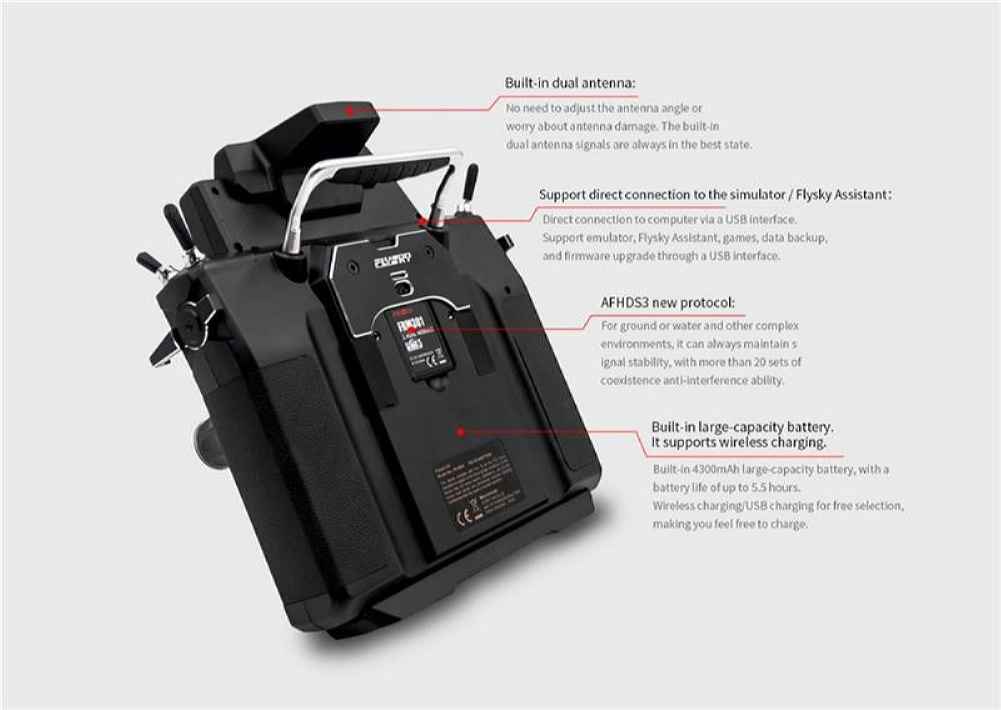

Antenna Type: Dual antenna
Display:HVGA 3.5 TFTㄛ320*480
Language: Chinese and English
Simulator: USB Simulator
Data Interface: USB﹜Non-standard interfaceㄗUSARTㄘ﹜PHJACKㄗPPMㄘ
Temperature Range: -10⊥〞+60⊥
Humidity Range: 20%-95%
Online Update: Yes
Color: black
Standard version size: 290*260*165MM
Standard version weight: 2.5KG
Certication:CEㄛFCC IDㄩN4ZFT1800
FGr12B Receiver Specification:
Model Type: FGr12B
PWM Channels: 12
RF: 2.4GHz ISM
2.4GHz Protocol: AFHDS 3
Distance: >500mㄗopen without interference groundㄘ
Antenna Type: Single antenna
Power: 3.5v-9V
RSSI: Yes
Data Interface: i-BUS/S.BUS/PPM/PWM
Temperature Range: -10⊥〞+60⊥
Humidity Range: 20%-95%
Online Update: Yes
Size: 37mm*25mm*17.5mm
Weight: 11.2g
Certication: CEㄛFCC ID:N4ZFGR12B
Paladin PL18 EV Manual and Upgrade, click here
Note:
1. Please understand the product might have some colour difference due to different monitors and scenes.
2. Please allow slight deviation for the measurement data.

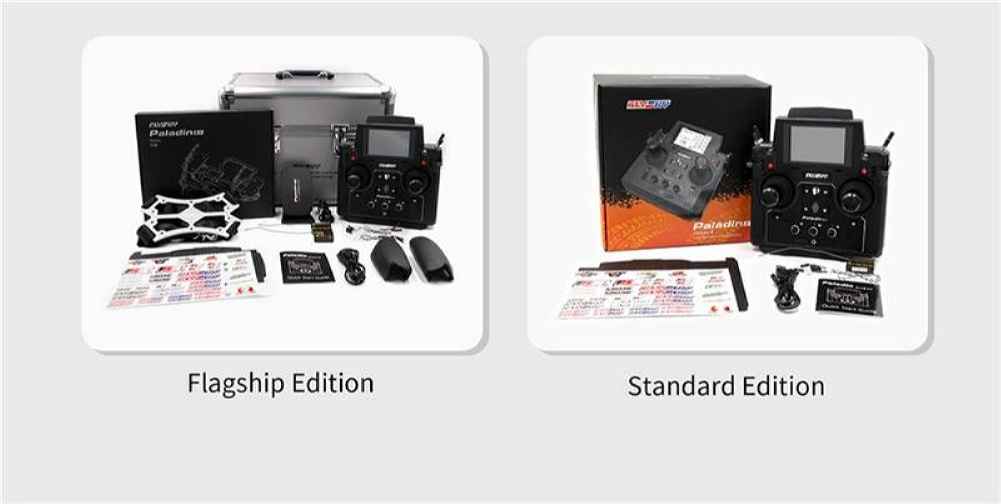

Package Included:
1 x PL18 EV transmitter with 301 high frequency + high frequency fixing plate + thin hand glue
1 x FGR12B receiver
1 x Quick Operation Guide
1 x Micro USB cable
1 x LOGO sticker 1 (pure logo)
1 x LOGO sticker 2 (with other designs)
1 x PL18 body sticker
