HTRC S680 80W 6A Mini RC LiPo Charger with 15V6A Adapter for 1-6S LiPo/LiFe/LiHv/LiIon/1-15S NiMH Batteries

Sale!

1-15S NiMH Batteries

Price range: 30.99$ through 36.24$

Supports 1-6S LiPo/LiFe/LiHv/LiIon and 1-15S NiMH batteries
80W maximum power with selectable charge currents
Safety features include error alerts and program locking
User-friendly START/STOP button for easy operation
Includes 15V6A adapter for seamless charging

AU Plug EU Plug UK Plug US Plug

SKU: RC1961626 Category: Battery & Charger Tags: 1-15S NiMH charger, 1-6S LiPo charger, 6A RC charger, 80W RC charger, AC to DC charger, HTRC S680 charger, LiFe battery charger, LiHV battery charger, LiIon battery charger, LiPo battery charger, mini RC charger, NiMH battery charger, RC battery charging solution, RC battery management, RC hobby charger, RC parts charger Brand: HTRC

Description

HTRC S680 80W 6A AC to DC Mini RC LiPo Charger For 1-6s Lipo/LiFe/LiHv/Lilon/1-15S Nimh Battery With 15V6A Adapter

The HTRC S680 Mini RC LiPo Charger is a versatile and efficient charging solution for your RC batteries. It supports a wide range of battery types, including 1-6S LiPo, LiFe, LiHv, LiIon, and 1-15S NiMH. The charger features a user-friendly interface with a START/STOP button for easy operation. Safety is prioritized with a locking program that prevents accidental changes during charging, and a fan that operates during charging to prevent overheating. In case of errors, the four battery indicator lights will flash to alert you. Once fully charged, these lights remain on. The charger is powered by a 100-240V/50-60Hz input and offers a maximum power output of 80W with selectable charge currents of 0.5A, 1A, 3A, 5A, and 6A.

Precautions for Charging:
1. After confirmPrecautions for Charging
1. After confirming the charging, the program will be locked. If you need to re-select the battery type, please press the STOP button.
2. 20 seconds after confirming the charging, the current will be locked, if you need to re-select the current, please press the STOP button.
3. Charging can be started or stopped via the ‘STAR/STOP’ key.
4. The fan runs when charging and stops when standby.
5. When the sreen show reverse connection alarm, press any key to exit.
6. In error state, the 4 battery indicator lights will flash.
7. After the battery is fully charged, the 4 battery indicator lights will be always on.Precautions for Charging
Specification:
Model Name:S680
Power:100-240V/50-60hz
Charger Power:MAX 80W
Charge Current:0.5A/1A/3A/5A/6A
Battery type:
1-6s Lipo/lihv/liFe/Li-Lon
1-15s NiMH Battery

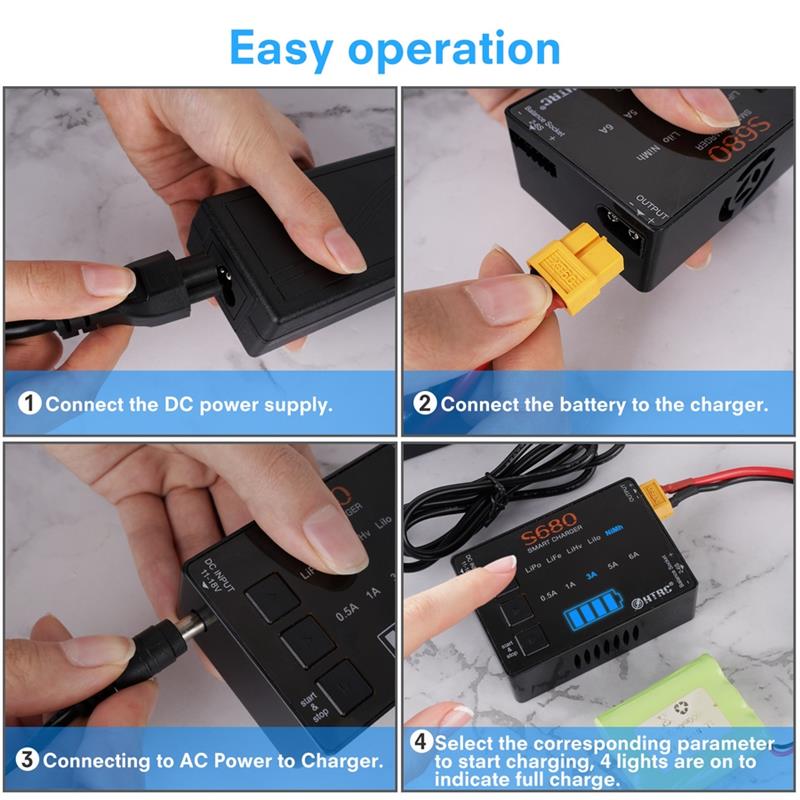

The charging steps
1. Connect the DC power supply.
2. Connect the balance port and charging port of the battery to the charger.
3. Select battery type and charging current.
4. Press the Start/Stop button to charge. When charging, the indicator lights flash, the number of lights on corresponds to the battery level, and the 4 lights are on indicate full charge.
Packaging includedㄩ
1X HTRC S680 Charger
