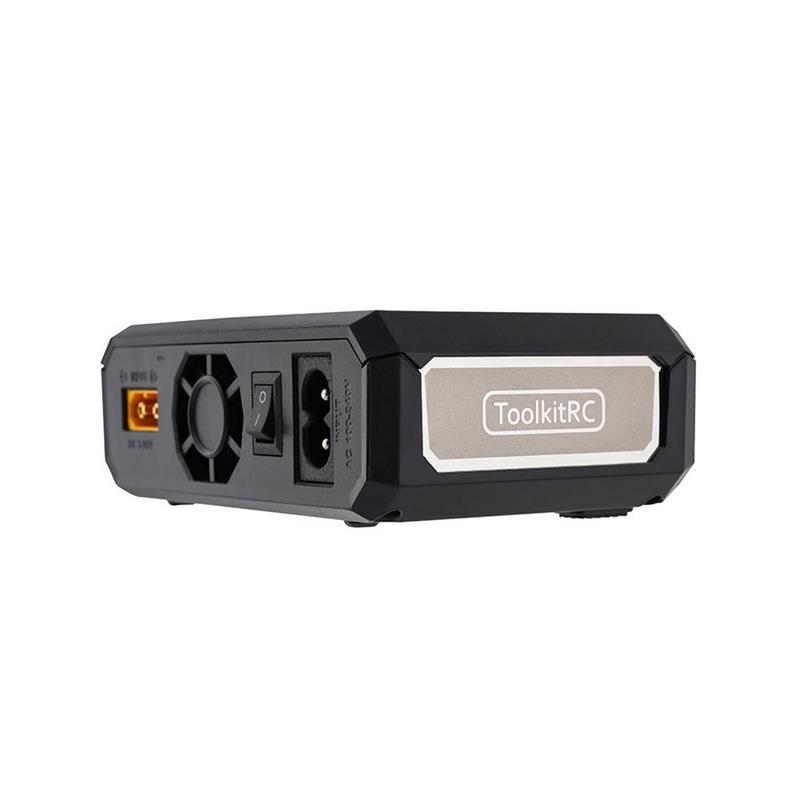

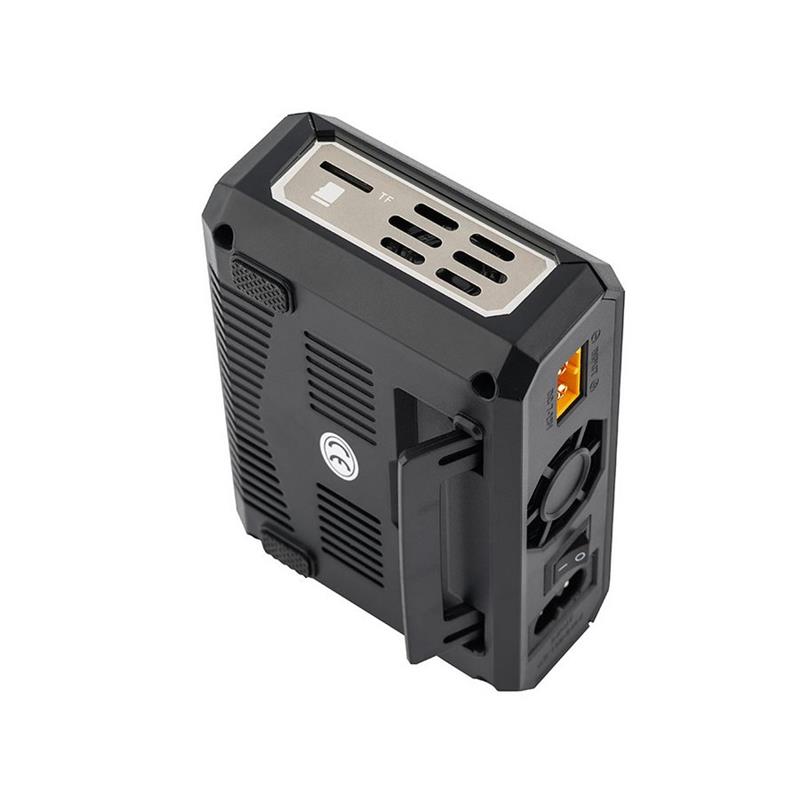

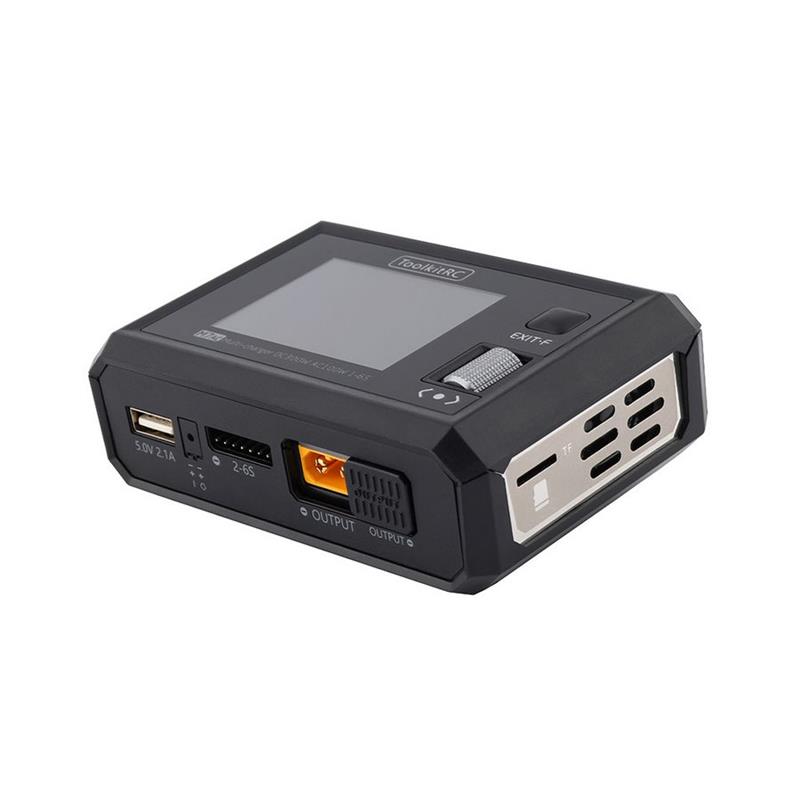

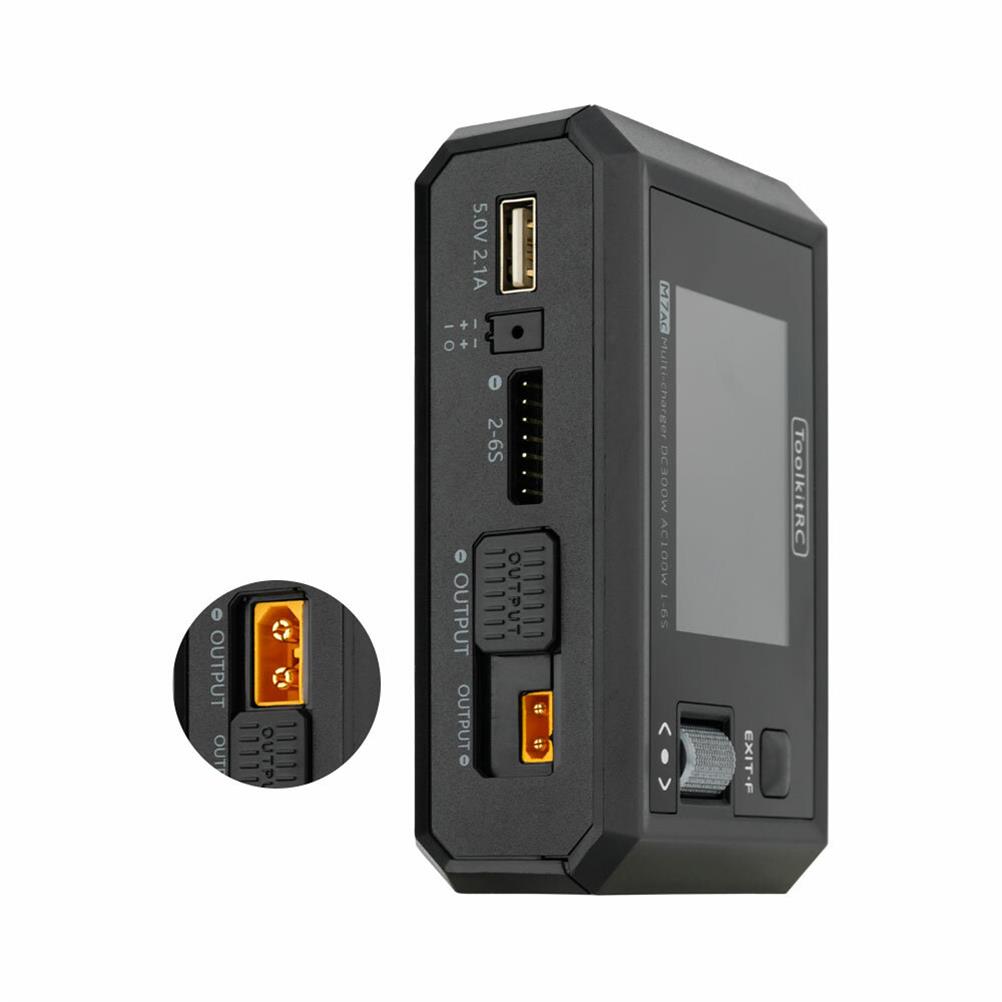

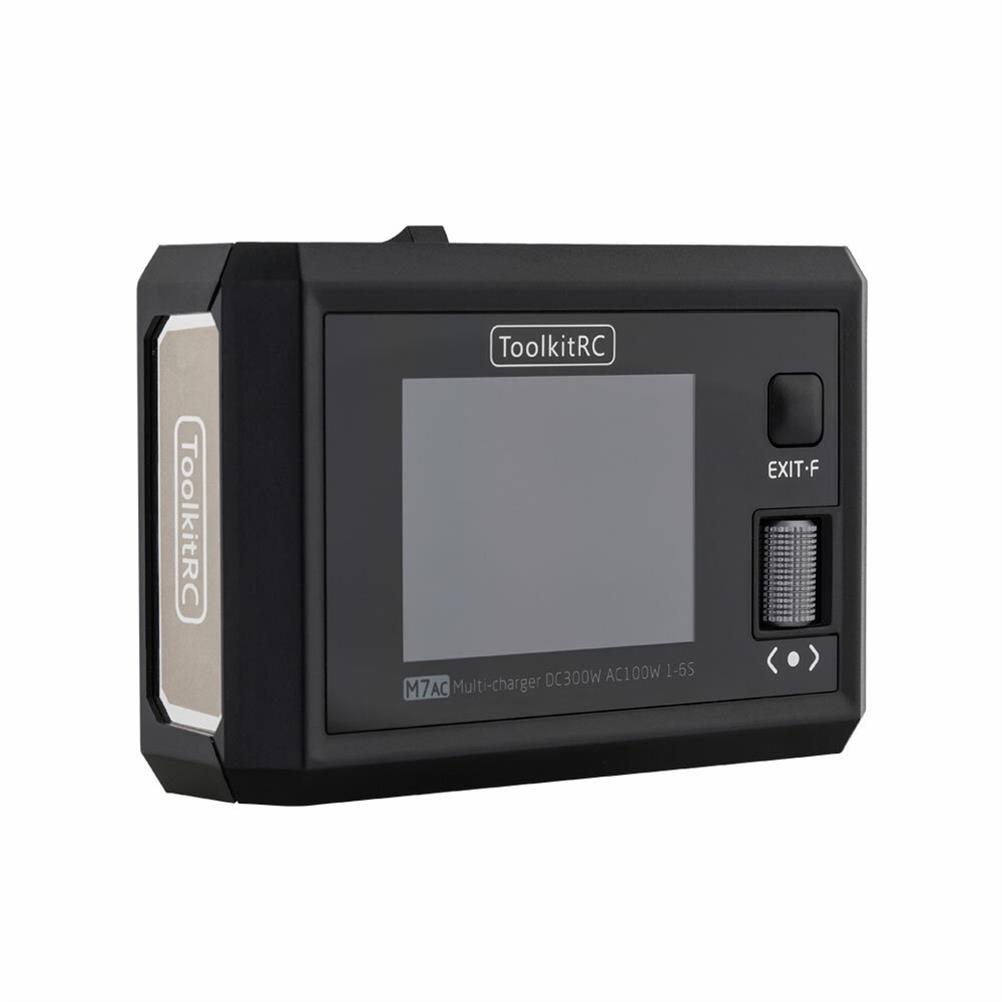

ToolkitRC M7AC 300W 15A AC/DC Balance Charger Discharger for 1-6S LiPo Battery With XT30 XT60 Output
Specification:
input voltage: AC 100-240V MAX 100W 1.5A
DC 7.0-28.0V @MAX 20A
battery type: Lipo LiHV LiFe Lion LTO@1-6S
NiMh @1-16S Pb @1-10S
balance current: 800mA @ 4.2V
charging power: 300W @MAX 15A
discharge power: 300W @MAX 15A Recycle mode
15W@3A Normal mode
USBA: 10W@5.0V or Upgrade
Measurer:
PWM: 880-2200us @ 20-400Hz
PPM: 880-2200us * 8CH @ 20-50Hz
SBUS: 880-2200us * 16CH @ 20-100Hz
voltage: 1.0-5.0V @ 1-6S
Internal resistance: 0.1 mR-99mR @ 1-6S
ESC: 300W @ 15A
General:
product size: 112*73*38mm
product weight: 245g
packing size: 144*125*43mm
packaging weight: 380g
LCD: IPS 2.4 inch LCD 320*240 resolution
TF Card: 128MB-16GB
Output:
PWM: 500-2500us @ 20-1000Hz
PPM: 880-2200us * 8CH @ 20-50Hz
SBUS: 880-2200us * 16CH @ 20-100Hz
power supply: 1.0-28.0V @0.5-15A mode:CC CV
Overcurrent response: <5ms

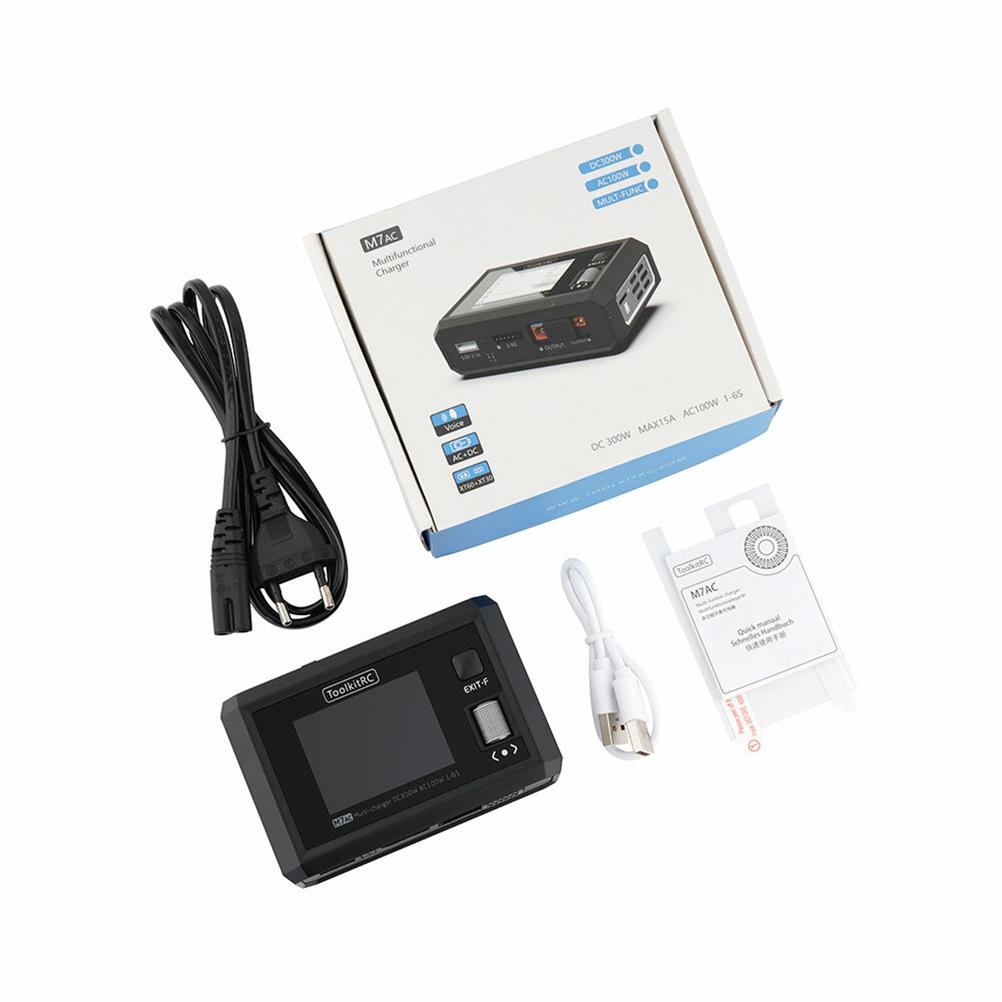

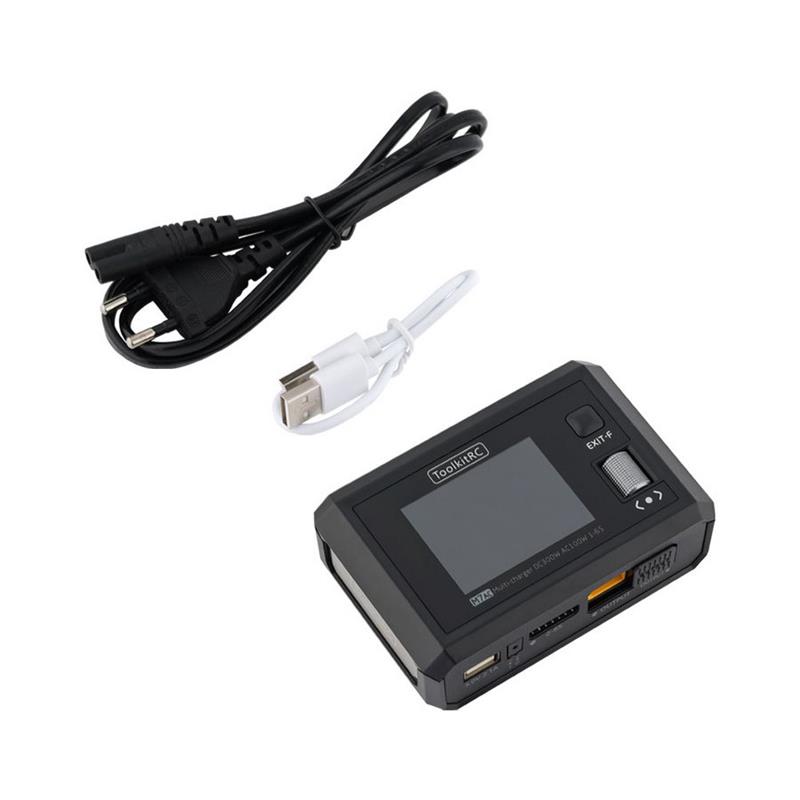

Packaging included:
1X ToolkitRC M7AC Charger
Additional information
| Weight | 0.38 kg |
|---|---|
| Plug: No selection | EU Plug, US Plug |
