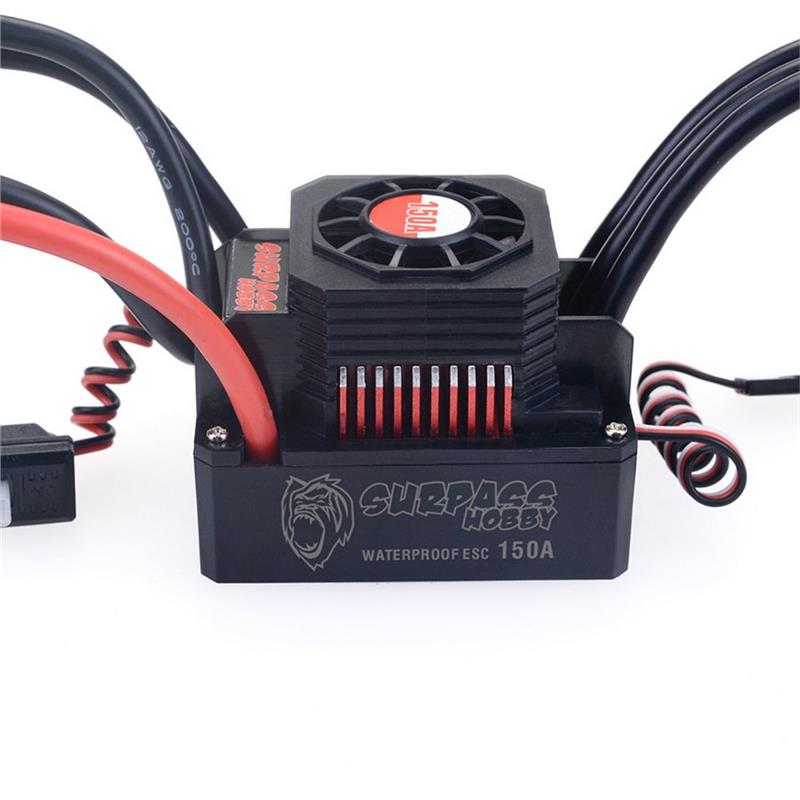

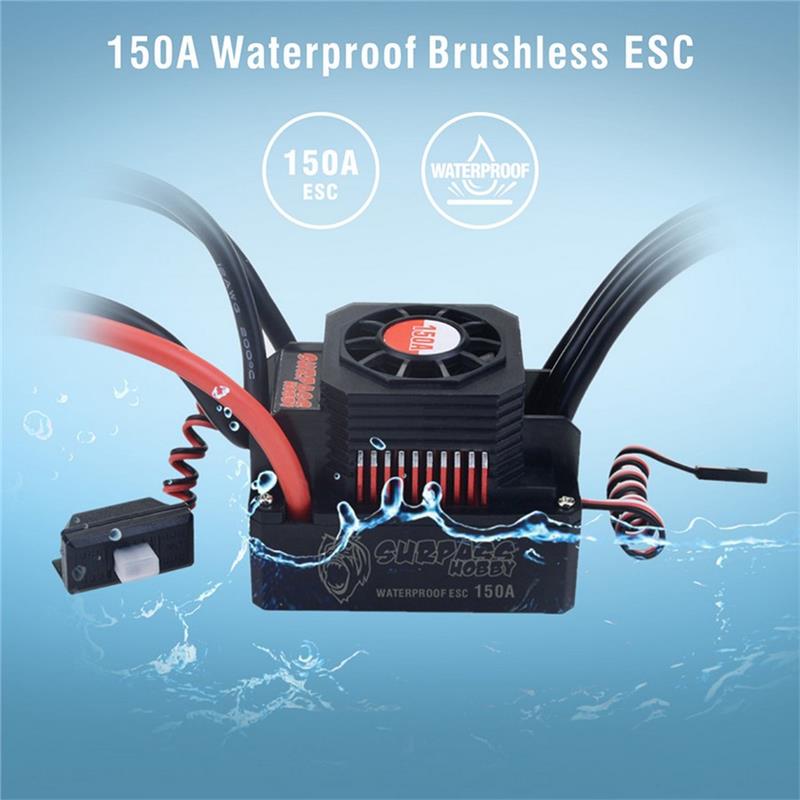

Surpass Hobby KK Series 150A Brushless Waterproof ESC for 1/8 2-6S RC Car Vehicles
The Surpass Hobby KK Series 150A Brushless Waterproof ESC is designed for 1/8 RC cars, providing exceptional performance with its sensorless brushless motor compatibility. This ESC supports 3-6S LiPo or 9-18 cells NiMH batteries and offers a continuous current of 150A with a burst current of 720A. The durable metal and plastic construction ensures reliability, while its waterproof and dustproof features make it suitable for all-weather racing. With excellent start-up, acceleration, and linearity features, it also includes multiple protection options such as low voltage cut-off and overheat protection. Easily programmable, it is compatible with a pocket-sized program card.
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Description:
Item Brand:Surpass hobby
Item Name:150A esc
Material:Metal and plastic
Color:Red&black
Product Size:59*46*45mm
Box Size:140*90*60mm
Product Weight:About 148g
Packaging Weight:Approx.202g
Compatible Cars:1/8 rc cars
Recommended Motor and program card:(they are not included in the package):
1.Motor:Surpass hobby kk series 4076 or 4084 motor
2.Program card:Racerstar program card,product id:1057127
Specification:
Continue Current: 150A
Burst Current:720A
Motor Type:Sensorless Brushless MotorFor 4S Lipo or 12 cells NiMH:
1.on-road:42XX-size or smaller motor with the KV<3000
2. Off-road / Monster:42XX-size or smaller motor with the KV<2500
For 6S Lipo or 18 cells NiMH:
1. On-road:42XX-size or smaller motor with the KV<2500
2. Off-road / Monster:42XX-size or smaller motor with the KV<2000.
Resistance:0.00030ohm
Battery:3-6S cells lipo battery/9-18 cells NiMH
BEC Output:6.1or7.4V/3A(switch mode)
Features:
1.Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection/
6. Easily programmed and compatible with pocket-sized program card.
Package Included:
1 x Brushless ESC 150A
