Description

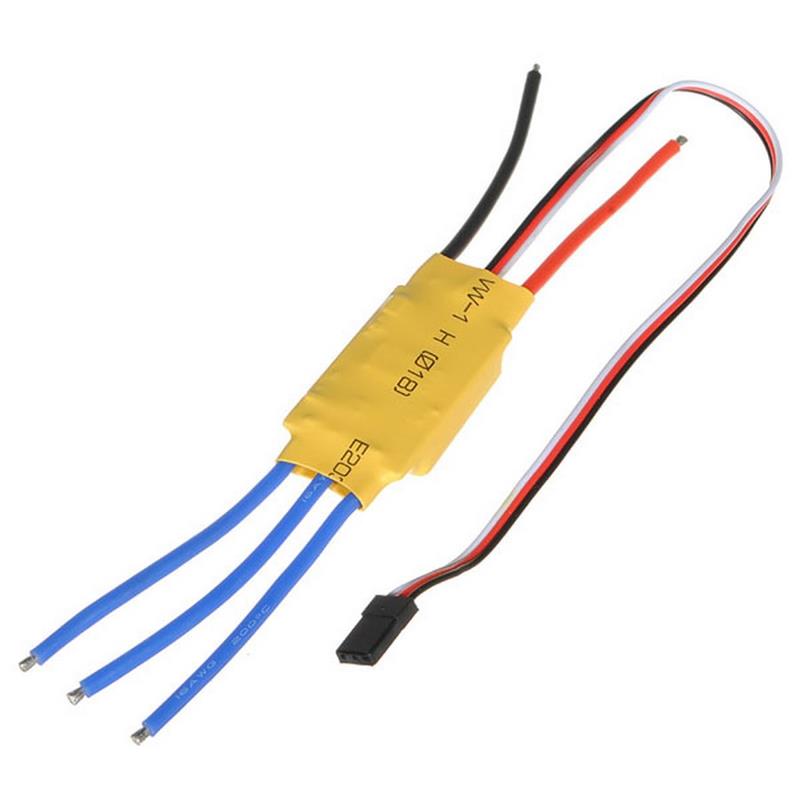

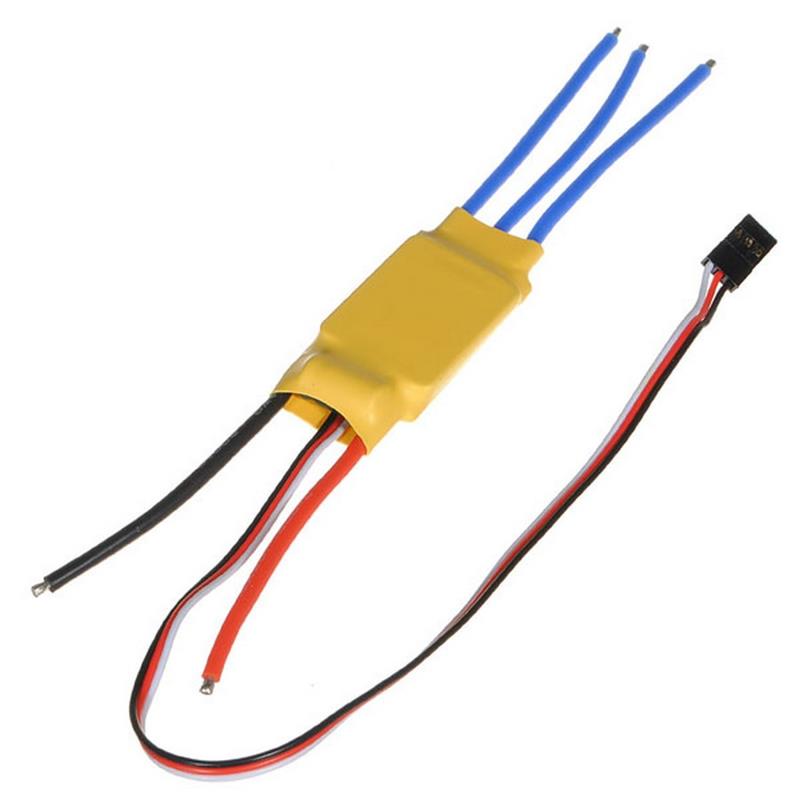

2PCS XXD HW30A 30A Brushless Motor ESC For Airplane Quadcopter
The XXD HW30A 30A Brushless Motor ESC is designed for optimal performance in RC airplanes and quadcopters. Weighing only 25g, it features a compact design with dimensions of 45 x 24 x 11mm. This ESC supports a power input range of 5.6V to 16.8V, compatible with 2-3 cell Li-Poly or 5-12 cell Ni-MH/Ni-Cd batteries. It offers a constant current of 30A and a maximum of 40A for less than 10 seconds. Equipped with a safe power function, it ensures the motor does not start inadvertently. The throttle calibration function enhances throttle response linearity, providing smooth control. Note that 4S LiPo batteries should not be used with the BEC.
Specification:
Weight: 25g
Dimensions: 45 x 24 x 11mm
Firmware: Hobbywing
Power input: 5.6V – 16.8V (2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery)
BEC: 2A
Constant current: 30A (Max 40A less than 10 seconds)
Feature:
Safe power function:regardless of the throttle stick in any position the motor will not start immediately
Throttle Calibration function:Adapt to different remote throttle travel difference, improve throttle response linearity, with a smooth, delicate feel and excellent speed linear speed
Low Voltage Protection Mode ,Low-voltage protection threshold
Note:
4S lipo not allows to use the BEC.
Please don’t use this ESC on any airplane with big current or big voltage,otherwise it will burn the ESC.
Pakacge Included:
2 x HW30A Brushless ESC
Package Included:
2 x HW30A Brushless ESC
