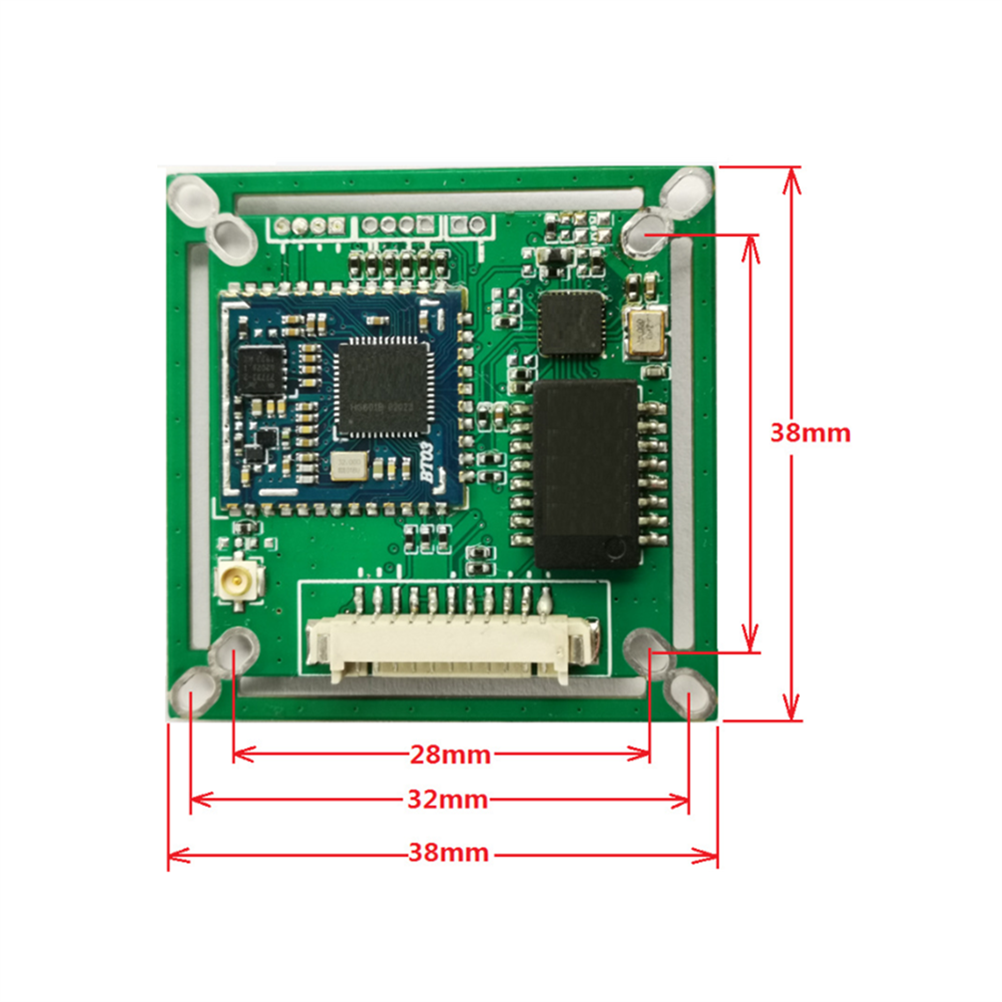

NTR1 1080P 1500m WIFI Wireless Video FPV Transmitter Receriver Transceiver VTX Module for FPV Racing RC Drone

NTR1 1080P 1500m WIFI Wireless Video FPV Transmitter Receriver Transceiver VTX Module for FPV Racing RC Drone

Description:
Operating frequency range: 750MHz-930MHz
Wi-Fi protocol: 802.11ah
Transmission distance: 1500 meters
Security mechanism: WPA2-PSK
Encryption type: AES
Antenna input and output impedance: 50??
Transmit power: 20dBm
Receiving sensitivity: -105dBm
Modulation and demodulation methods: BPSK, QPSK, QAM16, QAM64
Working voltage: DC10-32V
Working current: about 50mA
Working temperature: -20??C~70??C
Storage temperature: -30??C~80??C
Working humidity: 90%
Features:
-Using the latest Wi-Fi HaLow digital wireless automatic frequency hopping technology, super anti-interference ability;
-Working frequency: between 750MHz-930MHz,
-Transmitting and receiving need to pair codes to communicate, strengthen signal transmission and enhance confidentiality;
-Transmitting supports network port video interface input, and receiving supports network port video output;
-High-definition video transmission, the picture quality reaches 1080P, while supporting 8 channels of transmitting to one channel of receiving.
-Long transmission distance, open distance (straight line barrier-free) up to 1500 meters;
-Wide voltage working 10V-36V, no need to design power supply and video interface board separately;
-The module can be directly used in wireless video surveillance and other fields.
Package Included:
1 x NTR1 1080P 1500m WIFI Wireless Video FPV Transmitter Receriver Transceiver VTX Module for FPV Racing RC Drone
