EWRF 701U 5.8GHz 48CH 25mW 600TVL AIO FPV Camera VTX for FPV Racing Drones, 120掳 Wide Angle, PAL/NTSC

Description

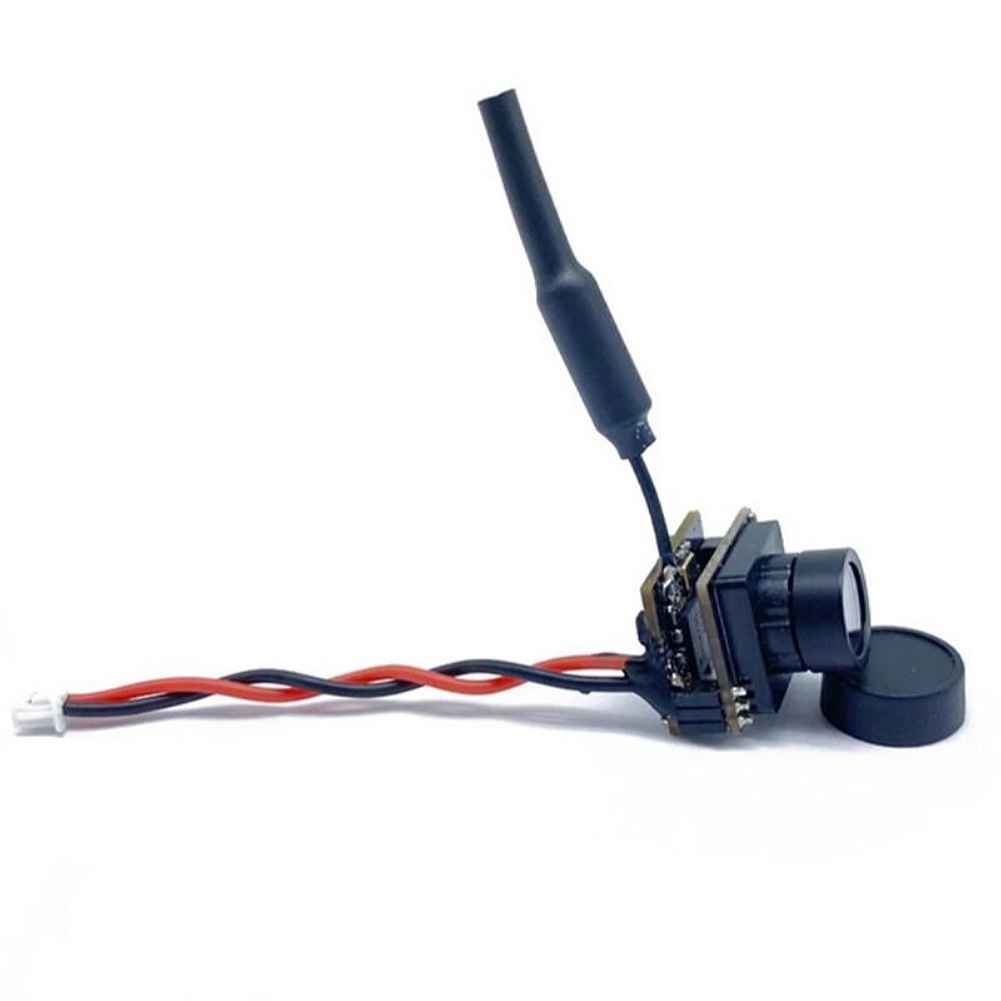

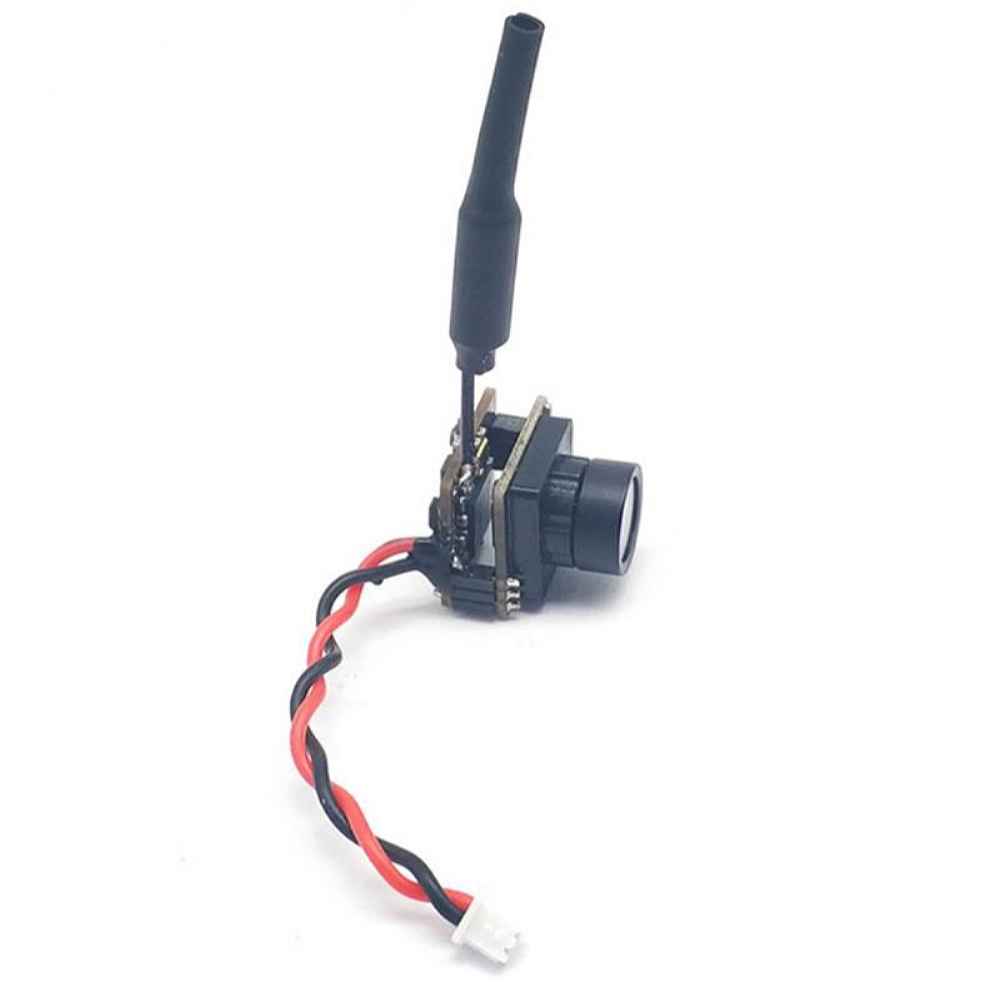

EWRF 701U 5.8Ghz 48CH 25mW 600tvl F1.4mm 120 Degree Wide Angle 3 in 1 AIO Video Transmitter FPV Camera Pal VTX for FPV Racing RC Drone

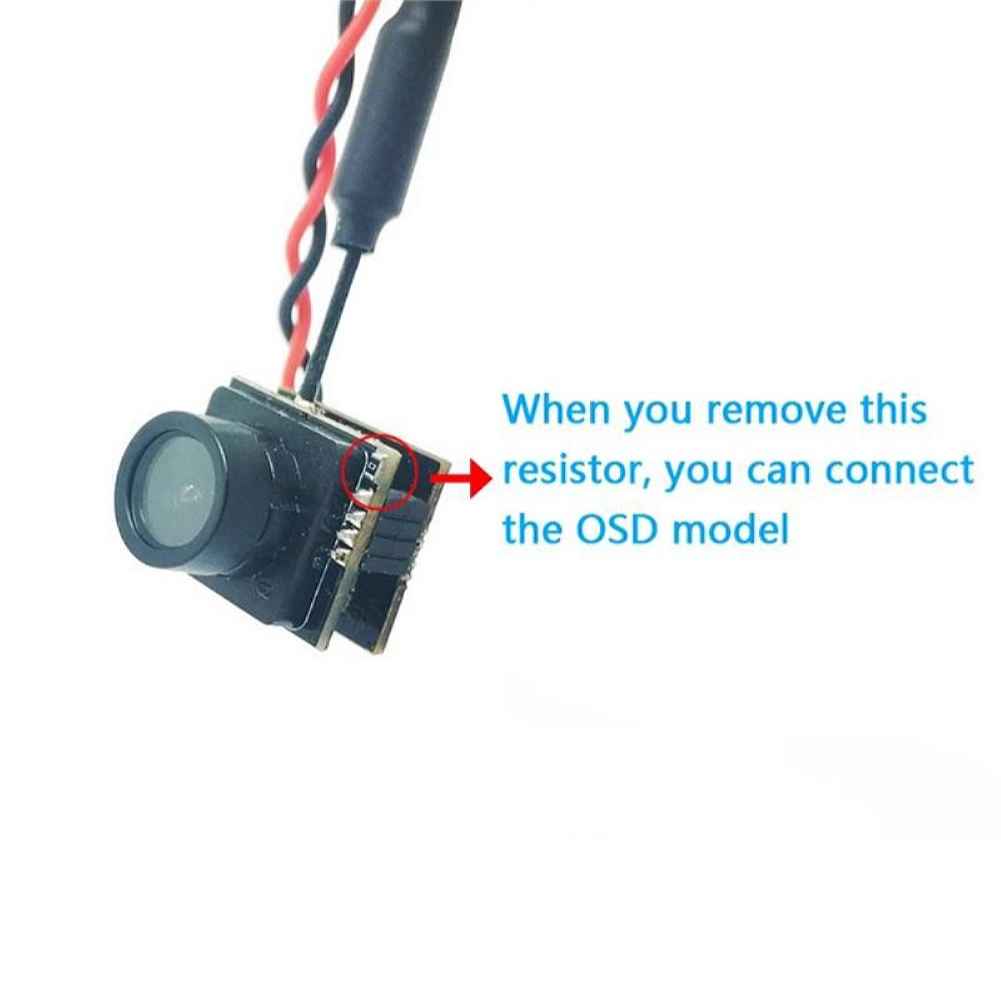

The EWRF 701U is a high-performance all-in-one FPV camera and video transmitter designed for FPV racing drones. Developed by Shenzhen-based FPV racers and RF engineers, this model offers a zero-lag 600TVL camera with a wide-angle 120-degree lens. The integrated design combines a camera, VTX, and antenna, ensuring interference-resistant 5.8GHz transmission with 25mW power efficiency. Weighing only 3.6g, it is lightweight yet reliable, proven in competitive racing circuits. The 701U supports 48 channels across 8 bands, with a simple button-operated control method. It is compatible with Betaflight, DJI, FatShark, and Eachine systems, and meets FCC, CE, and RoHS standards.

EWRF 701U: Born in the Races, Built for VictoryIn 2018, Shenzhen-based FPV racers and RF engineers solved a critical dilemma: the trade-off between signal stability, weight, and simplicity. Traditional setups were fragile and interference-prone.The 701U emerged from China’s toughest underground racing circuits. Its 3-in-1 integrated design (camera+VTX+antenna) delivers:- Zero-lag 600TVL clarity- Interference-resistant 5.8GHz transmission- 25mW power efficiency in a 3.6g packageProvenn by champions 姣?from backyard pilots to Dubai Drone Prix 姣?it锛妔 not just specs, but reliability when it matters most.
User Guide 701U銊〩ow to Configure Your EWRF 701U VTX

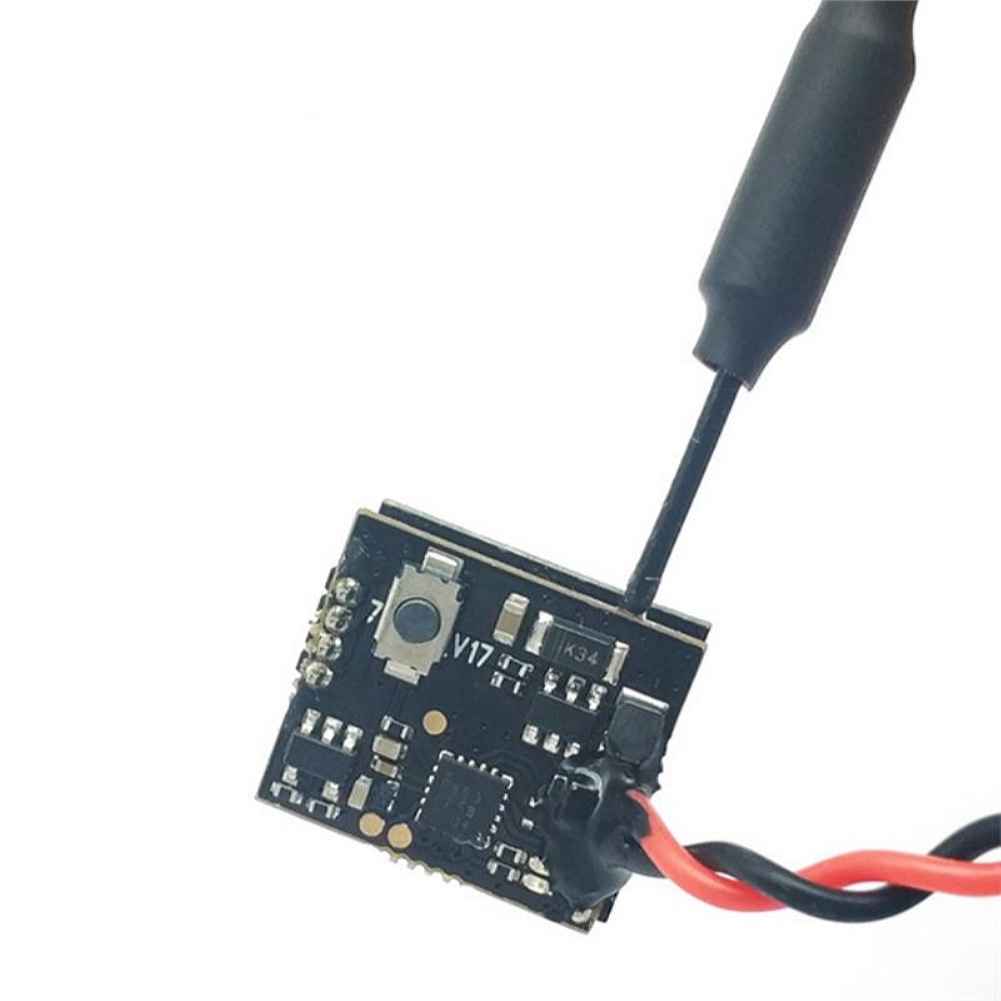

After powering up, the red & blue LEDs will signal the fllowing two items of VTX in tum: channel and band. (The flashing times of the red and blue LEDs indicate the item and the value respectively. After that, the LEDs indicate the working modes : thered &blue LED areon.)

1. Select Channel

1. Press & hold button until red LED flashes once;2. Now tap button to cycle channels (1-8);3. Blue LED flashes indicate current channel (1 flash=CH1, 2=CH2, etc.)

2. Select Band

1. Press & hold button until red LED flashes twice;2. Tap button to cycle bands (A-F);3. Blue LED flashes indicate band (1=A, 2=B, etc.);

3. Flip Image (Optional)

1. Press & hold button until red LED flashes three times;2. Single tap to toggle vertical image flip;

4. Save Settings

1. Press & hold button to save and exit;2. VTX will reboot with new settings;

Tips:

1. Each configuration mode has distinct red LED flashes (1=Channel, 2=Band, 3=Flip);2. Blue LED shows your current selection;3. You must complete Step 4 to save any changes;

Description:

Product Name

EWRF 701U AIO FPV Camera & VTX

All-in-One design

Model Number

701U

2024 version

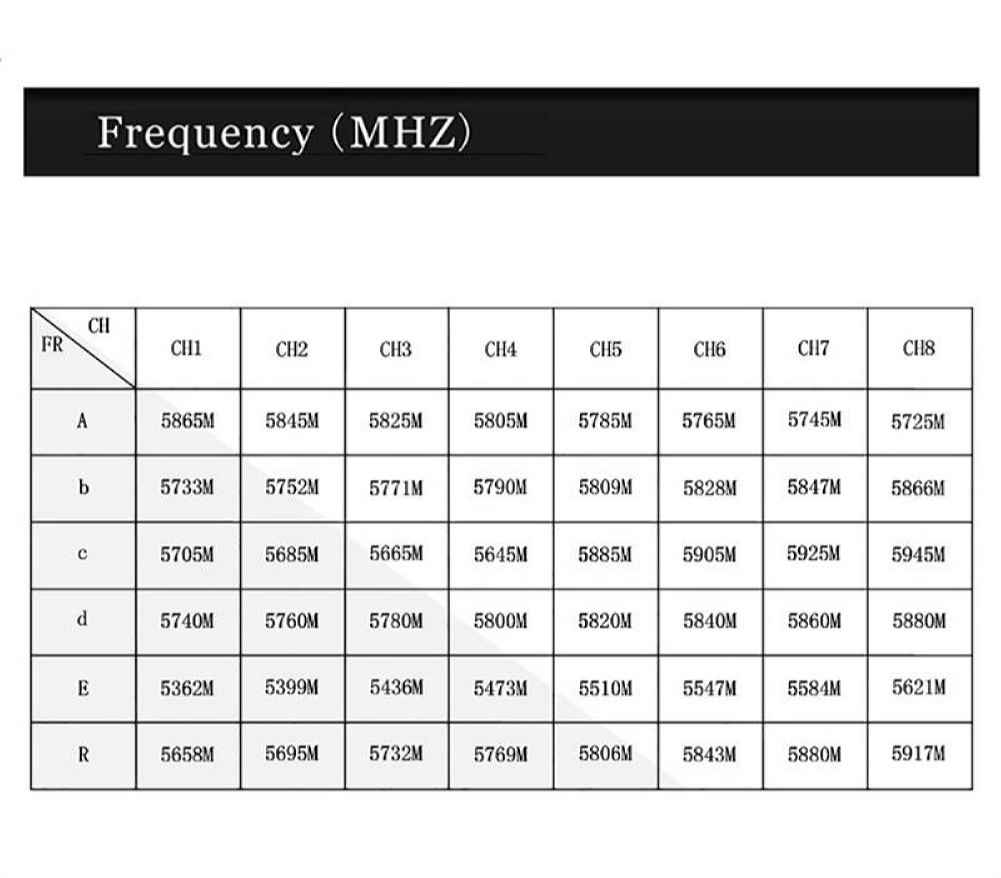

Frequency

5.8GHz

5655-5915MHz range

Channels

48CH

8 bands 鈩?6 channels

Output Power

25mW

Fixed power output

Voltage Range

2.5-5.5V

Standard 5V operation

Current Draw

220mA (銑?0mA @5V)

Low power consumption

Antenna Type

Copper Tube Omnidirectional

RP-SMA connector, 2dBi gain

Camera Resolution

600TVL

1/3′ CMOS sensor

Lens Specification

120锝?Wide-Angle, F1.4mm

Near-fisheye FOV

Video System

PAL/NTSC Auto-Detect

Auto-switching

Latency

<10ms

Camera-to-VTX processing

Signal-to-Noise

鈮?2dB

Low-noise imaging

Min. Illumination

0.01 Lux

Night-flight capable

Control Method

Button-operated

LED channel indicator

Image Adjustment

Flip/Rotate Supported

Via button combinations

Operating Temp.

-10锝濩 to +60锝濩

Reliable in extreme conditions

Dimensions

13.5鈩?5.9鈩?7.2mm (L鈩匴鈩匟)

Ultra-compact design

Weight

3.6g (without antenna)

5.2g with antenna

Compatibility

Betaflight, DJI, FatShark, Eachine

Plug-and-play

Certifications

FCC, CE, RoHS

Meets international standards

Package Included:
1 x EWRF 701U AIO FPV Camera & VTX
