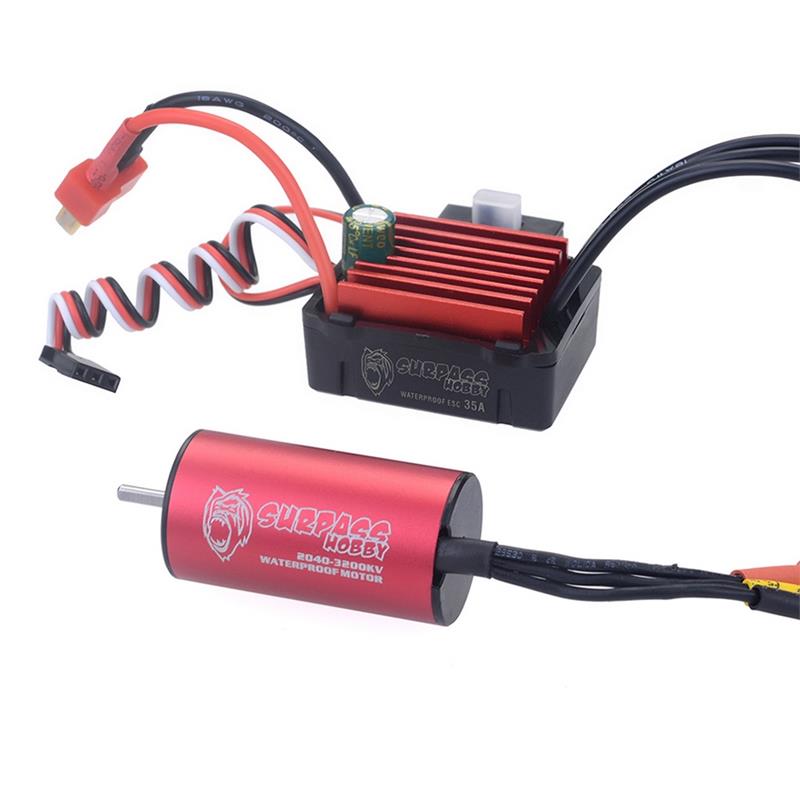

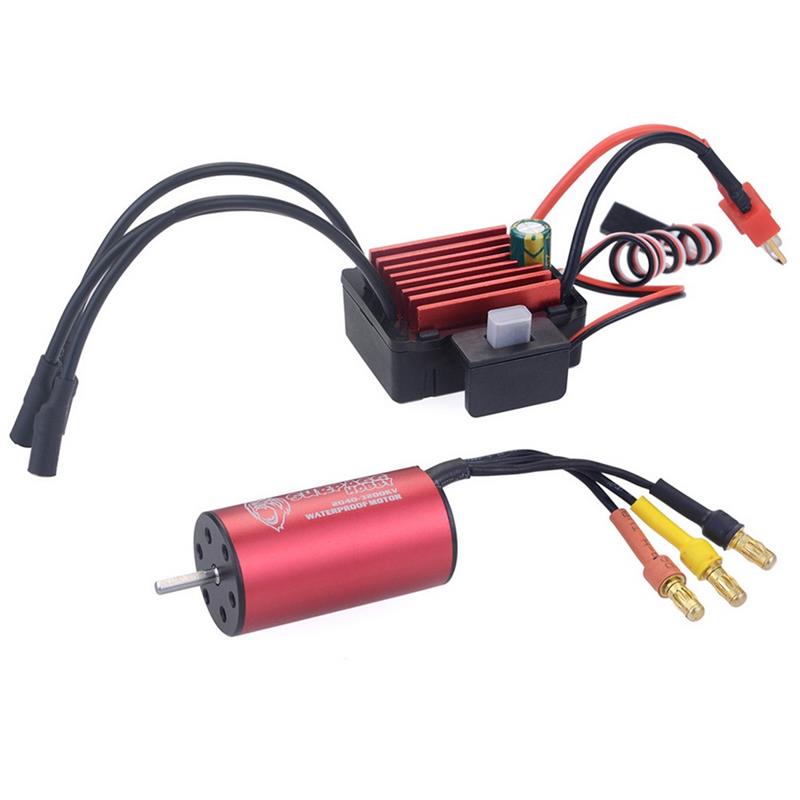

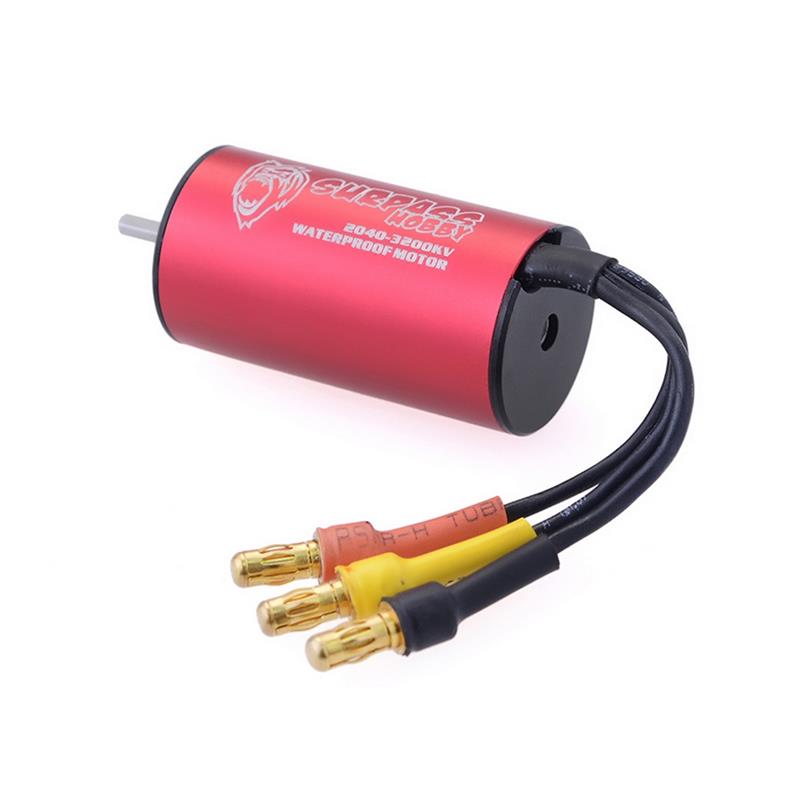

Surpass Hobby Diamond Seriers Waterproof 2040 3200KV Brushless Motor with 35A ESC for 1/16 1/18 RC Vehicles
The Surpass Hobby Diamond Series offers a high-performance 2040 3200KV brushless motor paired with a 35A ESC, designed specifically for 1/16 and 1/18 RC vehicles. Constructed from durable metal and plastic, this set features a 4-pole, 6-slot high-torque motor design with CNC machined 6061 billet aluminum heatsink can. The motor measures 40mm in length and 20mm in diameter, while the ESC dimensions are 40 x 32 x 20mm. It supports a maximum voltage of 14.8V and is compatible with 2-3 cell LiPo or 4-9 cell NiMH batteries. With high RPM ABEC5 oversized bearings and precision-engineered components, this set ensures maximum energy conversion and efficiency for your RC car.
Description:
Item Brand:Surpass Hobby
Item Number:2040 3200KV Brushless Motor with 35A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red

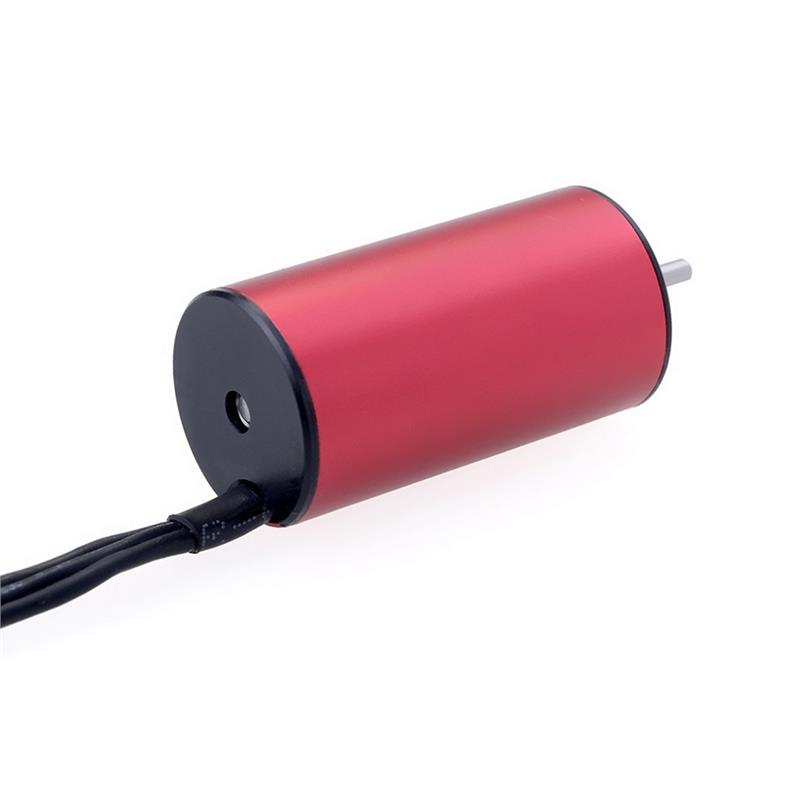

The Size of the Motor:Length 40mm,diameter 20mm,shaft diameter is 3.175mm,length of extended shaft is 16mm
The Size of the ESC:40*32*20mm
The Weight of the Motor/ESC:About 68g/37g
Fit For:1/16 1/14 brushless rc cars

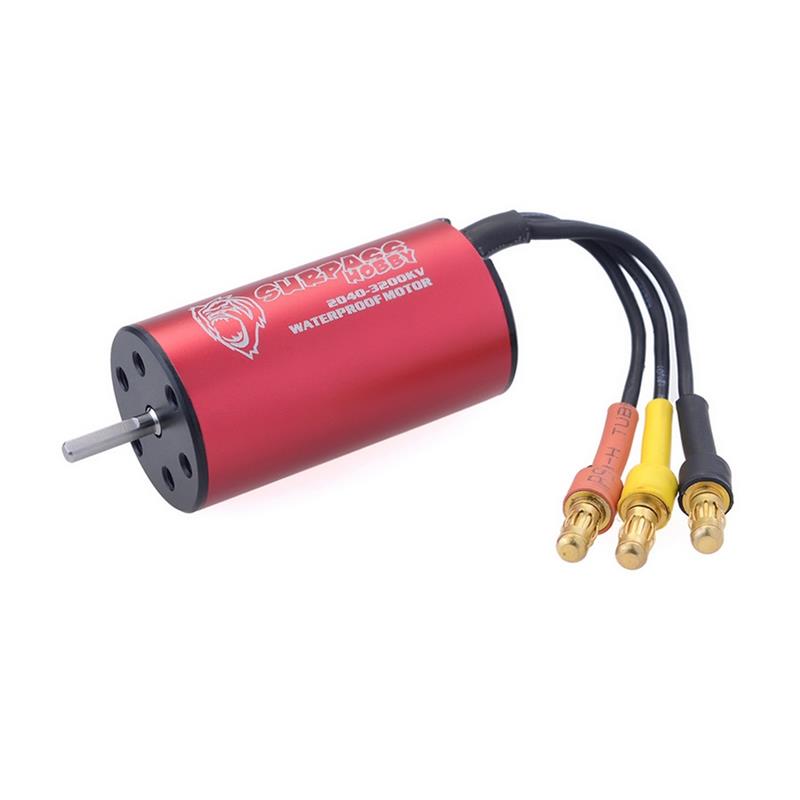

The Specification of the Motor:
KV:3200KV
Watts:220
Max Voltage:<14.8V
Max Amps:13A
Rotor Poles:4
IO:036A
Resistance:0.0875
Max RPM:50000
Connector:3.5mm gold
Shaft diameter:2.3mm

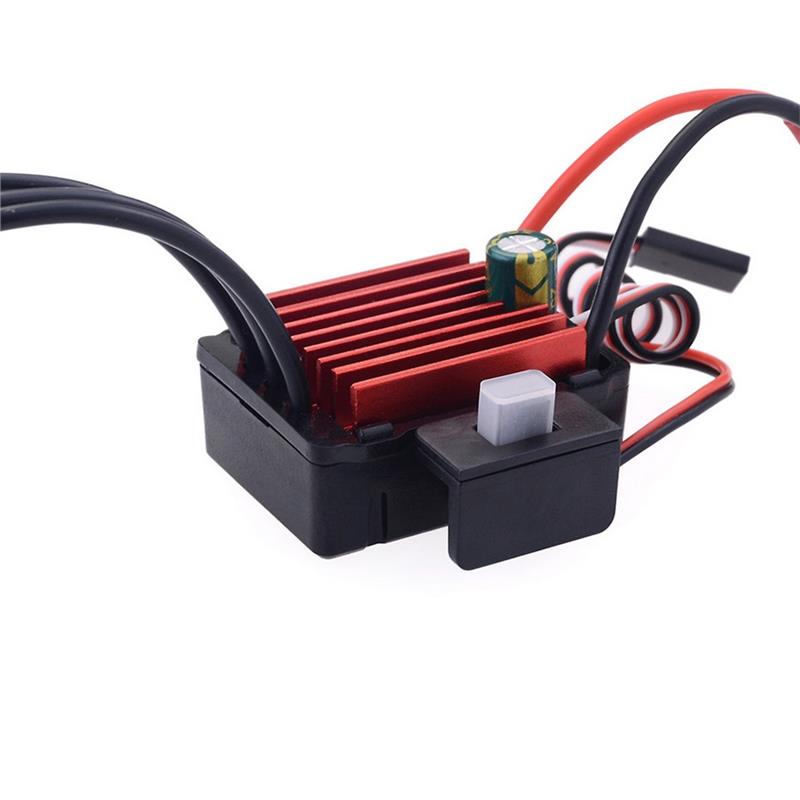

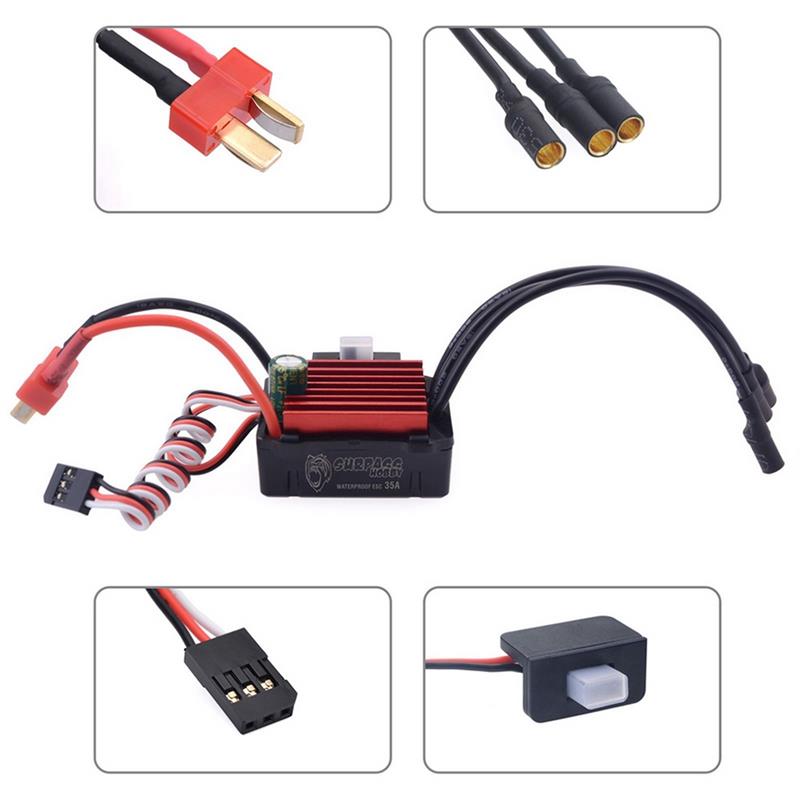

The Specification of the ESC:
Cont.Current:35A
Burst Current:120A
Motor Type:Sensorless Brushless Motor
For 2s Lipo or 6 cells NiMH
1.On-road 28XX-size or smaller motor with the kv <6000
2.Off-road/buggy/monster 28XX-size or smaller motor with the kv <4000
For 3s lipo or 9 cells NiMH
1.On-road 28XX-size or smaller motor with the kv <4000
2.Off-road/buggy/monster 28XX-size or smaller motor with the kv <3000
Suitable Car:1/16 1/14 car
Resistance:0.0007ohm
Battery:2-3 cells lipo/4-9 cells NiMH
BEC Output:5.0V2A(switch mode)
For the esc manual,please click here
Features:4 Pole 6 Slot Hi-torque Motor Design
CNC Machined 6061 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/18 1/20 1/24 brushless cars-multi-mounting system for M2.5 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator – Super Thin (0.35mm) Laminations
Precision Engineered for Maximum Energy Conversion

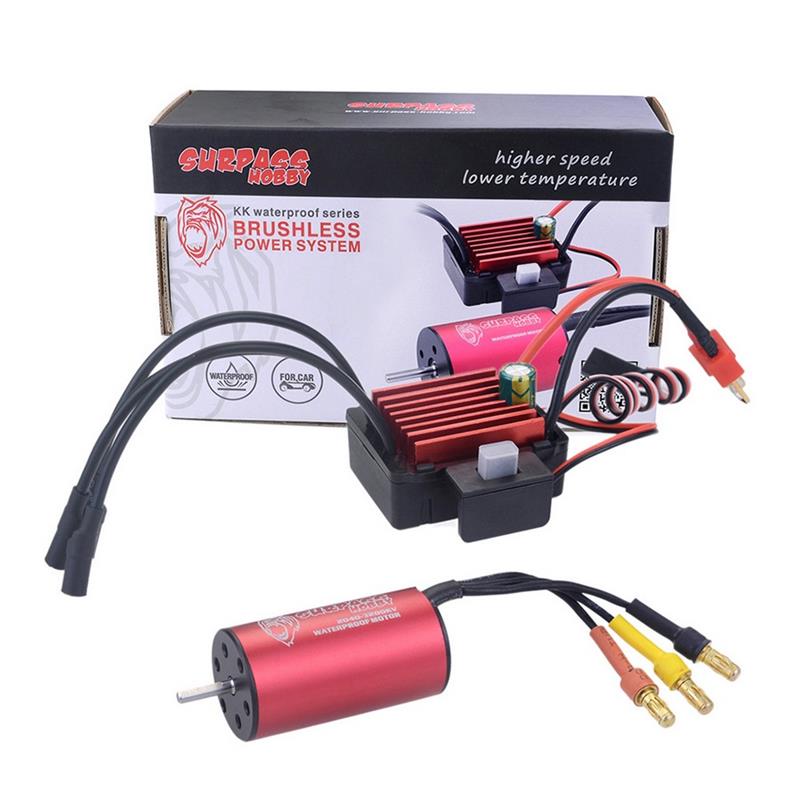

Package Included:
1 x 2040 3200KV Brushless Motor
1 x 35A ESC
1 x Manual
