Description
Surpass Hobby Diamond Seriers Waterproof 4076 2250KV Brushless Motor with 150A ESC for 1/8 RC Vehicles
The Surpass Hobby Diamond Series 4076 2250KV Brushless Motor with 150A ESC is designed for 1/8 RC vehicles, offering robust performance and reliability. Crafted from metal and plastic, this set features a black and red color scheme. The motor measures 76mm in length with a 40mm diameter and includes a 3.175mm shaft. It supports a maximum voltage of 18V and is capable of reaching up to 50,000 RPM. The ESC supports 3-6 cell LiPo batteries or 9-18 cell NiMH batteries, with a continuous current of 150A and a burst current of 720A. The set is equipped with high purity copper windings and oversized bearings for enhanced efficiency and durability.
Description:
Item Brand:Surpass Hobby
Item Number:4076 2250KV Brushless Motor with 150A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red

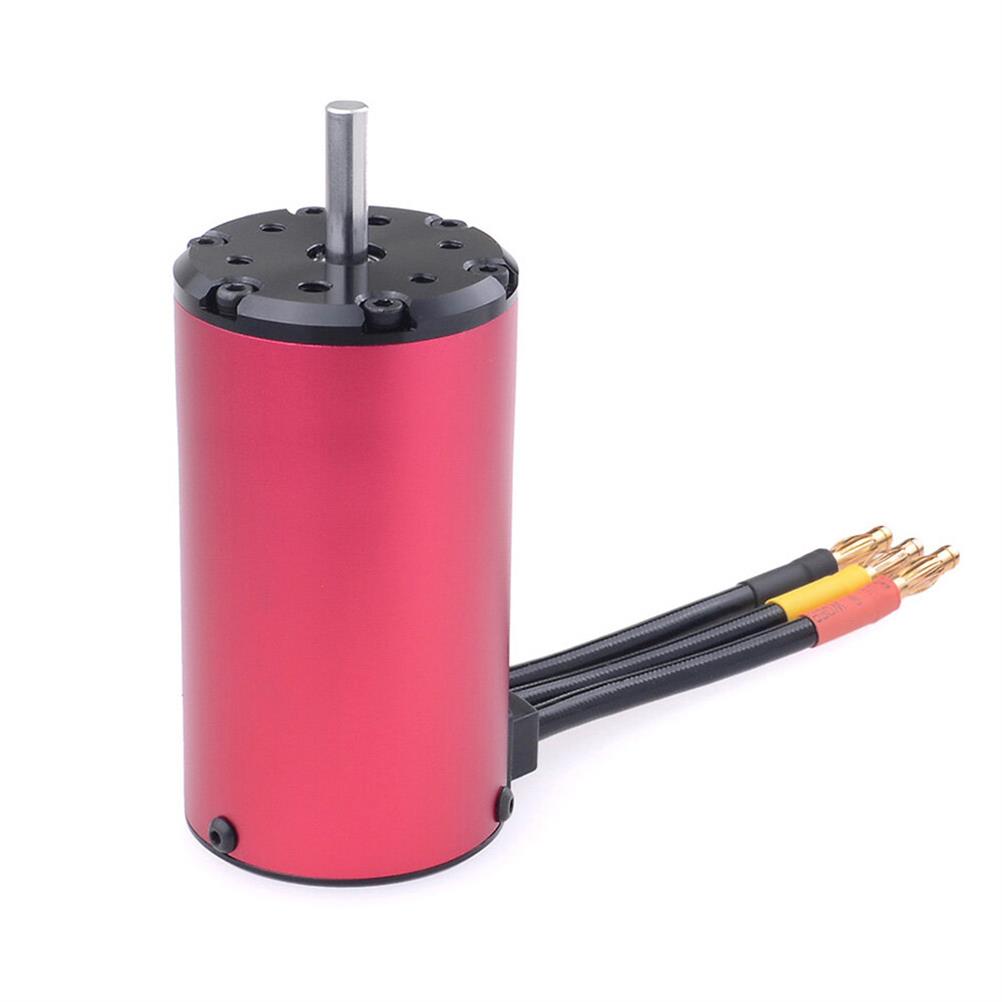

The Size of the Motor:Length 76mm,diameter 40mm,shaft diameter is 3.175mm,length of extended shaft is 18mm
The Size of the ESC:160*100*62mm
The Weight of the Motor/ESC:About 423g/148g
Fit For:1/10 1/8 brushless rc cars
The Specification of the Motor:
KV:2250KV
Watts:2800
Max Voltage:<18V
Max Amps:155A
Rotor Poles:4
IO:2.5A
Resistance:0.0066
Max RPM:50000
Connector:4.0mm gold

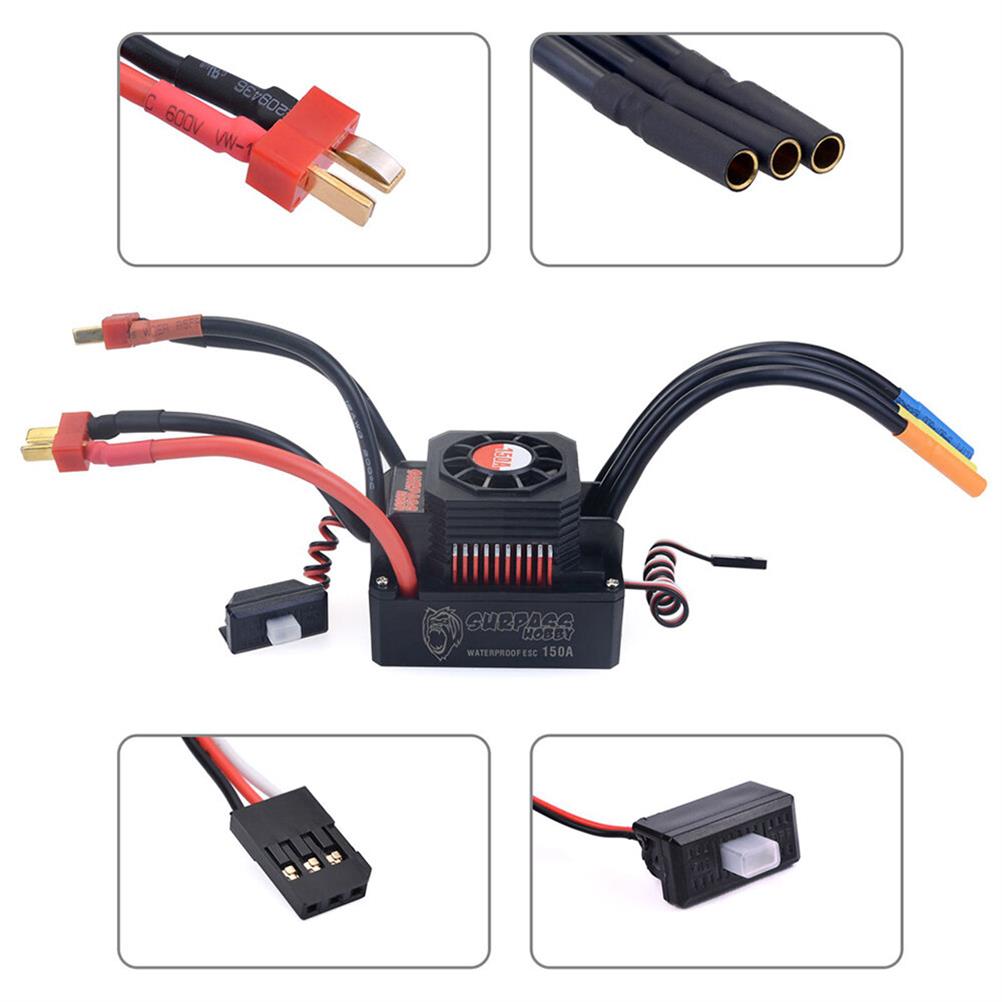

The Specification of the ESC:
Cont.Current:150A
Burst Current:720A
Motor Type:Sensorless Brushless Motor
For 4s Lipo or 12 cells NiMH
1.On-road 42XX-size or smaller motor with the kv <3000
2.Off-road/buggy/monster 42XX-size or smaller motor with the kv <2500
For 6s lipo or 18 cells NiMH
1.On-road 42XX-size or smaller motor with the kv <2500
2.Off-road/buggy/monster 42XX-size or smaller motor with the kv <2000
Suitable Car:1/8 car
Resistance:0.00030ohm
Battery:3-6 cells lipo/9-18 cells NiMH
BEC Output:6.1V/3A(switch mode)
For the esc manual,please click here
Features:4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/8 brushless cars-multi-mounting system for M2.5 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator – Super Thin (0.35mm) Laminations
Precision Engineered for Maximum Energy Conversion
Package Included:
1 x 4076 2250KV Brushless Motor
1 x 150A ESC
1 x Manual
