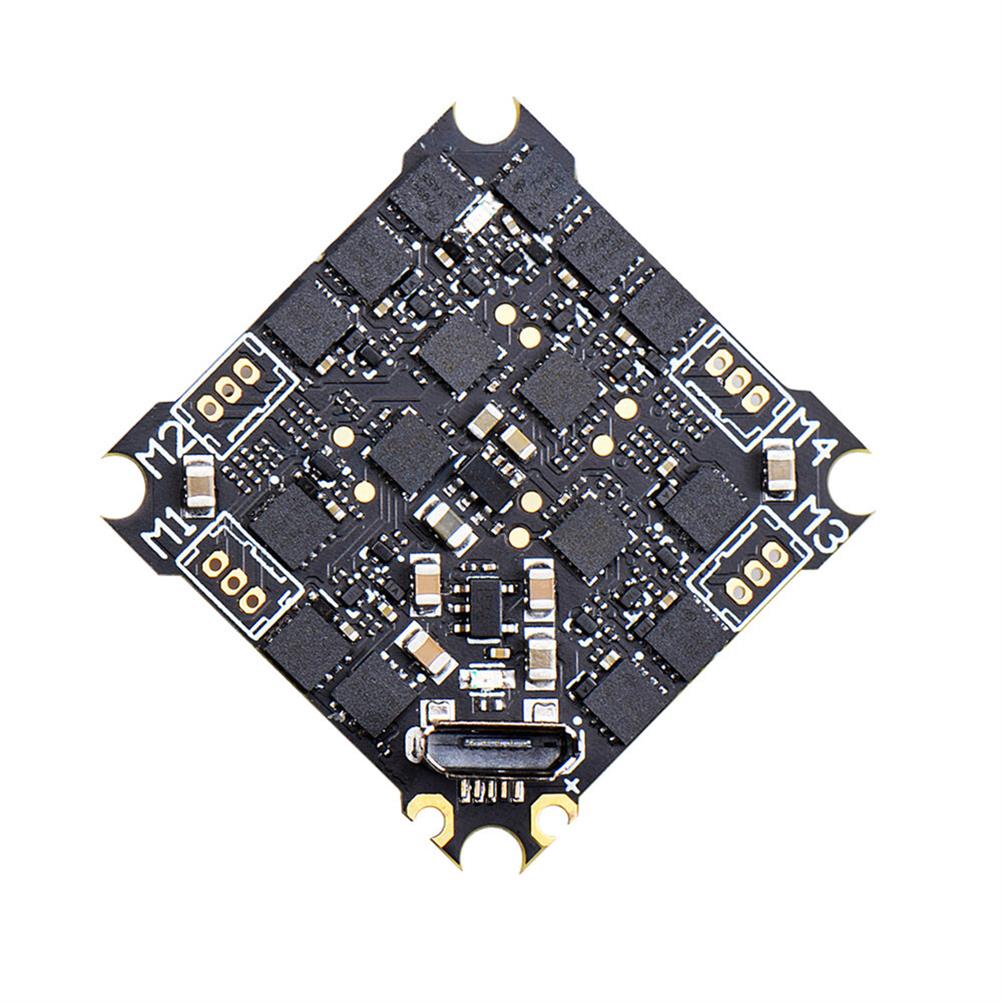

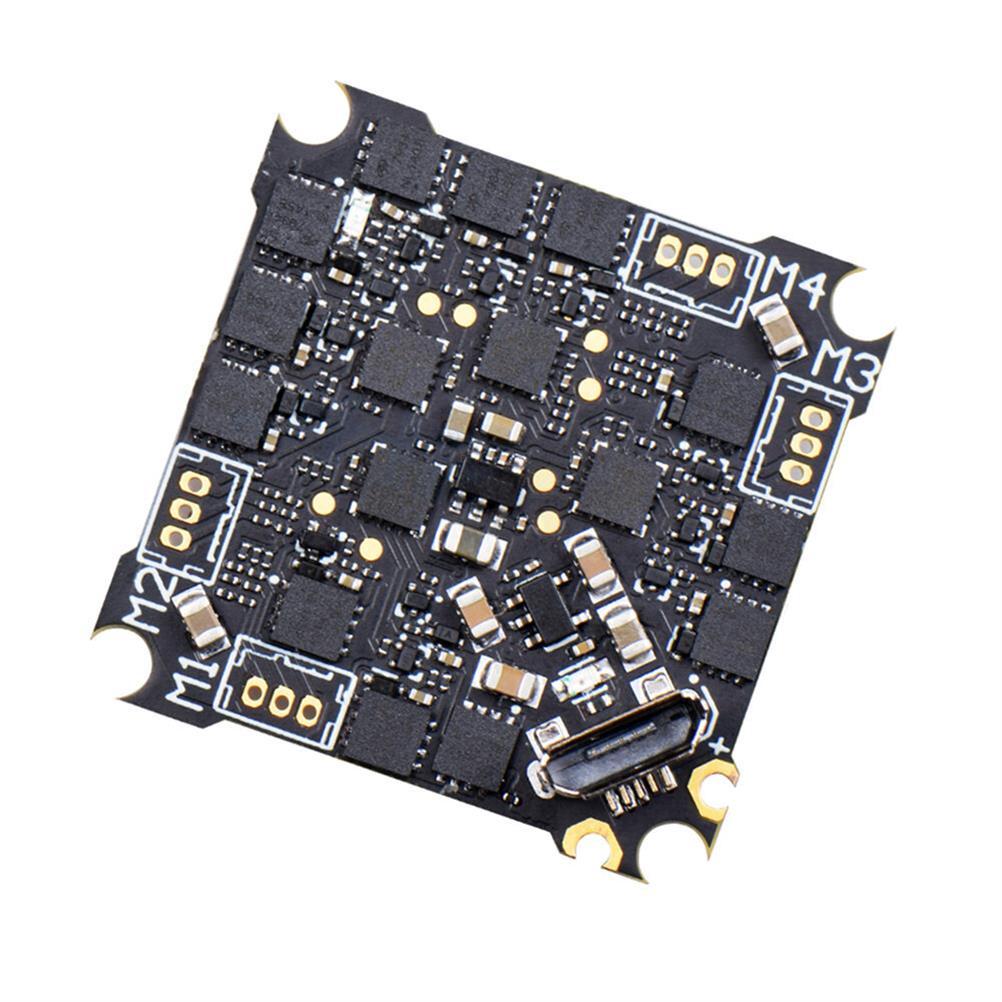

25.5×25.5mm JHEMCU RuiBet F4 AIO 1-2S Flight Controller w/ 5V BEC Output Built-in 12A BLheli_S 4in1 Brushless ESC for RC Drone FPV Racing

25.5×25.5mm JHEMCU RuiBet F4 AIO 1-2S Flight Controller w/ 5V BEC Output Built-in 12A BLheli_S 4in1 Brushless ESC for RC Drone FPV Racing

Notice: Because MPU6000 has been stopped produced, this item change it into ICM42688
Specification: ( Diagram Picture)
Brand: JHEMCU
Model: RuiBet F4
Item Name: 25.5×25.5mm F4 Flight Controller AIO 12A ESC
CPU: STM32F411
ICM: ICM42688
OSD: AT7456E
Barometer: NO
Blackbox: NO
USB Port: micro usb
BEC: 5V
UART: UART1, UART2
IIC: Support
Mouting Hole:25.5×25.5mm, M2
Weight: 4.4g
– Support ELRS, TBS,SBUS,IBUS,DSM2,DSMX Receiver
– Support WS2812 etc. Programmable LED Strip
– Support Buzzer
Onboard 12A 4in1 ESC
Con. Current: 12A
Firmware: BLheli_S Z_H_30_REV16_7.HEX
Input Voltage: 1-2S
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

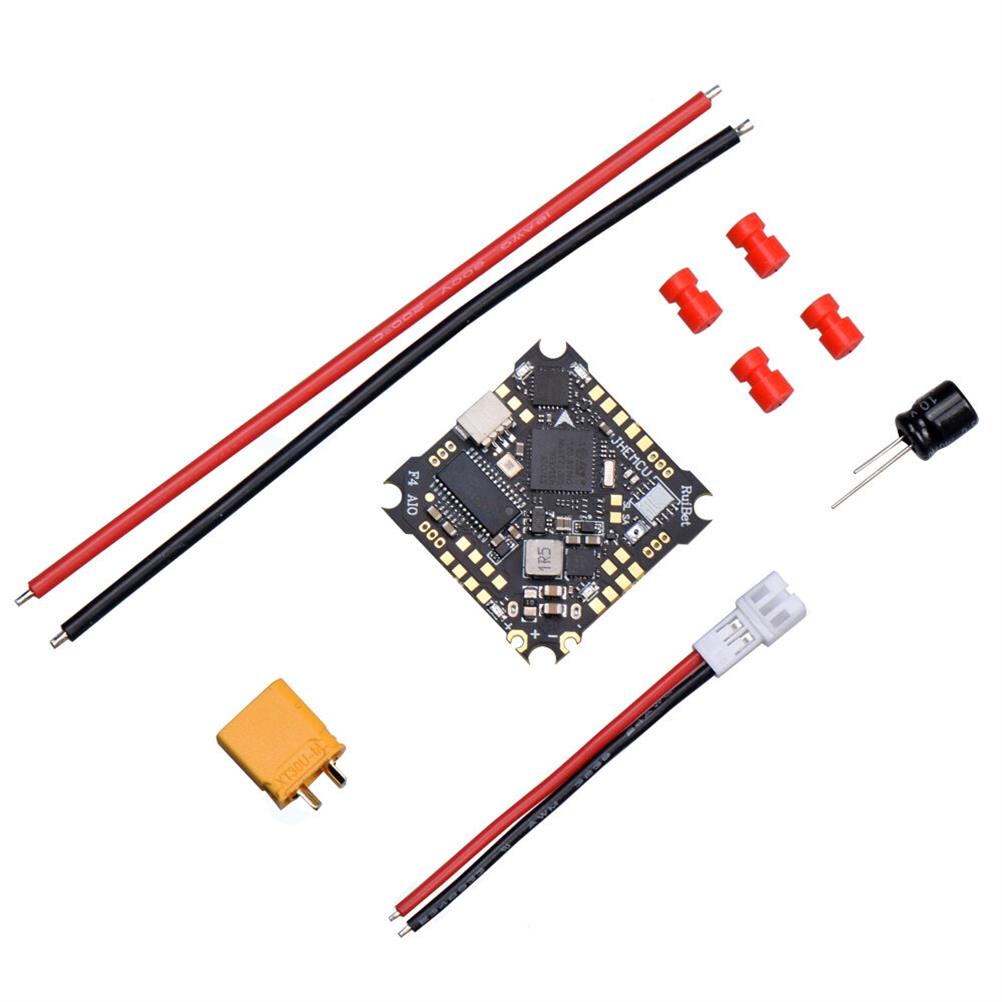

Package Included:
1x RuiBet F4 AIO
2x 18AWG Cable
1x XT30 Connector
4x M2x6.5 Anti-vibration Ball
1x 10V 470UF Capacitor
1x 2P Cable
