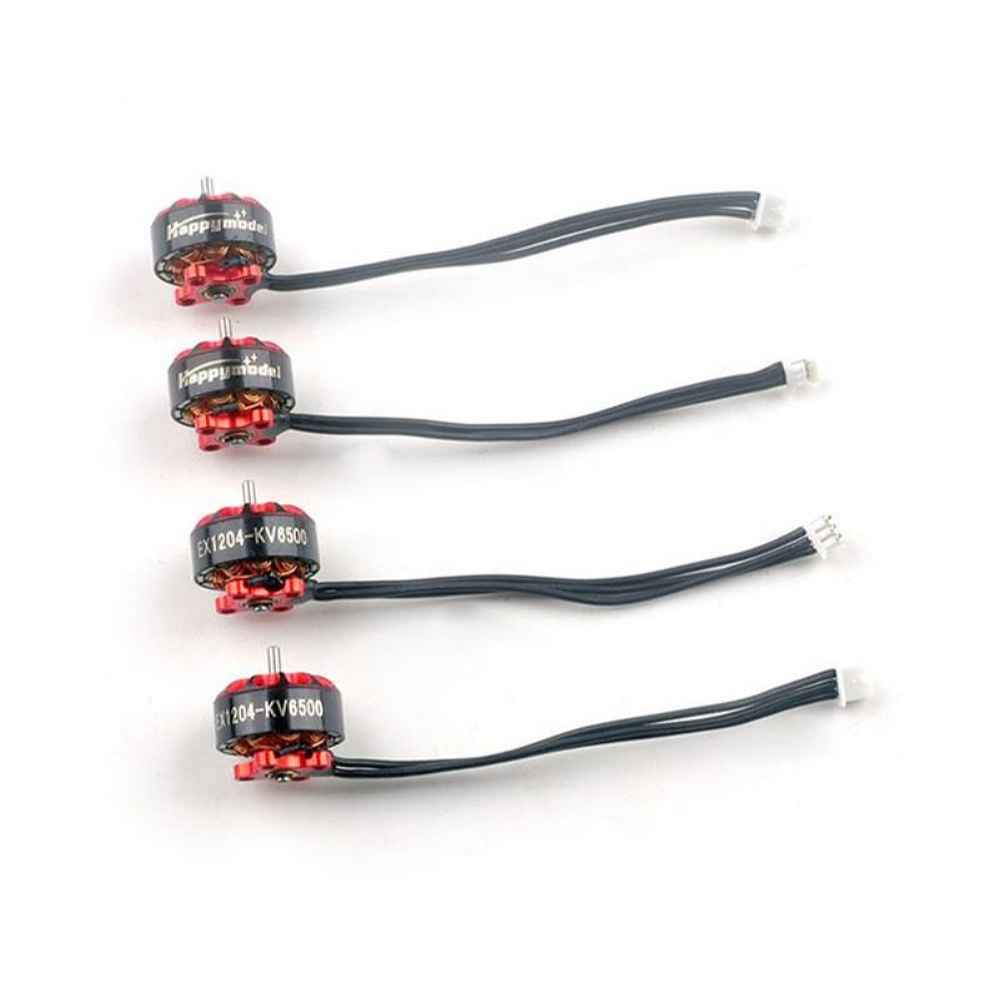

Happymodel EX1204 1204 5000KV 2-4S / 6500KV 2-3S Brushless Motor w/ 60mm Wire & Connector for 3 Inch Micro RC Drone FPV Racing
Specification:
Brand Name: Happymodel
Model: EX1204
Item Name: 1204 5000KV 2-4S / 6500KV 2-3S Brushless Motor
Input Voltage: 2-4S@5000KV; 2-3S@6500KV
KV: 5000KV / 6500KV ( Optional)
Model: CW / CCW ( Optional)
CW Version: Black Wire With Red Point Remard on the Plug Connector,
would spin rotation in CW while using w/ Crazybee Series Flight Controller.
CCW Version: Black Wire WITHOUT Red Point Remard on the Plug Connector,
would spin rotation in CCW while using w/ Crazybee Series Flight Controller.
Quantity: 1 PC
Configu-ration: 9N12P
Stator Diamter: 12mm
Stator Length: 4mm
Inner Shaft Diameter: ??2mm
Outer Shaft Diameter: ??1.5mm
Cable Length: 60mm
Plug Connector: JST1.25mm 3pin

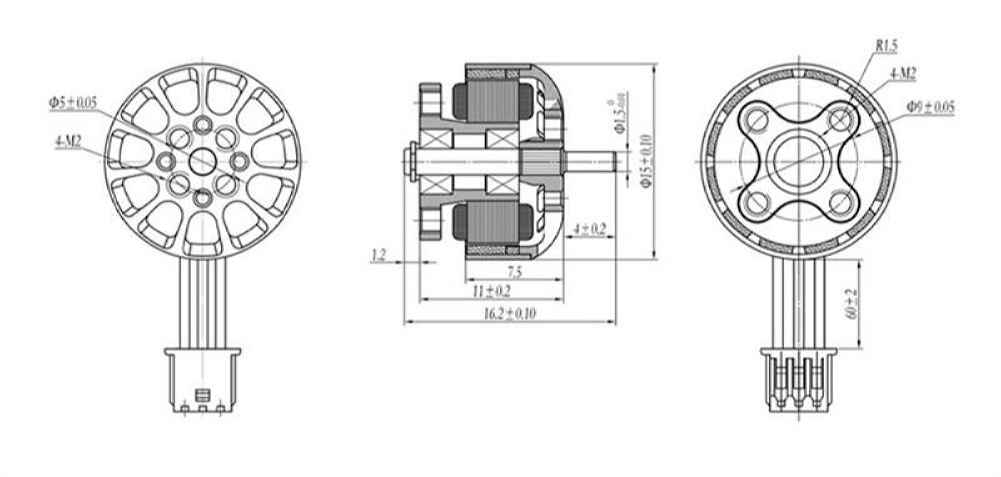

Motor Dimension: ??15×16.2mm (Dia.xLen)

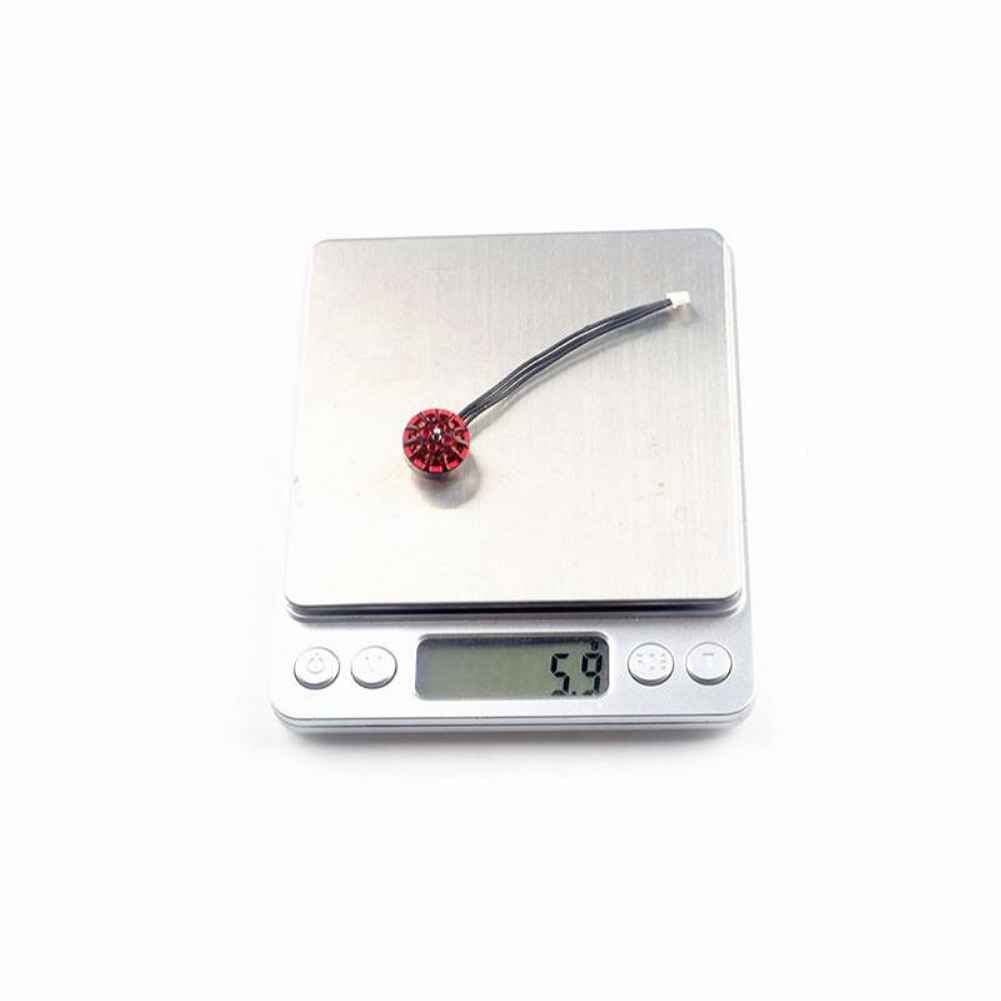

Weight:5.9g
Pacakge Included:
1x Happymodel EX1204 Motor
Additional information
| Weight | 0.0059 kg |
|---|---|
| Model: No selection | 1*CCW, 1*CW, 2CW+2CCW |
| KV: No selection | 5000KV, 6500KV |
