Description
25.5×25.5mm JHEMCU F411 BRUSH Flight Controller 1-2S with 5V BEC Output Built-in ELRS 2.4G Receiver for RC FPV Drone Freestyle Racing

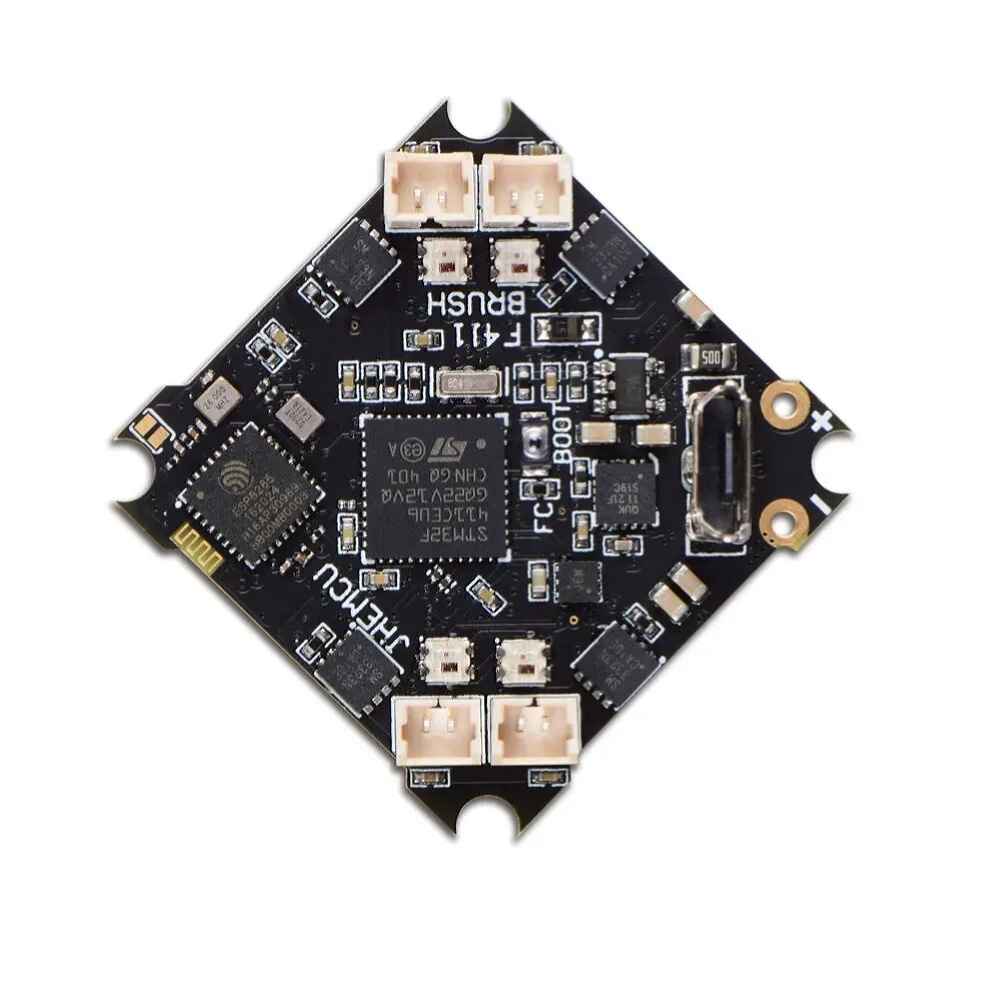

The JHEMCU F411 Brush Flight Controller is engineered for RC FPV drone freestyle racing, featuring a powerful STM32F411CEU6 MCU and supporting 1-2S power supply. It includes a built-in ELRS 2.4G receiver connected to UART2, compatible with multiple receiver protocols like ELRS(CRSF), TBS(CRSF), SBUS, and IBUS. The controller boasts an ICM-42688-P sensor, AT7456E OSD, and an 8MB Black Box for efficient flight data management. It supports WS2812 programmable LED and includes a 5V/1.5A BEC output. The compact design, with 25.5mm mounting hole spacing, ensures easy integration into your racing drone setup.
Specification:
Brand: JHEMCU
Item Name: JHEF411 BRUSH Flight Controller
MCU: STM32F411CEU6
Power Supply: 1-2S (3V-8.7V)
Signal Protocol: BRUSH
Sensor: ICM-42688-P
OSD: AT7456E
Black Box: 8MB
Barometer: None
USB: Micro USB
UART: UART1, UART2
BEC: 5V/1.5A 呼 0.1V BEC
Supported Receiver Protocols: ELRS(CRSF), TBS(CRSF), SBUS, IBUS
Built-in ELRS Receiver Connected to UART2
Support: WS2812 Programmable LED (four boards)
Compatible: Buzzer
Built-in Voltage Sensor
Built-in Current Sensor
Flight Controller Firmware: Betaflight JHEF411.HEX
Receiver Frequency Band: 2.4 GHz
Receiver Protocol: CRSF
Receiver Type: Standalone ELRS
Receiver Firmware: Betafpv.rx_2400.lite
Receiver Supports Wi-Fi Firmware Upgrade
Motor Drive: 15A
Motor Type: Brush
Anti-torque: Not Supported

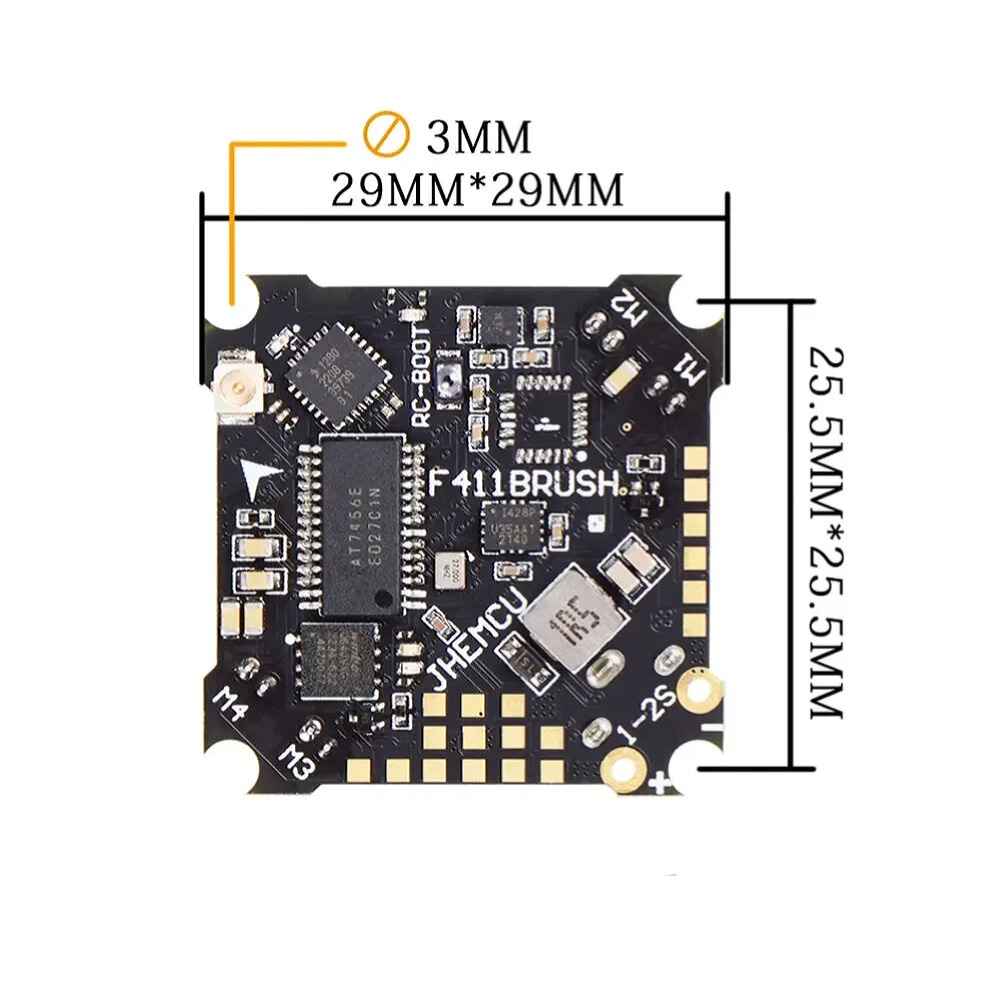

Mounting Hole Spacing: 25.5 mm x 25.5 mm x 3 mm
Dimensions: 29 mm x 29 mm
Weight: 3.2 g
Package Included:
1 x JHEMCU F411 Brush Flight Controller
4 x M2 6.5MM Shock Absorbers
1 x IPEX 2.4G Antenna
1 x XT30 Connector
1 x 2P 2.0MM Connector
2 x 20 AWG Wires
