HDZero Halo Mini Flight Controller with ELRS 2.4GHz RX, 5V/9V BEC Output, for FPV Racing Drone

Description

20x20mm HDZero Halo Mini Flight Controller with 5V 9V BEC Output Build-in ELRS 2.4GHz RX for HD Digital RC FPV Racing Drone

The HDZero Halo Mini Flight Controller is a compact and powerful solution for FPV racing drones, featuring the H743 MCU for high-performance applications. It includes a true diversity ExpressLRS receiver with Gemini mode, using dual frequencies to enhance reception stability. A TXCO ensures consistent ELRS RX performance even in high-heat conditions. The controller offers a 9V/3A BEC output for video transmitters and a 5V/4A output for LED strips, simplifying wiring and supporting uniform illumination. Designed for digital systems, it allows the HDZero Race v3 VTX to stack seamlessly, optimizing space and durability. The solderless design includes dedicated ESC sockets for easy assembly and field swaps, making it ideal for competitive pilots.

Introduction:
– The HDZero Halo is a compact, high-performance flight controller powered by the H743 MCU, delivering robust computational capabilities for demanding FPV applications. It integrates a true diversity ExpressLRS (ELRS) receiver, supporting Gemini mode, which utilizes two receivers on two frequencies to significantly enhance ELRS reception. This advanced feature ensures superior link stability, making it a top choice for competitive pilots.
– To further enhance reliability, the Halo Flight Controller features a TXCO (Temperature Control Crystal Oscillator), ensuring consistent ELRS RX performance even in high-heat environments. This level of precision is crucal for maintaining a stable connection in extreme conditions.
– Additionally, the Halo Flight Controller includes a switchable 9V/3A BEC output for video transmitters, alongside a 5V/4A output for LED strips and other peripherals. Its design streamlines LED strip wiring, making it easy to connect parallel LED strips for uniform single-color illumination while simplifying the routing of addressable LEDs.
Built for digital video systems, the Halo eliminates the analog OSD chip to reduce costs and save space. It is specifically designed to allow the HDZero Race v3 VTX to stack on top of it in a low-profile manner, resulting in a durabl and compact stack height. This optimization ensures a secure, space-efficient build while maintaining excellent performance.
– The solderless design features dedicated ESC connection sockets (with an included 4A-rated cable) and easy connectivity for digital VTXes, allowing for quick swaps and hassle-free assembly in the field.
– With its Gemini mode support, TXCO-enhanced ELRS reception, low-profile HDZero Race v3 VTX stacking, and cost efficiency, the HDZero Hal is the ultimate flight controller for FPV racers and freestyle pilots seeking top-tier performance, reliability, and a sleek, durabl build.

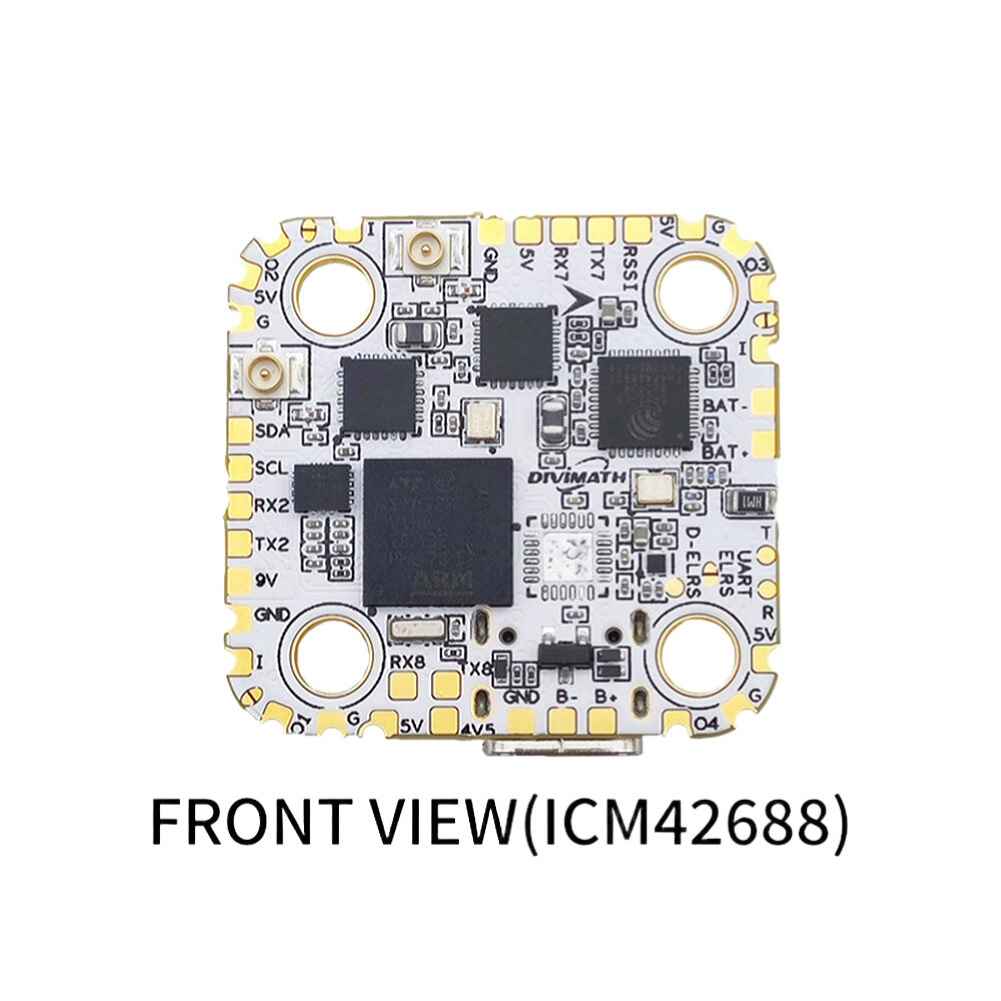

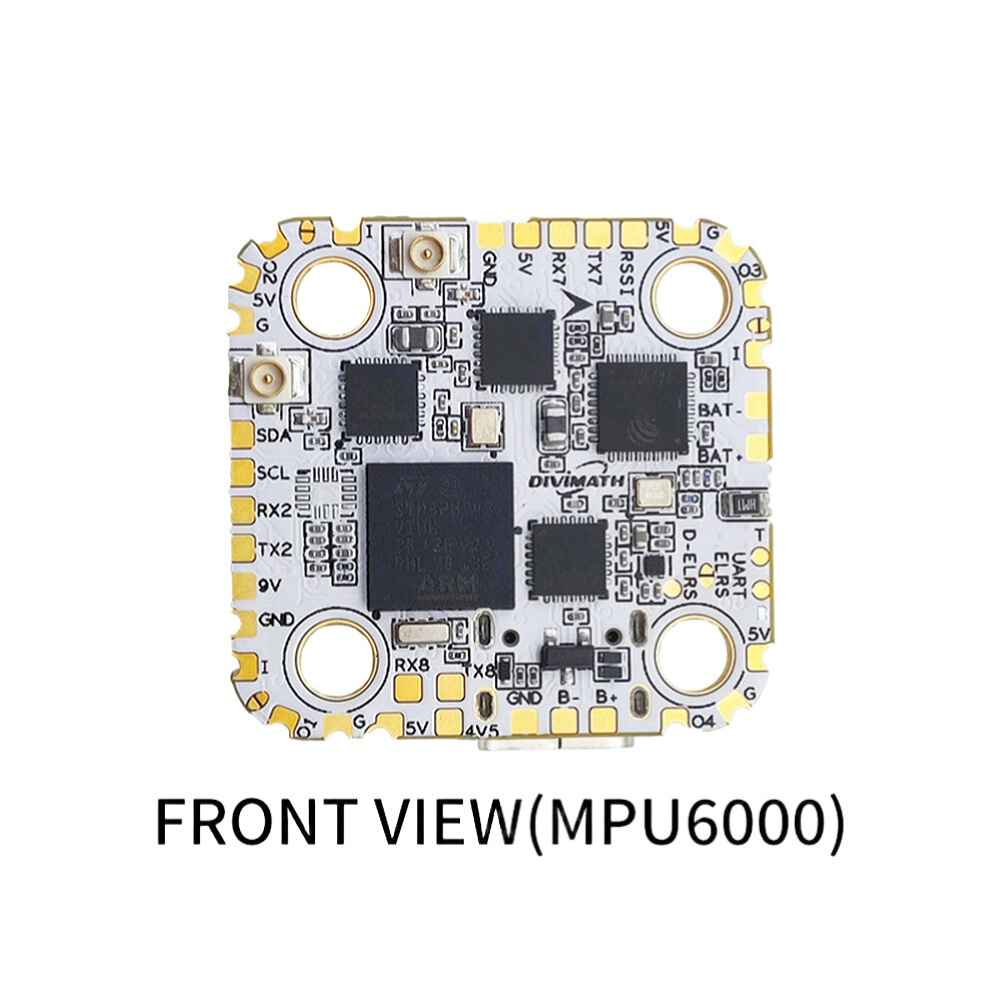

– The Halo Flight Controller is available in two versions, MPU6000 and ICM42688, to meet different pilot preferences.
Specification券
Brand: HDZero
Model: Halo Mini Flight Controller

Flight Controller

CPU: STM32H743 (480MHz)Gyro: MPU6000 or ICM42688BEC output: DC 5V/4A DC 9V/3A DC 4.5V/0.5ABlack Box: 16MB Flash memoryI2C Pads:YesUART Pads: TX2/RX2, TX7/RX7, TX8/RX8ESC Telemetry: RX4VTX MSP UART: TX5/RX5DJI HDL: RX3Buzzer Pads: YesLED Strip: Parallel or SerialUSB: Type-CAnalog OSD: NoFC Firmware: Betaflight: HDZERO_HALO

ELRS Receiver

Chip Set: ESP32 + 2x SX1280FC UART: TX1/RX1True Diversity RX: YesRF Frequency: 2.4GHzMax TX RF Power: 10mWAntenna Interface: 2xU.FLELRS Firmware: HDZero Halo FC 2.4G Gemini RX

Dimensions

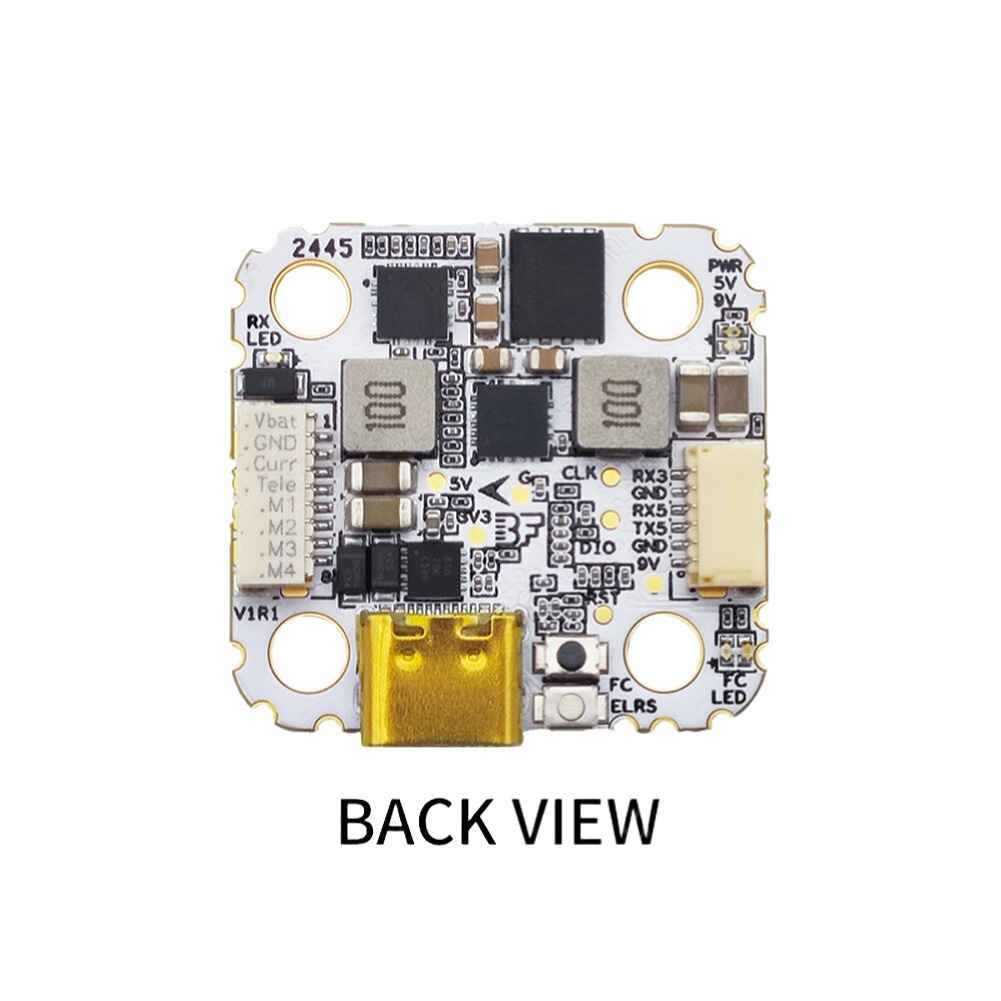

Power Supply: 3S ~ 8SSize: 29×30.5mm with 20×20 M4 mounting holesDedicated sockets for ESC, and HDZero and other Digital VTXes

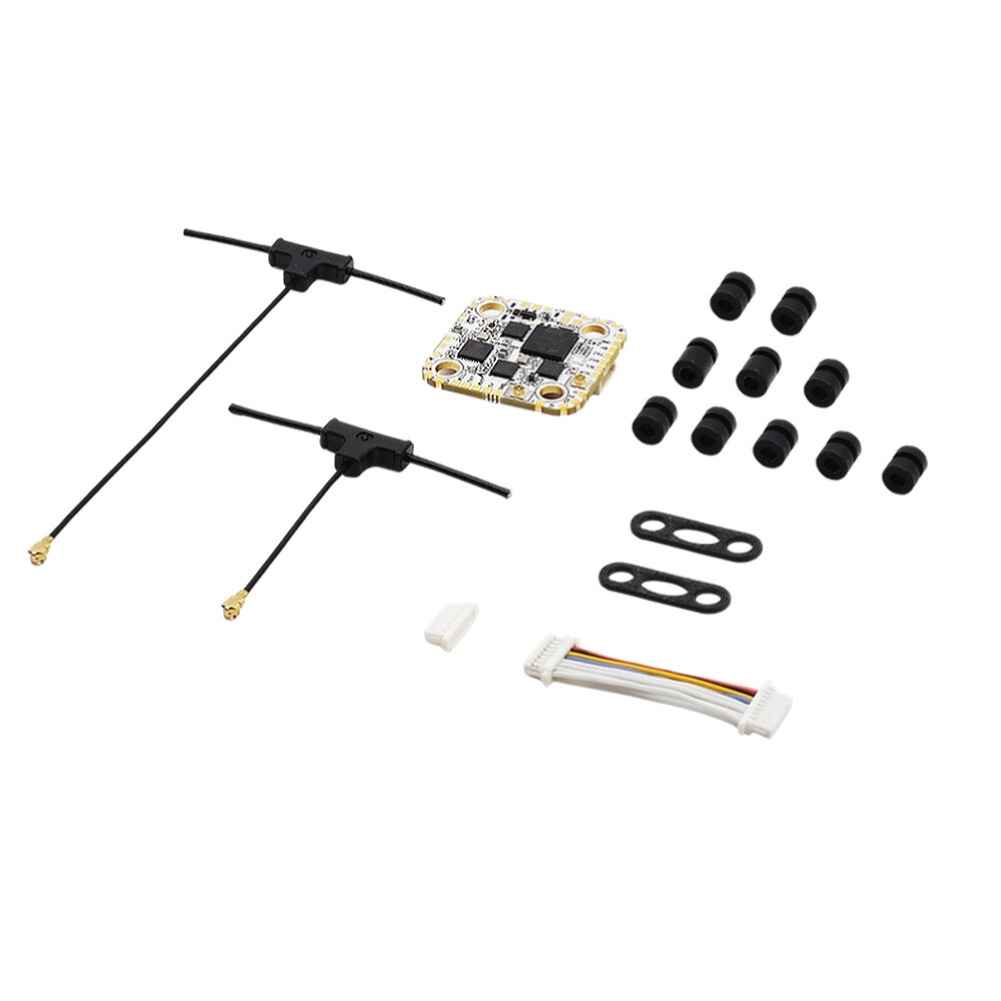

Package Included:
1x HDZero Halo Flight Controller
5x Rubber Grommet (6.6mm)
5x Rubber Grommet (8.0mm)
1x ELRS T-sharp short antenna (40mm)
1x ELRS T-sharp long antenna (90mm)
2x ELRS Antenna Strain
1x ESC Cable (8-pin SH1.0, 30mm)
1x 8-pin SH1.0 connector
