Description

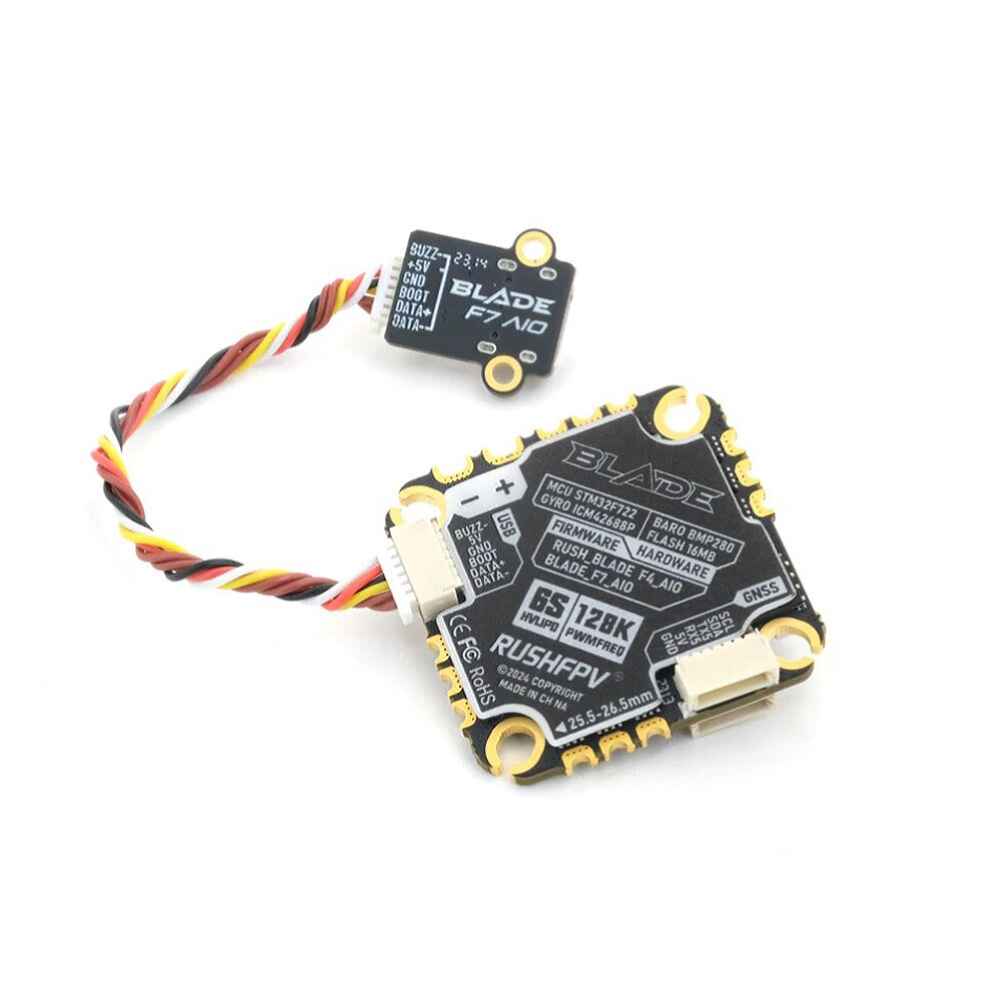

30.5×30.5mm RUSHFPV BLADE F7 45A AIO Flight Controller Blackbox BLHeli_32 4IN1 Brushless ESC 3-6S for FPV RC Racing Drone
The RUSHFPV BLADE F7 45A AIO Flight Controller is designed for FPV racing drones, offering robust performance with its STM32F722 MCU and BLHELI_32 ESC firmware. It supports dynamic PWM refresh rates up to 128K and features a 40V high voltage MOSFET that fully supports 6S system construction. The controller includes a built-in barometer, analog OSD, and a 16MB Blackbox for data logging. Its compact form factor, with large pads for easy soldering, and on-board socket for module connections, make it an ideal choice for advanced drone enthusiasts. The unit weighs 9g and measures 30.5×30.5mm, ensuring a lightweight and efficient build.
Specifications: ( Manual)
Brand: RUSHFPV
Model: BLADE F7 45A AIO
Beta Flight Firmware: BLADE_F7_AIO
BLHELI 32 Firmware: RUSH_BLADE_F4_AIO
Features:
– 40V high voltage MOSFET, fully support 6S system construction.
– BLHELI 32 ESC firmware,supports dynamic PWM refresh rates up to 128K.
– High quality 8 copper layer PC8. Compact form factor, large pads for easy soldering.
– On﹞board socket for easy <onnection to other modules.
– STM32 F722 MCU, On-board barometer, analog OSD and black box.
Package Included:
1 x RUSHFPV BLADE F7 45A AIO
