GreatMountain AT32 F435VMT7 Flight Controller, 30.5mm, 3-6S, 5V/9V BEC Output, for RC FPV Racing Drone

Sale!

GreatMountain AT32 F435VMT7 Flight Controller, 30.5mm, 3-6S, 5V/9V BEC Output, for RC FPV Racing Drone

Original price was: 51.98$.Current price is: 44.70$.

Compatible with 3-6S input voltage
Dual BEC outputs: 5V 4A and 9V 4A
Supports X8 mode with direct plug interfaces
Compatible with analog and HD image transmissions
Includes 5 UART interfaces for multiple device connections

SKU: RC2037035 Category: Multi Rotor Parts Tags: 3-6S flight controller, dual BEC output, GreatMountain flight controller, HD image transmission support, RC FPV racing drone controller, RGB-LED support, UAV flight controller, X8 mode flight controller Brand: GreatMountain

Description

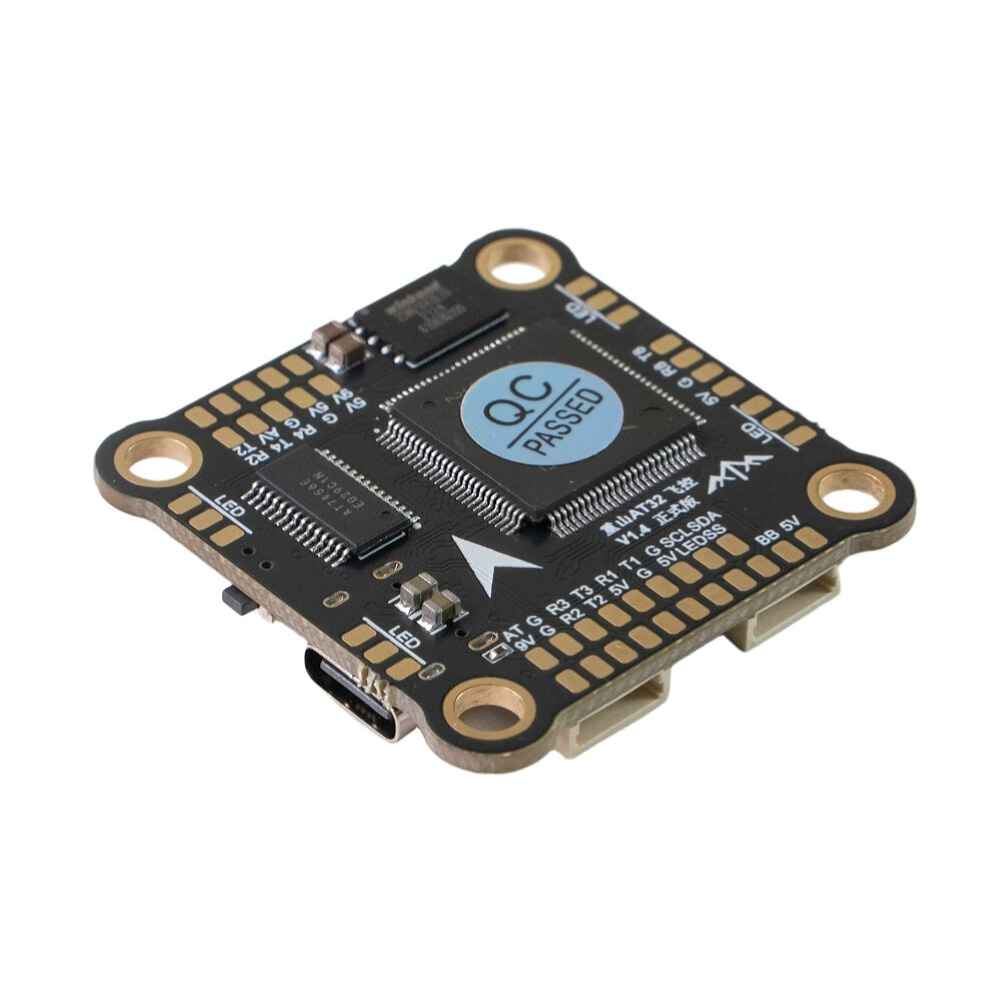

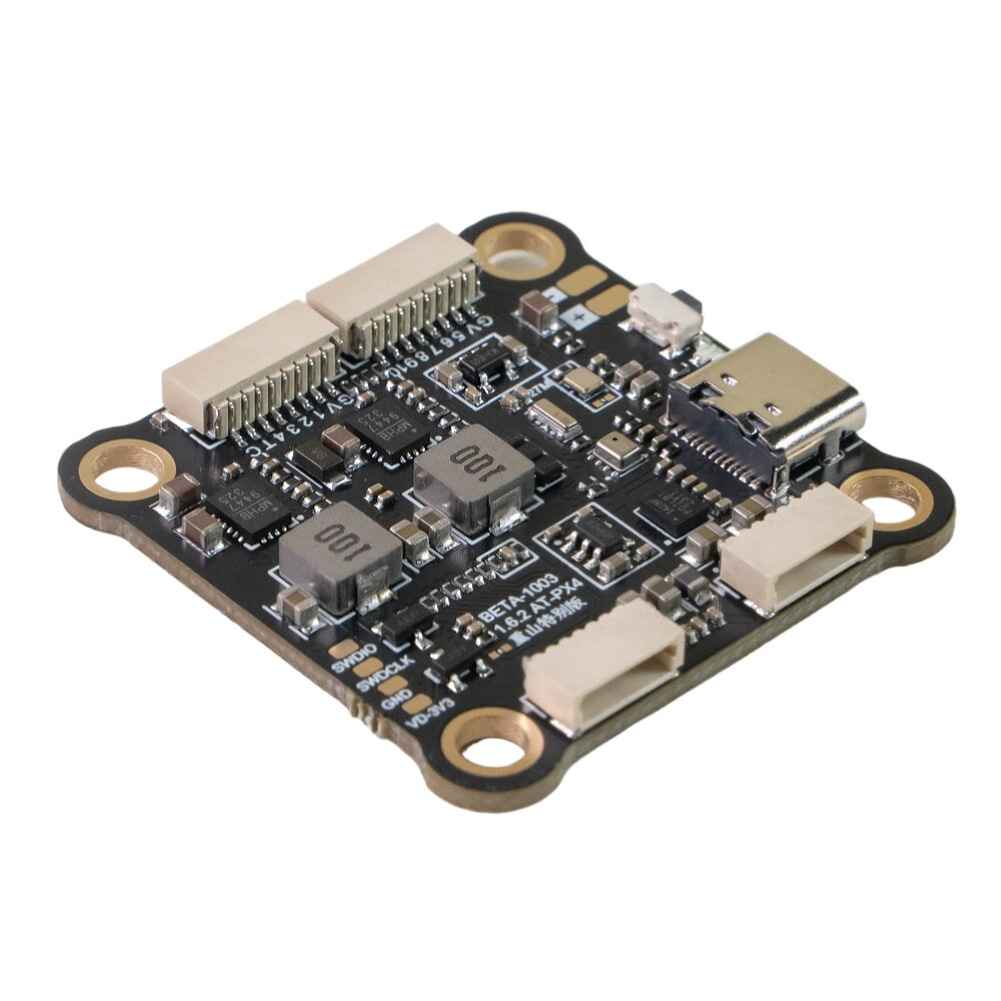

30.5mm*30.5mm GreatMountain AT32 F435VMT7 3-6S Flight Controller with 5V 9V BEC Output for RC FPV Racing Drone

The GreatMountain AT32 F435VMT7 Flight Controller is designed for RC FPV racing drones, offering compatibility with 3-6S input voltage. It features dual BEC outputs of 5V and 9V, providing ample power for various components. The controller supports X8 mode with SH1.08P interfaces for direct plug-in, and it is compatible with analog, DJI HD, and Avatar HD image transmissions. It includes support for SBUS input signals and various UART serial devices such as GPS and Mavlink telemetry. The controller is equipped with RGB-LED interfaces and supports four-arm lights, ensuring clear and organized aircraft routing.

Feature:
– Support X8 mode, with two SH1.08P interfaces, support X8 direct plug.
– Support analog image transmission/for DJI HD image transmission/Avatar HD image transmission, with HD image transmission direct plug interface.
– Support SBUS input signal, Pbus/Wbus/lbus/elrs (CRSF)/TBS, do not support PWM signal and PPM signal input !
– All 5 uart interfaces are led out on the interface, and 5 uart serial devices can be connected, including GPS/elrs/optical flow/image transmission parameter adjustment/camera parameter adjustment/mavlink telemetry/4G image transmission.
– Lead out one l2C, support external magnetic compass.
– 5 LED interfaces, support RGB-LED, support four-arm lights, so that the aircraft routing is clear and organized.
Specification:
Brand: GreatMountain
MCU: AT32F435 VMT7OSD: AT7456EFLASH: W25NO1GBlackBox: W25Q128JVPIQBarometer: DPS310Gyroscope: 42688-PBEC: 9V 4A 5V 4A Dual BECBec/3.3V: 0.6ABec/5V: 3.5ABec/9V: 3.5AInput: 3-6S (10-26.1V)TVS: Onboard 28V TVSFre: 288MHZ Uart: 5/10(set) Mounting Hole: 30.5X30.5mmMaterial: PCBWeight: 7.10Default port:UART1 (Receiver)UART3 (DJI/HD Transmission)

Package Included:

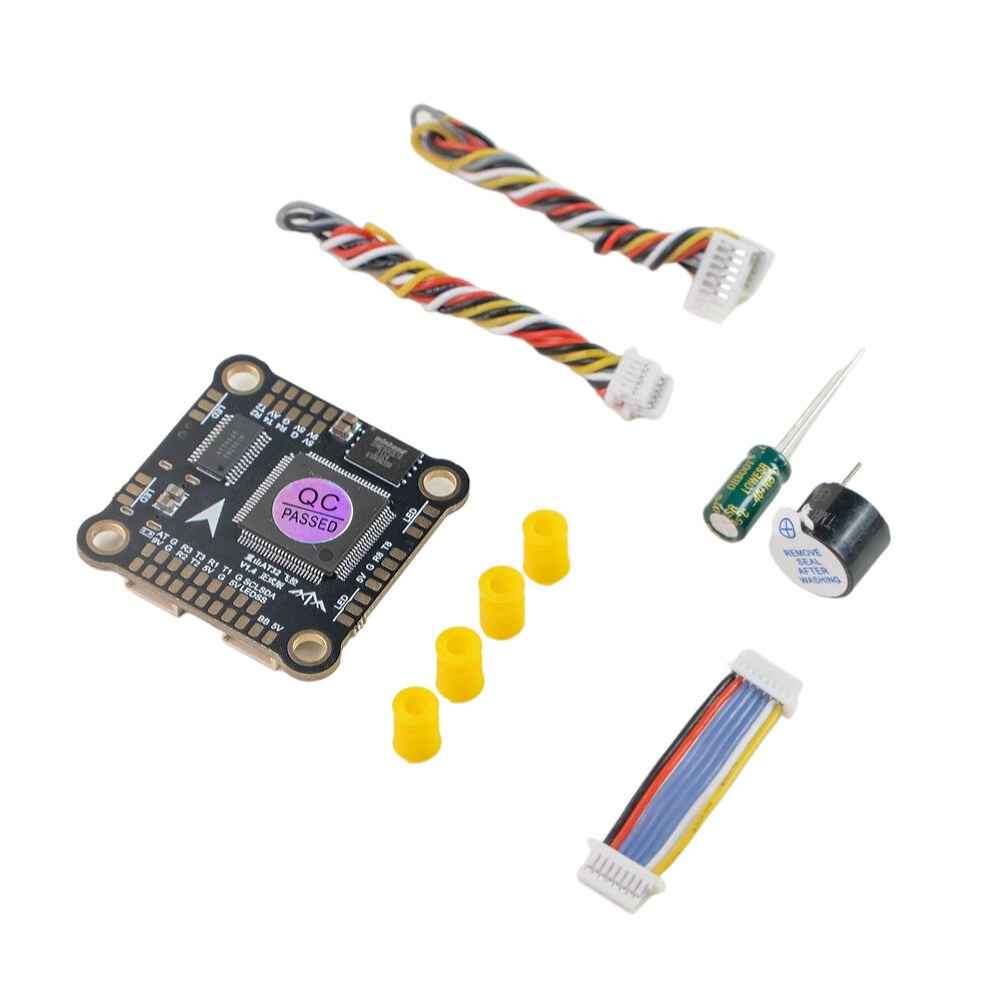

1 x AT32 F435VMT7 Flight Controller
