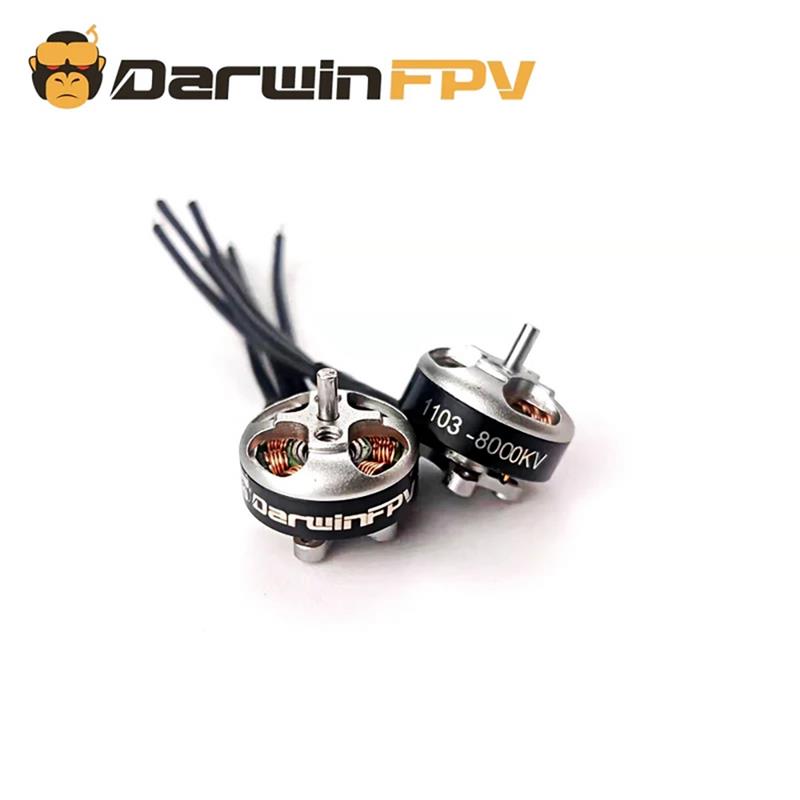

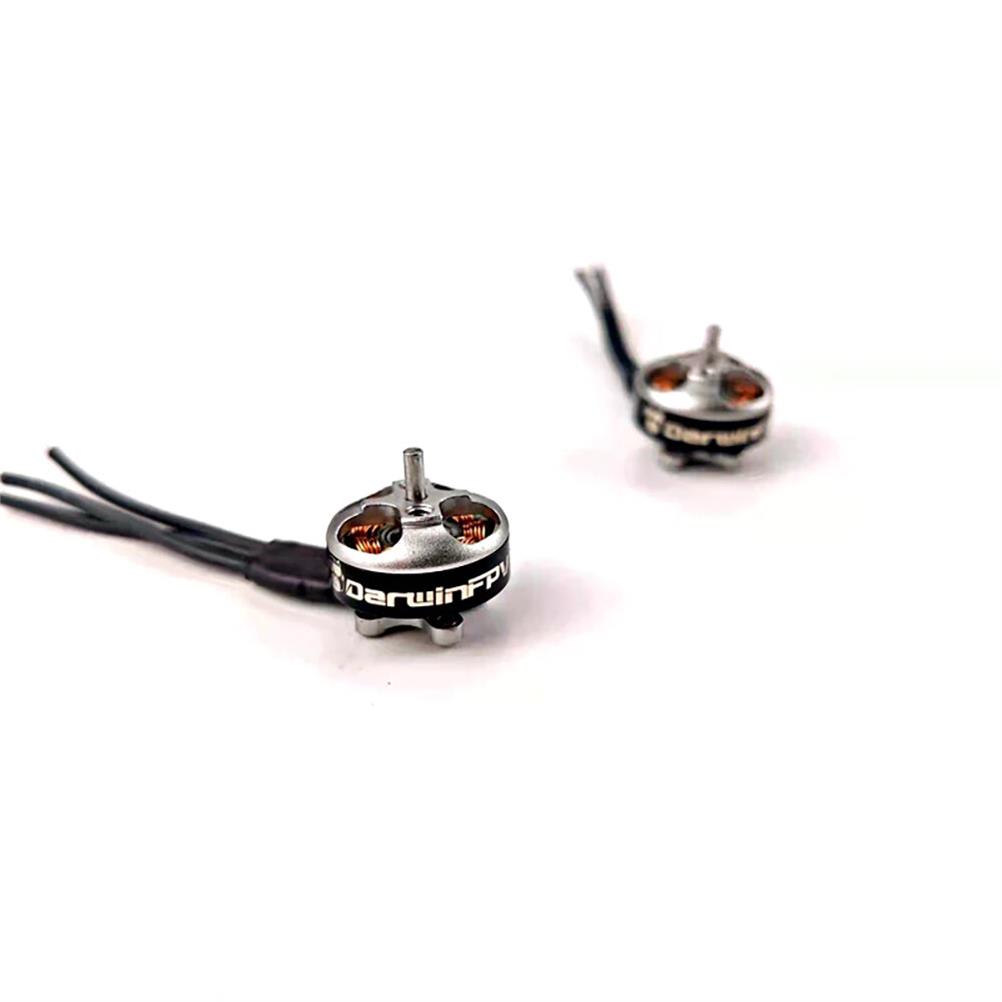

Darwinfpv 1103 8000KV 12000KV 1-2S Brushless Motor 1.5mm Shaft for TinyApe / Whoop75 and 18650 FPV Drone RC Racing
Specifications:
Brand: DarwinFPV
Model: 1103
Item Name: 1103 8000KV 12000KV 1-2S Brushless Motor
KV: 8000KV/12000KV ( Optional)
| 8000KV | 12000KV | |
| Configu-ration | 9N12P | 9N12P |
| No.of Cells(Lipo) | 1-2S | 1-2S |
| Stator Length | 3mm | 3mm |
| Shaft Diameter | 1.5mm | 1.5mm |
| Motor Dimension(Dia.*Len) | ??13.8*10.7mm | ??13.8*10.7mm |
| Weight | 3.7g | 3.7g |
| Idle current(10)@5V | .4A | .4A |
| Max Continuous Power(W)60S | 120W | 120W |
| Internal Resistance | 245m?? | 245m?? |
| Max Current(60S) | 10A | 10A |
| Application | recommended motor for Darwin TinyApe | Recommend for Whoop75 and 18650 FPV Drone |
Packing list:
1 x 1103 Brushless Motors
Additional information
| Weight | 0.02 kg |
|---|---|
| Quantity: No selection | 1 PC, 4 PCS |
| KV: No selection | 12000KV, 8000KV |
