Description

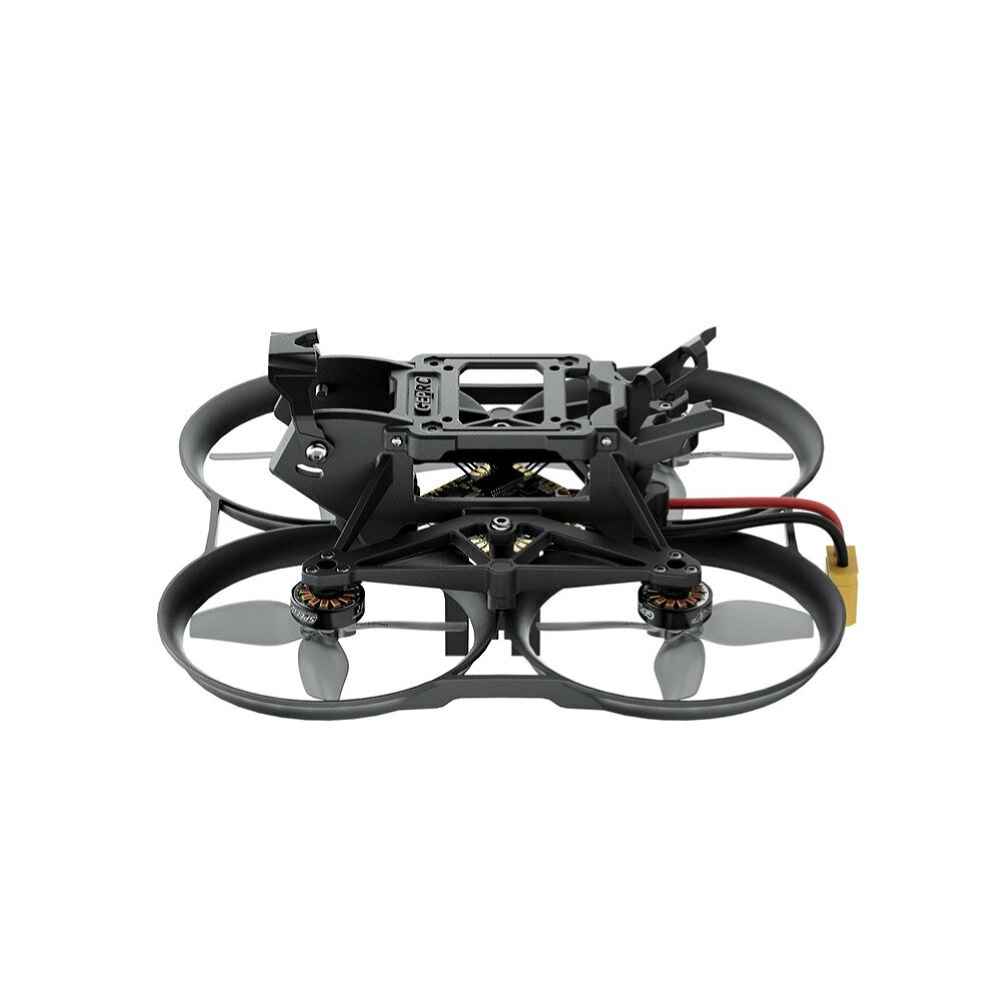

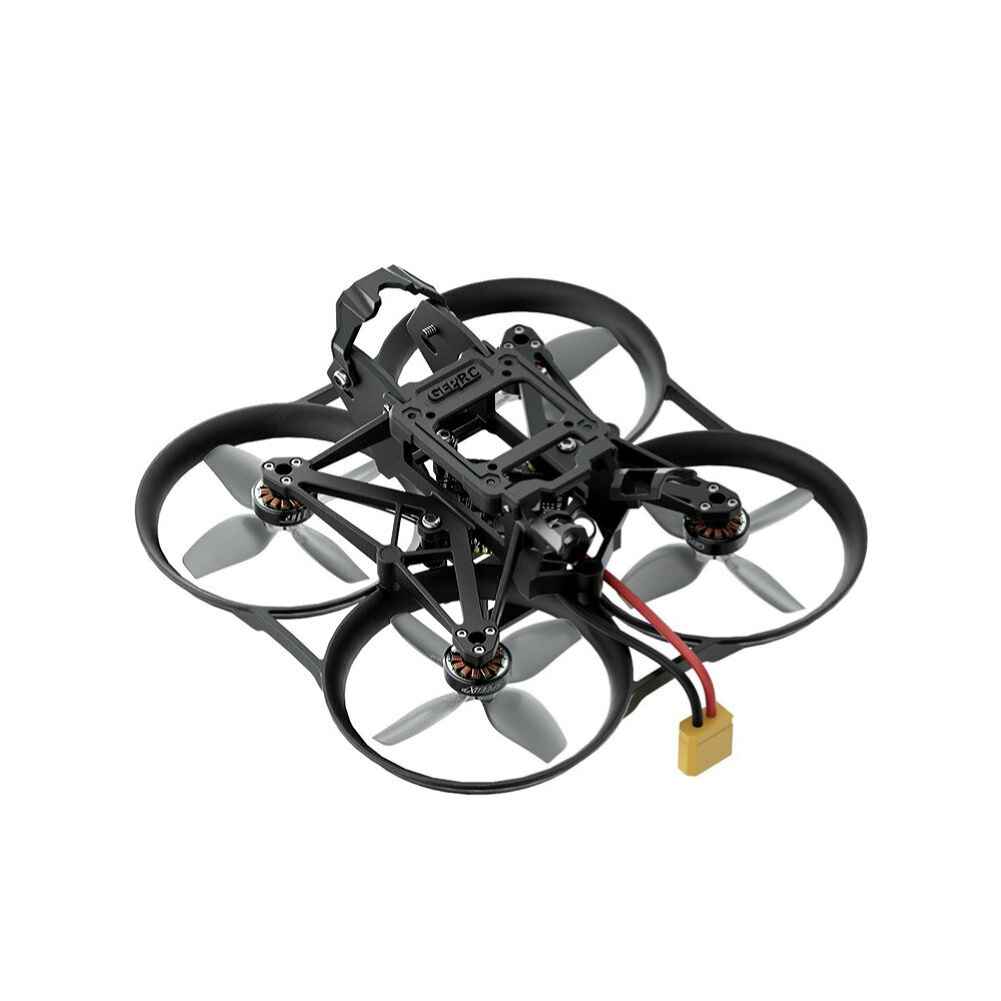

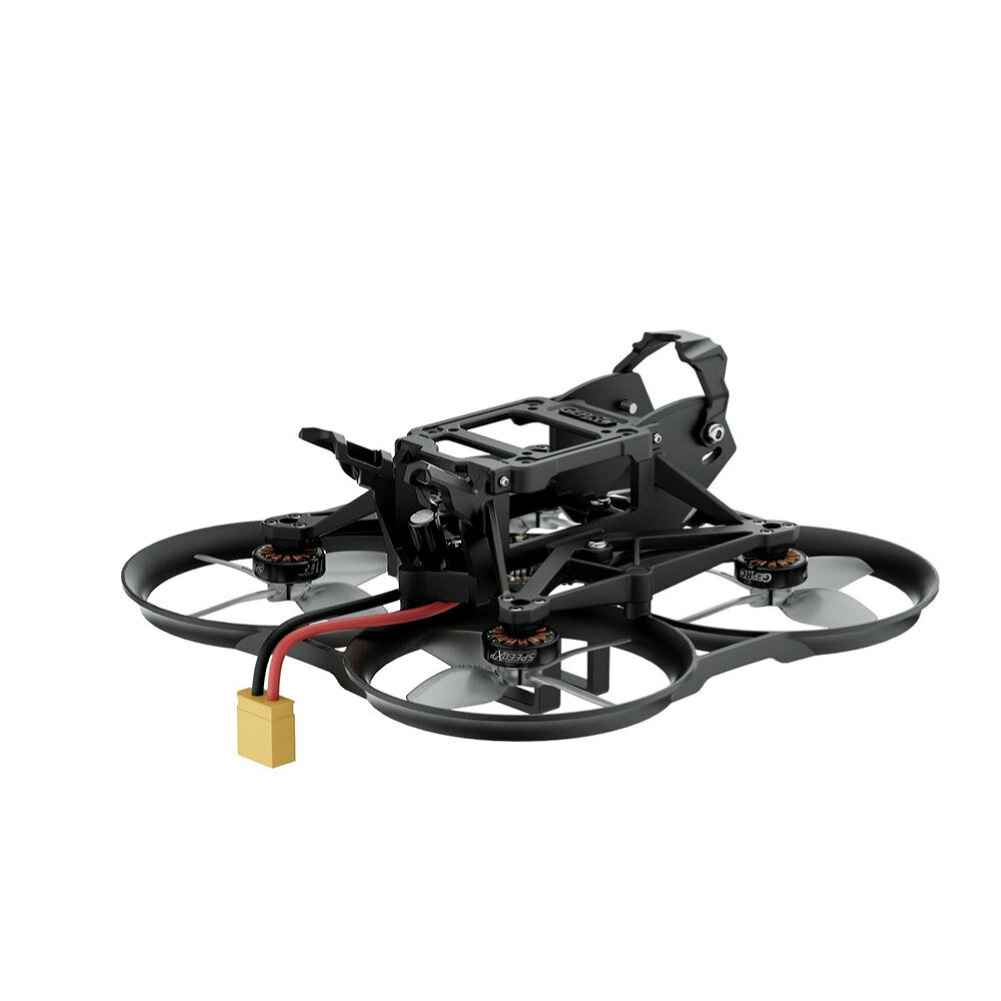

Geprc DarkStar20 WTFPV 90mm F4 2S 2 Inch Cinewhoop FPV Racing Drone with 1102 10000KV Motor NO VTX NO Camera
The GEPRC DarkStar20 WTFPV is a compact 90mm FPV racing drone designed for cinematic shooting in confined spaces. Weighing only 85.5g without batteries, it features a lightweight injection-molded fuselage and a robust multi-dimensional triangular frame for enhanced rigidity and aesthetics. Powered by the SPEEDX2 1102 motor and HQProp DT51mm x4 propellers, it offers excellent power and efficiency. The TAKER F411-12A-E 1-2S AIO flight system with integrated ELRS 2.4G receiver optimizes space and cost. Ideal for both indoor and outdoor flying, the DarkStar20 is perfect for novice pilots and travel photography enthusiasts.
Summary
In the application of Cinematic FPV field, GEPRC is continues to pursuing innovatin. When conventional size quadcopters are unable to meet the needs of shooting in small spaces, DarkStar20 is a good solution. DarkStar20, This is a small quadcopter within 120 grams that is designed for indoor shooting and outdoor flying.
DarkStar20 adopts a lightweight fully injection fuselage and uses a multi-dimensional triangular frame for strength aspact, which ensures good frame rigidity and an exquisite appearance.
The flight system uses TAKER F411-12A-E 1-2S AIO, and the SPEEDX2 1102 motor is paired with HQProp T51MM x4 propellers, which provides sufficient power and efficiency.
After being carefully tuned by the GEPRC team, the Dark Star 20 has a smooth flying feel and a superior experience.
Feature
1. New design concept and lightweight fully injection fuselage, multi-directional triangular braced frame ensures strength.
2.The weighs only 85.5g (without batteries).
4. Compatible with indoor and outdoor flying and image creation, and also suitable for novice pilots.
5. TAKER F411-12A-E 1-2S AIO flight system integrates ELRS 2.4G receiver, which takes up less space and is more cost-effective.
6. New SPEEDX2 1102 motor with HQProp DT51mm x4 propellers can achieve ideal battery life.
7. In-depth cooperation with HQProp to fully optimize the dynamic balance of DT51mm x4 pros to reduce jelly.
8. Compact and portable, the best companion for travel photography.
9. The battery compartment protected by the frame retains the diversity of battery applications.
10. Adjustable camera protective hat to avoid broken when Itㄙs flipping over.
Specifications
Model: DarkStar20 WTFPV
Frame: GEP-DS20
Wheelbase: 90mm
FC system: TAKER F411-12A-E 1-2S AIO
MCU: STM32F411CEU6
Gyro: BMI270
OSD: Betaflight OSD w/AT7456E chip
ESC: Bluejay 8Bit 12A
VTX: Without VTX
Camera: Without Camera ( You can install your DJI O3 or others Analog VTX , Camera)
Antenna: 5.8G UFL sleeve dipole antenna
Motor: SPEEDX2 1102 10000KV
Propeller: HQProp DT51mm x4
DarkStar20 WTFPV ELRS2.4G Weight: 50g 呼 1g
Receiver: PNP / TBS Nano RX
Recommended LiPo battery ( NOT Inlcude):
2S 500mah
Package Included:
1 x DarkStar20 WTFPV Cinewhoop Quadcopter (without VTX/camera)
2 x HQProp DT51mm 4 (2 pairs)
1 x Plum screwdriver
1 x Set of screws
1 x Keychain
