DarwinFPV Darwin129 7 Inch Long Range 4S FPV Racing RC Drone PNP Payload 2KG with 2507 1800KV Brushless Motor M80 GPS

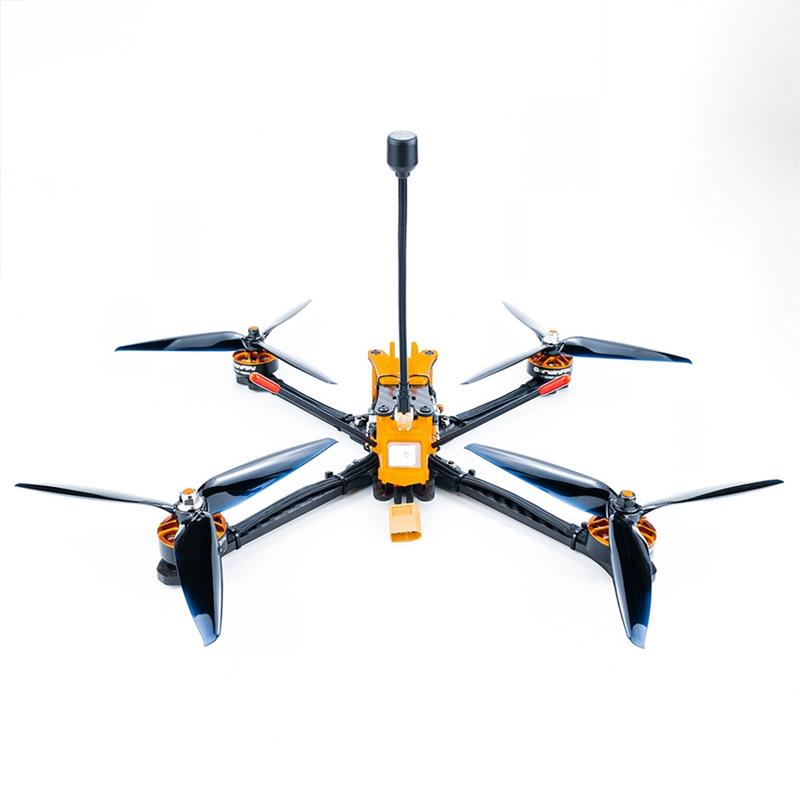

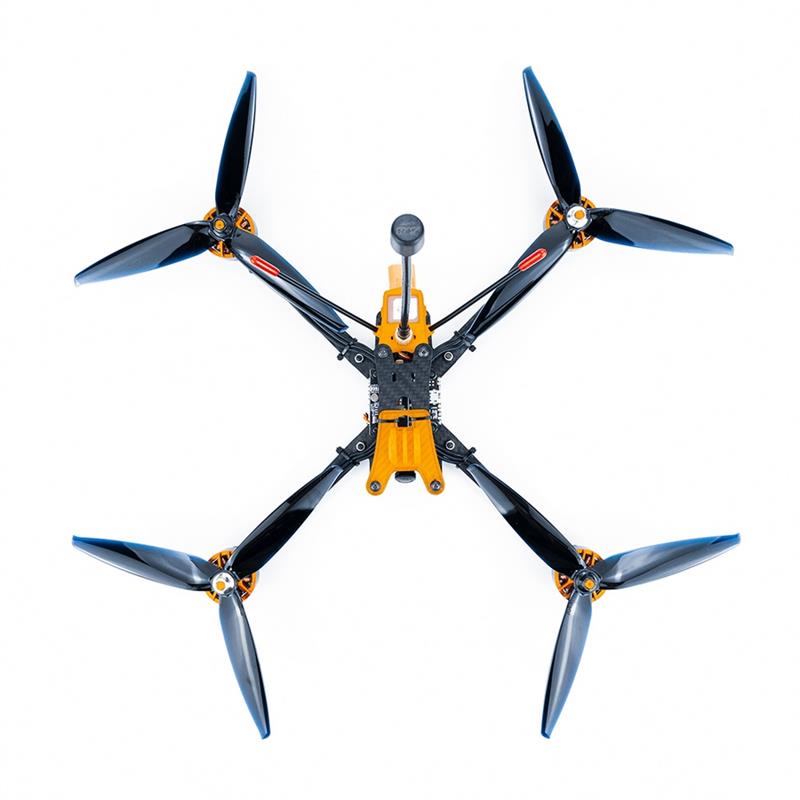

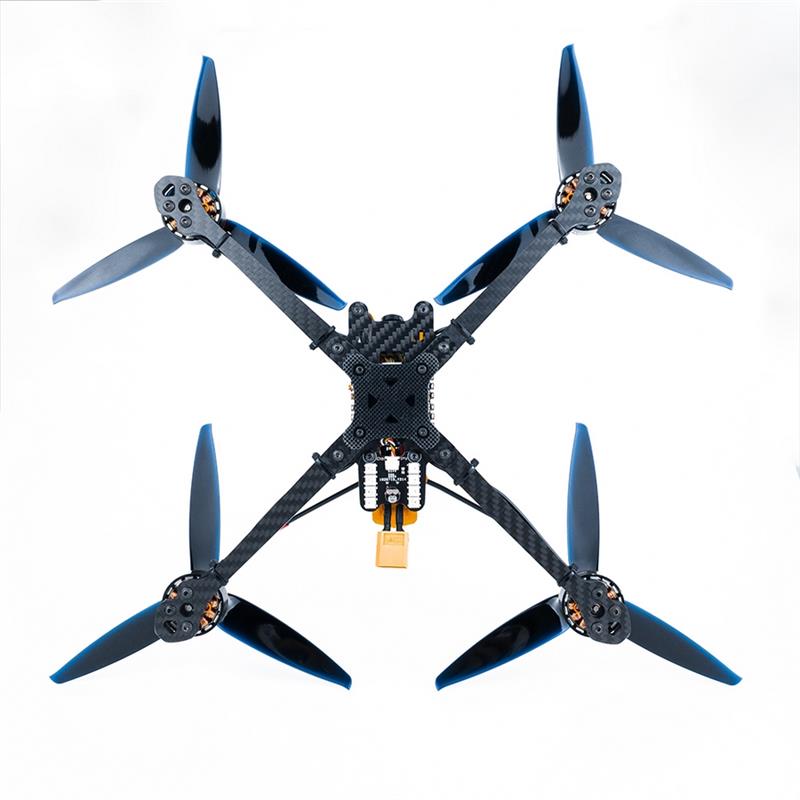

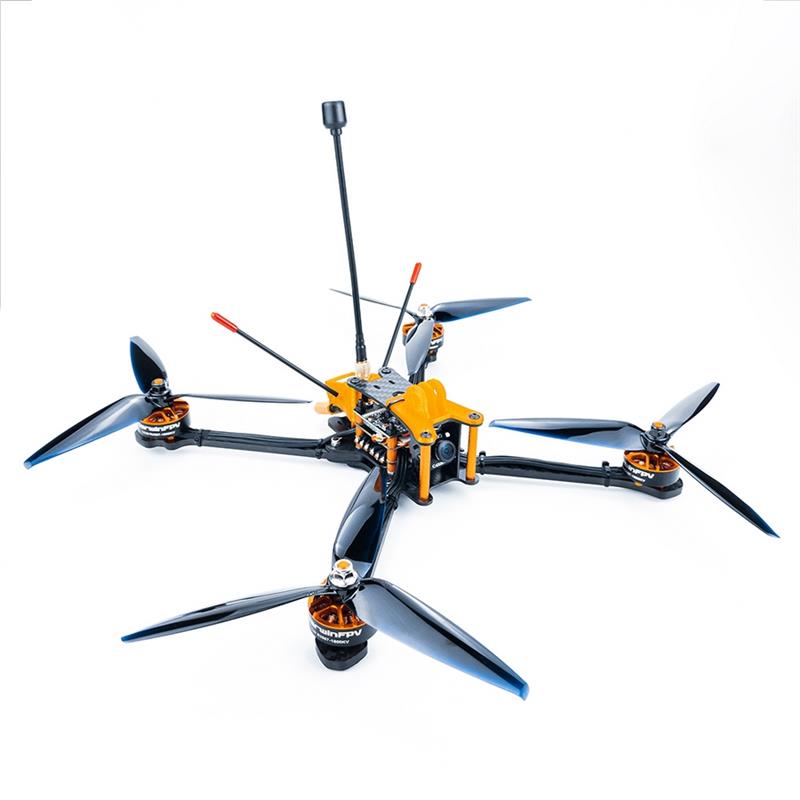

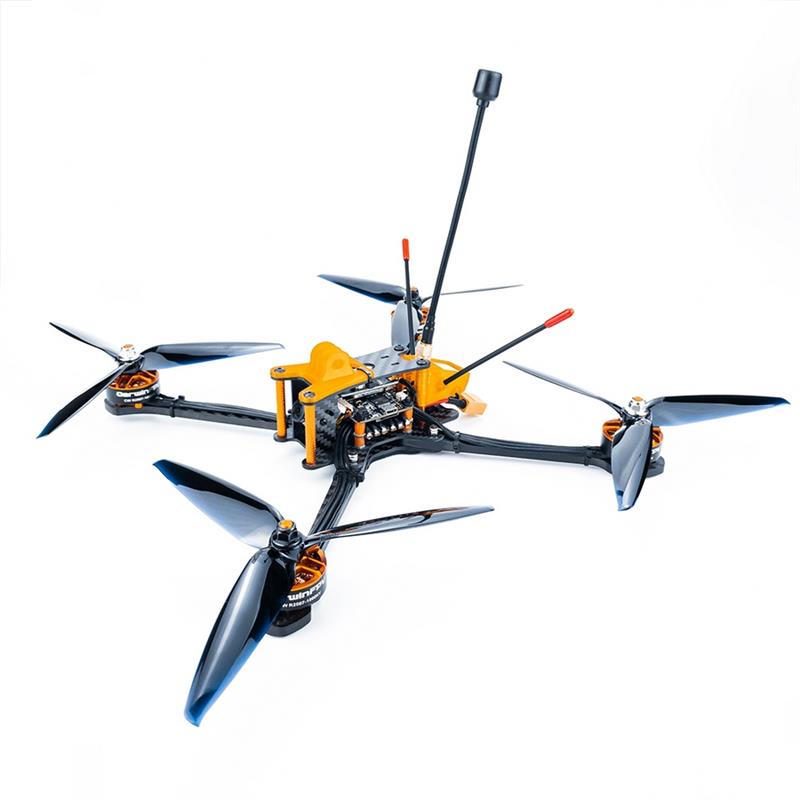

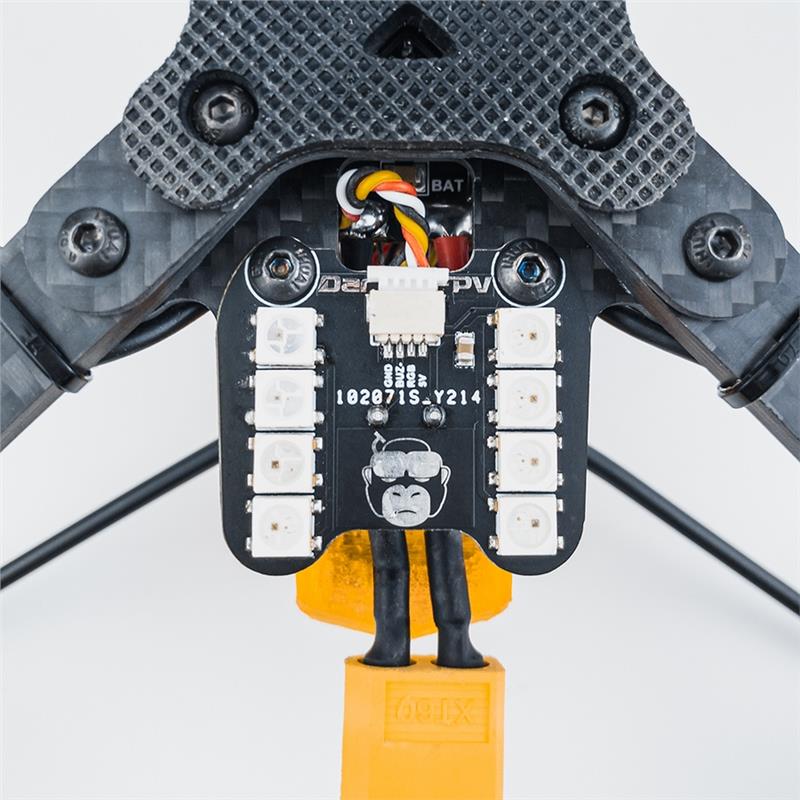

Darwin129 7” Long Range PNP is a 7” quadcopter for long rang. After many attempts and experiments, we have upgrated Darwin129. For example, GPS is changed to M80, the speed of searching is faster and the accuracy is higher, the tail buzzer and 8 high-brightness RGB lights make it is more easier to locate the drone and so on.
-The motor cable has been changed to silicone cable with sufficient and it won’t melt during soldering.
-Add battery pad to prevent effectively the battery from slipping off.
-The VTX antenna is specially designed for long-rang flight, so the transmission distance is much longer.

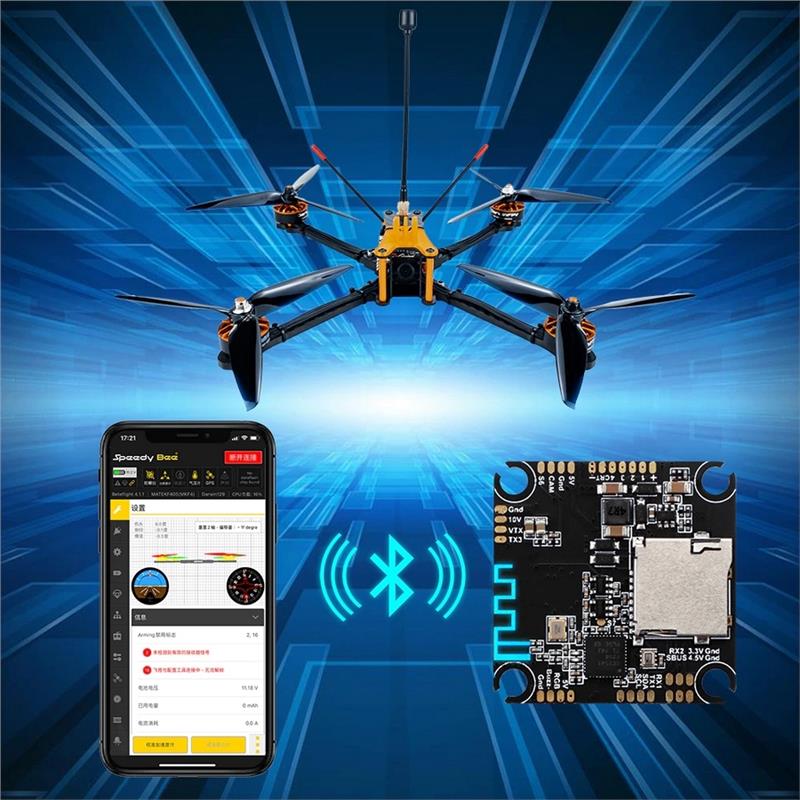

-The flight controller supports bluetooth function and can be connect to the mobile phone APP quickly. Make drone tuning much more
convenient.
-VTX transmission power is increased to 800mW, the transmission distance is more longer.

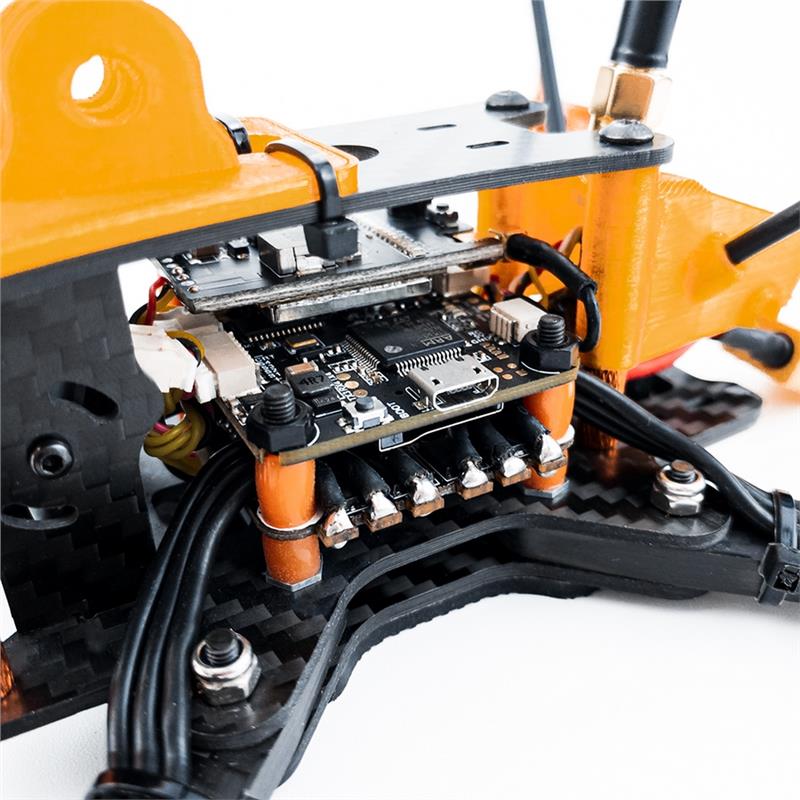

-The flight controller is installed with silicone dampers, it will reduce effectively the flight controller vibration.
Specification:
Item name: Darwin129 7” Long Range PNP
| Wheelbase | 280mm |
| Version | PNP; Comes without battery,charger,receiver or remote controller. |
| Motor | 2507 1800KV 3-5S Brushless Motor Motor KV:1800KV Idle Current (Io/10V):0.89A Lipo Cell:3-5S Weight:39g Max Continuous Current:42A Max Continuous Power:840W Max thrust:1488g(4S/7′) Configu-ration:12N/14P Motor Resistance (RM):0.0586 ?? Stator Diameter:25mm Stator Thickness:7mm Motor Diameter:30.8mm Motor Body Length:20mm Overall Shaft Length:35mm Prop adapter shaft:M5 Bolt holes spacing:16mm Bolt thread:M3 Propeller:7/p>4In1 50A Blheli_S ESC Continuous current: 50A Peak current: 60A (10S) Lithium battery section number: 3-5S BEC: 5V2A ESC weight: 10.8g Firmware: BL_S Maximum support throttle signal: DSHOT600 Mounting hole: M3 30.5 * 30.5mm |
| Flight Controller | F4 flight controller Lithium battery section number: 3-5S BEC: 10V 1A, 4.5V, 3.3V IMU: MPU6500 (SPI) MCU: STM32F405 OSD: AT7456E Firmware: MATEKF405 Weight: 7.2g Mounting hole: M3 30.5 * 30.5mm Support barometer, black box Bluetooth |
| ESC | 4In1 50 ABlheli_S ESC Continuous current: 50A Peak current: 60 A(10S) Lithium battery section number: 3-5S BEC: 5V2A ESC weight: 10.8g Firmware: BL_S Maximum support throttle signal: DSHOT600 Mounting hole: M3 30.5 * 30.5mm |
| VTX | 5.8G 40CH 800mW VTX TX805 Item name: FPV Transmitter VTX Frequency: 5.8G Channels: 40CH Input voltage: 7V~24V 5V camera supply: 120mA(MAX)—-25mW@12V 5V camera supply: 200mA(MAX)—-200mW@12V 5V camera supply: 300mA(MAX)—-600mW@12V 5V camera supply: 350mA(MAX)—-800mW@12V Extra features: Smart audio Power supply: 5V output for Camera Output power: 25mW/200mW/600mW/800mW switchable Antenna connector: MMCX Cable connector: Solder pads Dimensions: 36mm*22mm*5mm,30.5 stackable hole Weight: 8g(excluding antenna) |
| Propeller | Gemfan Flash 7040-3 Flash Durable 3 Blade 7040-Clear 2L2R |
Camera
|
Upgraded to 1500TVL Darwin B19
|
| GPS | Darwin M80 GPS Name: GPS+GLONASS Power SupplyV Botelv: 115200dps Receiver Sensitivity??Tracking -167dBm Capture -160dBm |
Package Included:
1x Darwin129 7” Long Range PNP
