Description

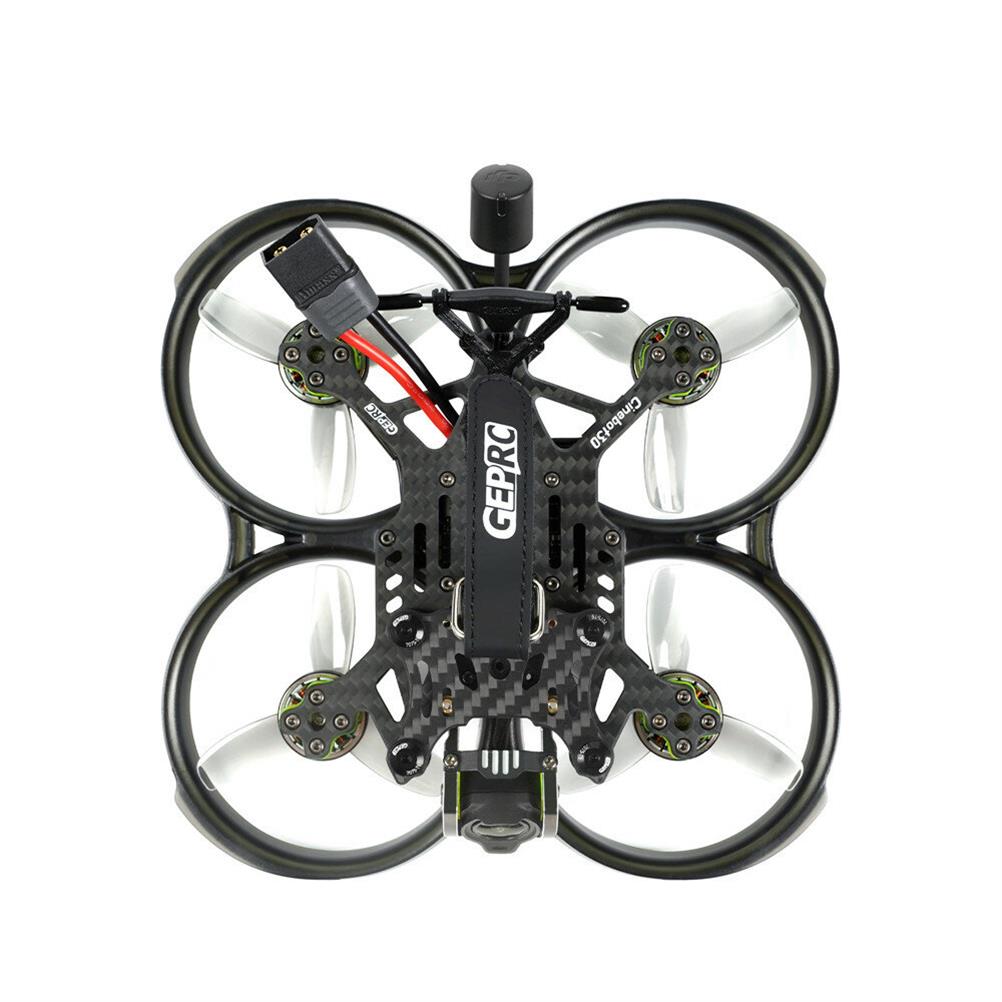

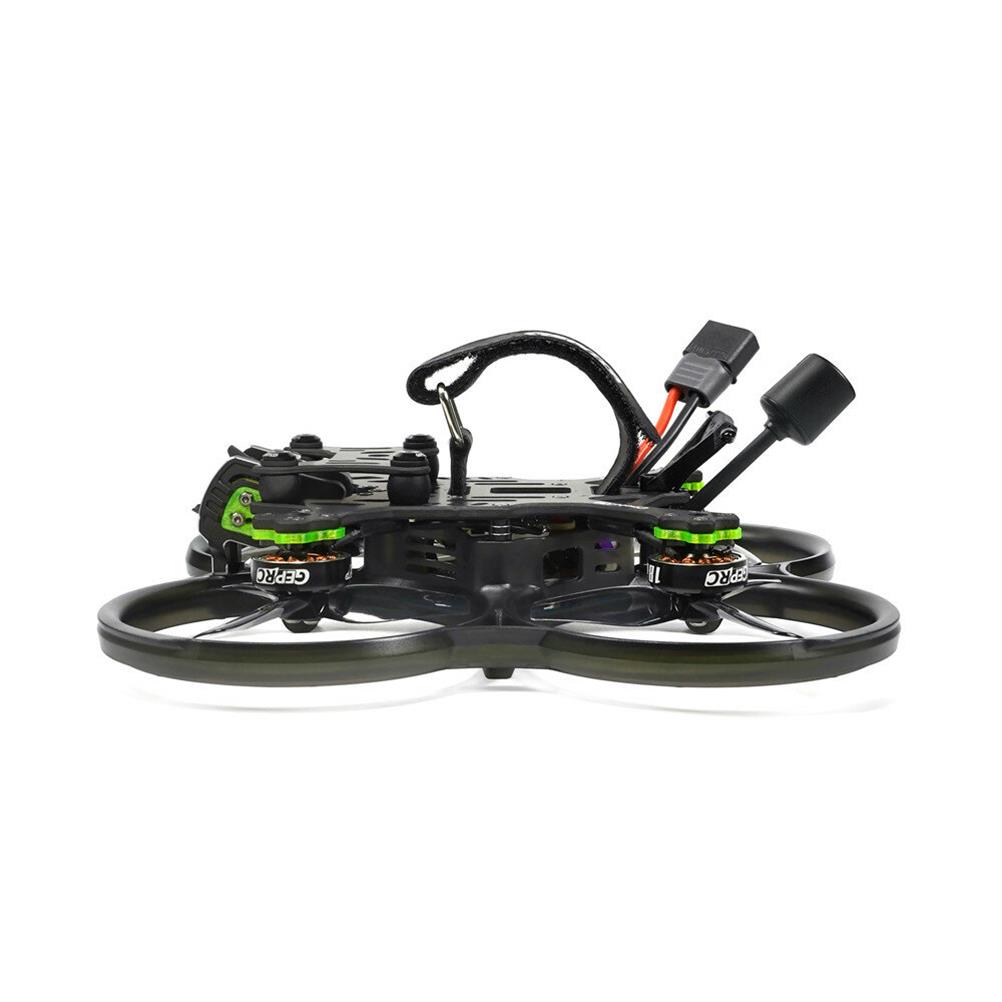

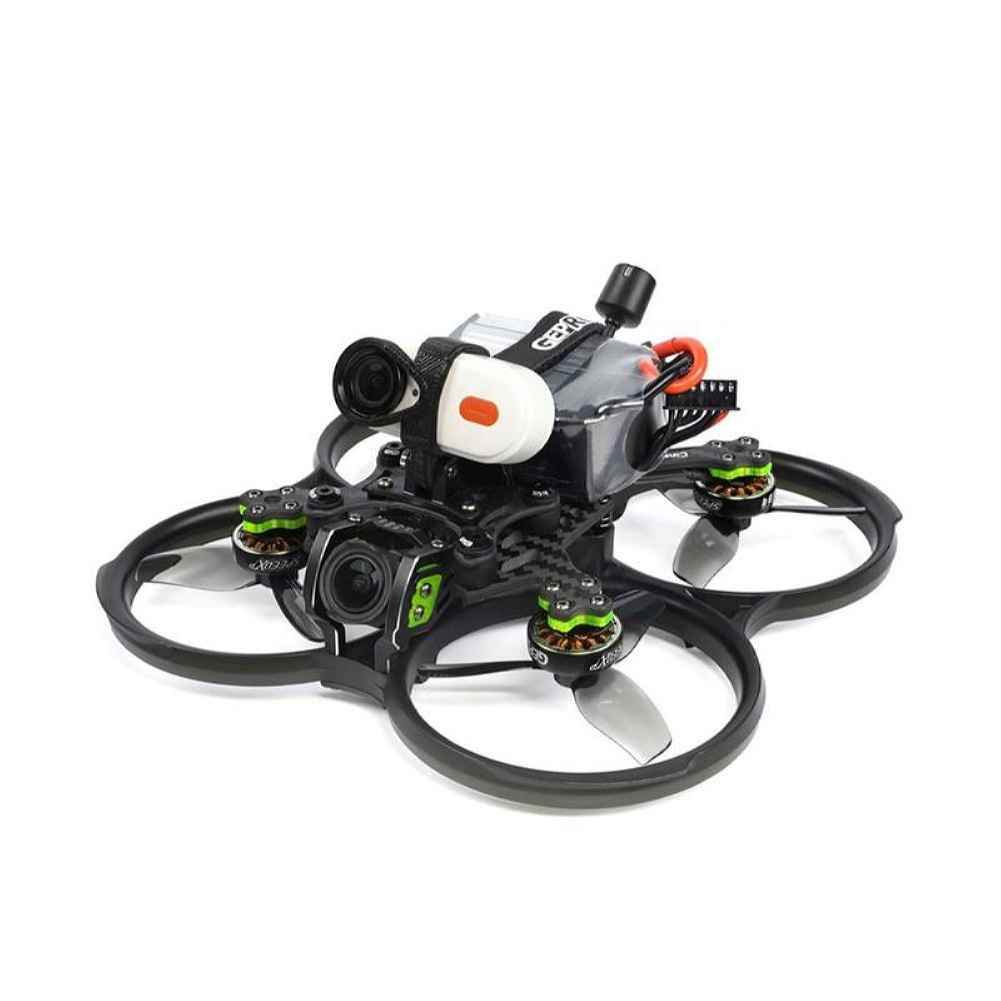

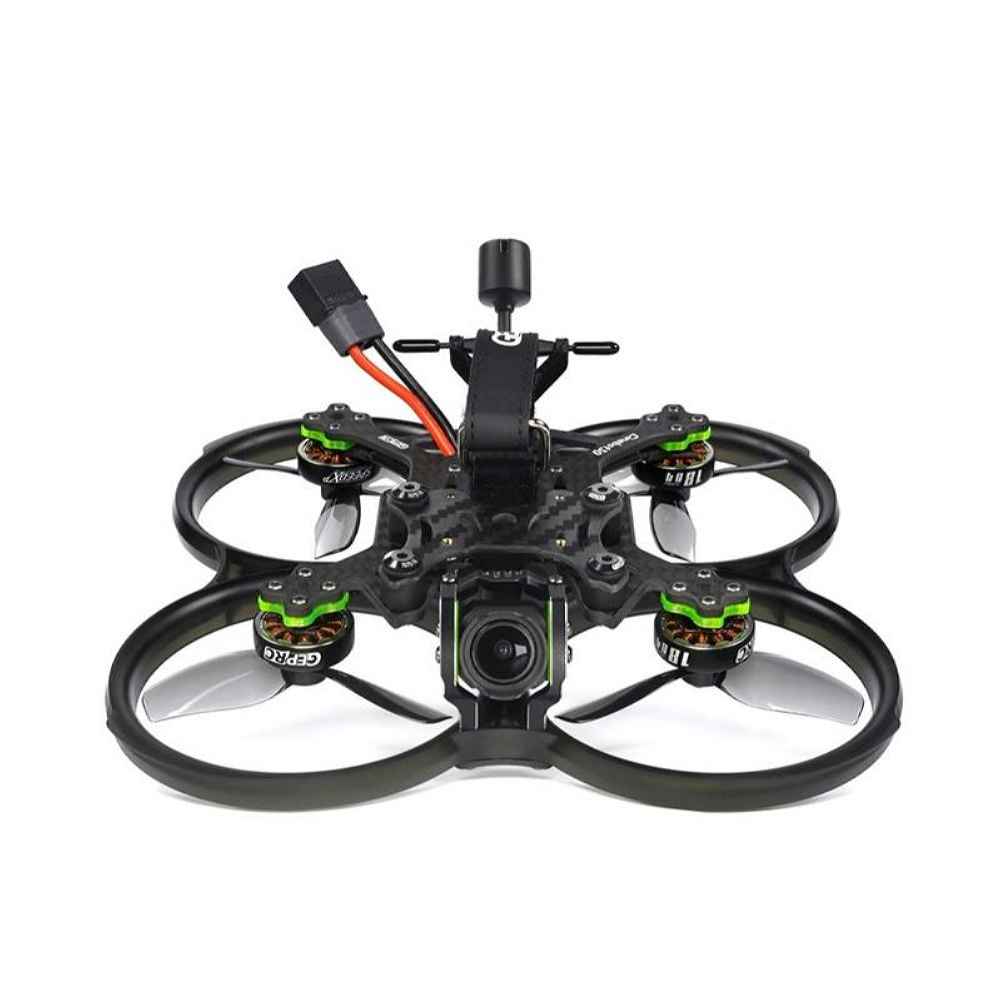

Geprc Cinebot30 HD 127mm F7 45A AIO 6S / 4S 3 Inch Whoop Cinematic FPV Racing Drone with DJI O3 Air Unit Digital System
The GEPRC Cinebot30 HD is a high-performance 3-inch FPV racing drone equipped with the advanced DJI O3 Air Unit for digital video transmission. It delivers stunning 4K 60fps ultra-high resolution video with minimal delay and high bit rates. The drone features a robust aluminum camera mechanism with TPU shock absorption to reduce image distortion. Designed for durability, it uses high-toughness PC+PET material and includes a powerful 1804 motor for low-altitude flights. The quick-disassembly design allows for easy upgrades or repairs. Tuned by GEPRC professionals, it ensures a smooth and stable flight experience.
Features:
1. Adopts the most advanced DJI O3 Air Unit FPV digital video transmission system on the market.
2. Video transmission with high-definition anti-shake 4K 60fps ultra-high resolution video quality
3. The highest bit rate is 50MBPS, the delay is as low as 30 milliseconds, and the highest image quality is 1080P 60FPS

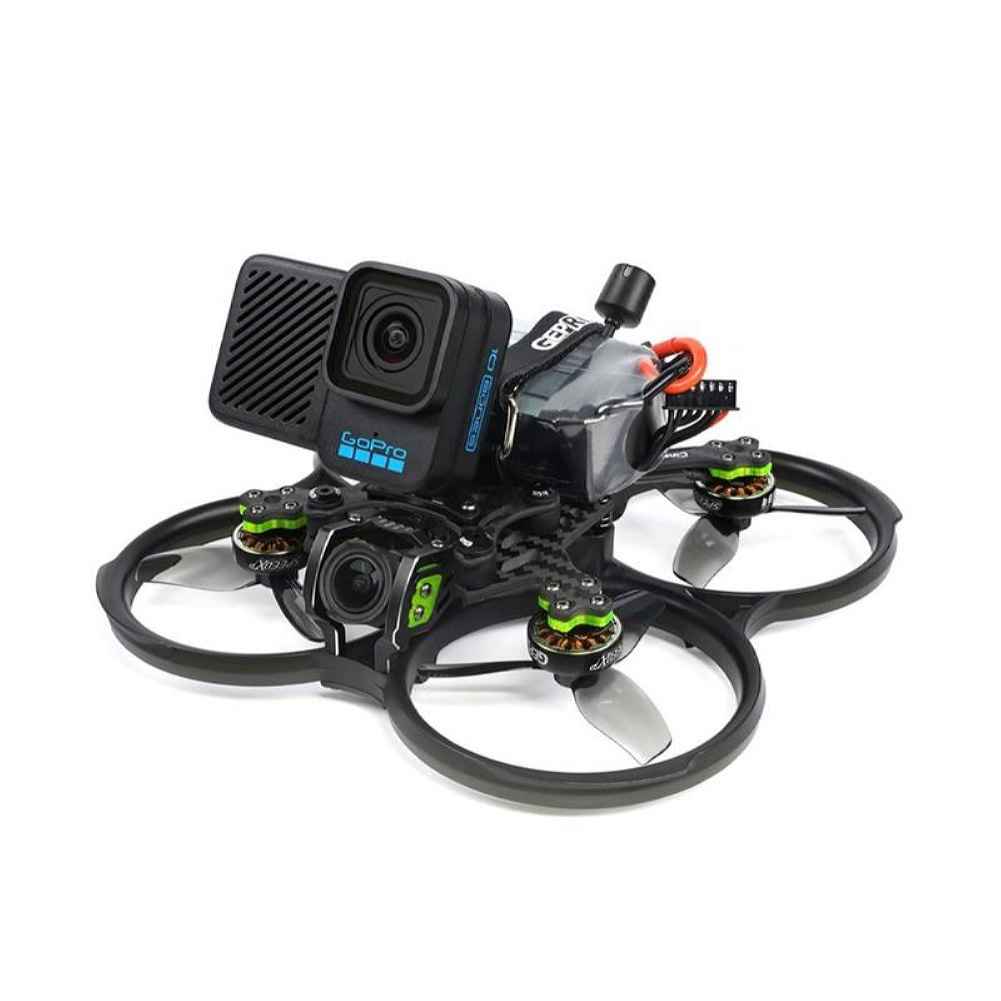

4. Upgraded the top plate of the fuselage gimbal, compatible with the camera base fixed by 4-hole screws, and compatible with Gopro camera fullsized.
5. The camera aluminum mechanism is designed with TPU shock absorption, which can effectively eliminate the image jello caused by the vibration of the body
6. The ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. Color brightness can be clearly displayed in day and night
7. Selection of high-quality high-toughness, impact-resistant PC+PET material injection molding
8. Powerful 1804 motor, surging torque to cope with ultra-low altitude flight
9. Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts
10. With the new GEP-F722-45A AIO V2, the performance is stable and the flight is more secure
11. Tuned by GEPRC professionals, delicate and silky flying feel
Specification:
Model: Cinebot30 HD ( DJI O3 Air Unit Version)
Brand: GEPRC
Frame: GEP-CT30 ( For DJJI O3 Air Unit Version)
Wheelbase:127mm
Isolation Plate:2mm
Main plate:3mm
Bottom plate:1.5mm
FC: GEP-F722-45A AIO V2
MCU: STM32F722RET6
IMU: ICM-42688-P
VTX & Camera: DJI O3 Air Unit
Video resolution: 4K@50/60fps, 2.7K@50/60/100/120fps, 1080p@50/60/100/120fps
Propeller: HQ prop T76mm
Antenna: DJI 03 Antenna
Charge connector: XT60H-M
Motor: SPEEDX2 1804-2450KVㄗ6S Versionㄘ/ SPEEDX2 1804-3450KVㄗ4S Versionㄘ

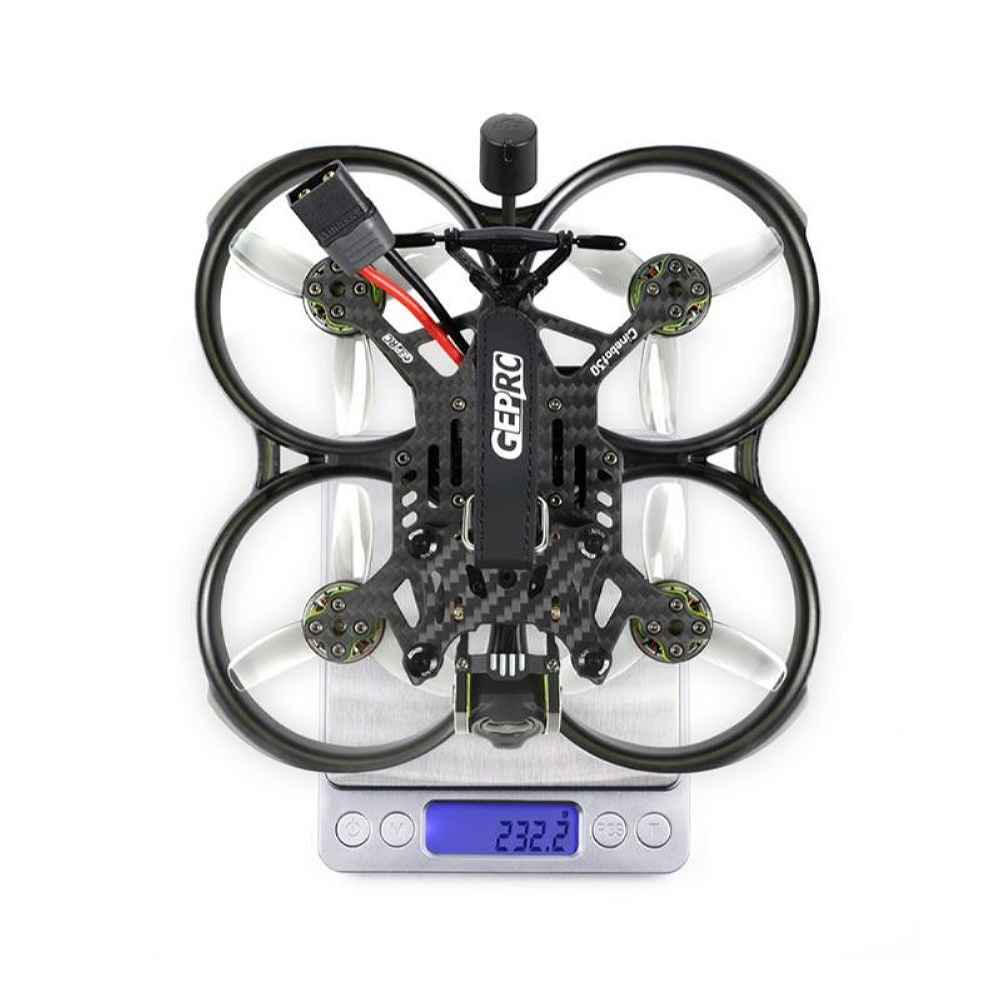

Weight: 234.7g (excluding battery, the above are TBS Nano RX version)
Recommended Lipo Battery: ( NOT Included)
4S 1100-1300mAh (4S Version) / 6S 850-1100mAh(6S Version)
Package Included:
1 x Cinebot30 HD Quadcopter (DJI O3 Air Unit Version)
2 x HQProp T76MM (pair)
1 x Battery strap M15 200mm
1 x Battery strap M15 220mm
2 x Battery Silicone Pads
1 x Set of screws
1 x Set of screwdrivers
1 x Camera mount holder for GoPro
1 x Antenna fixed tube
