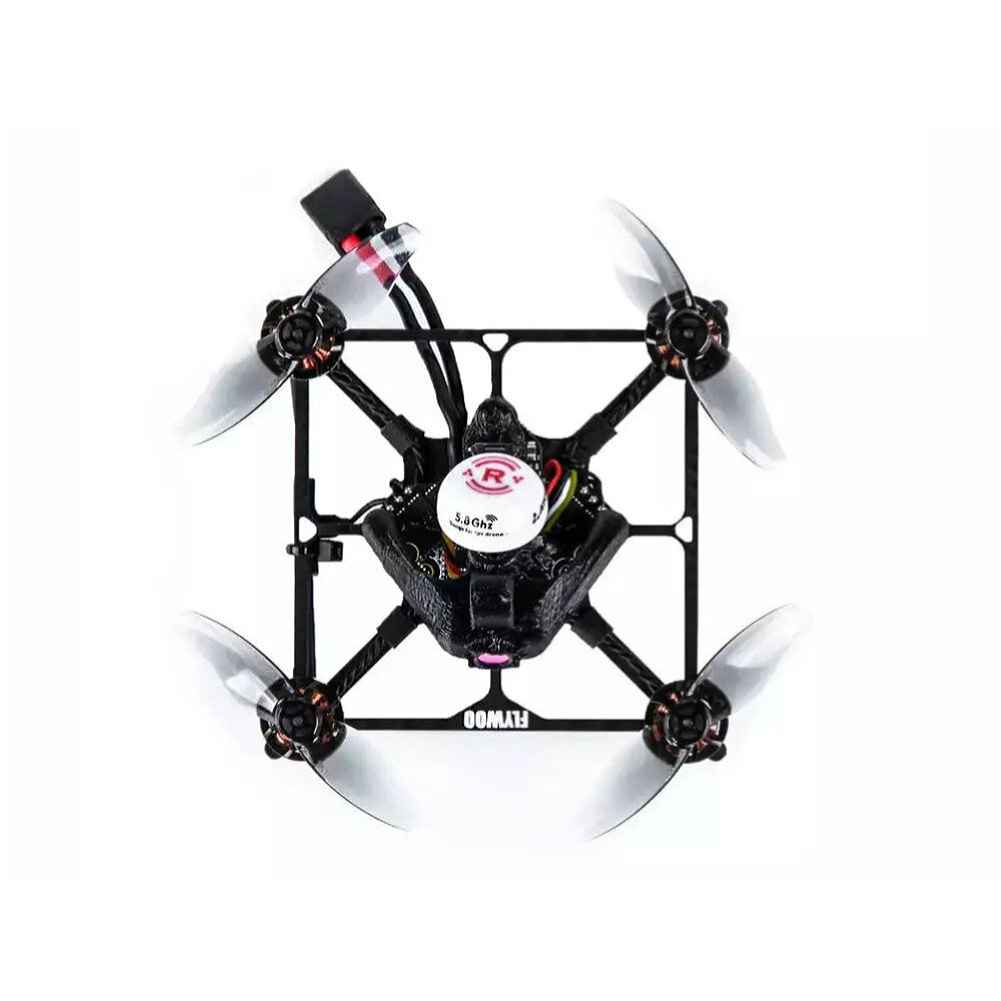

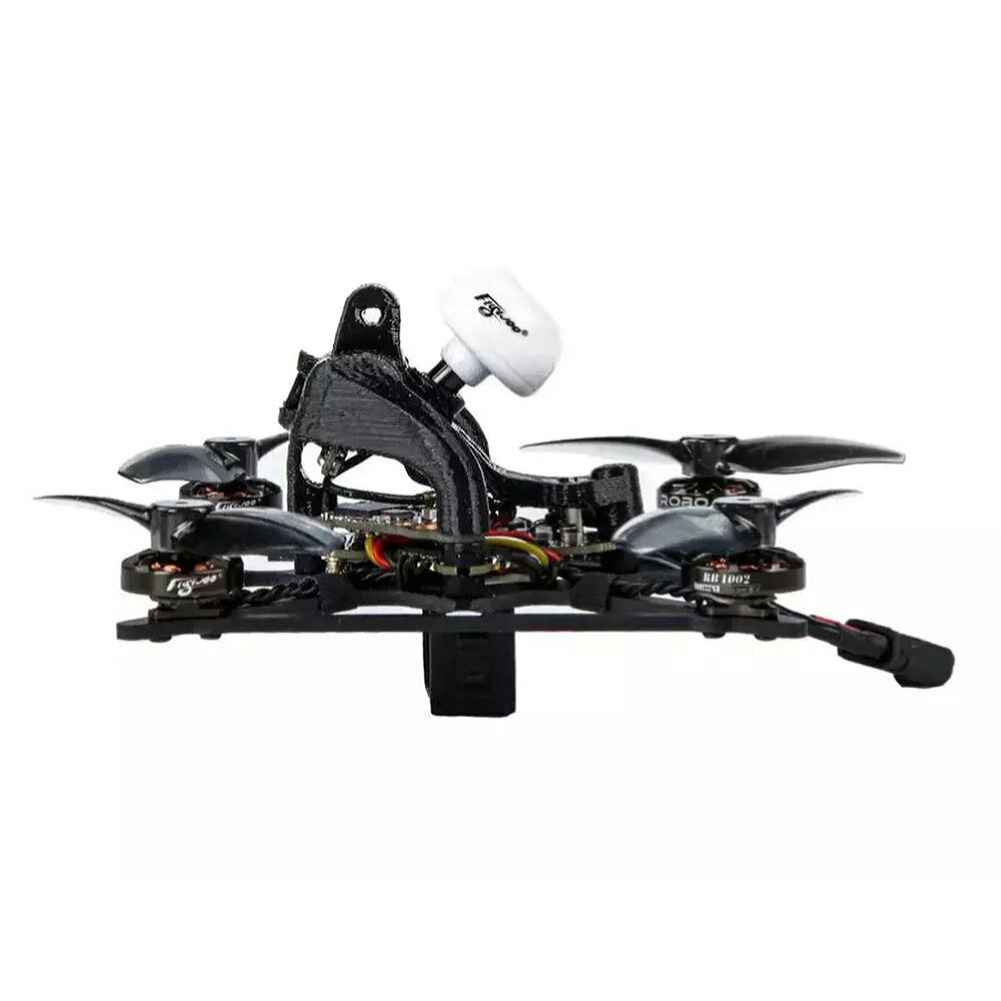

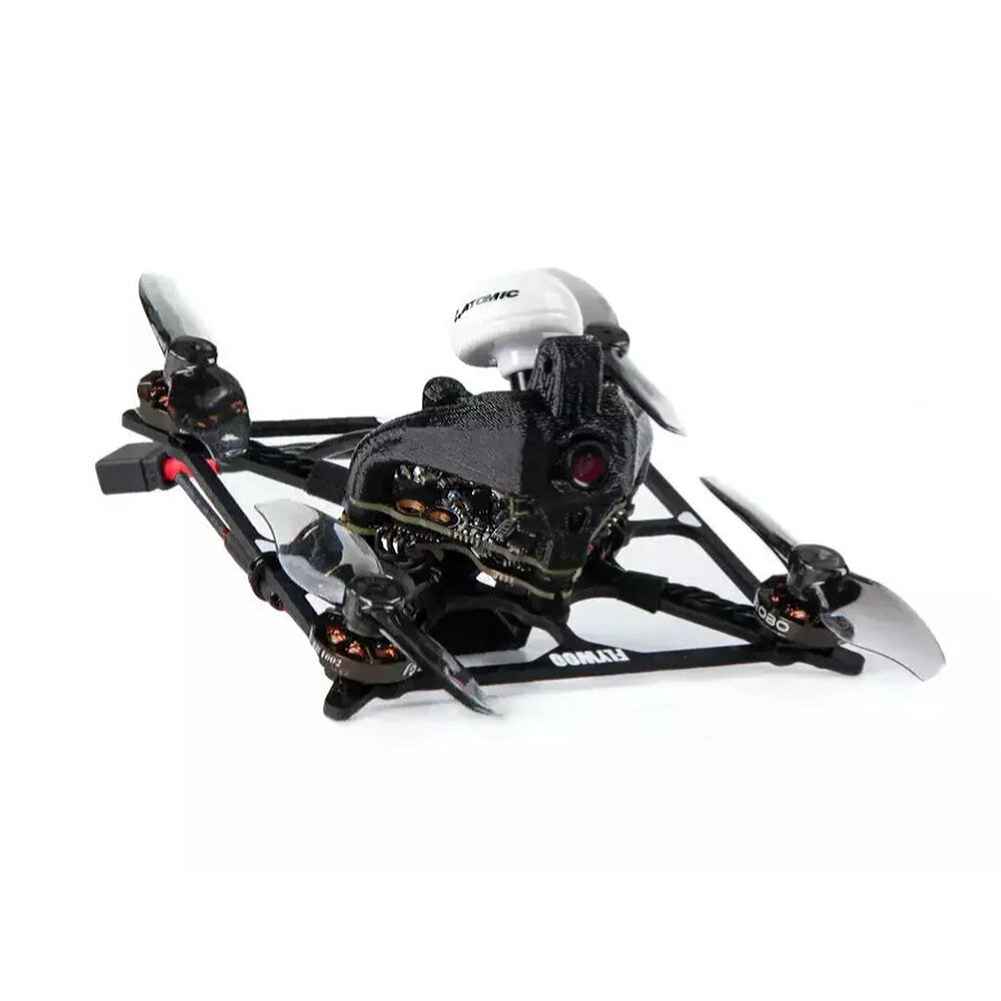

Flywoo 2S Nano Baby 20 Analog FPV Racing Drone, 2 Inch Micro, F4 12A AIO, 450mW VTX, 1200TVL Camera, PNP BNF

Price range: 256.68$ through 334.30$

  • Efficient micro motors with top AIO flight control
  • Performs acrobatic maneuvers smoothly
  • 1002 15500KV motor with Gemfan 2015-2 blade propellers
  • GOKU Versatile F405 2S 12A AIO with built-in ELRS 2.4g RX
  • Durable 100% 3K carbon fiber frame

Description

Flywoo 2S Nano Baby 20 Analog F4 12A AIO 2 Inch Micro FPV Racing Drone PNP BNF with 450mW VTX 1200TVL Camera

The Flywoo 2S Nano Baby 20 Analog FPV Racing Drone is designed for an exhilarating flying experience. Equipped with efficient micro motors and a top-tier AIO flight control system, this drone excels in performing acrobatic maneuvers like dives and power loops. The 1002 15500KV motor paired with Gemfan 2015-2 blade propellers offers an ideal thrust-to-weight ratio for optimal performance and flight time. The GOKU Versatile F405 2S 12A AIO board includes a built-in ELRS 2.4g RX, providing excellent integration for external devices. Its adaptable battery mount design allows for easy switching between racing and extended flight times. The drone’s frame is crafted from 100% 3K carbon fiber, ensuring durability and lightweight performance.

Introduction:
It Equipped with the most efficient micro motor and the top AIO flight control on the market.
It will bring you an unprecedented flying experience. The drone could do all the acrobatic motions smoothly, like dive and power loop
Features:
– 1002 15500KV and Gemfan 2015 – 2 blade with perfect thrust-to-weight ratio on 2inch. provide a best balance of performance and flight time.
– GOKU Versatile F405 2S 12A AIO is another versatile and highly integrated circuit board !
Built-in build-in ELRS 2.4g RX. Have multiple sets of serial external devices
– Easily swith battery mount design .
Explorer 2S 420mAh for Racing , Explorer 2S 750mAh for long flight time. ( NOT Included lipo battery)
– Great mount compatibility.Swith easily. Thumb Pro Peanut GO2 Thumb
Specification:
Brand: Flywoo
Model: 2S Baby Nano 20 ( Analog Version)
Item Name: 2 Inch FPV Racing Drone

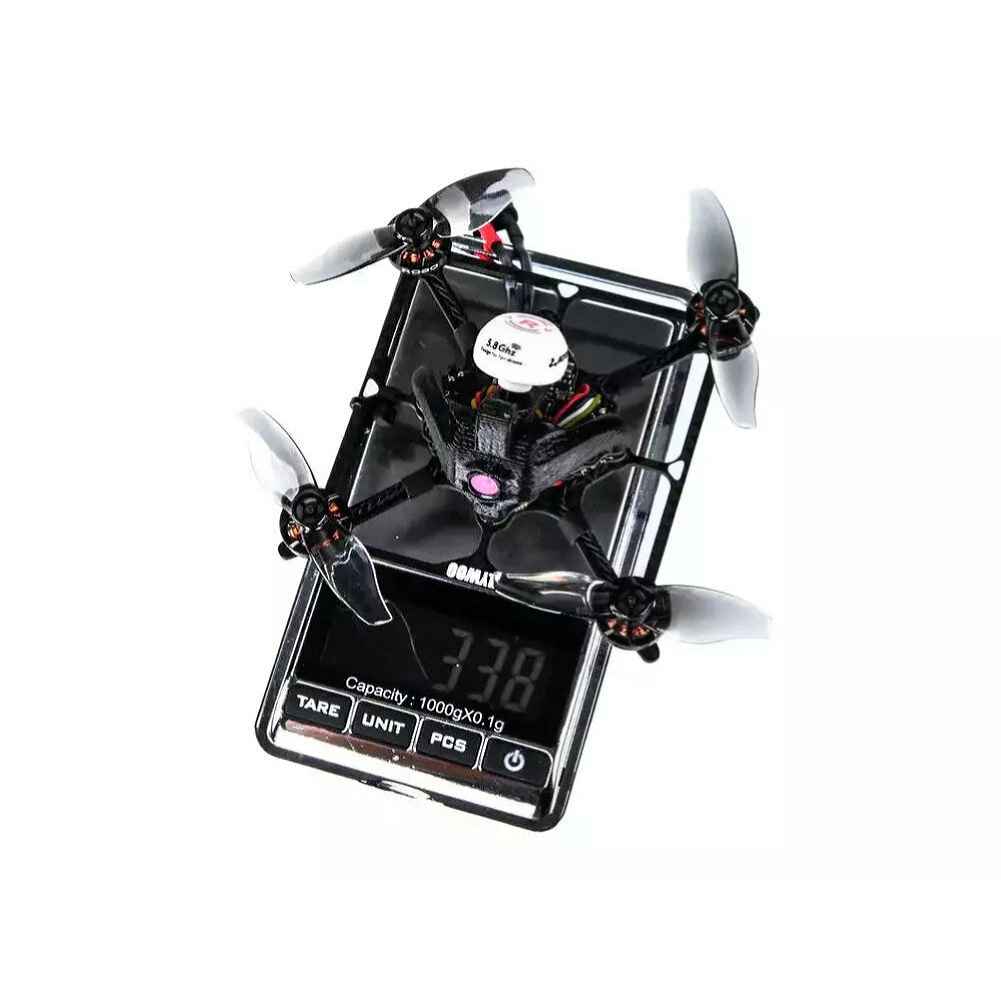

Weight: 33.8g

Frame Kit

Model: 2S Nano Baby 20 Analog Frame kit
Material: 100% 3K carbon fiber
Thickness of bottom plate: 1.5mm
Weight: 5g

FC & ESC

GOKU Versatile F405 2S 12A AIO W / build-in ELRS 2.4g RX

Motors

Model: Flywoo ROBO 1002 15500KV Brushless Motor
Configuration: 9N12P
Stator Diamter: 10mm
Stator Length: 2mm
Shaft Diameter: 1.5mm
Motor Dimension(Dia.xLen): 13.5×7.75mm
Weight(g): 2.4 (5cm wire)
Idle current(5)@5V(A):0.8
No.of Cells(Lipo)券1~2S
Max Continuous Power(W)3S券67
Internal Resistance券165m棒
Max Current(3S)券10A
Max.Effciency Current: (1-3A)>84%

Propeller

Gemfan 2015-2 blade

VTX

Model: GOKU VTX625 V2 450mW Nano VTX
Raceband: 5362-5945 MH
Power: PIT/25/50/100/200/450mW switchable
Control Mode:IRC(RX)/Button
BAT: +5V Input
Video System: NTSC/PAL
Antenna: IPX
Size: 30mm沁30mm沁4mm
Weight: 1.3g

FPV Camera

Model: Flywoo 1.2g 1S Nano camera V2
Image Sensor: 1/3′ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC and PAL(switchable)
MENU: Support
IMAGE: 4:3
Synchronization: Internal
Video Output: CVBS
Lens: 1.8mm/F2.5
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14x14mm
Wide Power Input: DC 5-25V
Weight: 1.2g (N.W.)

Package Included:
1 x Flywoo 2S Nano Baby 20 Analog Micro Drone
2 x Set of 2015-2 props
1 x Screw spare packs
2 x Battery holder
4 x Prop guards

Recommended Category:
Toys & Games > Remote & App Controlled Vehicles & Parts > Remote & App Controlled Vehicles > Quadcopters & Multirotors > Racing Drones

Additional information

Weight0.1 kg
Receiver

ELRS 2.4GHz, Frsky XM+ Receiver, TBS Crossfire Nano RX, Without Receiver
