Happymodel M8 HDZero Lux 80mm 2S Micro Whoop Freestyle RC FPV Racing Drone BNF with 15A AIO HD Digital System

Description

Happymodel M8 HDZero Lux 80mm 2S Micro Whoop Freestyle RC FPV Racing Drone BNF with 15A AIO HD Digital System

The Happymodel M8 HDZero Lux 80mm Micro FPV Racing Drone offers a cutting-edge freestyle flying experience. Equipped with the HDZERO AIO15 5-IN-1 flight controller, this drone supports 2S batteries for powerful and smooth flights. It features the RS1102 KV13500 motors paired with HQPROP 45mm propellers, ensuring a seamless and robust FPV experience. The lightweight design is perfect for backyard flying, and the HDZero camera provides high-quality digital visuals. The built-in 2.4GHz ExpressLRS receiver ensures a stable control link, making this drone an excellent choice for both beginners and seasoned FPV racers.

Description:
The M8 Freestyle HDZERO 80mm Digital HD Micro FPV whoop comes out now . It comes with the new HDZERO AIO15 2S 5-IN-1 flight controller. The new Happymodel RS1102 KV13500 motor with HQPROP 45mm propellers, bring a smooth and powerful FPV experience.
Features:
– Equipment with the New HDZERO AIO15 5-IN-1 flight controller
– 2S battery support Powerful and Smooth freestyle flying experience
– UART ExpressLRS receiver support stable control link
– Lighter but powerful for backyard FPV
– HDZERO lighter and good quality Camera
Parameters:
– 80mm wheelbase
– 45mm propellers

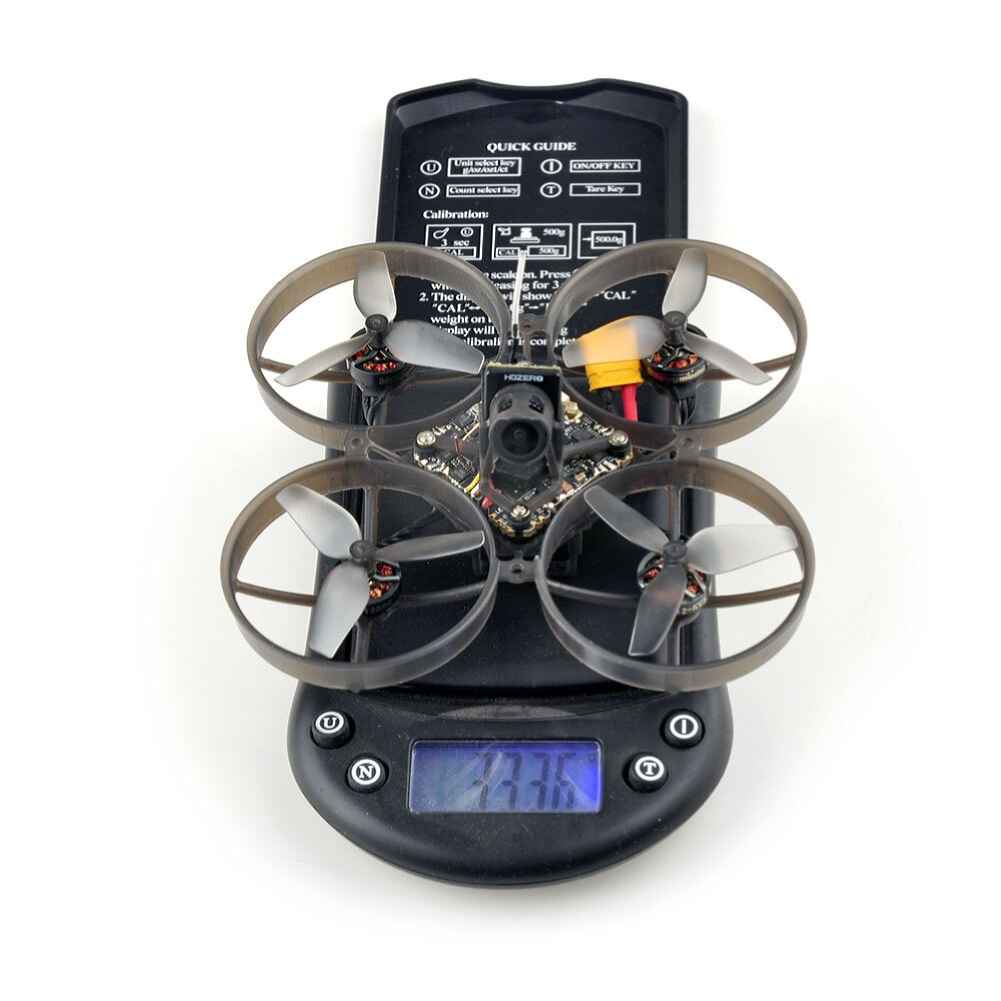

– Weight only 33.5gram
– RS1102 KV13500 high speed motors
– Recommend 2S 550mah battery(Exclude)
– 2.4G ExpressLRS ready
Specifications:
Brand: Happymodel
Model: M8
Item Name: HDZero Lux Freestyle Micro FPV whoop

Motor

Mode: RS1102 KV13500
Configu-ration: 9N12P
Stator Diamter: 11mm
Stator Length: 2mm
Shaft Diameter: ?1.5mm
Motor Dimension(Dia.*Len): ?13.5mm*14mm
Weight(g): 2.8g
No.of Cells(Lipo): 1-2S

Propellers

Weight: 0.33g
Material: Poly Carbonate
Pitch: 0.9
Props Dia: 45mm
Hub Thickness: 5mm
Shaft: 1.5mm

Flight controller

MCU: STM32G473 (170MHz, 512K Flash)
Gyro: ICM42688
On board voltage and amperage meters
Built-in 15A(each) Blue Jay 4-in-1 ESC
Built-in 5.8G HDZero VTX
RF output: 25mw/200mW
Supported channels: R1-R8, F2/F4, L1-L8
UFL connector (ultra-lite linear antenna included)
Built-in Serial ExpressLRS 2.4GHz receiver
Built-in 5V 3A BEC
Flight controller firmware target: HDZERO_AIO15
Power supply: 2S battery (6.4v~8.7v)
Fully compatible with the popular whoop frames
Board size: 31.3沁31.3mm with a 25.5沁25.5 mounting hole size
Weight: 7.2g (with motor plugs)

Onboard 4in1 ESC

PowerSupply: 2S LiPo/LiPo HV
Current: 15A continuous,18A peak (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19.2Firmware target: Z-H-30 48KHz
Default protocol: DSHOT300

Onboard UART ExpressLRS 2.4GHz Receiver

Packet Rate option: 50/100/150/250/333/500/D250/D500/F500/F1000Hz
RF Frequency: 2.4GHz
Antenna: Pre-soldered enameled copper wire 31mm length
Telemetry output Power: <12dBm

LUX camera

HDZero Lux Camera
Sensor size: 1/2 inch
Resolution: 720p60 4:3 and 16:9
FOV: D:155‵ H:126‵ V:94‵(4:3)
FOV: D:145‵ H:126‵ V:70‵(16:9)
WDR

Package Included:
1 x Happymodel M80 Frame
1 x HDZERO AIO15 5-IN-1 Flight Controller
4 x RS1102 KV13500 Brushless Motor
1 x HQPROP 45MMX3 Tri-Blade Propellers (4cw+4ccw)
1 x HDZERO LUX Camera
1 x Canopy
1 x Screwdriver
