Description

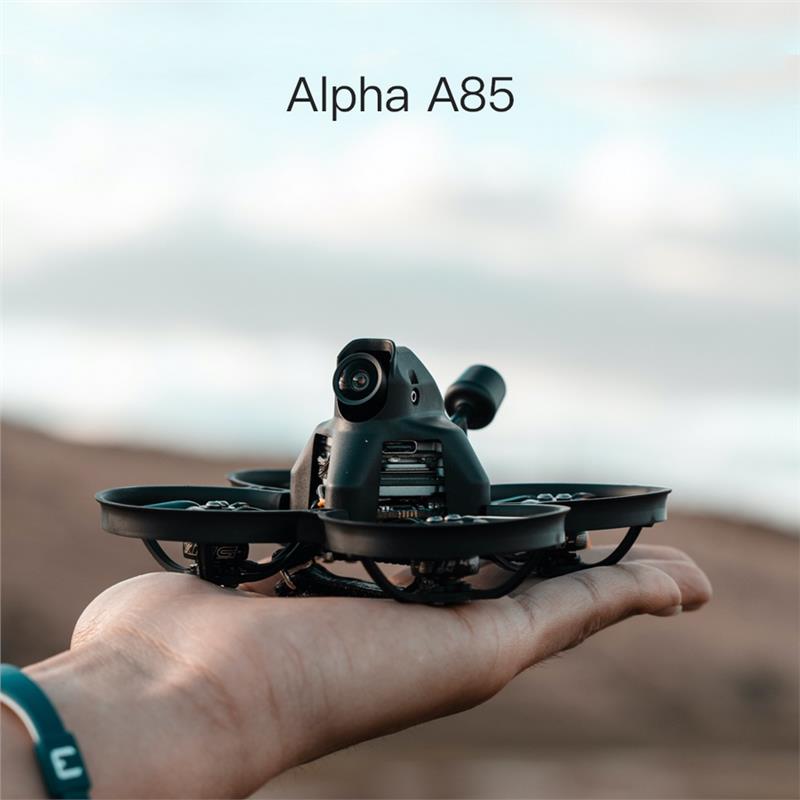

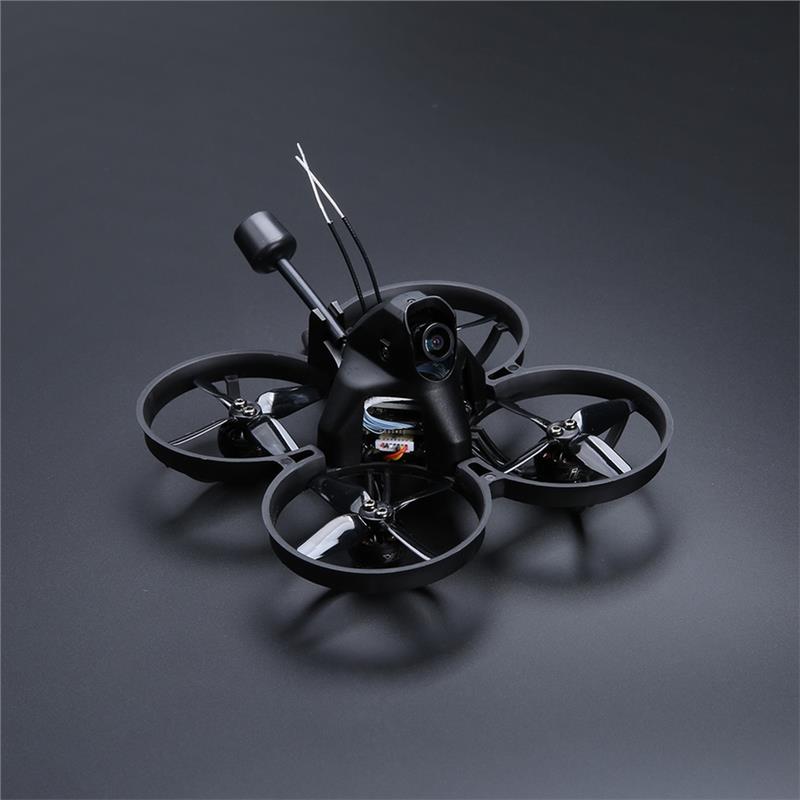

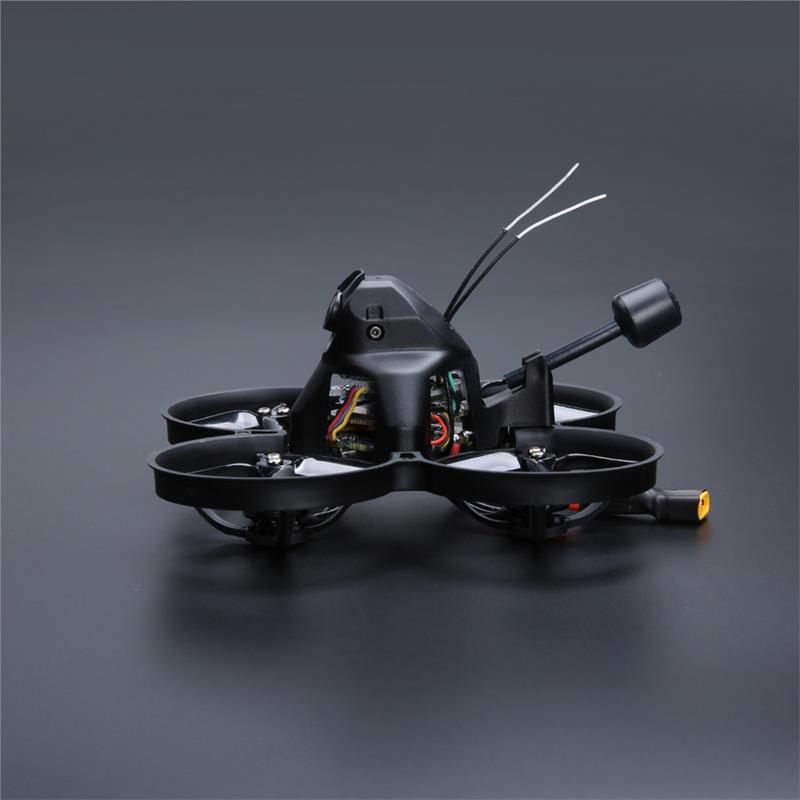

iFlight Alpha A85 HD 85mm 2Inch 4S Whoop Polar Nano Vista HD System SucceX-D 20A F4 Whoop AIO FPV Racing Drone
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
PRODUCT DESCRIPTION
Let’s welcome the iFlight Alpha series, a new way to fly FPV. Ever wanted to try Digital FPV on the smallest possible whoop size quad We sticked the caddx Vista and the new Polar Nano Vista to one of our new 2inch whoop frames, did some tuning and tried to find the optimal ratio between weight and power. This is what we came up with to combine flight time efficiency with sufficient power.
Features:
Albatross
5.8G light antenna upgrade (included)
Albatross
900mhz light micro antenna upgrade (included with every Crossfire Nano RX)
Alpha A85 HD BNF Specs:
FACTORY SETUP and WIRING DIAGRAM:
This BNF comes pre-built and setup with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some more secret Betaflight sauce to enhance the flight experience.
Reflashed your drone but didn’t backup the setup Messed up the whole tune and want our factory tune back
No need to worry! All Factory Dumps and Wiring Diagrams
can be found on our Google Drive: LINK
PRE-TUNED & PRE-SETUP:
– Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on
‘Firmware/Factory Dumps’
– Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
Please check our linked article on
‘How to disable Angle-Mode, activate Acro-Mode’
Alpha A85 HD Quad BNF Included Components and Parts

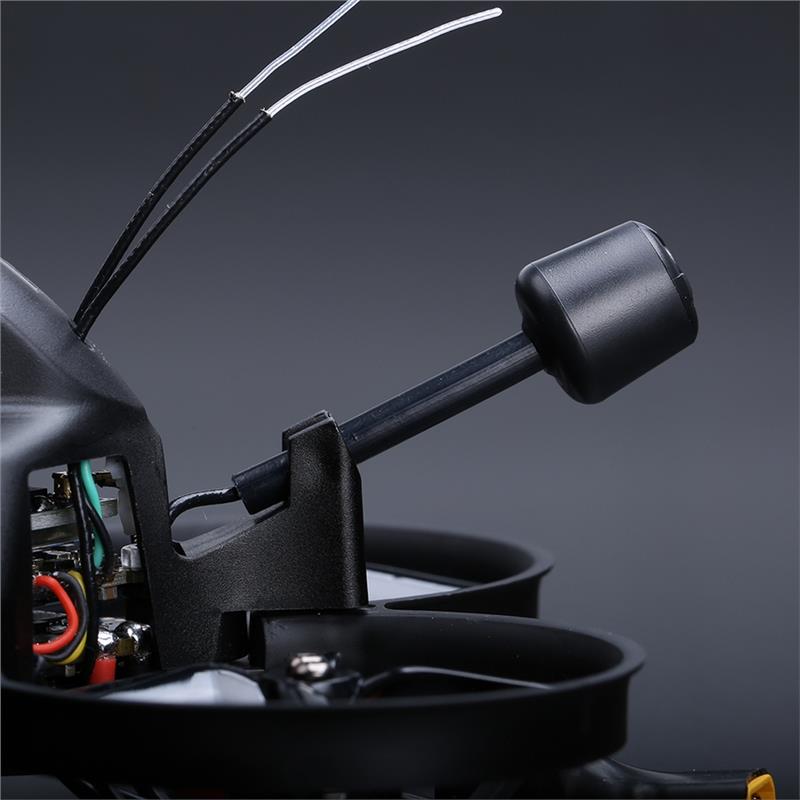

Albatross LHCP ipex
5.8g light antenna
FC // SucceX-D 20A F4 Whoop AIO
*Size0.5*30.5mm
*Mounting pattern5.5*25.5mm/??3mm
*Connector??Micro-USB
*MCU??STM32F411
*Gyro??MPU6000
*BlackboxMB
*BEC outputV 2A/10V 2A
*INA pad??UART2 (nR2)
*Barometer??no
*Constant current0A5A??Burst/p>*Input-4S
*Current sensor??yes
*BLHeli??BLHeli-S
*ESC Telemetry??no
*Target??IFLIGHT_F411_PRO
*ESC Firmware??G-H-30 BLS
Additional Suggested Parts ??Not Included/b>
Important
The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don’t choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind to your own radio as usual.
