23.5g Happymodel Mobula6 HDZero 65mm 1S SuperbeeF4 Lite Whoop FPV Racing Drone w/ HDZero Whoop Lite VTX HDZero Nano Lite Camera

Introduction:

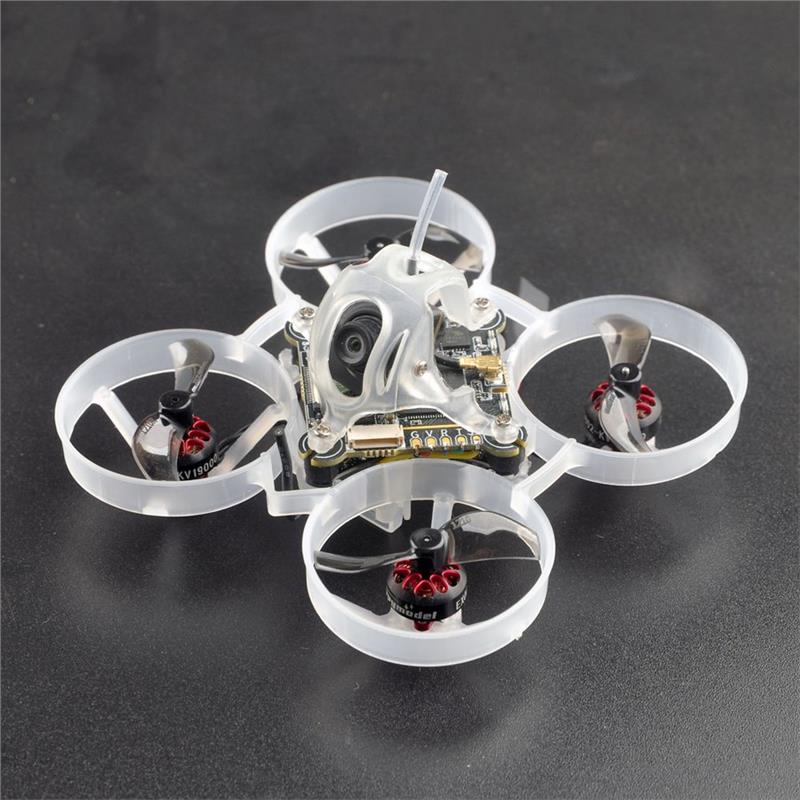

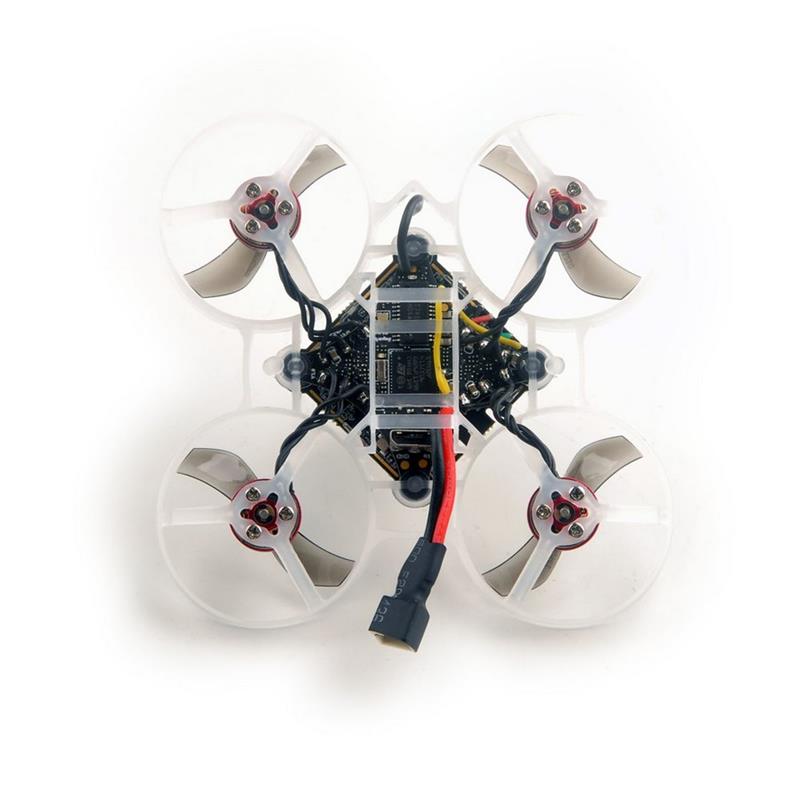

Introducing Mobula6 HDZero, the very first 65mm HD brushless whoop in the World, weights less than 23.5 grams only!
We have been working on innovations of Brushless Whoop for Afew years. Just like many of you, we are particularly eager to have A65mm FPV whoop carrying HD VTX. Teaming with HDZero, Runcam, Nick Burns, Mr Shutterbug, Ryan Quellet and many other enthusiasts, here the dream comes true finally!
Specification:
Brand: Happymodel
Model: Mobula6 HDZero
Frame wheelbase: 65mm
Weight: 23.5 gram without battery
Size: 80mm*80mm*50mm
Receiver option:
SPI ELRS 2.4GHz
SPI FRSKY 2.4GHz
Compatible with 1S Lipo battery or Lihv battery PH2.0 Plug ( NOT Included)

Flight controller
SuperbeeF4 Lite ELRS/FRSKY
SPI ELRS version Firmware target: CrazybeeF4SX1280
SPI FRSKY version Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in SPI Frsky/ExpressLRS receiver
Built-in 5V 1 ABEC
Built-in voltage detection
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
Currents: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT150/DSHOT300/DSHOT600
Onboard SPI ExpressLRS 2.4GHz RX
( ELRS 2.4G Version)
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency:
2.4GHz
Antenna
plug: IPEX
Telemetry output Power: <1
2
dBm
Receiver protocol: SPI ExpressLRS
Could bind with
ELRS V2.0 firmware TX module
Onboard Frsky SPI D8 /D16 2.4GHz RX
( Frsky Receiver Version)
SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Based on CC2500 RF module Compatible with Futab AS-FHSS , Redpine protocol
Motor Mode: EX0802 19000KV
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:??1mm
Motor Dimension(Dia.*Len):??10.5mm*14.9mm
Weight(g):1.7g
No.of Cells(Lipo):1S only
Gemfan 1219 Bi-blades Propeller Weight:0.19g
Material: PC
Pitch:1 inch
Props Dia:30mm
Center Hole Dia:1mm
HDZero Nano Lite Camer A Dimension: 14x16x11mm
Weight: 1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130?? H:108?? v:84??
16:9:D:122?? H:108?? V:65??
HDZero Whoop Lite VTX 1S Input
25mW/200mW RF Output-SmartAudio Support
25.5×25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding)

Package Included:
1x Happymodel Mobula6 HDZero FPV Drone
1x Spare Canopy
1x Screw driver
1x Propeller disassemble tool







Additional information

Weight 0.2 kg
Receiver: No selection

Compatible Frsky SPI D8/D16 Receiver, ELRS 24GHz
