Description
Geprc Mark5 DC HD 225mm F7 6S 5 Inch Deadcat Freestyle FPV Racing Drone with 50A BL_32 ESC DJI O3 Air Unit Digital System
The GEPRC Mark5 DC HD 225mm F7 6S FPV Racing Drone is designed for freestyle enthusiasts. Its upgraded aluminum alloy side plates offer durability and a striking visual appeal. The drone supports wireless parameter tuning via built-in Bluetooth. It features a unique squashed X arm design and the latest DJI O3 VTX for clear, stable, and low-latency video transmission, supporting up to 4K/60fps recording. Equipped with a SPAN G50A BLHeli_32 4-in-1 50A ESC and GEPRC 2107.5 motor, it ensures strong power and smooth flight. The frame’s shock absorption design reduces vibrations, providing a stable electronic environment. The drone includes mounts for cameras like the Gobro 8 Naked, Insta 360 GO2, and Caddx Peanut, ensuring stable and clear footage.
Features:

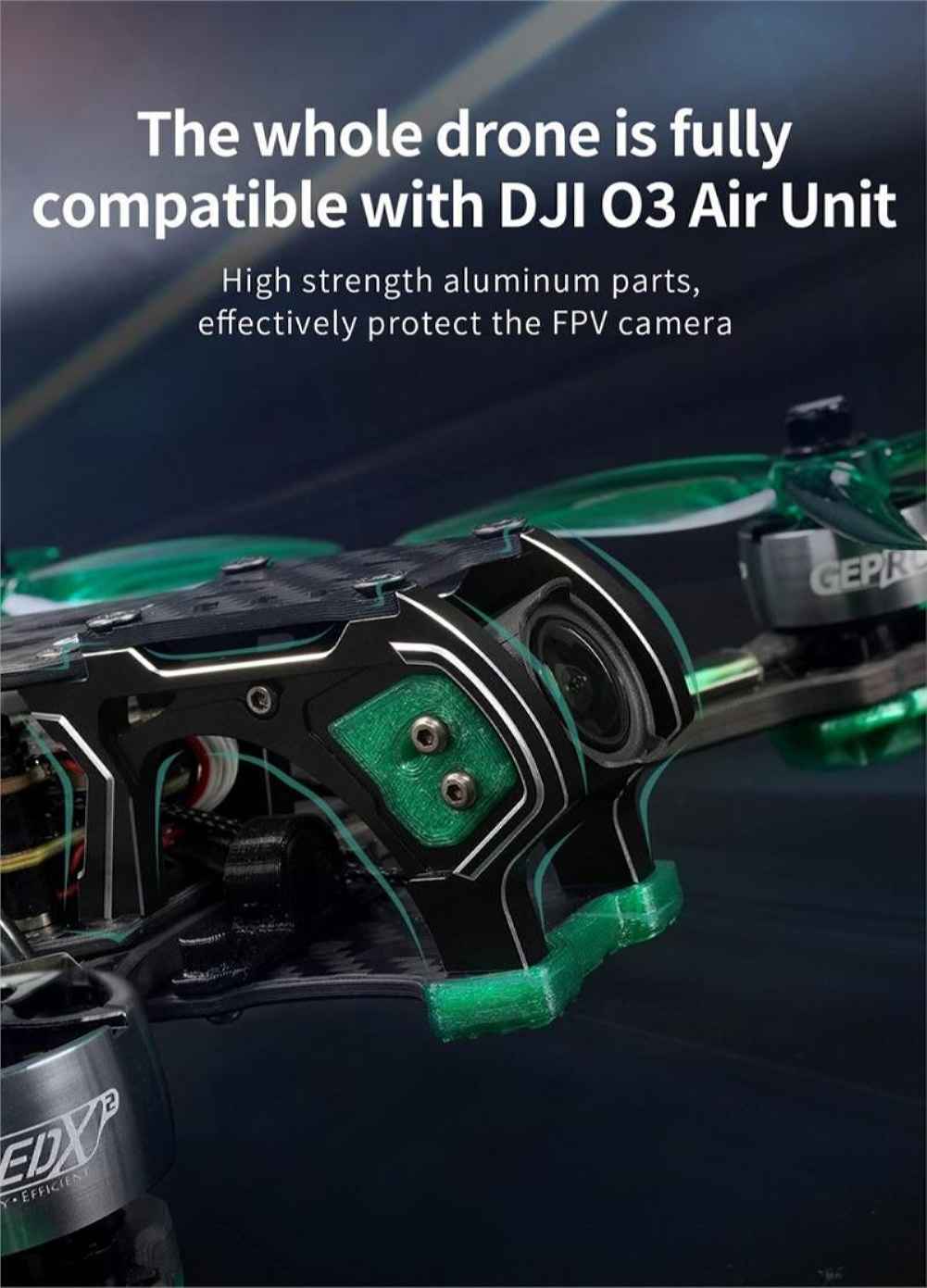

1. Upgraded lens aluminum alloy side plate, durabl and more visual impact

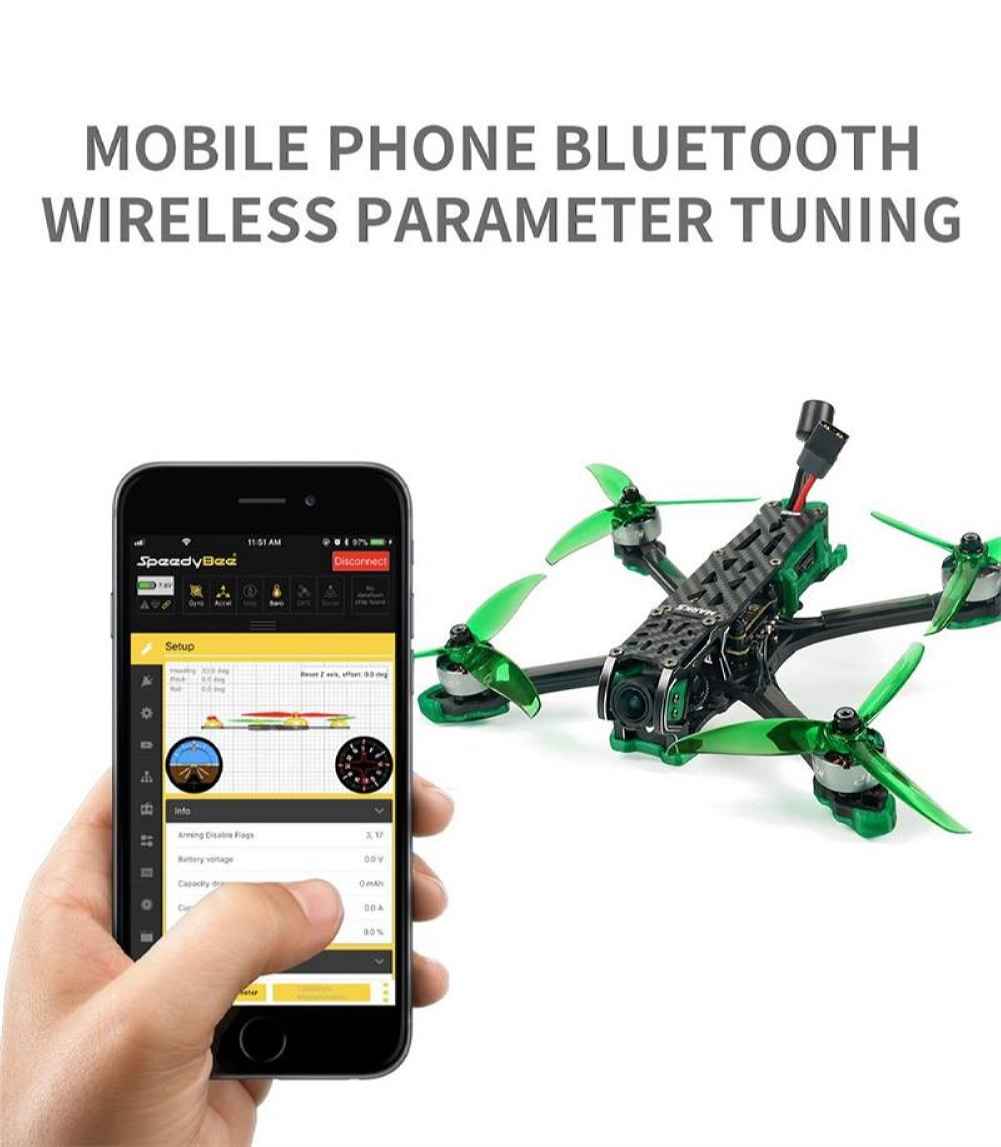

2. Built-in Bluetooth, support mobile phone wireless connection for parameter tuning
3. Developed specifically for freestyle with squashed X arm design.

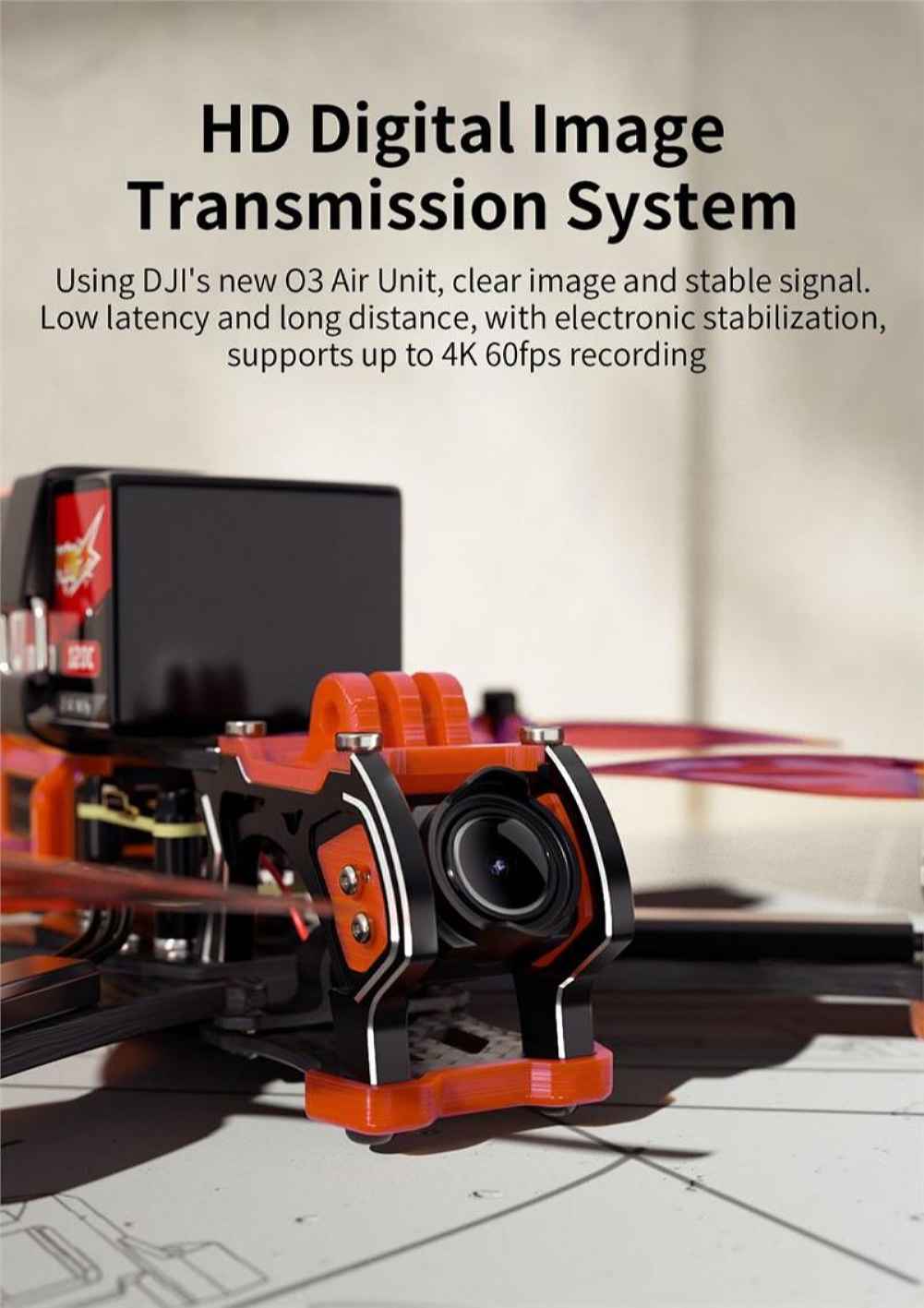

4. The HD version uses New DJI O3 VTX, clear image, stable signal, low-latency, long-distance, and supports up to 4K/60fps recording
5. SPAN G50A BLHeli_32 4in1 50A ESC with the latest GEPRC 2107.5 motor, with strong power, quick response speed, precise throttle control, and smooth flight experience
6. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment
7. With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter

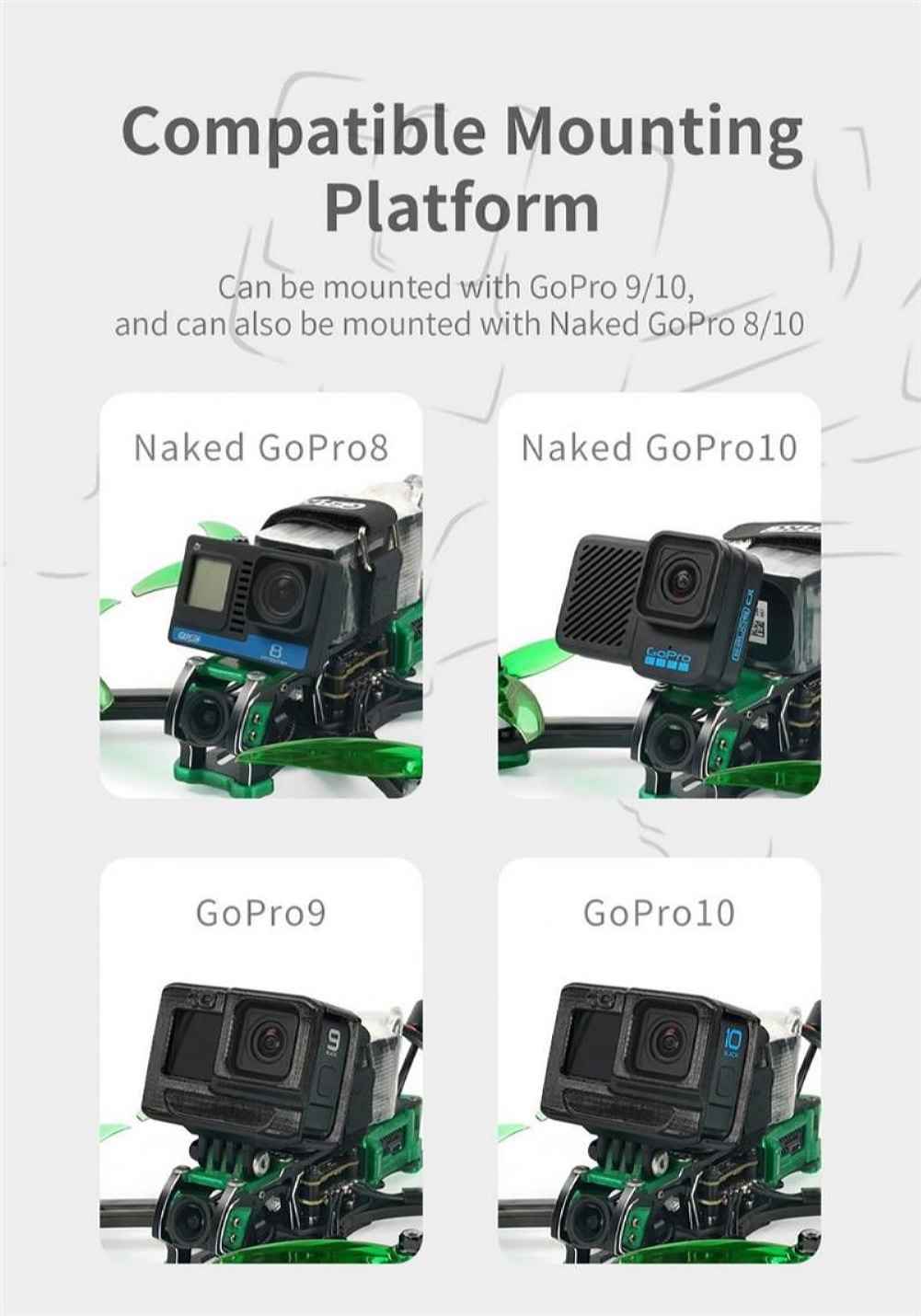

8. Two kinds of 3D printing camera mounts are designed, which can be mounted with Gobro 8 Naked, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear

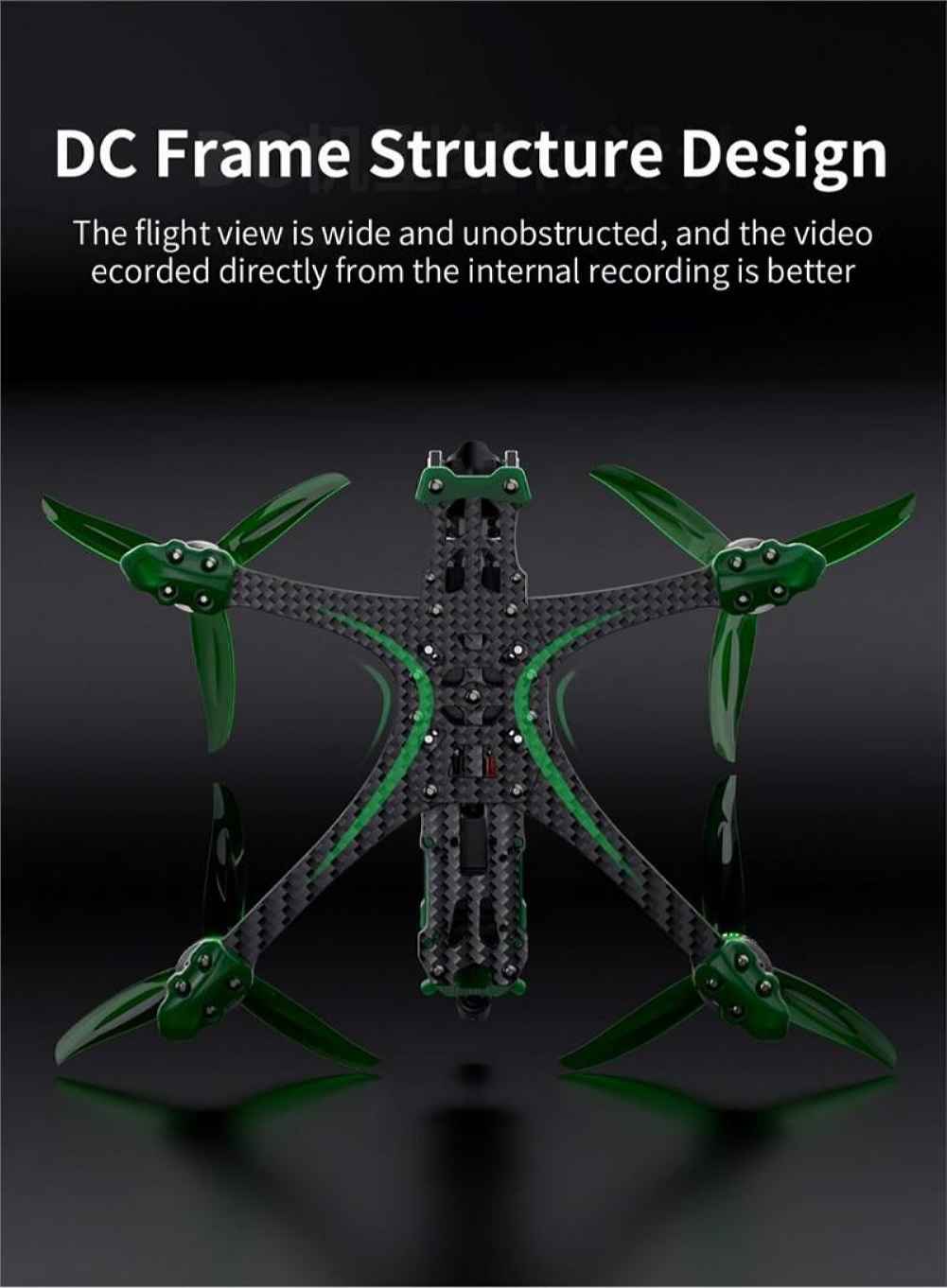

10. The DC structure is suitable for DJI O3 Air unit internal recording when no propeller is visible during flight, while the X structure is more suitable for freestyle when the propeller is slightly visible during dji o3 internal recording.

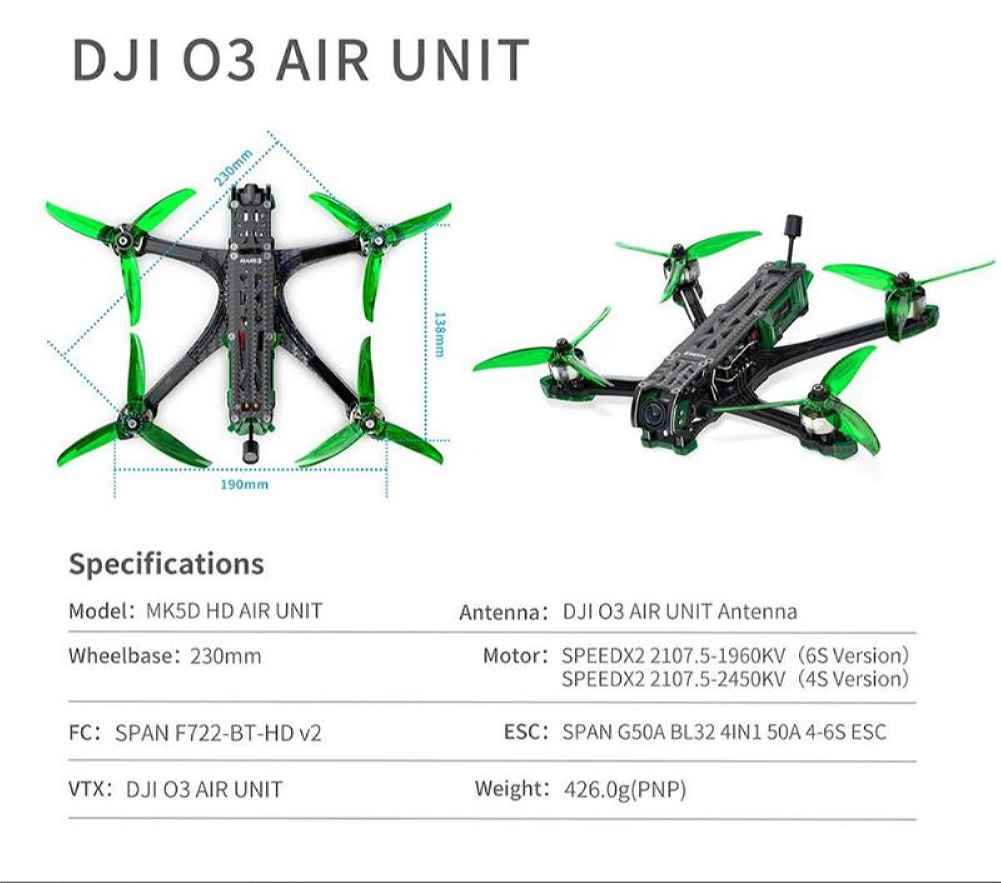

Specifications:
Model: MARK5 DC HD ( DJI O3 Air Unit Version)
Brand: GEPRC

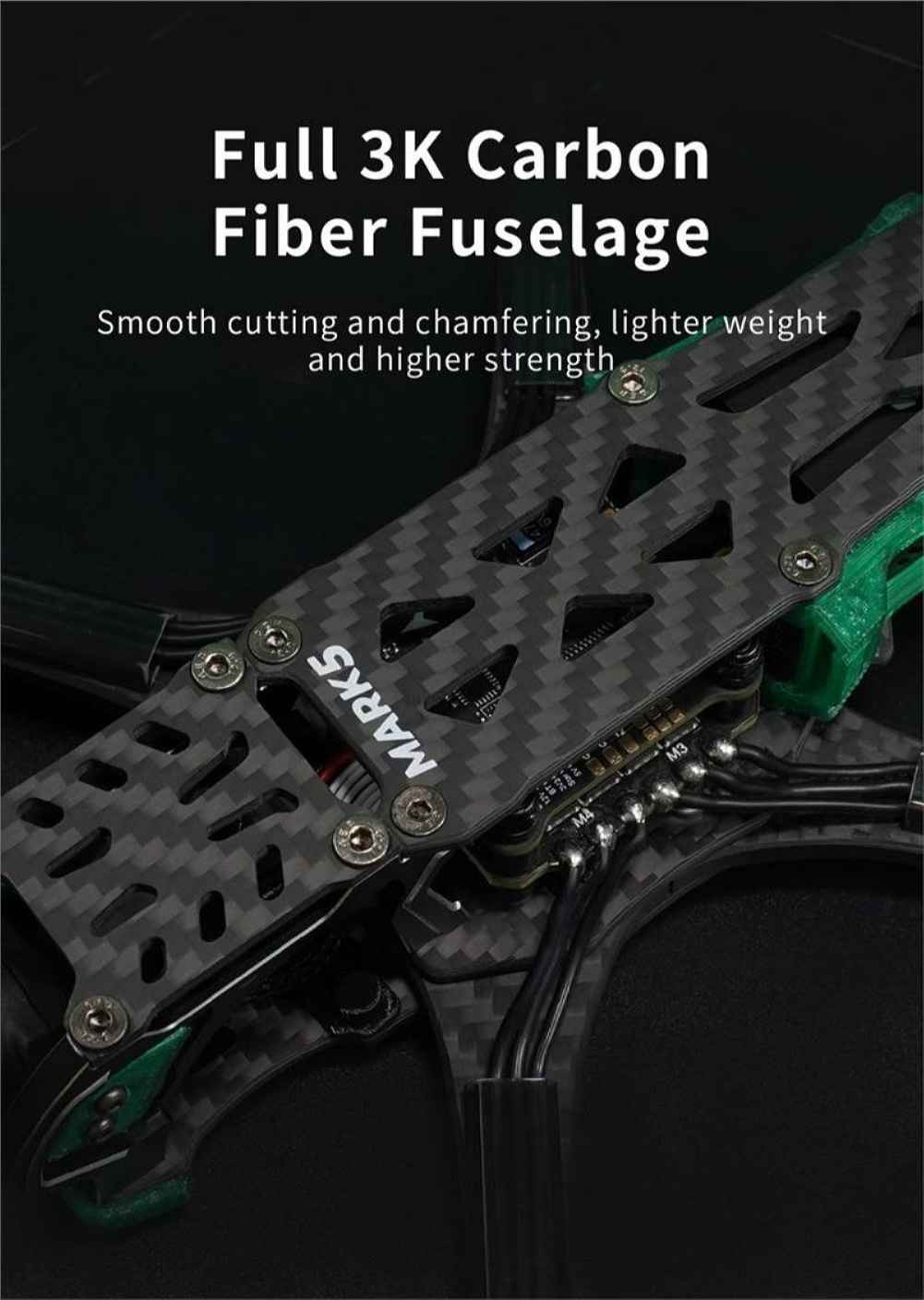

Frame: GEP-MK5D (Deadcat type, Support DJI O3 Version)
Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm

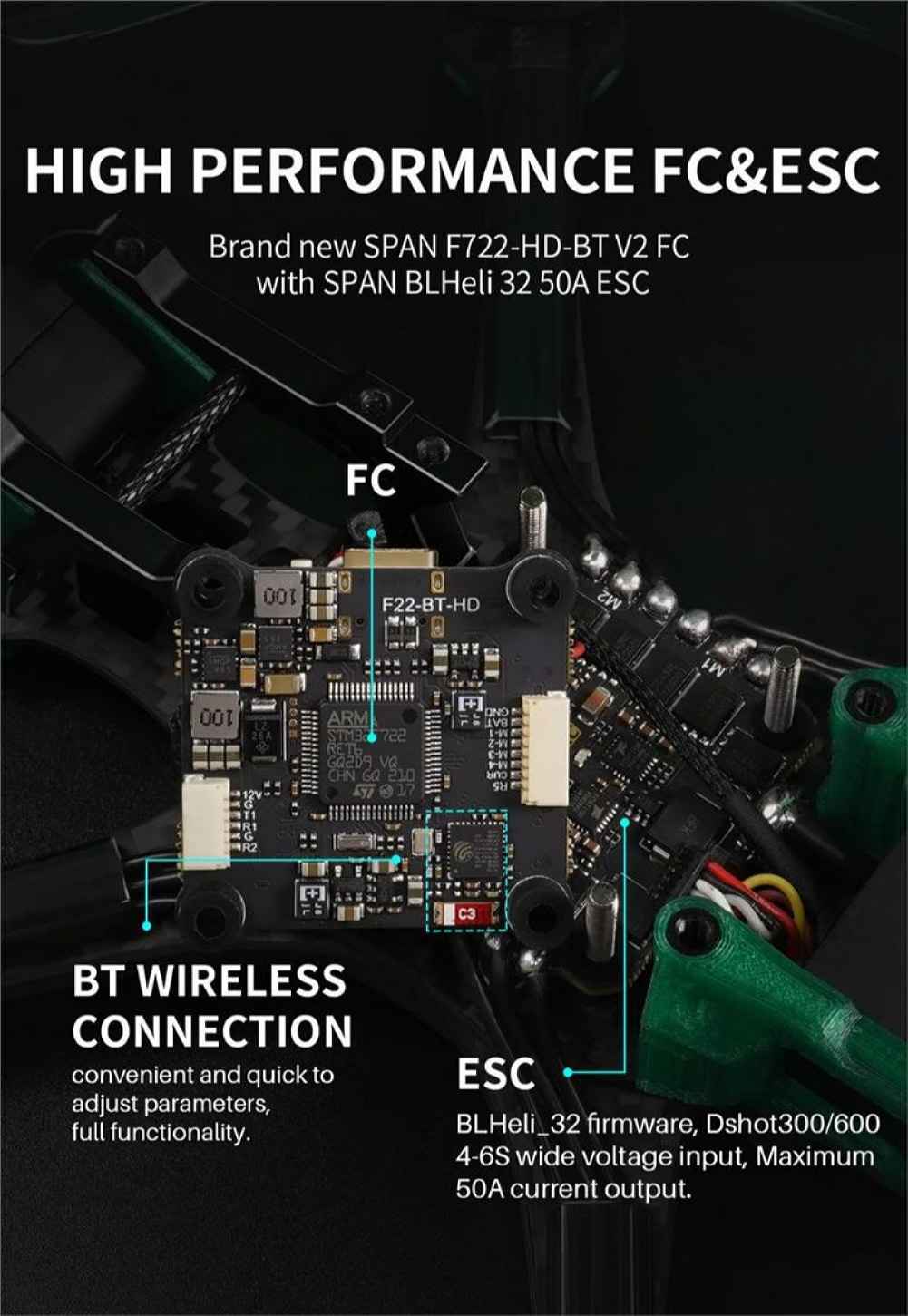

FC system: SPAN F722-BT-HD V2
MCU: STM32F722
Gyro: 42688-P(SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: DJI O3 Air Unit
Camera: DJI O3
Propeller: Gemfan 5136
Antenna: DJI O3 antenna

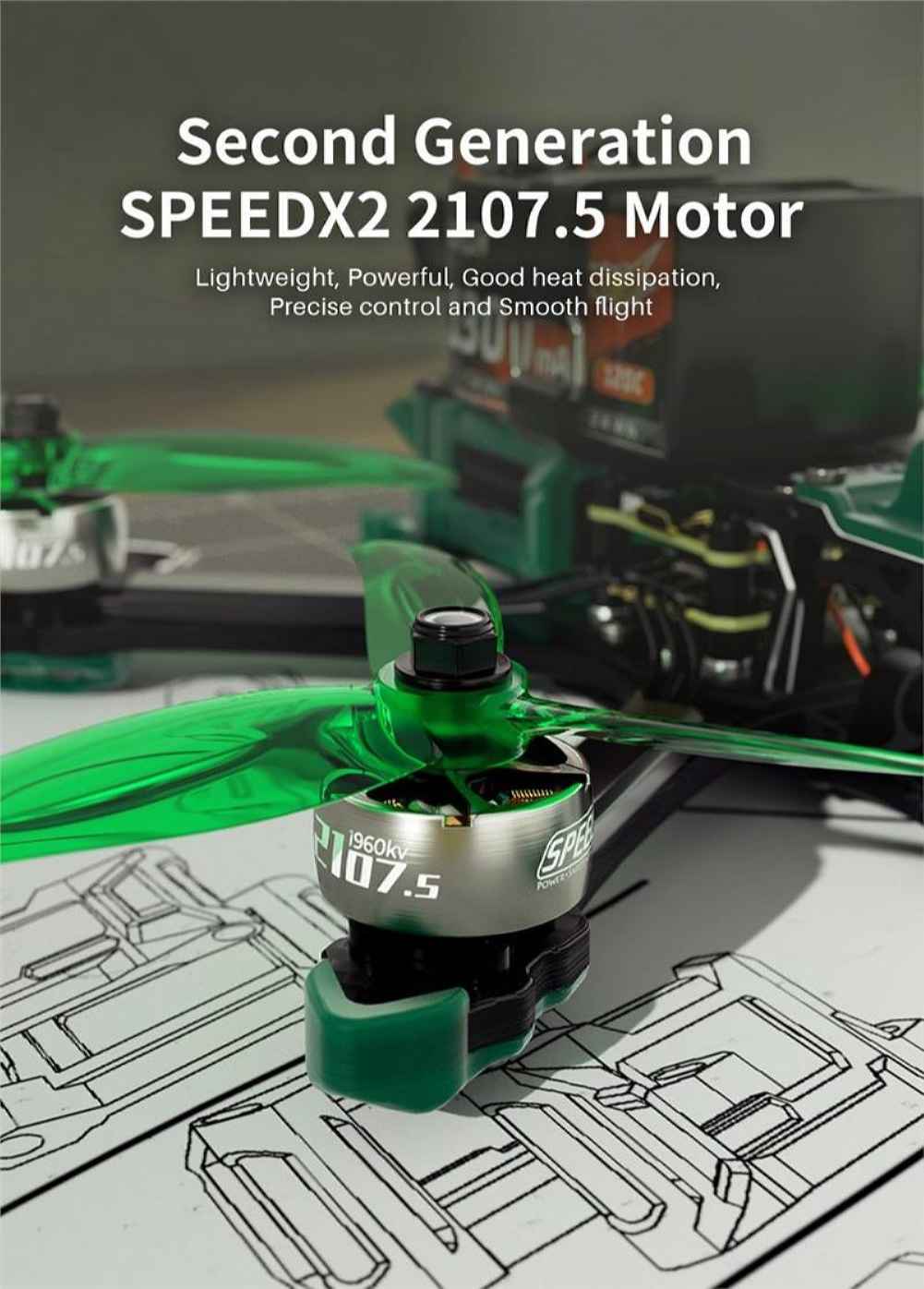

Motor: SPEEDX2 2107.5-1960KV 6S Version
Weight: 426.0g ( including 3D printed parts)
Package Included:
1 x MARK5 DC HD Quadcopter (DJI O3 Air Unit Version)
4 x Gemfan 5136 propellers (pair)
1 x Battery strap M15x250mm
2 x Battery strap M20x220mm
2 x Battery Silicone Pads
1 x 3D printed parts
1 x Action cam mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube
