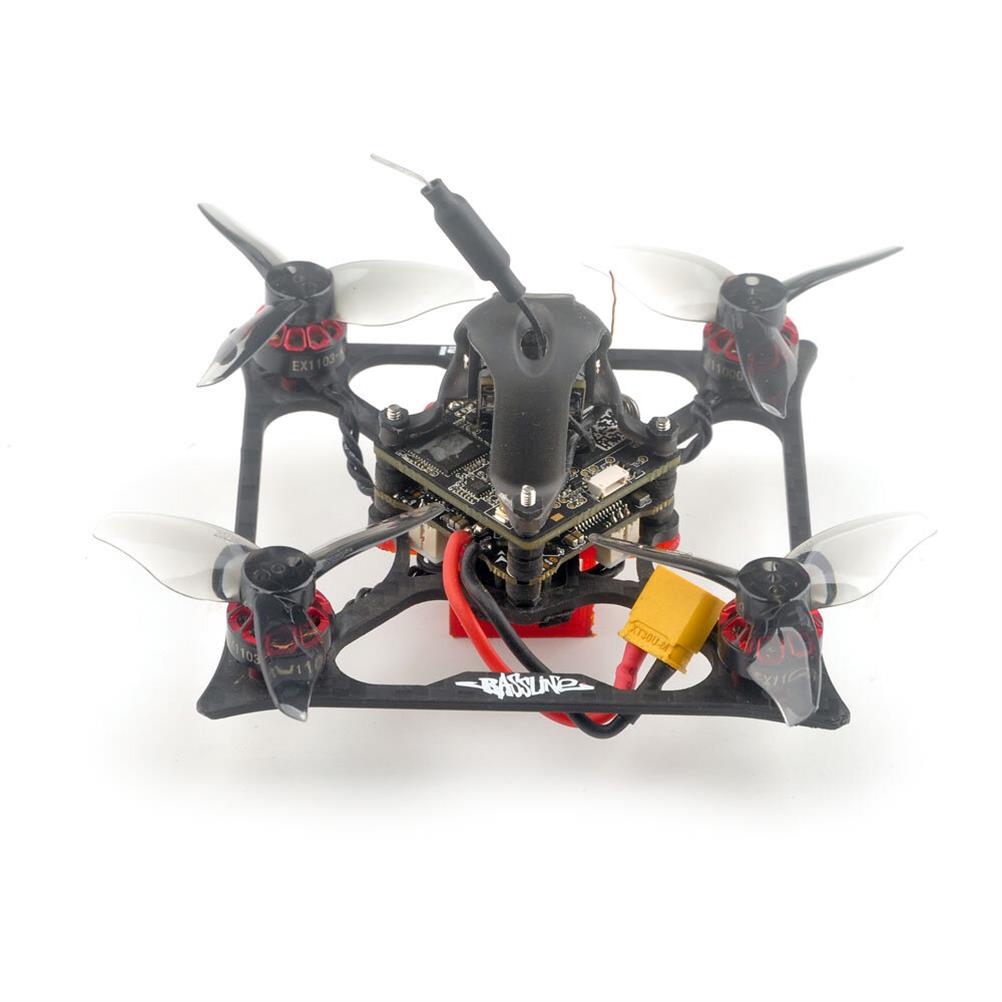

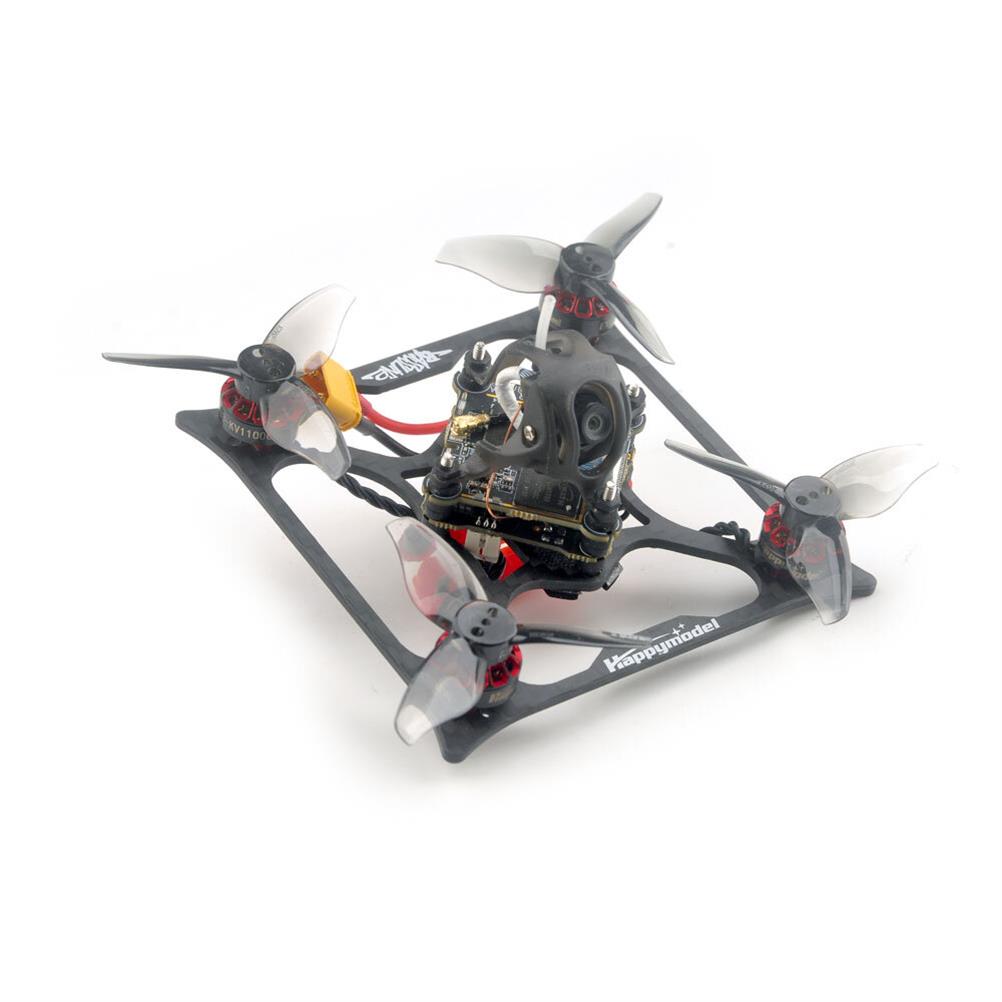

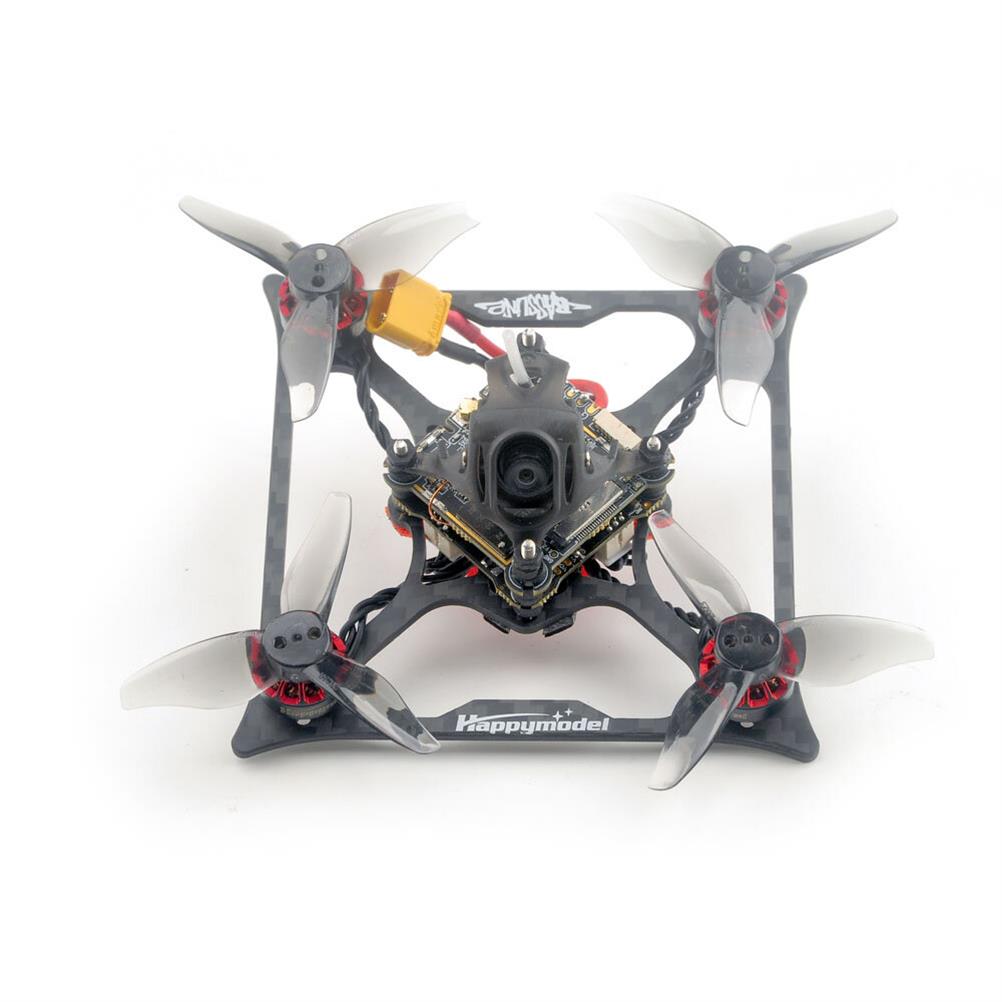

Happymodel Bassline HD 2S 90mm 2 Inch Toothpick FPV Racing Drone with Walksnail Avatar Or HDZero Whoop Lite Digital System
Features:
HD Digital VTX system available
Walksnail HD or HDZERO optional
SPI ELRS or UART ELRS optional
Powerful EX1103 KV11000 motors
Recommend 2S 450mah/550mah/650mah battery (Not include)
Battery tray size: Maximum support for batteries with Awidth of approximately 17mm and Aheight of approximately 13mm
Specification:
Brand: Happymodel
Model: Bassline HD
Item Name: 90mm 2S 2 Inch Toothpich FPV Racing Drone
Wheelbase: 90mm
Optional Version: HDZero Version ( HDZero Whoop Lite and nano lite) / Walksnail Version ( Walksnail Avatar HD mini 1s lite kit)
Optional Receiver: 2.4G ELRS SPI / 2.4G UART ELRS
Size: 115mm*115mm*40mm
| Motor | Mode: EX1103 11000KV Configu-ration: 9N12P Stator Diamter: 11mm Stator Length: 3mm Shaft Diameter: ??1.5mm Motor Dimension(Dia.*Len): ??13.5mm*15.5mm Weight(g): 3.8g No.of Cells(Lipo): 1-2S |
| Propeller | Model: Gemfan toothpick 2023 tri-blade Weight:0.88g Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm |
| X12 Lite AIO Flight Controller (2.4G ELRS SPI Receiver Version) |
Model: X12 Lite AIO; Target: CRAZYBEEF4SX1280 Item Name: X12 Lite AIO FC built-in SPI ELRS 2.4G receiver and Onboard 12A 4in1 ESC MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: BMI270 orICM42688P(SPI connection) Power supply:2S 6.5v~8.7v Built-in Betaflight OSD(SPI Control) Built-in 12A(each) Blheli_S 4in1 ESC Built-in voltage detection Built-in current sensor Onboard 12A 4in1 ESC Power supply: 1-2S LiPo/LiPo HV Current: 12 Acontinuous ; peak 15 A(3 seconds) Support BLHeliSuite programmable Default Factory firmware: Bluejay 0.16 Firmware target:Z_H_30_48_v0.16 Default protocol: DSHOT300 Onboard SPI ExpressLRS 2.4GHz Receiver Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenn A: SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Default Compatible with ExpressLRS V2.0 TX Module Couldn’t flash separately ExpressLRS firmware Could flash FC firmware to support ExpressLRS v3.0 TX module |
| CrazyF411 ELRS Flight Controller ( UART ELRS 2.4G receiver Version) |
Item Name: CrazyF411 ELRS flight controller built-in UART ELRS 2.4G receiver Target: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor:BMI270 orICM42688P(SPI connection) Power supply:2S 6.5v~8.7v Built-in 20A(each)Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 2.4G UART ExpressLRS Receiver Built-in voltage detection Built-in current sensor Onboard 20A 4in1 ESC MCU upgraded to EFM8BB21 Power supply: 2-4S LiPo/LiPo HV (7v/17v) Currents: 20 Acontinuous peak 25 A(5 seconds) Support BLHeliSuite programmable Default Factory firmware: Bluejay 0.18 Firmware target: F_H_40_48_v0.18 Default protocol: DSHOT300 Onboard UART ELRS 2.4G Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenn Aplug: IPEX Telemetry output Power: <12dBm Receiver protocol: CRSF Default firmware version: ExpressLRS V3.0.1 |
| HDZero Version ( HDZero Nano Lite Camera +HDZero Whoop Lite VTX) |
HDZero Nano Lite Camera Size: 14x16x11 mm Weight: 1.5gram 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor Excellent low light performance Fov: 4:3: D:130?? H:108?? v:84??; 16:9:D:122?? H:108?? V:65?? HDZero Whoop Lite VTX 1-3S Input 25mW/200mW RF Output-SmartAudio Support 25.5×25.5 M2 Soft Mounting- Antenn ARetention Removable Shielding Box- 32.5×32.5mm(29x29mm inner) 4.5grams/4mm Thickness (without shielding) |
| WalkSnail Version (Walksnail Avatar HD mini 1s lite kit) |
Avatar lite camer A Image Sensor: 1/2.7nch Resolution: 1080P/60fps,720P/120fps,720P/60fps Ratio:16/9 4/3 Lens: 2.1mm FOV: 170?? Aperture: F2.0 Shutter Rolling: Rolling shutter Min.Illumination:0.001Lux Weight: 1.8g Dimensions: 14*14*16mm Avatar mini 1s VTX Communication Frequency: 5.725-5.850GHz Transmitter Power (EIRP)FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm MIC:<25dBm I/O InterfaceJST1.0*6(Power in)JST0.8*4(USB) Mounting Holes25.5*25.5mm Dimensions30*30*6.5mm Storage8G Recording1080p/720p Weight5.1g Operating Temperature-20-40br>Channels8 Wide Power Input3.1V-5V Supported FC SystemBetaflight OSDCanvas mode Bitrate25mbps 50mbps LatencyAverage delay 22ms AntennaIPEX |
Package Included:
1x Happymodel Bassline HD 2S Toothpick
1x Canopy for 14mmx14mm camera
1x Screw driver
Additional information
| Weight | 0.3 kg |
|---|---|
| Version: No selection | HDZERO, Walksnail |
| Receiver: No selection | 24G UART ELRS, 24GHz ELRS SPI |
