Description

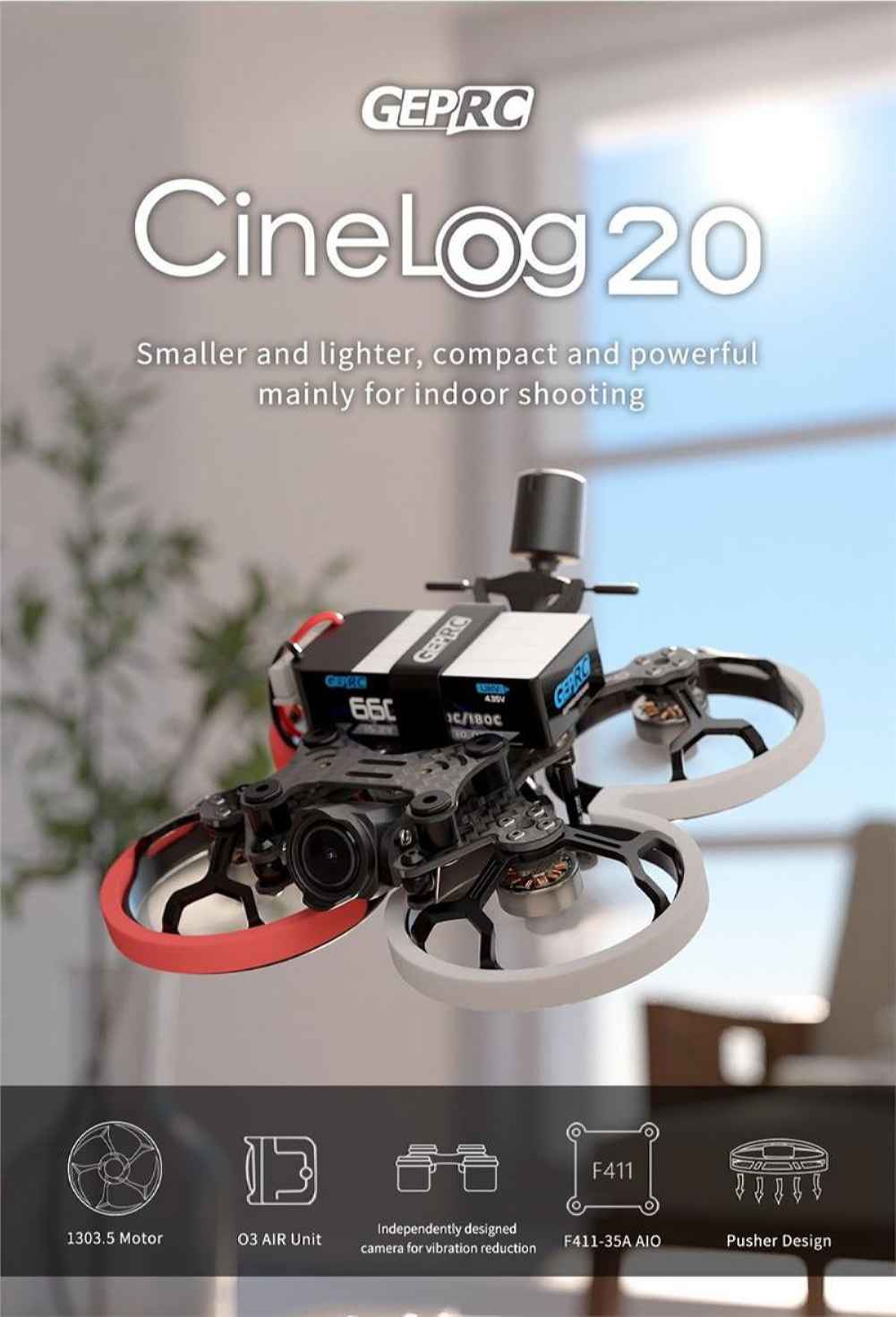

Geprc Cinelog20 Analog 4S F411 35A AIO 2 Inch Indoor Cinewhoop FPV Racing Drone with 5.8G 600mW VTX Caddx Ratel2 1200TVL Camera
The GEPRC Cinelog20 Analog FPV Racing Drone is designed for seamless indoor flight and complex environments. Equipped with a shock-absorbing gimbal, it reduces image distortion in FPV goggles. The drone features a 2-inch pusher design, making it compact and lightweight. The SPEEDX2 1303.5 5500KV motors paired with Emax four-blade propellers ensure smooth flight. It includes a Runcam Link Wasp HD video transmission for easy Bind-N-Fly setup. The CineLog series’ vibration dampening structure effectively eliminates image jello, even when a GoPro Naked is mounted. The GEPRC team’s expert tuning delivers a delicate and flexible flight experience.
Feature:

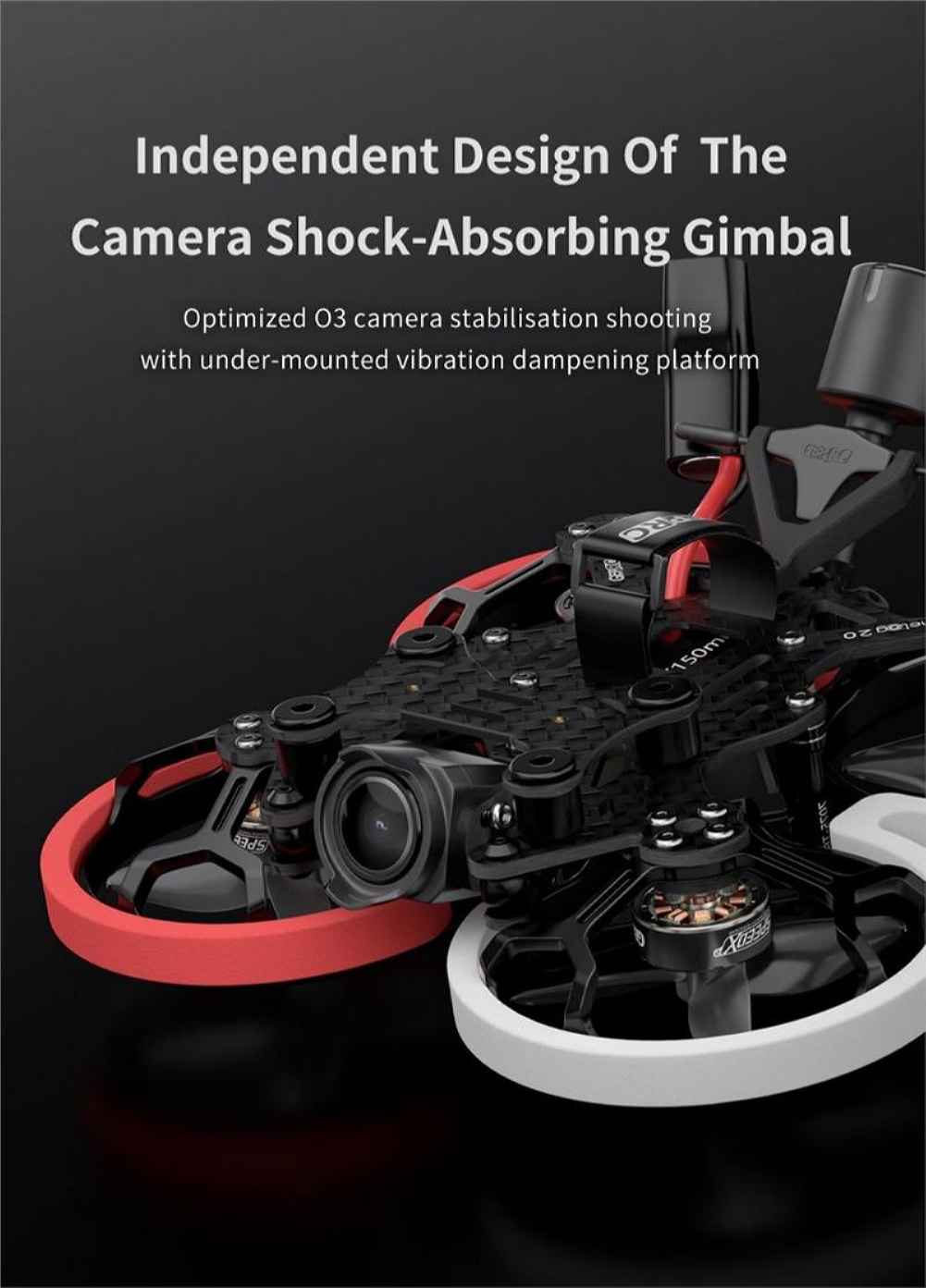

– Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image, with good anti-shake effect.

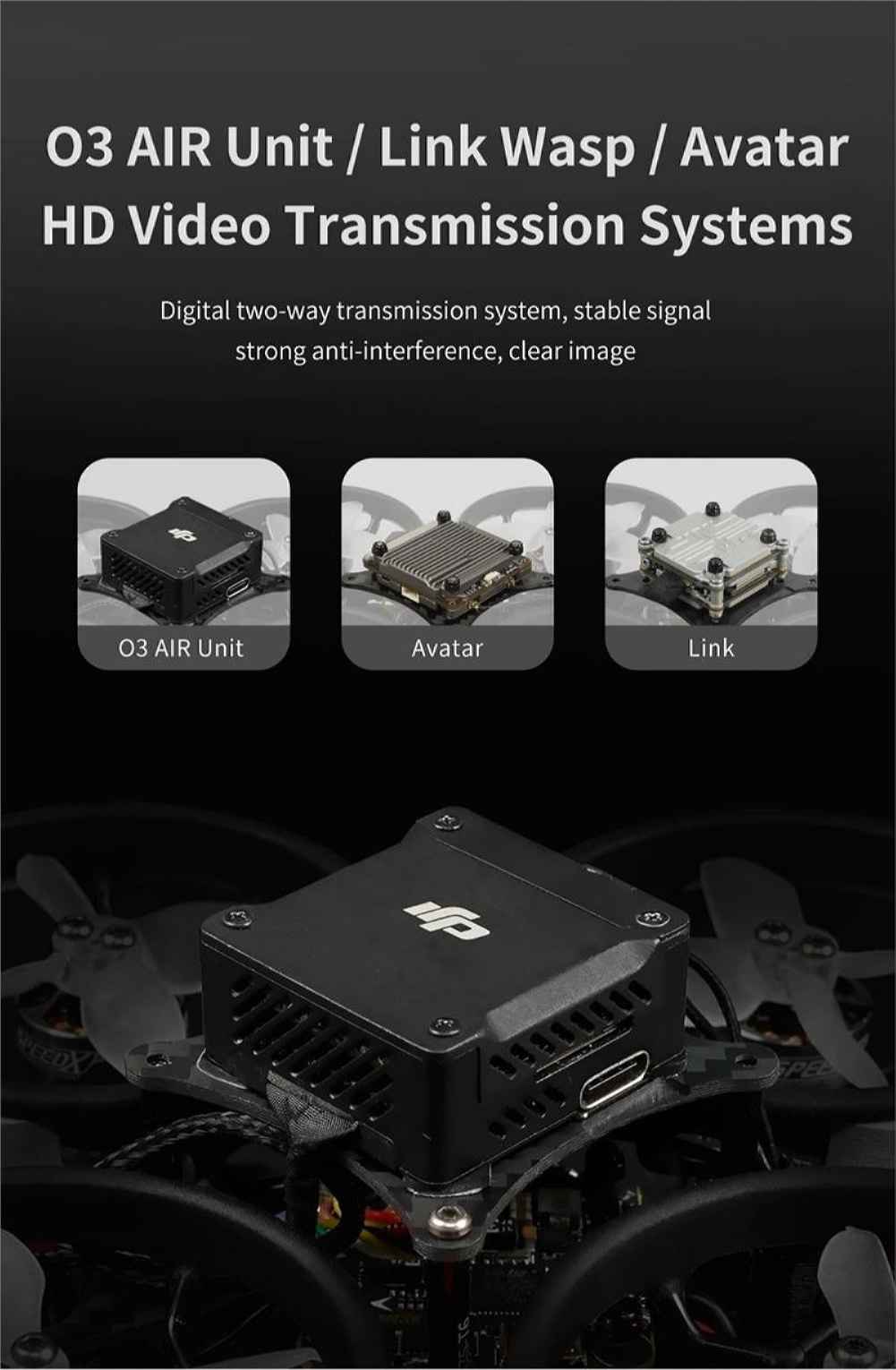

– Equipped with Runcam Link Wasp HD video transmission versions, Bind-N-Fly to save the trouble of building and tuning.

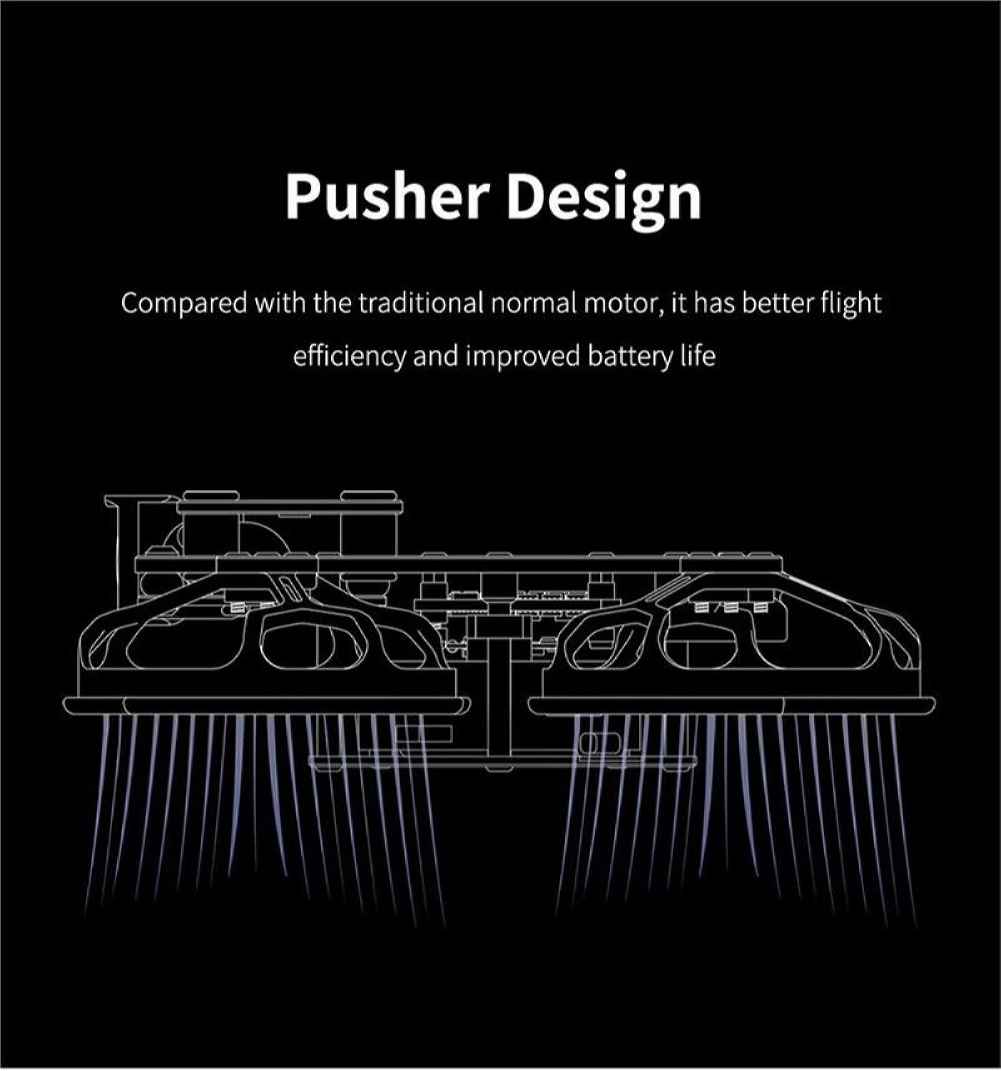

– 2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.

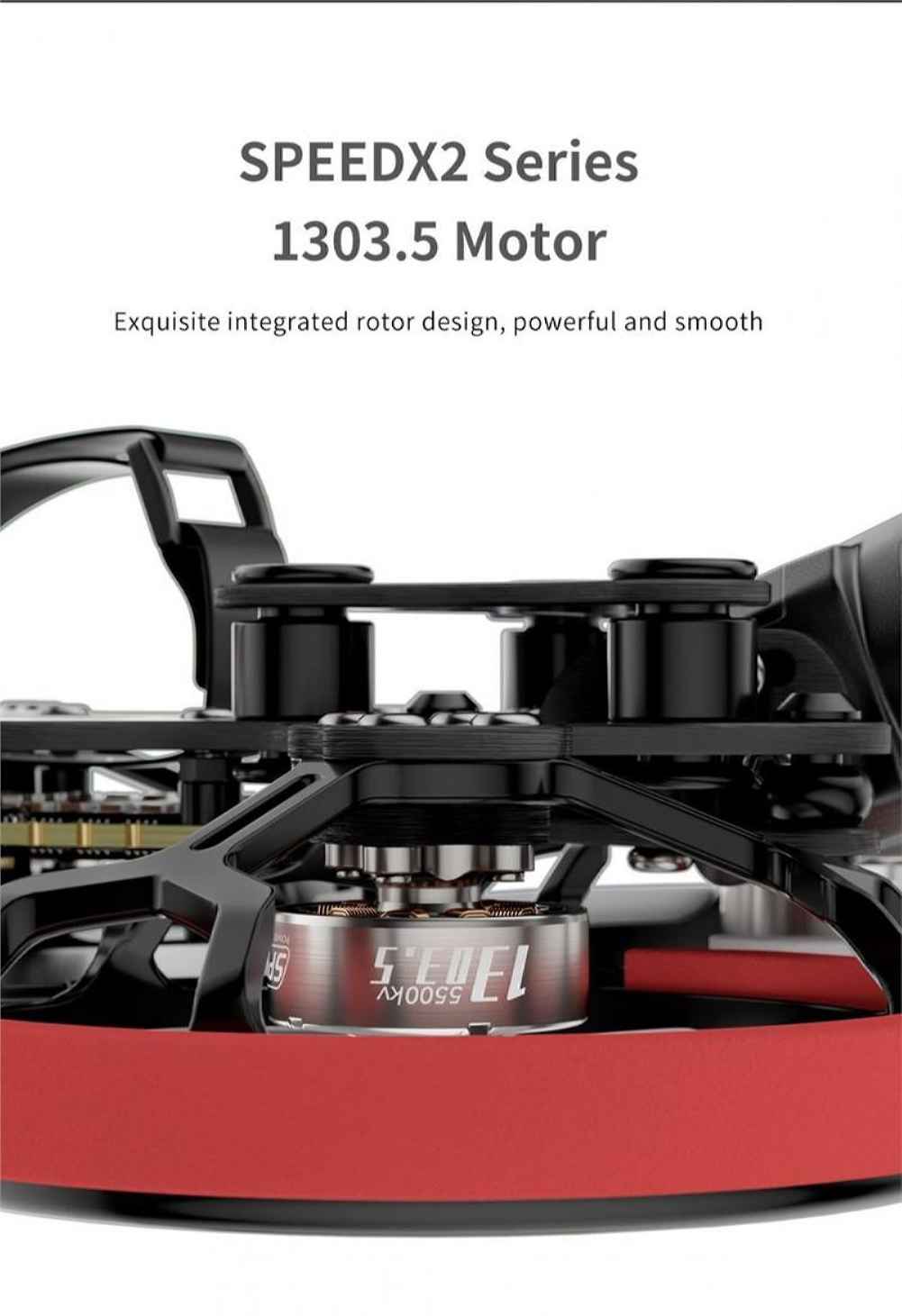

– SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.

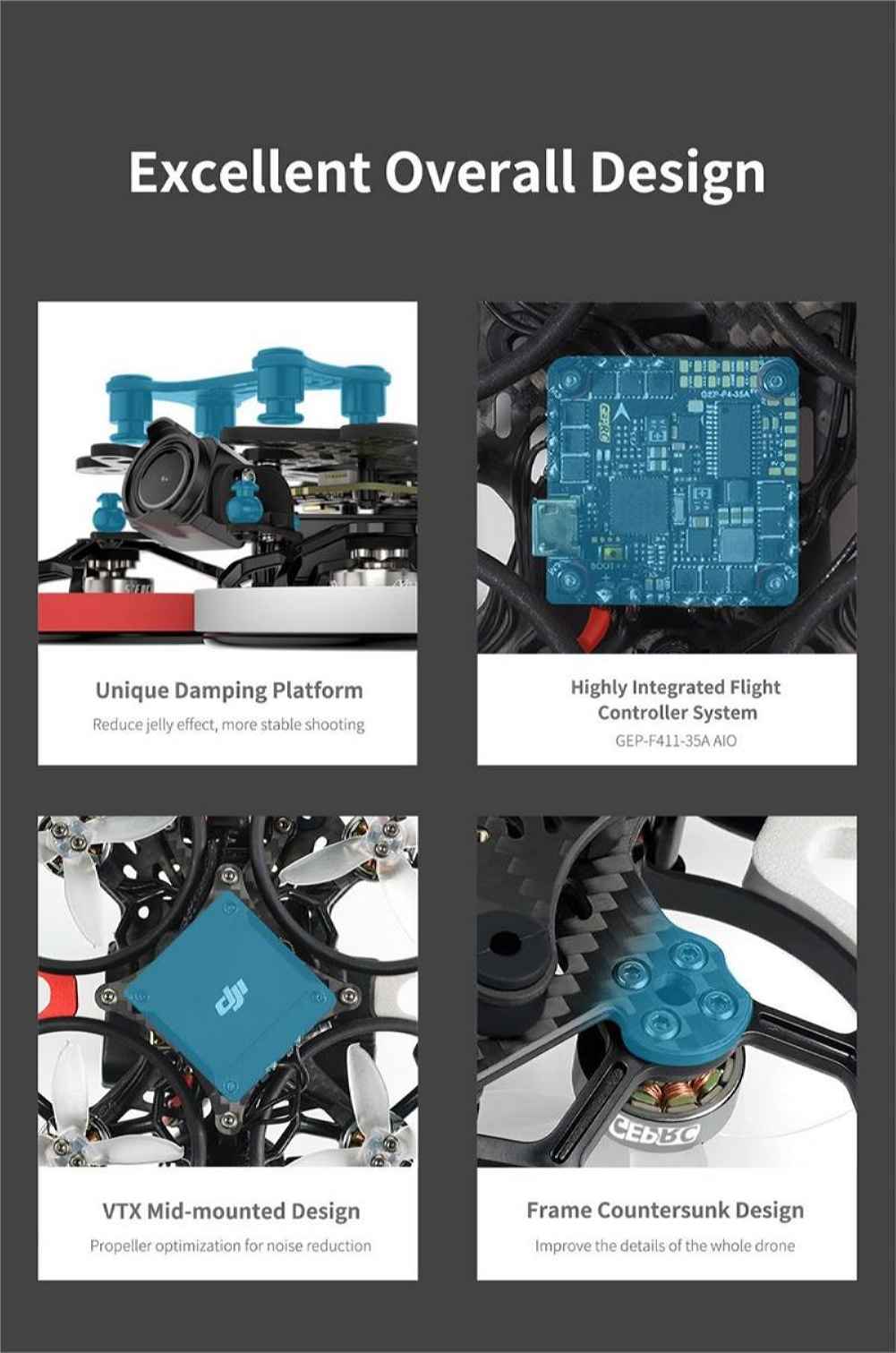

Continuing the vibration dampening structure of the CineLog series, which can effectively eliminate the jello of the image caused by the body when compatible with GoPro Naked mounted.
The GEPRC Team sblendid tuning and the overall flight feel are delicate and flexible.

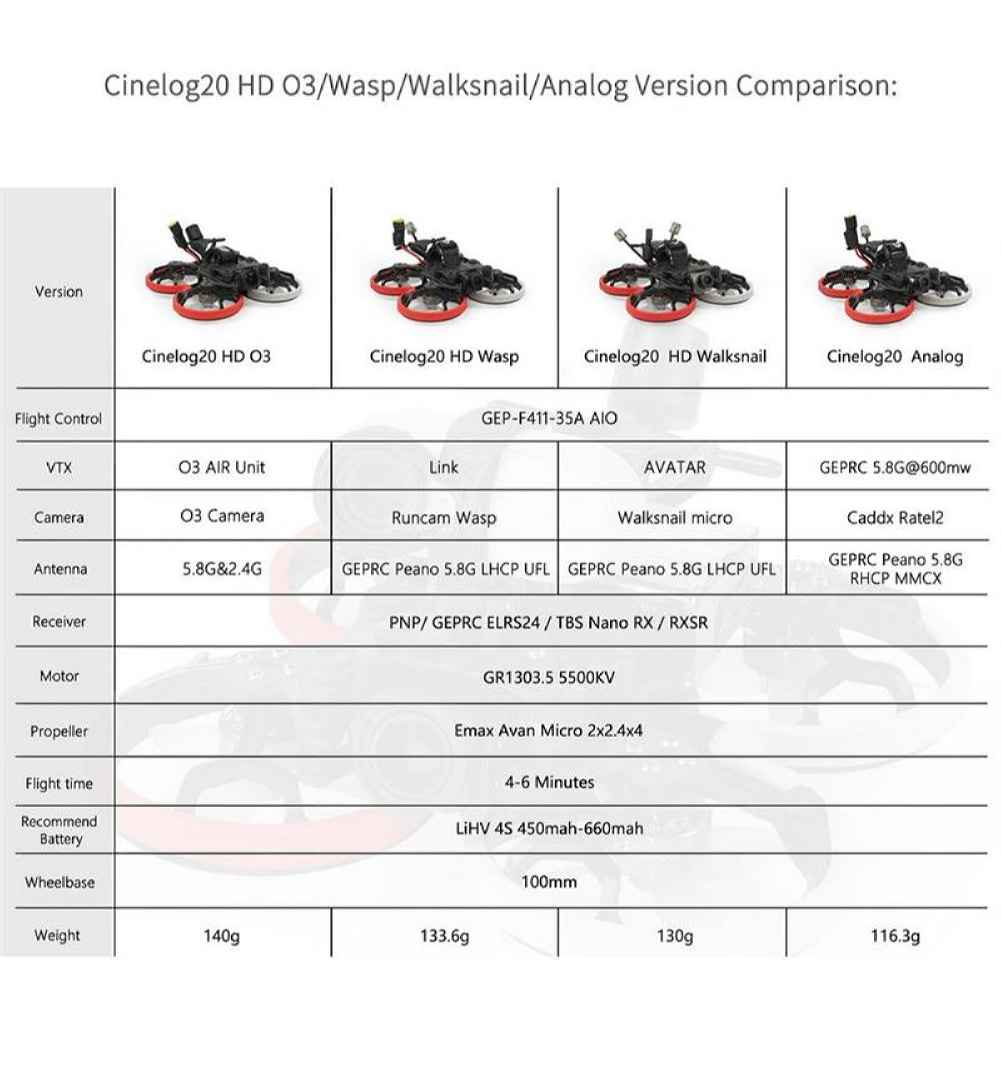

Specification:
Brand: Geprc
Model: Cinelog20 Analog
Frame: GEP-CL20
Wheelbase: 100mm
Gimbal plate: 2.0mm
Top plate: 2.5mm
Bottom plate: 1.5mm
FC system: GEP-F411-35A AIO
MCU: STM32F411CEU6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: 8Bit 35A
VTX: GEPRC 5.8G@600mw
Camera: Caddx Ratel2
Antenna: GEPRC Peano 5.8G RHCP MMCX
Motor: GR1303.5 5500KV
Propeller: EMAX Avan Micro 2℅2.4℅4
TBSNanoRX weight: 116g
Recommended Lipo Battery: ( NOT Included)
LiHv 4S 450-660mah Lipo, Flight time:4-6min
Package Included:
1 x Cinelog20 Analog FPV Drone
