Happymodel Mobula6 HDZero ECO LUX HD 65mm 1S Brushless Whoop FPV Drone BNF with F4 AIO 5A ESC ELRS RX and 5.8G VTX

Description

19.3g Happymodel Mobula6 HDZero ECO LUX HD 65mm 1S Brushless Whoop Freestlye / Racing FPV Drone BNF w/ F4 AIO 5A ESC ELRS RX And 5.8G VTX

The Happymodel Mobula6 Race HD BNF is a pioneering 65mm HD brushless tiny whoop, weighing under 19.4g. It features the innovative HDZero 5-in-1 AIO, integrating a VTX, FC, ESC, ELRS RX, and 5V1A BEC on a single PCB for enhanced durability and simplicity. The Race HD BNF is equipped with a lightweight HDZero Eco camera, delivering 720p HD composite video via a single wire, ensuring stable color reproduction and minimal latency. To achieve its lightweight design, it utilizes original Japanese RENY screws and a lighter 5.8G VTX antenna. Powered by SE0702 brushless motors, this drone offers smooth, powerful flights, making it ideal for both racing and freestyle enthusiasts.

Introduction:
The Happymodel Mobula6 Race HD BNF is the first 65mm HD brushless tiny whoop that weighs less than 19.4g侈Freestyle vision is 19.9g佩.With tiny whoops, every gram makes a large difference in flight performance. To achieve such a low weight, HDZero has developed the world’s first 5-in-1 AIO that contains a HDZero VTX, FC, ESC, ELRS RX, and 5V1A BEC. Using a single thick PCB rather than a stack of 2 improves durability and simplicity 藩 get ready for a new period of no-compromise tiny whooping in clear digital video!
To keep weight and cost to a minimum, the Race HD BNF features the light weight HDZero Eco camera. The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability. The digital video signal has stable color reproduction and 720p progressive scan video with the stable near-zero latency HDZero is known for.
In order to achieve the goal of extreme weight reduction, HAPPYMODEL used original Japanese RENY screws at all costs侈only for the Race vision佾Freestyle vision is metal screw佩, and also designed a lighter 5.8G VTX antenna. All these improvements are to make this HD BNF weigh less than 20 grams. We hope you like it.
Features:
– Equipped with the lightest SE0702 brushless motors, only 1.5 grams
– AIO Flight controller with Serial ELRS Receiver
– Onboard black box read
– Smooth and powerful
– HDZero HD VTX
Specifications:
Brand: Happymodel
Model: Mobula6
Item: 65mm 1S Brushless Whoop Quadcopter

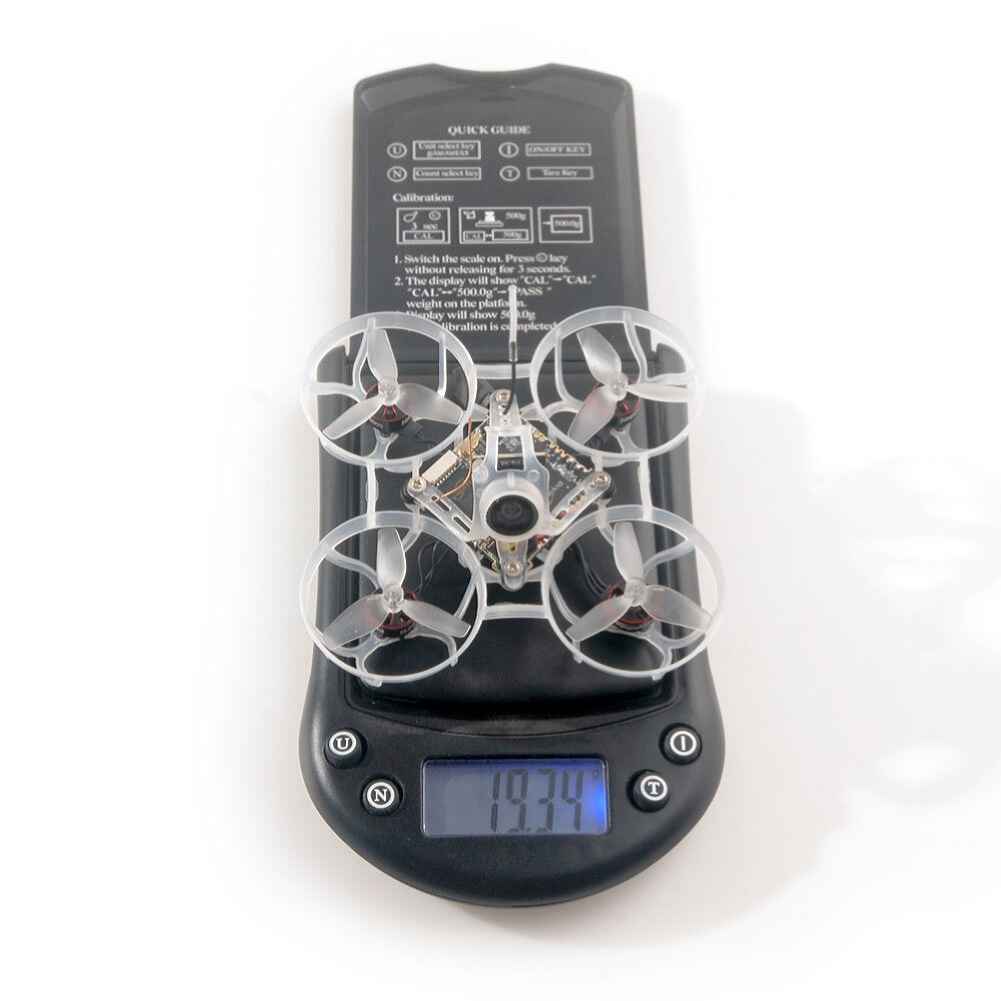

Weight: 19.3g
Wheelbase: 65mm
Frame: Mobula6
FC: F4 Flight Controller
ESC: 5A(each) BLHeli_S 4-in-1 ESC
VTX: 5.8G HDZero VTX
Camera: HDZero ECO (Racing) / LUX Camera (Freestyle)
Motor: SE0702 KV28000
Propeller Size: 31mm
Recommend Battery: 1S 300mAh with A30 or BT2.0 plugComparison Race HD & Freestyle HD

Race HD ( Racing Version)

Freestyle HD ( Freestyle Version)

AIO

Built-in: SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0MCU: STM32F411 (100MHz, 512K Flash)Voltage and Amperage meters: OnboardBuilt-in: 5A(each) BLHeli_S 4-in-1 ESC Bluejay ESC: Firmware pre-installedBuilt-in: 5.8G HDZero VTX Built-in: 5V 1A BEC Gyro: BMI270

Built-in: SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0MCU: STM32F411 (100MHz, 512K Flash)Voltage and Amperage meters: OnboardBuilt-in: 5A(each) BLHeli_S 4-in-1 ESC Bluejay ESC: Firmware pre-installedBuilt-in: 5.8G HDZero VTX Built-in: 5V 1A BEC Gyro: BMI270

MOTORS

Motor Dimension(Dia. x Len): 9.5mm x 14mmMode: SE0702 KV28000No.of Cells(Lipo): 1S onlyShaft Diameter: 1mmConfiguration: 9N12PStator Diameter: 7mmStator Length: 2mmWeight(g): 1.5g

Motor Dimension(Dia. x Len): 9.5mm x 14mmMode: SE0702 KV28000No.of Cells(Lipo): 1S onlyShaft Diameter: 1mmConfiguration: 9N12PStator Diameter: 7mmStator Length: 2mmWeight(g): 1.5g

CAMERA

Camera: HDZero ECO camera Resolution: 720p60 4:3FOV: D:150‵ H:120‵ V:98‵Sensor size: 1/3 inch

Camera: HDZero LUX cameraResolution: 720p60 4:3 and 16:9FOV: D:145‵ H:126‵ V:70‵(169)FOV: D:155‵ H:126‵ V:94‵(4:3)Sensor size: 1/3 inch

Includes: 1x Mobula6 Whoop HD Drone ( Racing / Freestyle Version Optional)

Package Included:
1 x Mobula6 Whoop HD Drone (Racing / Freestyle Version Optional)
