Description
19.5g Happymodel Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
Notice: Because the MPU6000 is out of production, the flight controller and related Drone will gradually be replaced by ICM20689 or BMI270.
Notice:
Because the previous materials of the bag are seriously out of stock, happymodel change it in soft fabric material .
At present, our stock are mix, will send randomly.
July 18th, 2021.
Specification:
Brand: Happymodel
Item Name: Moblite7 1S 75mm ultra light brushless whoop
Wheelbase: 75mm
Size: 97x97x25mm

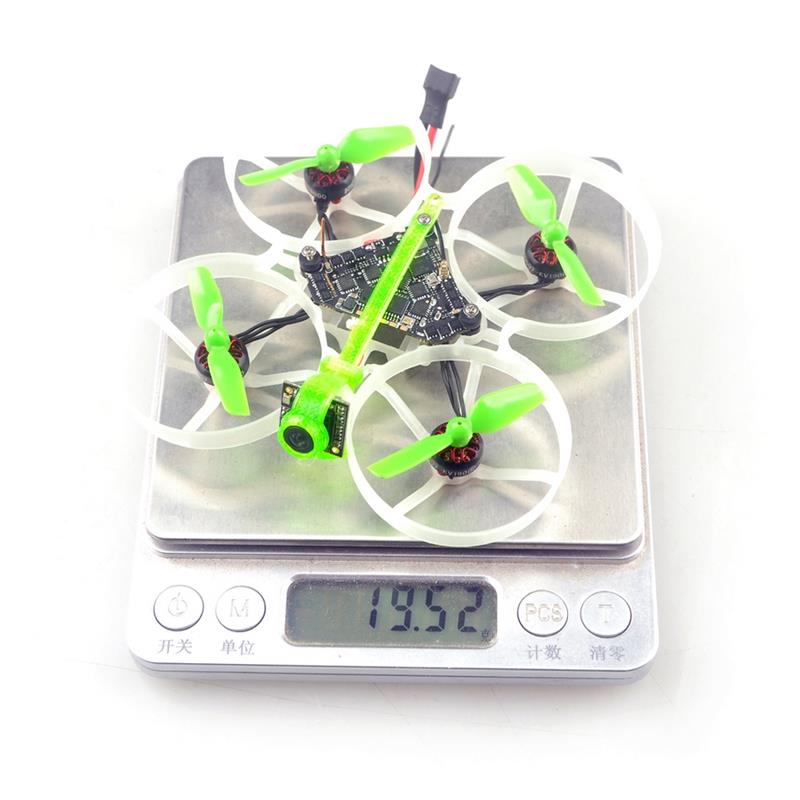

Weight: 19.5g
(without battery)
Weight: 36g
(with Original 1s 650mah
Lipo battery )
| Motor | Model: EX 0802 19000KV ( New Unibell Version) Configuration: 9N12P Stator Diameter: 8mm Stator Length: 2mm Shaft Diameter:??1mm Motor Dimension(Dia.*Len): ??10.5mm*14.9mm Weight(g): 1.7g No.of Cells(Lipo): 1S only |
| Flight Controller | (Frsky SPI RX Version) DiamondF4 FR FC Firmware Target: CrazybeeF4FR MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU6000 Or ICM20689 or BMI270. (SPI connection) battery input (DC 2.9V-4.35V) |
| Onboard 4in1 ESC | MCU Upgraded to EFM8BB21 Power Supply: 1S LiPo/LiPo HV Current: 5A continuous, peak 6A (3 seconds) Support BLHeliSuite programmable Factory Firmware: O_H_50_REV16_8.HEX Default Protocol: DSHOT600 |
| Onboard Frsky SPI D8 receiver Version | SPI BUS Receiver Frsky D8 Compatible Compatible Non EU transmitter D8 model Channels: 8CH Failsafe Support No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m |
| Onboard Flysky Receiver Version | SPI BUS Receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8CH (AFHDS) or 14CH (AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe Support |
| Onboard 5.8G 40CH 25-200mW VTX | Output Power: 25mw~200mw switchable Frequency: 40CH Input Voltage: 3.3V 5.5V Current Consumption: 300mA (type) Frequency: 5.8GHz 5bands 40 channels (include Race band) Smartaudio Ready |
| Runcam Nano 3 FPV Camera | Model: RunCam Nano 3 Image Sensor: 1/3′ CMOS Horizontal Resolution: 800TVL Lens: 2.1mm(M8) FOV 160?? Signal System: PAL/NTSC Non Switchable S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm |
| Lipo Battery |
Capacity: 650mAh |
Features:
– The lightest 1s 75mm brushless whoop
– Powerful and efficiency
– The lightest 1s AIO 5IN1 F4 flight controller
– New Unibell EX0802
brushless motors
– Low profile Canopy design
– VTX power switchable 25mw~200mw
Package Included:
1 x
Happymodel Moblite7 75mm Whoop RC FPV Racing Drone
Option1:
1 x
DiamondF4 FR built-in SPI Frsky Receiver
Option2:
1 x
DiamondF4 FS built-in SPI Flysky Receiver
4 x
EX0802 KV19000 Unibell Brushless Motor
1 x
HQPROP 40MMX2 Propeller(4cw+4ccw)
1 x
Runcam Nano 3 FPV Camera
1 x
Built-in 5.8G 40ch 25mw-200mw VTX
2 x
1S 650mah Lipo Battery
1 x
Propeller Disassemble Tool
1 x
Screwdriver
1 x

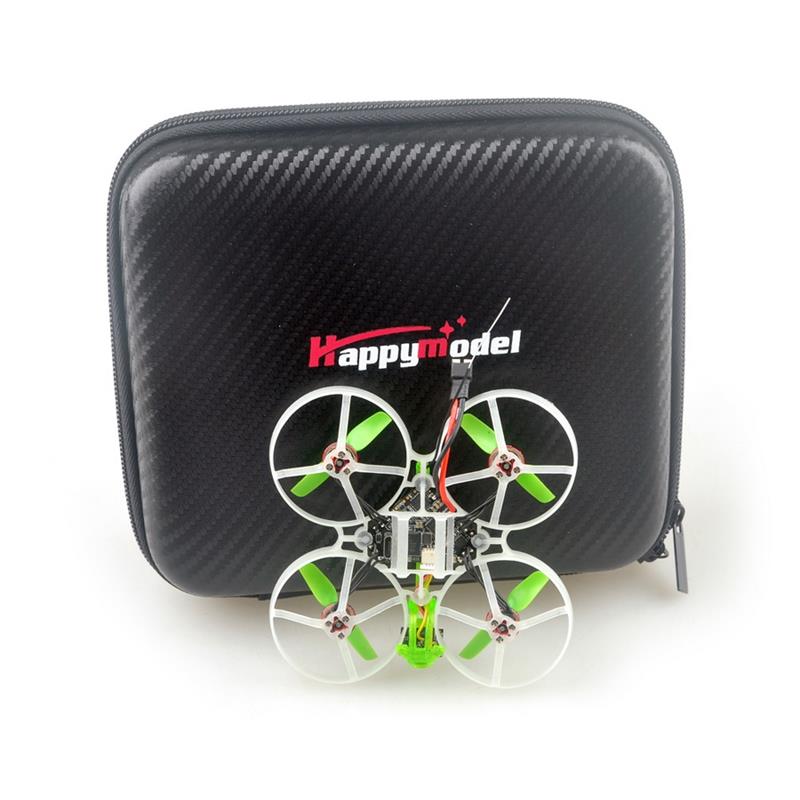

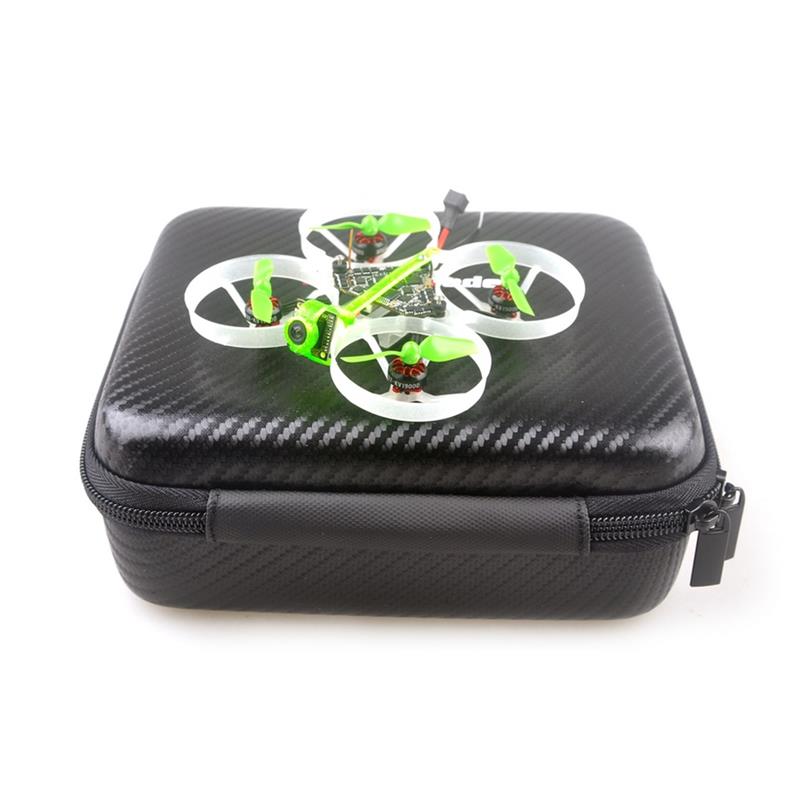

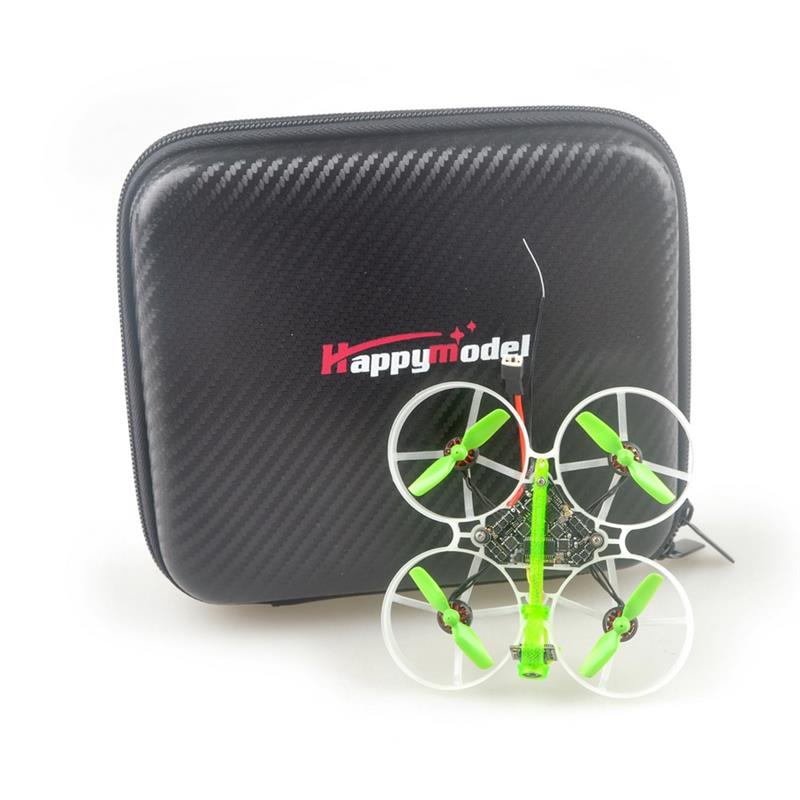

Happymodel Carry Case
